C65 & 609

Material Configurations: Rotary Ring Face: Carbon/SiC/TC, Stationary Ring Face: SiC/TC, Elastomers: Flexible Graphite, Springs: AM350/Inconel 718/HC-276, Metal Parts: 410S/SS316L/4J42/Hastelloy
GA Number:
Seal Model: C65 and 609 (Cartridge Version)
Suitable Pumps/Equipment:

Category: Bellow Seals

Mechanical Seal Quote Request

Product Request Form

This form will be used to Product Inquiry.

Requester's First Name

Requester's Last Name

Requester's Email

Requester's Phone Number

Type of Seal

Inquired Seal Model

Single or Double-ended?

Single-ended

Double-ended

Stationary Face Ring Material

Rotary Face Ring Material

Elastomers

Spring Material

Metal Parts

Upload Assembly Document

Choose File

Medium (Chemical Content)

Operating Temperature

Operating Pressure

Shaft Running Speed

Seal Deployment

Product Detailed Description

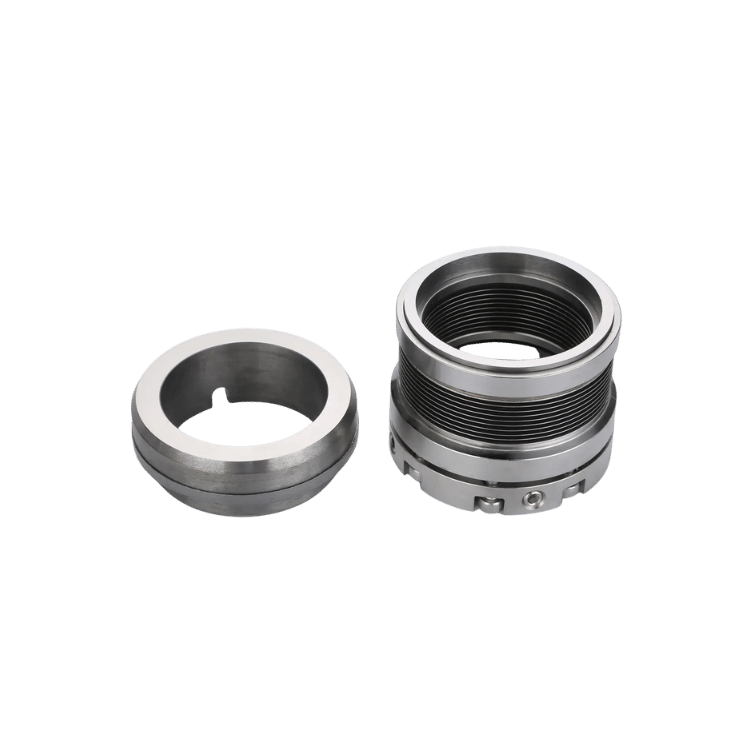

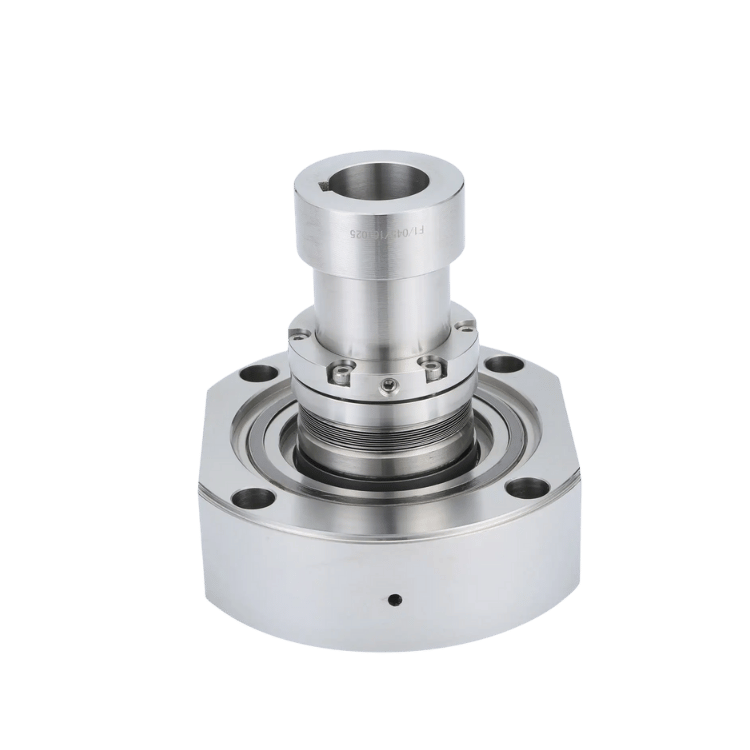

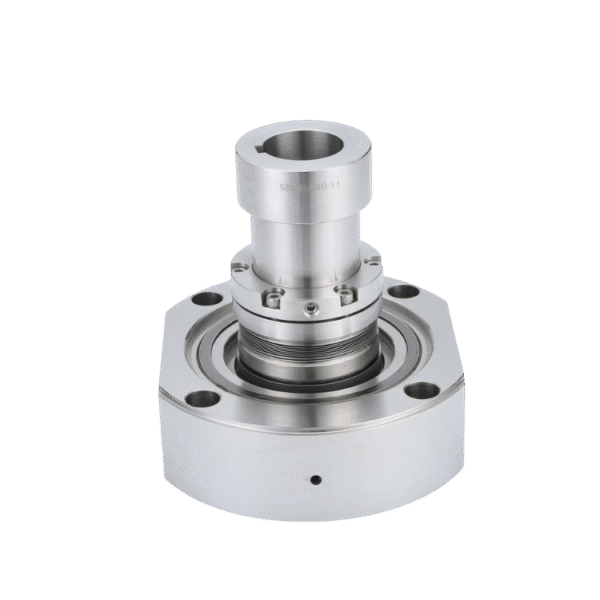

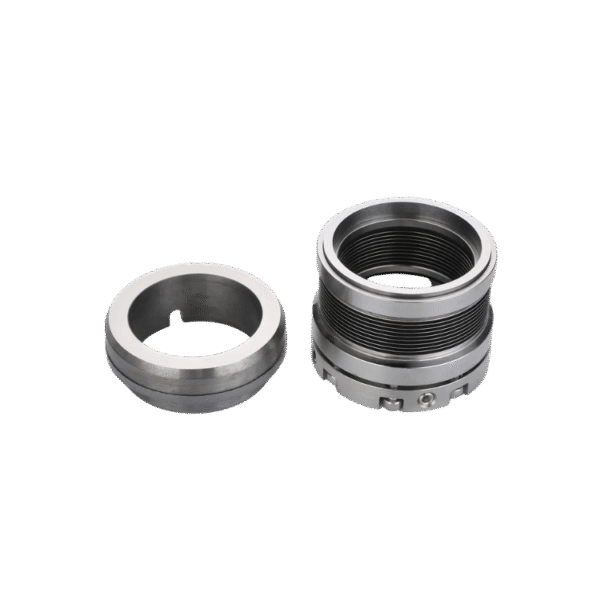

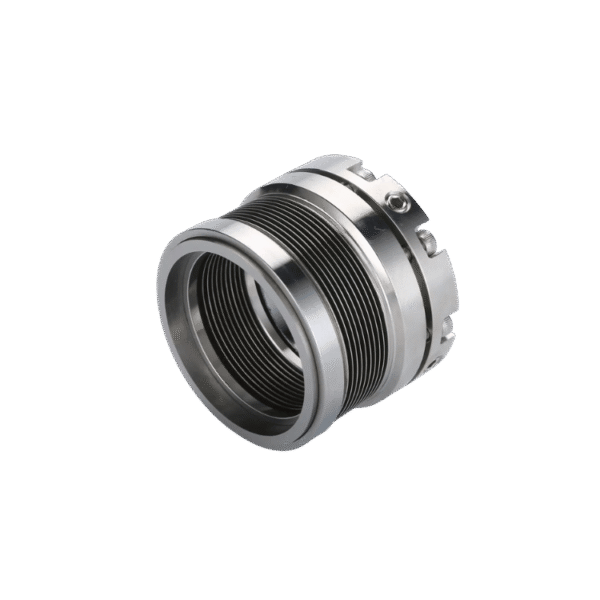

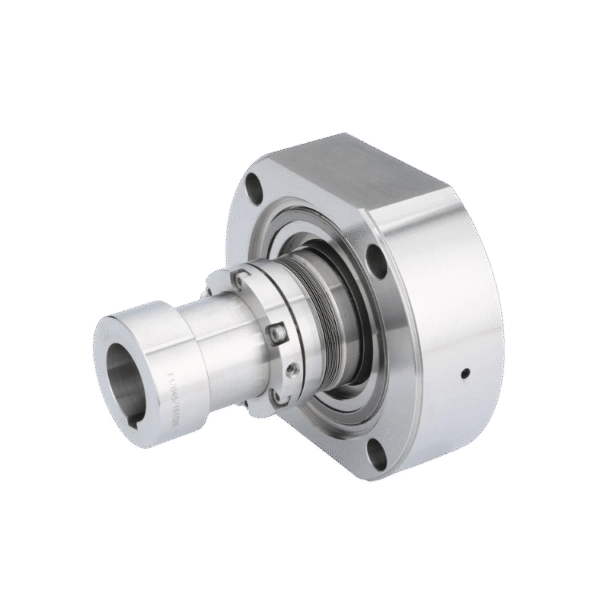

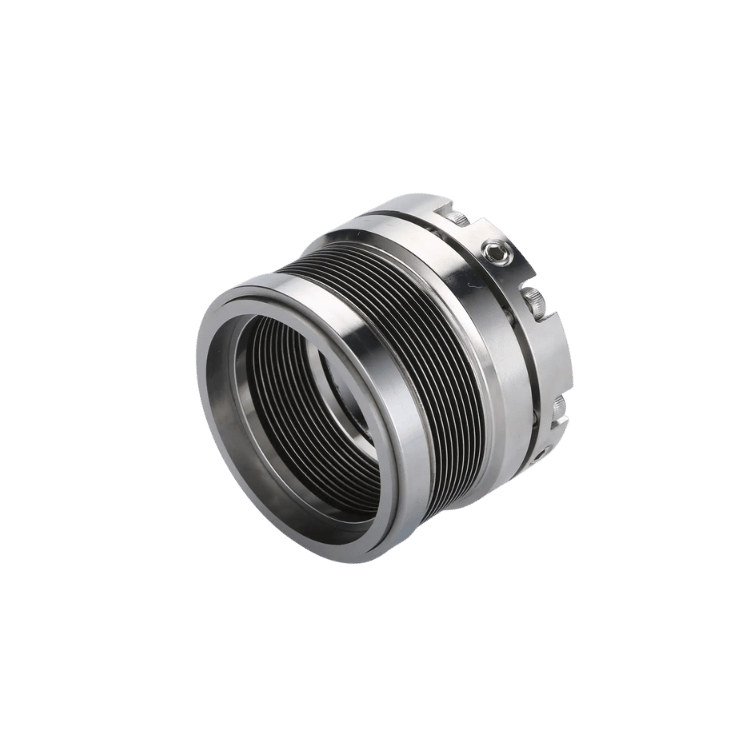

C65 and 609 Metal Bellow Mechanical Seals

Structural Features: single end, balanced, independent direction of rotation, metal bellow, cartridge seal. The auxiliary seal ring is made of expanded graphite, which is suitable for complex operating conditions and mixed sealed mediums. This seal component is easy to install and adjust and has specifically great performance while used in medium-and-high viscosity and high or low temperature content.

Industrial Standards: DIN24960, ISO3069, GB6556, EN12756

Scopes of Application: mainly used in chemical pumps, oil pumps, screw pumps and oil extraction equipment for industries such as chemical engineering, oil refining, chemical fiber, food processing, pharmacy, thermoelectricity, and paper making.
