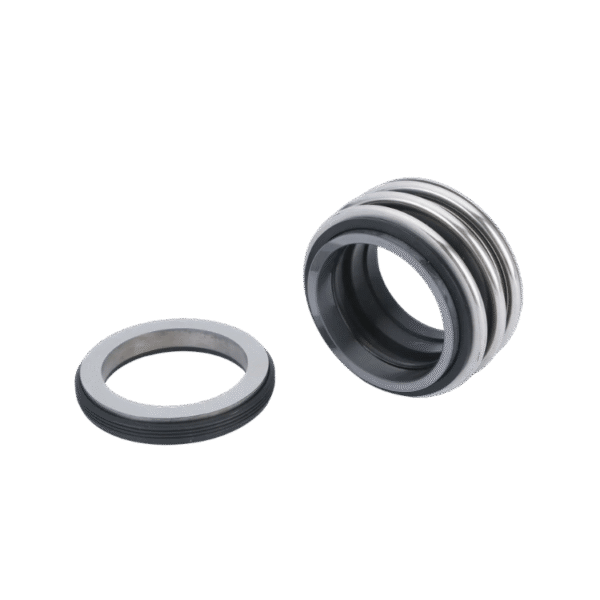

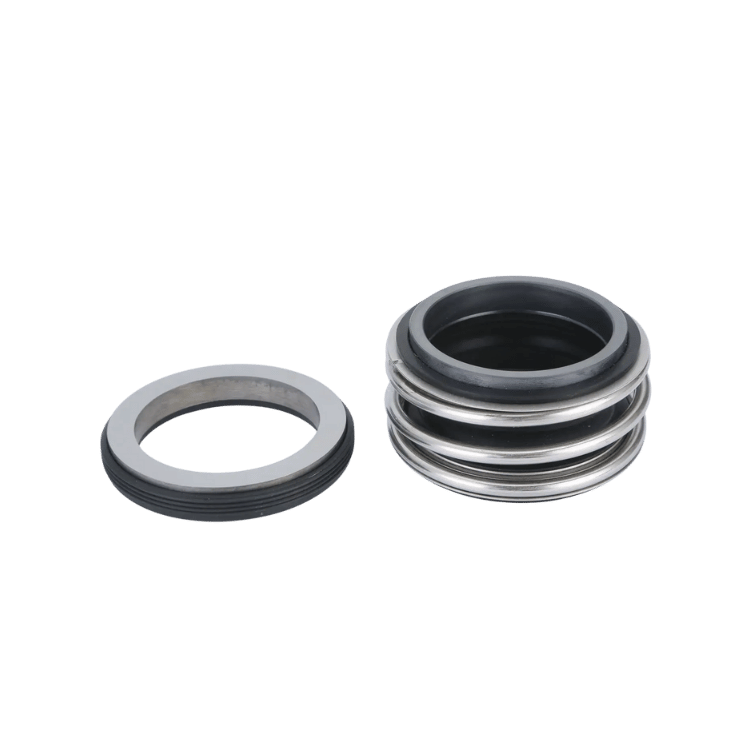

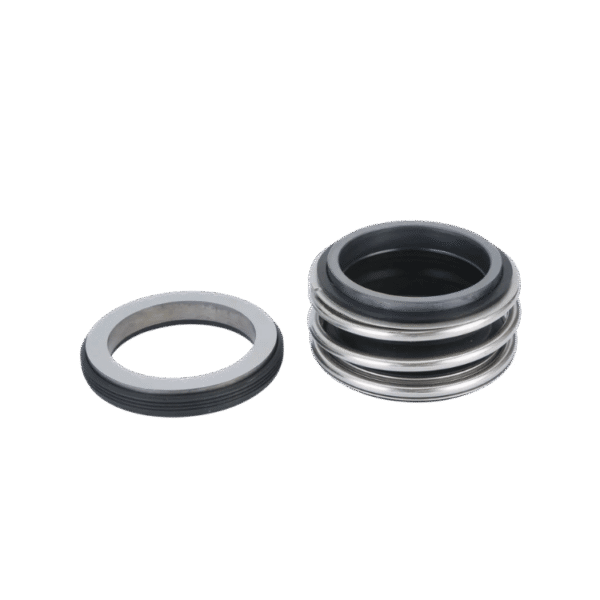

MG1, AKA 109, U4801

Material Configurations: Rotary Ring: Carbon/SiC/TC, Stationary Ring: Al2O2/SiC/TC, Elastomers: NBR/EPDM/Viton, Springs: SS304/SS316, Metal Parts: SS304/SS316
GA Number:
Seal Model: MG1, AKA 109, U4801
Suitable Pumps/Equipment:

Category: Bellow Seals

Mechanical Seal Quote Request

Product Request Form

This form will be used to Product Inquiry.

Requester's First Name

Requester's Last Name

Requester's Email

Requester's Phone Number

Type of Seal

Inquired Seal Model

Single or Double-ended?

Single-ended

Double-ended

Stationary Face Ring Material

Rotary Face Ring Material

Elastomers

Spring Material

Metal Parts

Upload Assembly Document

Choose File

Medium (Chemical Content)

Operating Temperature

Operating Pressure

Shaft Running Speed

Seal Deployment

Product Detailed Description

MG1, AKA 109, U4801 Mechanical Seal for Water Pumps, Centrifugal Pumps, Submerged Motors, Vacuum Pumps, and Piping Pumps

Structural Features: single end, unbalanced, fixed direction of rotation, rubber bellow, rubber bellow transmission mechanical seal. This component seal has a compact structure and good compatibility and it is easy to install. The bellow and the spring provide pressure compensation to the sealing faces. The rubber bellow design can prevent radial run-out so the floatability of the rotary ring is increased.

Industrial Standards: DIN24250, ISO3069, GB6556, EN12756

Scopes of Application: widely used in water pumps, piping pumps, sewage pumps, immersible motors, vacuum equipment and other rotary devices for sewage treatment, city water supply, chemical engineering, pharmacy, food processing, and paper making.

MG1, AKA 109, U4801

MG1, AKA 109, U4801
