MG9
MG9
Material Configurations: Rotary Ring Face: Carbon/SiC/TC, Stationary Ring Face: Al2O2/SiC/TC, Elastomers: NBR/EPDM/Viton, Springs: SS304/SS316, Metal Parts: SS304/SS316
GA Number:
Seal Model: MG9
Suitable Pumps/Equipment:
Product Detailed Description

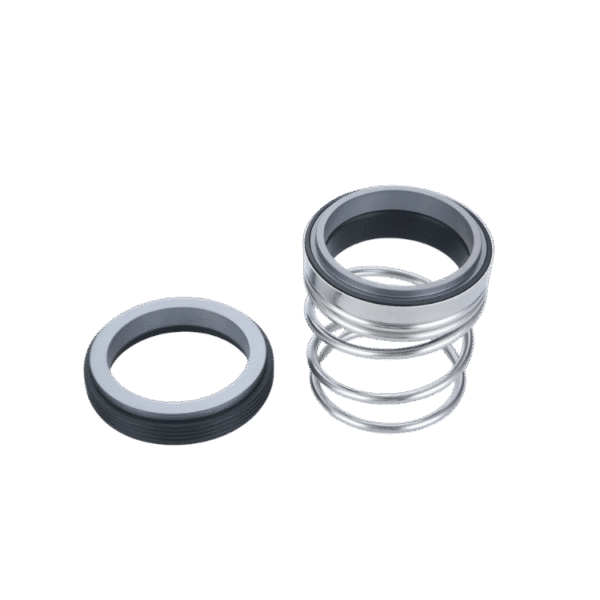

MG9 Mechanical Seal for Clean Water Pumps, Circulating Pumps and Vacuum Pumps
Structural Features: single end, unbalanced, independent direction of rotation, rubber bellow transmission. This component has a compact structure with good compatibility and easy installation. The rubber bellow design prevents possible radial run-out so that the floatability of the rotary ring is increased.
Industrial Standards: DIN24960, ISO3069, GB6556, EN12756
Scopes of Application: widely used in centrifugal pumps, piping pumps, sewage pumps, immersible motors, screw pumps, vacuum equipment and other rotary devices for sewage treatment, city water supply, chemical engineering, pharmacy, food processing, and paper making.. This product can be an alternative to similar products from Eagle Burgmann.
