UU7002J

Material Configurations: Rotary Ring Face: Carbon/SiC/TC, Stationary Ring Face: Carbon/SiC/TC, Elastomers: NBR/FKM/PTFE/FFKM, Springs: SS304/SS316L/HC-276, Metal Parts: 2Cr13/SS304/SS316/HC-276/TA2
GA Number:
Seal Model: H10
Suitable Pumps/Equipment:

Category: Compressor Seals

Mechanical Seal Quote Request

Product Request Form

This form will be used to Product Inquiry.

Requester's First Name

Requester's Last Name

Requester's Email

Requester's Phone Number

Type of Seal

Inquired Seal Model

Single or Double-ended?

Single-ended

Double-ended

Stationary Face Ring Material

Rotary Face Ring Material

Elastomers

Spring Material

Metal Parts

Upload Assembly Document

Choose File

Medium (Chemical Content)

Operating Temperature

Operating Pressure

Shaft Running Speed

Seal Deployment

Product Detailed Description

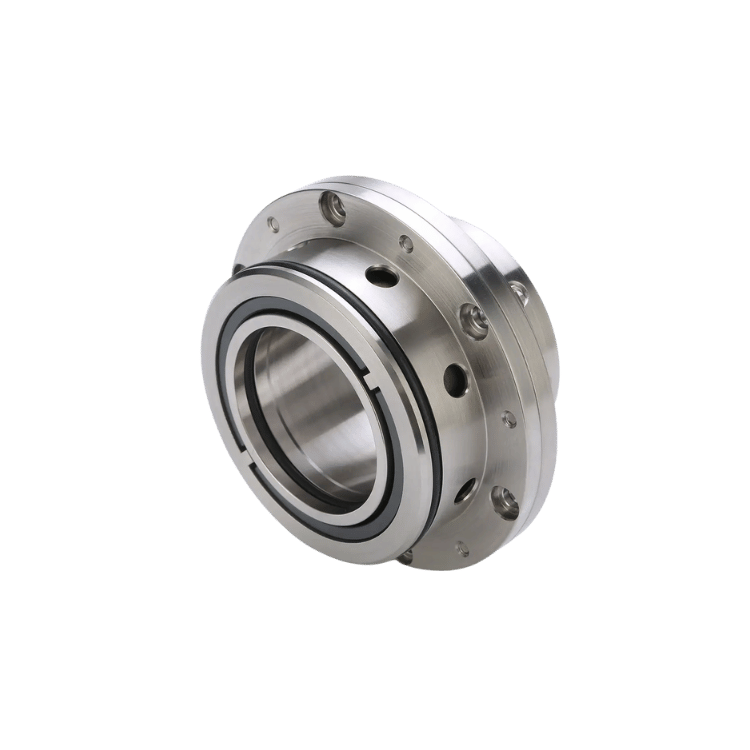

UU7002J Cartridge Mechanical Seal for Roots Blowers and other Blowers

Structural Features: double end, multi springs, unbalanced, independent rotary direction, cartridge mechanical seal. Double end and unbalanced structure, compensation ring component, the stationary ring and the sleeve are pre-assembled together. The structure of this seal is simple and easy to install. The locking mechanism of the seal is stable and reliable and the multiple springs make the loads on the seal faces balanced. There is no limit to the rotary direction. The seal can be installed into the cavity of the operating device.

Industrial Standards: Specifically Customized

Scopes of Application: widely used in Roots blowers and other types of blowers.

UU7002J

UU7002J

Product Request Form

Product Detailed Description
