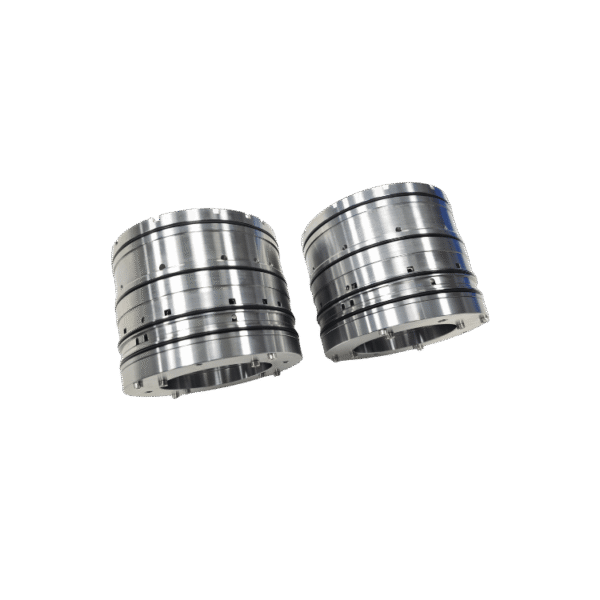

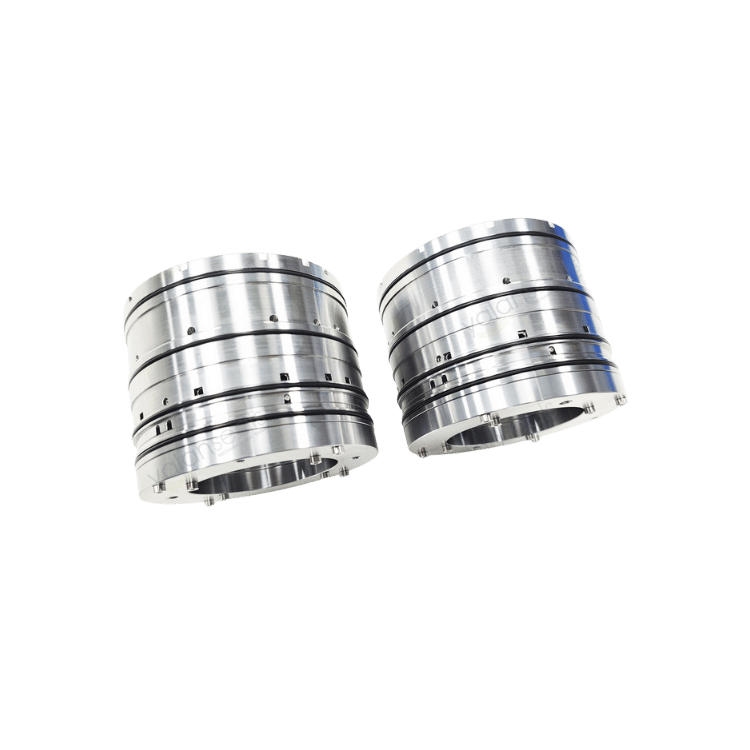

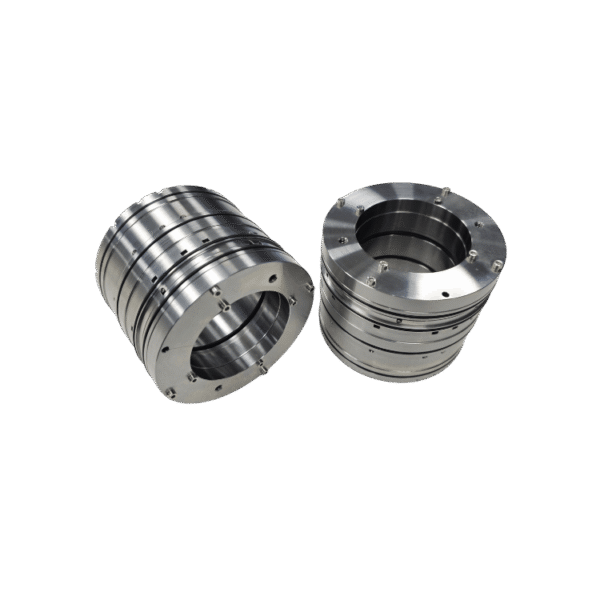

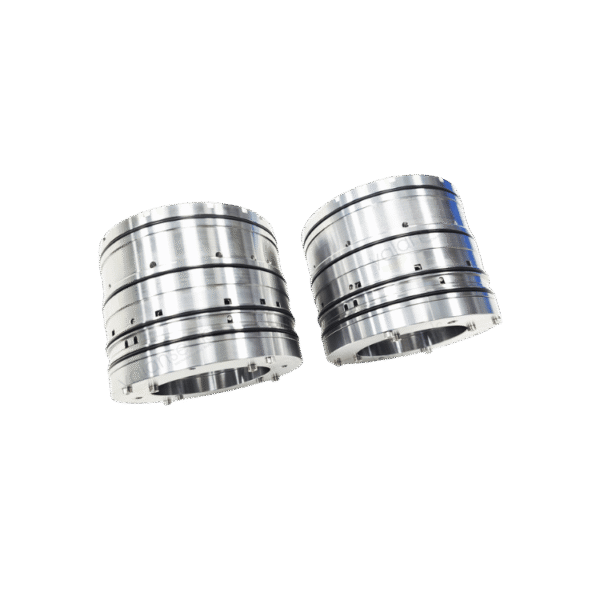

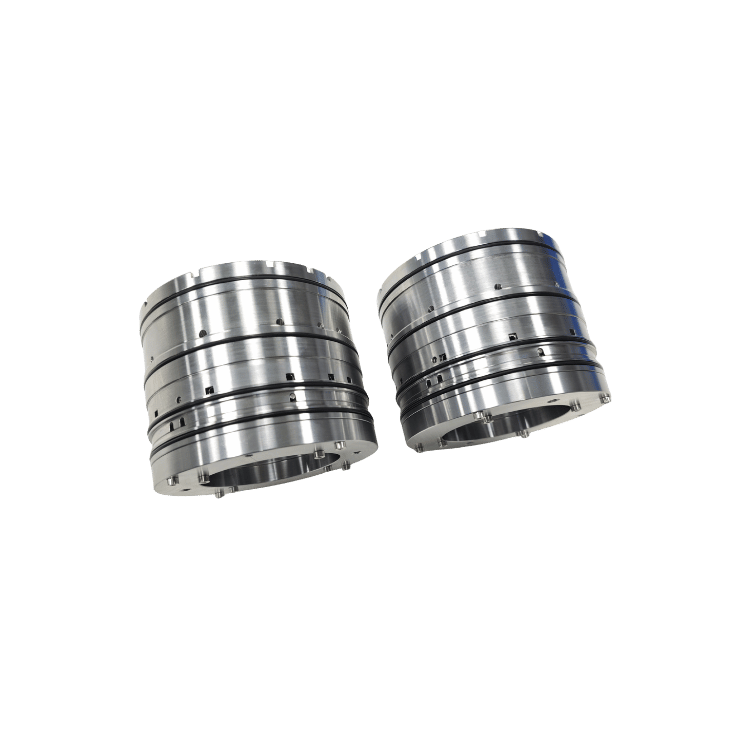

Flowserve GasPac T-093 Dry Gas Seal

Material Configurations: Tungsten Carbide/SSiC/Flourocarbon/HC276/410S – Tungsten Carbide/SSiC/Flourocarbon
GA Number:
Seal Model: GasPac T-093
Suitable Pumps/Equipment: MAN Turbin Compressor

Category: Dry Gas Seals

Mechanical Seal Quote Request

Product Request Form

This form will be used to Product Inquiry.

Requester's First Name

Requester's Last Name

Requester's Email

Requester's Phone Number

Type of Seal

Inquired Seal Model

Single or Double-ended?

Single-ended

Double-ended

Stationary Face Ring Material

Rotary Face Ring Material

Elastomers

Spring Material

Metal Parts

Upload Assembly Document

Choose File

Medium (Chemical Content)

Operating Temperature

Operating Pressure

Shaft Running Speed

Seal Deployment

Product Detailed Description

GasPac design features:
1. Bi-directional patented SMT-grooves or uni-directional APGS
2. Very high pressure capability (tested to 6300 psi / 435 bar)
3. Very high speed capability (300 m/s)
4. Lightweight rotating face for less rotor dynamic influence
5. Low leakage rates
6. Multiple material combinations available
7. Standardized components and established proven design
8. Every seal is performance tested before delivery for optimum quality
9. Narrow face design option for screw compressors

GasPac T is a Tandem cartridge, compressor seal used on many applications. The primary seal handles the full product pressure. The secondary seal is a back-up seal that normally runs at low pressure but can handle the full pressure in the event of a primary seal failure.

Flowserve GasPac T-093 Dry Gas Seal
