AK5M

Material Configurations: Rotary Ring Face: Carbon/SiC/TC, Stationary Ring Face: SiC/TC, Elastomers: NBR/EPDM/Viton/Aflas, Springs: SS304/SS316/PH17-4, Metal Parts: SS304/SS316/SS316L
GA Number:
Seal Model: AK5M
Suitable Pumps/Equipment:

Category: Paper & Pulp Seals

Mechanical Seal Quote Request

Product Request Form

This form will be used to Product Inquiry.

Requester's First Name

Requester's Last Name

Requester's Email

Requester's Phone Number

Type of Seal

Inquired Seal Model

Single or Double-ended?

Single-ended

Double-ended

Stationary Face Ring Material

Rotary Face Ring Material

Elastomers

Spring Material

Metal Parts

Upload Assembly Document

Choose File

Medium (Chemical Content)

Operating Temperature

Operating Pressure

Shaft Running Speed

Seal Deployment

Product Detailed Description

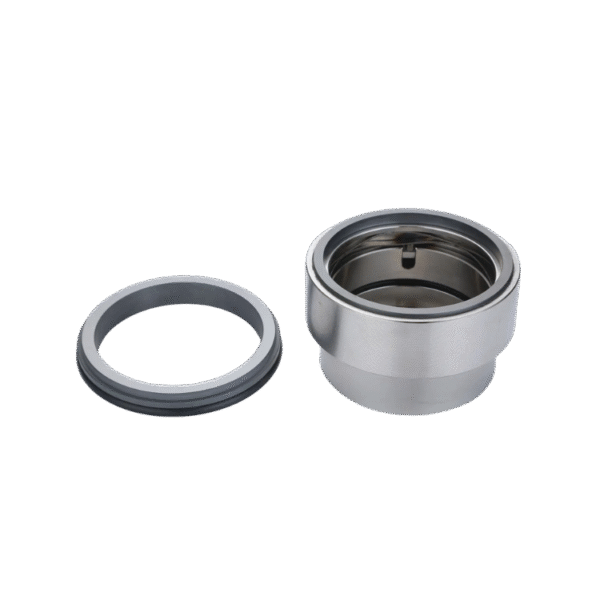

AK5M Mechanical Seal for Paper-making Equipment and other Industrial Pumps

Structural Features: single-end, balanced, independent direction of rotation, wave spring with spring protector. The spring is separated from the sealed mediums so it will not be jammed. This seal component has a simple structure and is easy to install with stable performance.

Industrial Standards: DIN24960, EN12756, ISO03069, GB6556.

Scopes of Application: widely used in chemical engineering, pulp production, pulp cooking, and sewage treatment. Designed for paper pulp pumps, sewage pumps, chemical pumps and other rotary devices and works and replacement to similar products of ANDRITZ and Sulzer.

AK5M

AK5M

Product Request Form

Product Detailed Description

Related Products

JCS1C-85-QREO-144813

JCS1C-70-QREO-148885

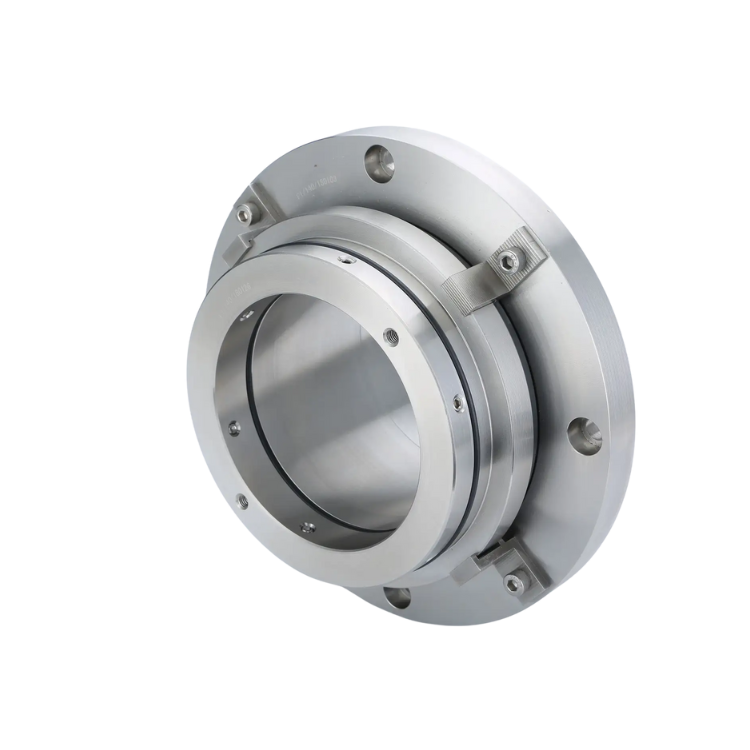

SY2008

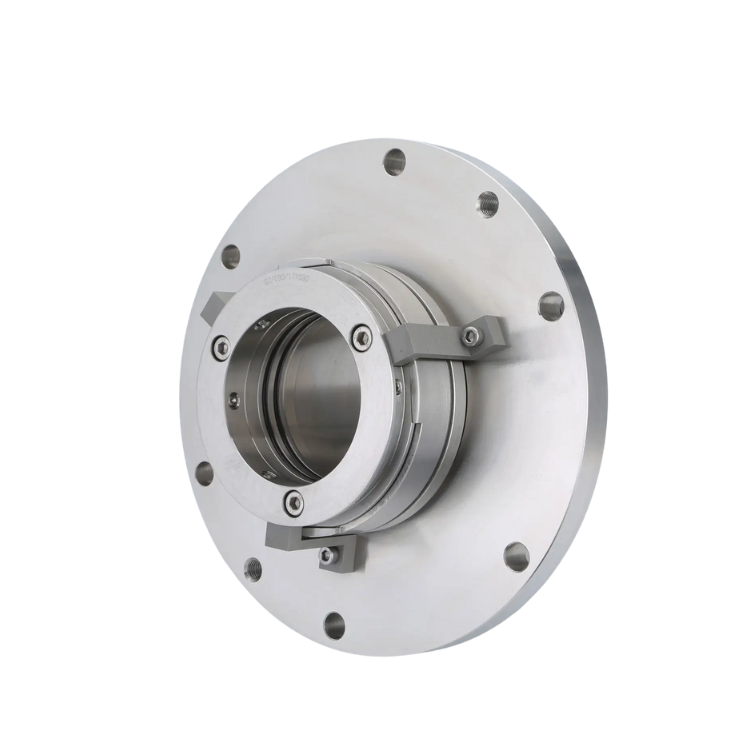

SAF
