CDPN

Material Configurations: Rotary Ring Face: SiC/TC, Stationary Ring Face: SiC/TC, Elastomers: Viton/EPDM/Aflas/FFKM, Springs: SS304/SS316/HC-276, Metal Parts: 410S/SS304/SS316/SS316L/2205/2507
GA Number:
Seal Model: CDPN
Suitable Pumps/Equipment:

Category: Paper & Pulp Seals

Mechanical Seal Quote Request

Product Request Form

This form will be used to Product Inquiry.

Requester's First Name

Requester's Last Name

Requester's Email

Requester's Phone Number

Type of Seal

Inquired Seal Model

Single or Double-ended?

Single-ended

Double-ended

Stationary Face Ring Material

Rotary Face Ring Material

Elastomers

Spring Material

Metal Parts

Upload Assembly Document

Choose File

Medium (Chemical Content)

Operating Temperature

Operating Pressure

Shaft Running Speed

Seal Deployment

Product Detailed Description

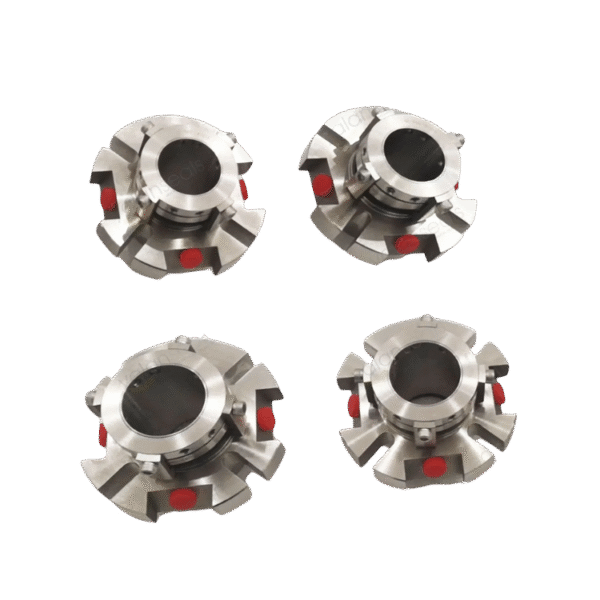

Retrofit Mechanical Seals for AES CDPN Double Cartridge Seals for Pulp Pumps and Chemical Pumps

Structural Features: double end, multi springs, unbalanced, independent rotary direction, rotary compensation unit structure, shaft sleeve transmission. Drive screws clamp directly on to shaft or sleeve to minimise drive loss. Alloy 276 helical coil springs ensure accurate uniform seal face loading throughout the seal life. Springs are placed out of the product media to eliminate clogging and loss of face loading.

Industrial Standards: Enterprise Standard.

Scopes of Application: mainly used in paper-making equipment, slurry pumps, pressure screens, and flue gas desulphurization for chemical engineering, chemical processing pumps, power plants, mining, oil refining, alumina plants, food processing, pharmacy, and paper making. This seal works as an alternative to similar products of AESSeals CSSN series mechanical seals.

CDPN

CDPN

Product Request Form

Product Detailed Description

Related Products

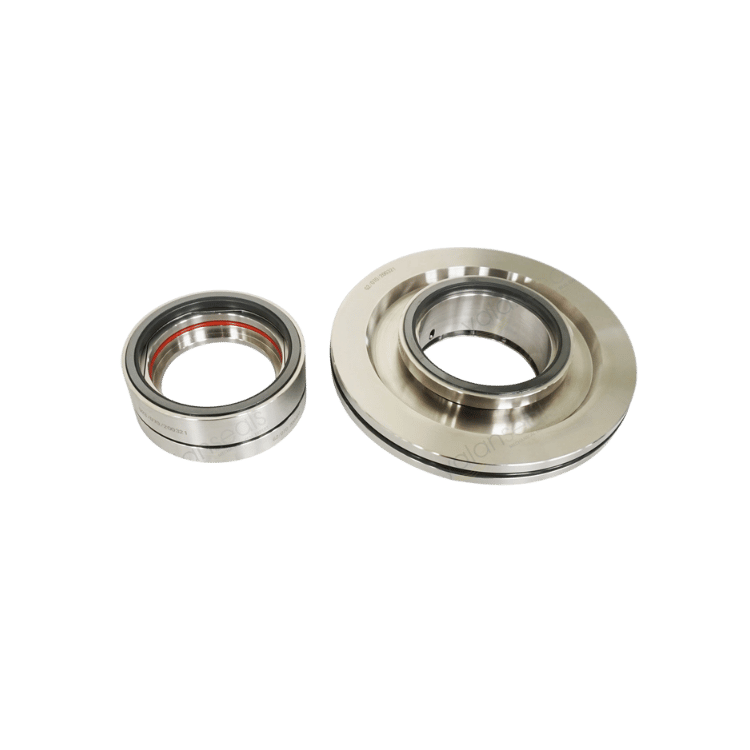

JCS1C-85-QREO-144813

JCS1C-33-QREO-169742

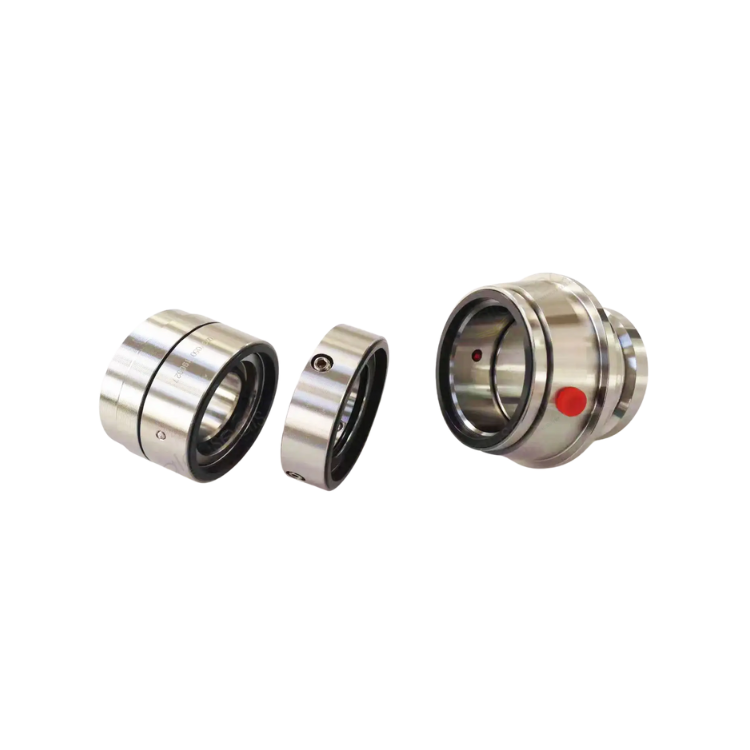

TB1, TB1F & TB2

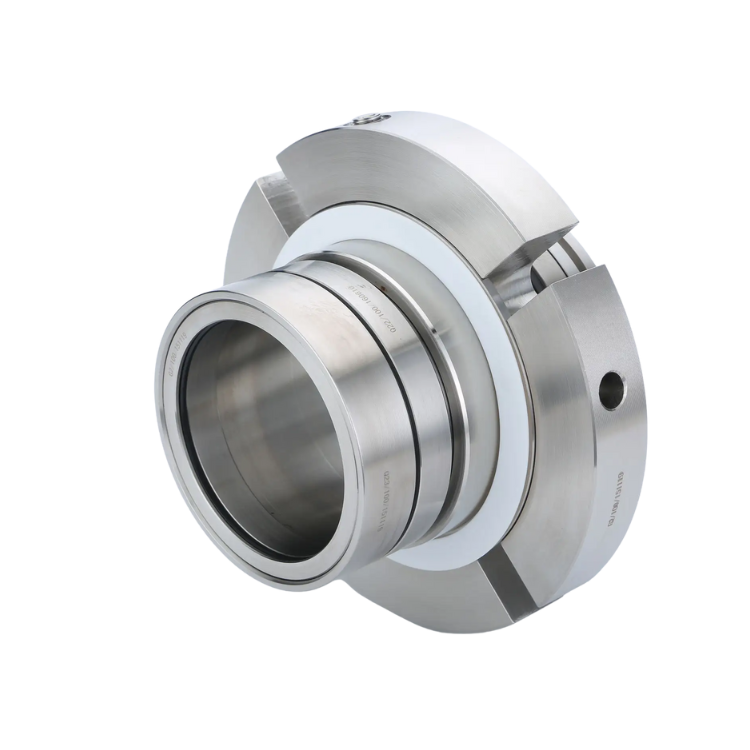

SB2
