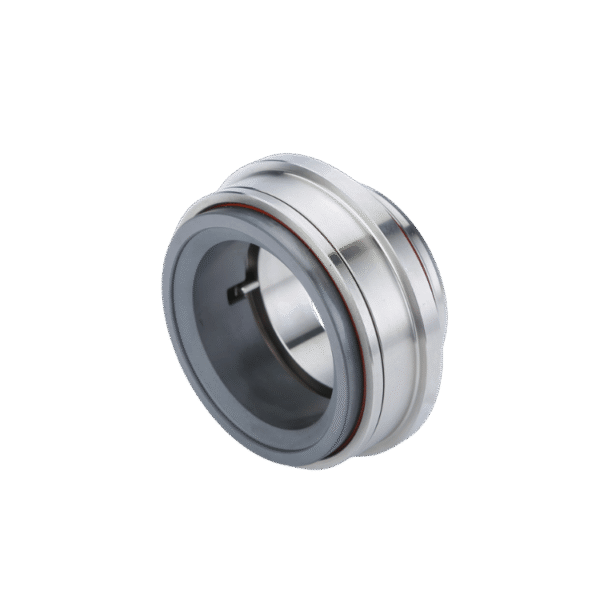

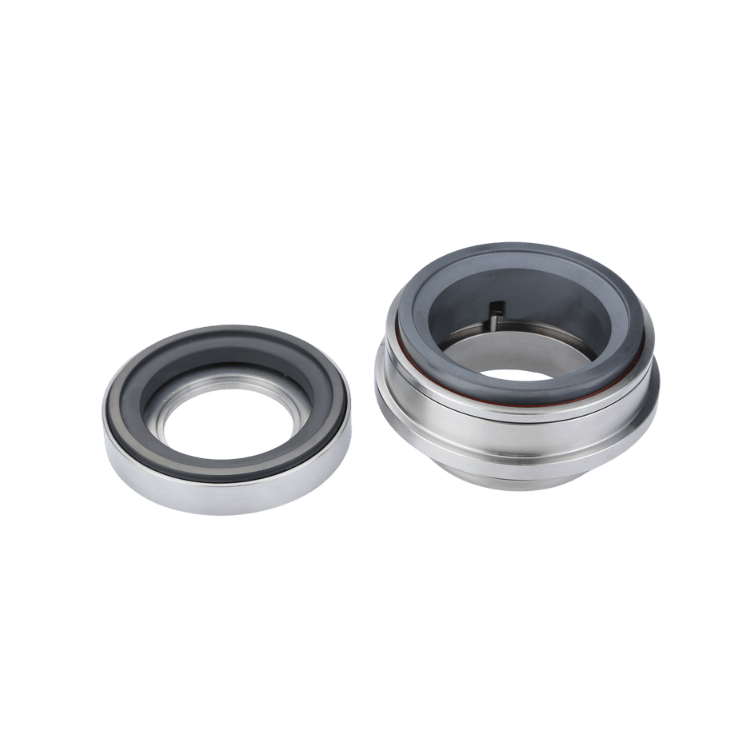

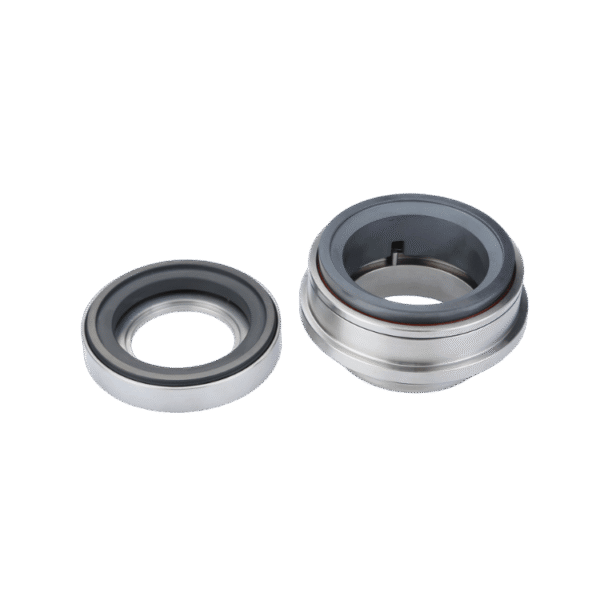

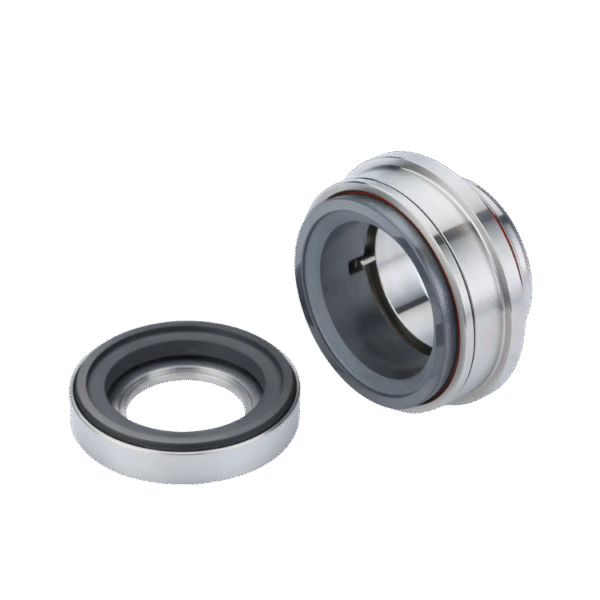

JC587SP-38

Material Configurations: SiC/SiC/EPDM/SS316/SS316
GA Number:
Suitable Pumps/Equipment: Andrtiz SP Series

Category: Paper & Pulp Seals

Mechanical Seal Quote Request

Product Request Form

This form will be used to Product Inquiry.

Requester's First Name

Requester's Last Name

Requester's Email

Requester's Phone Number

Type of Seal

Inquired Seal Model

Single or Double-ended?

Single-ended

Double-ended

Stationary Face Ring Material

Rotary Face Ring Material

Elastomers

Spring Material

Metal Parts

Upload Assembly Document

Choose File

Medium (Chemical Content)

Operating Temperature

Operating Pressure

Shaft Running Speed

Seal Deployment

Product Detailed Description

Single-end, double balanced, independent direction of rotation, wave spring with spring protector. The still spring structure allows high speed operating conditions. The spring is separated from the sealed mediums so it will not be jammed. This seal component has a simple structure and is easy to install with stable performance. Widely used in paper pulp production, pharmacy, food processing, sewage treatment and chemical processing. Designed for paper pulp pumps, sewage pumps and chemical pumps.

JC587SP-38

JC587SP-38
