SB2

SB2

Material Configurations: Rotary Ring Face, Medium Side: SiC/TC, Sealing Water Side: SiC/TC
Stationary Ring Face, Medium Side: SiC/TC, Sealing Water Side: Carbon/SiC/TC, Elastomers: Viton/EPDM/PTFE/Aflas, Springs: SS316/HC276, Metal Parts: SS304/SS316/SS316L/2507/2205
GA Number:
Seal Model: SB2
Suitable Pumps/Equipment:

Category: Paper & Pulp Seals

Mechanical Seal Quote Request

Product Request Form

This form will be used to Product Inquiry.

Requester's First Name

Requester's Last Name

Requester's Email

Requester's Phone Number

Type of Seal

Inquired Seal Model

Single or Double-ended?

Single-ended

Double-ended

Stationary Face Ring Material

Rotary Face Ring Material

Elastomers

Spring Material

Metal Parts

Upload Assembly Document

Choose File

Medium (Chemical Content)

Operating Temperature

Operating Pressure

Shaft Running Speed

Seal Deployment

Product Detailed Description

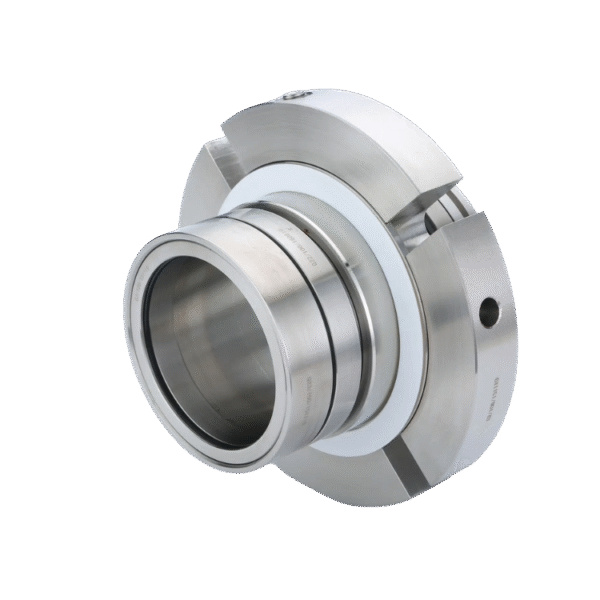

SB2 Mechanical Seal for Paper Pulp Pumps and Flue Gas Desulfurization System, Safematic Replacement Seal

Structural Features: double end, multi springs, balanced, independent rotary direction, still structure, pin transmission. The still springs are suitable for high operating speed. The springs are separated from the sealed mediums so they will not be jammed. Piston design allows great axial shifting. The seal is cartridge design with easy installation and reliable performance.

Industrial Standards: Specific Customization.

Scopes of Application: designed for paper pulp pumps, condensation pumps, filters, pressure screens and other rotary devices for chemical engineering, pulp making and filtering and sewage treatment. This component can work as an part of ANDRITZ Safematic seal support system.
