SE2, SE2C, SE2-P1 & SE2-AP

Material Configurations: Rotary Ring Face: SiC/TC, Stationary Ring Face: SiC/TC, Elastomers: Viton/EPDM/Aflas/PTFE/FFKM, Springs: SS304/SS316/HC-276, Metal Parts: 410S/SS304/SS316/SS316L/2205/2507
GA Number:
Seal Model: SE2, SE2C, SE2-P1 & SE2-AP
Suitable Pumps/Equipment:

Category: Paper & Pulp Seals

Mechanical Seal Quote Request

Product Request Form

This form will be used to Product Inquiry.

Requester's First Name

Requester's Last Name

Requester's Email

Requester's Phone Number

Type of Seal

Inquired Seal Model

Single or Double-ended?

Single-ended

Double-ended

Stationary Face Ring Material

Rotary Face Ring Material

Elastomers

Spring Material

Metal Parts

Upload Assembly Document

Choose File

Medium (Chemical Content)

Operating Temperature

Operating Pressure

Shaft Running Speed

Seal Deployment

Product Detailed Description

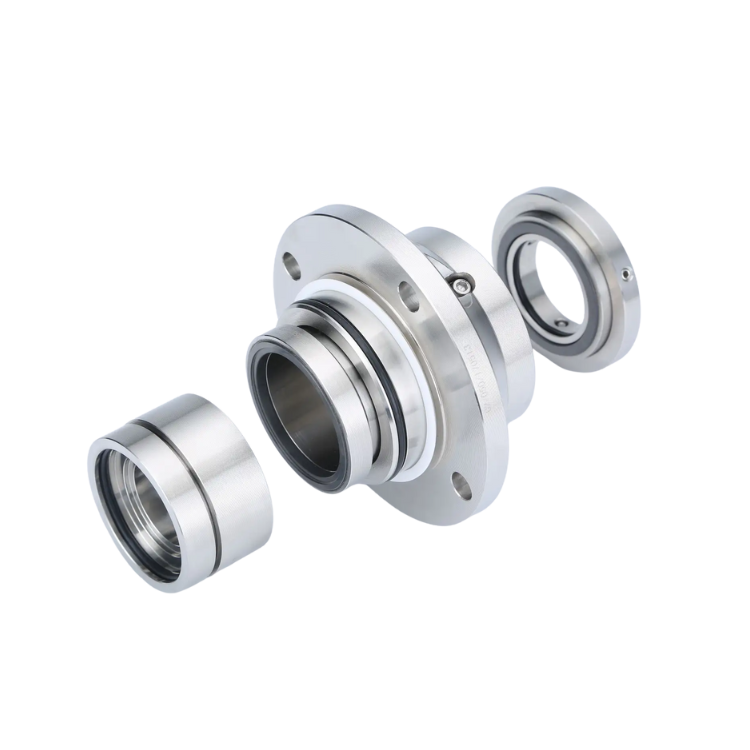

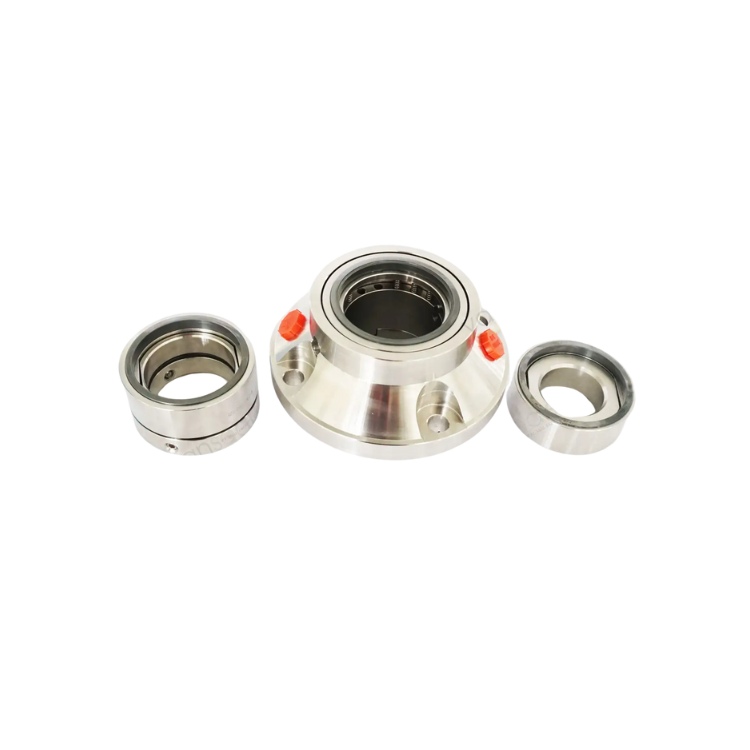

SE2-AP, SE2, SE2C and SE2-P1 Mechanical Seal for Paper-making Equipment, Alumina Plants, Flue Gas Desulphurization, Deashing System and Slurry Pumps, Safematic Replacement Seal

Structural Features: double end, multi springs, balanced, independent rotary direction, still structure, pin transmission. The still springs are suitable for high operating speed. The springs are separated from the sealed mediums so they will not be jammed. Piston design allows great axial shifting. The seal is separated assembled with easy installation and reliable performance.

Industrial Standards: Specific Customization.

Scopes of Application: mainly used in paper-making equipment, slurry pumps, pressure screens, and flue gas desulphurization for chemical engineering, power plants, mining, oil refining, alumina plants, food processing, pharmacy, and paper making. This seal works as an alternative to similar products of Sulzer, working as Safematic replacement seals.

SE2, SE2C, SE2-P1 & SE2-AP
