MVJ1-D11AF3-130SFA

Material Configurations: Rotary Ring Face: SiC, Stationary Ring Face: SiC
Elastomers: Viton, Springs: SS304/SS316/HC-276, Metal Parts: SS304/SS316L/2507/2205
GA Number:
Seal Model: MVJ1-D11AF3-130SFA
Suitable Pumps/Equipment:

Category: Slurry & FGD Seals

Mechanical Seal Quote Request

Product Request Form

This form will be used to Product Inquiry.

Requester's First Name

Requester's Last Name

Requester's Email

Requester's Phone Number

Type of Seal

Inquired Seal Model

Single or Double-ended?

Single-ended

Double-ended

Stationary Face Ring Material

Rotary Face Ring Material

Elastomers

Spring Material

Metal Parts

Upload Assembly Document

Choose File

Medium (Chemical Content)

Operating Temperature

Operating Pressure

Shaft Running Speed

Seal Deployment

Product Detailed Description

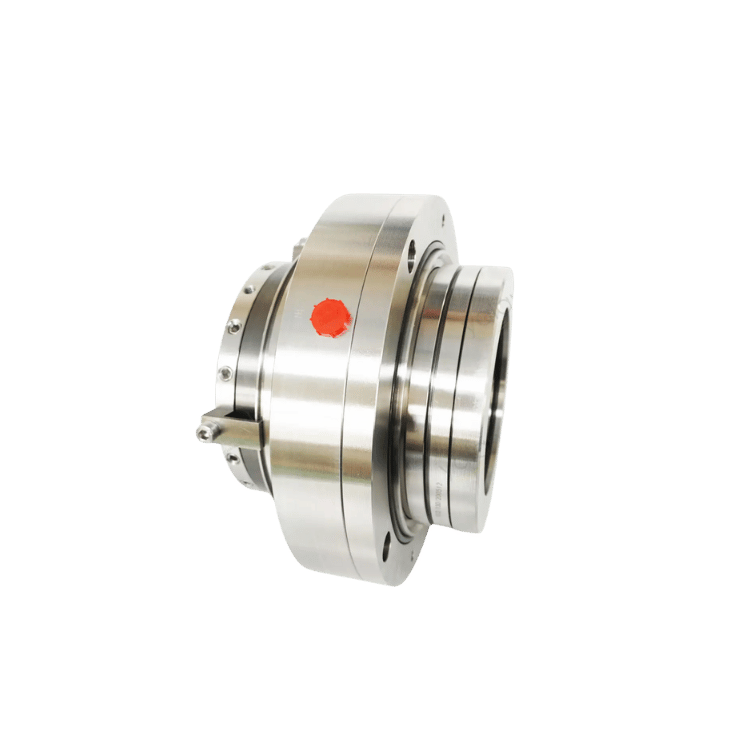

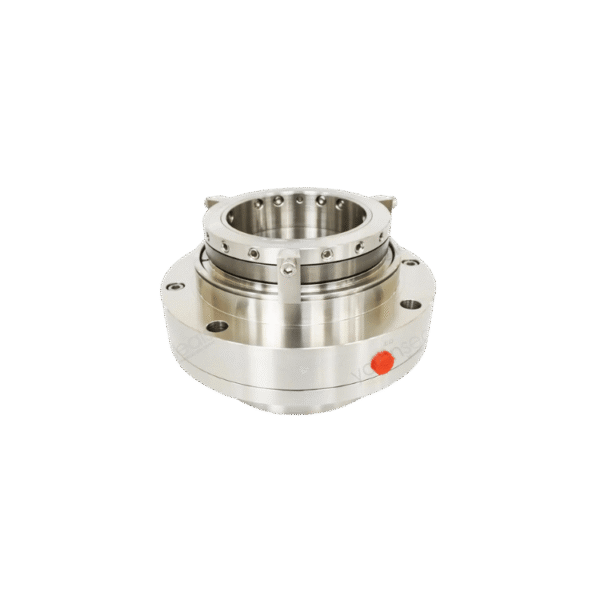

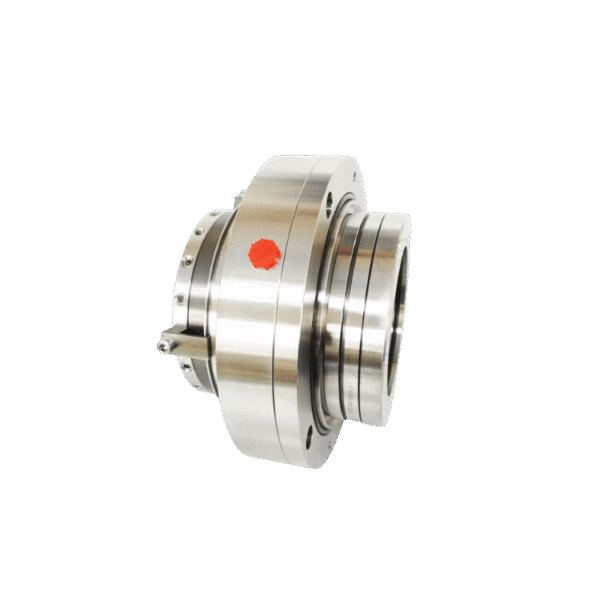

MVJ1-D11AF3-130SFA Double Cartridge Mechanical Seal for Salt Slurry Pumps

Structural Features: double end, multiple springs, with spring protector, balanced, independent direction of rotation. The component is cartridge seal with easy installation. The compensation components are supporting the sleeve. The springs are not having direct contact with the crystallized sealed mediums so that there will be no jam caused by the high viscosity and crystallization active content. This makes sure the flexibility of the compensation ring and as a result, it lasts the lifetime of the whole component. Easy installation, no need to disassemble the seal cavity for the installation.

Industrial Standards: DIN24960, ISO3069, ANSI B73.1M

Scopes of Application: designed specifically for salt slurry pumps and heavy duty chemical pumps for crystallization active medium such as salt slurry.

MVJ1-D11AF3-130SFA
