ZWJ

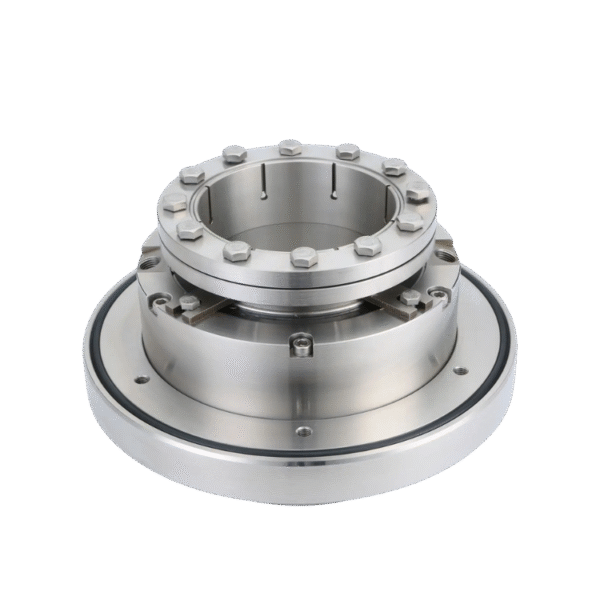

ZWJ Mechanical Seals for Paper-making Equipment, Alumina Plants, Flue Gas Desulphurization, Deashing System and Slurry Pumps

Structural Features: single end, multiple springs, with spring protector, balanced, independent direction of rotation, external seal flush or no flush. The component is cartridge seal with easy installation. The springs are not touching the subjects so that there will be no jam caused by the high viscosity and crystallization active content. This makes sure the flexibility of the compensation ring and as a result, it lasts the lifetime of the whole component. The stationary and rotary rings are palletized with L style pad so that they can have higher flexibility for temperature changes. Easy installation, no need to disassemble the seal cavity for the installation. This seal can work with no external flush conditions as well.

Industrial Standards: DIN24960, ISO3069, ANSI B73.1M, JB/T 12391-2015

Scopes of Application: mainly used in paper-making equipment, alumina plants, flue gas desulphurization (AKA FGD), deashing system (for power plants) and slurry pumps. Comparing to ZGJ, this component works with devices that do not have or do not need to have a cooling system.
