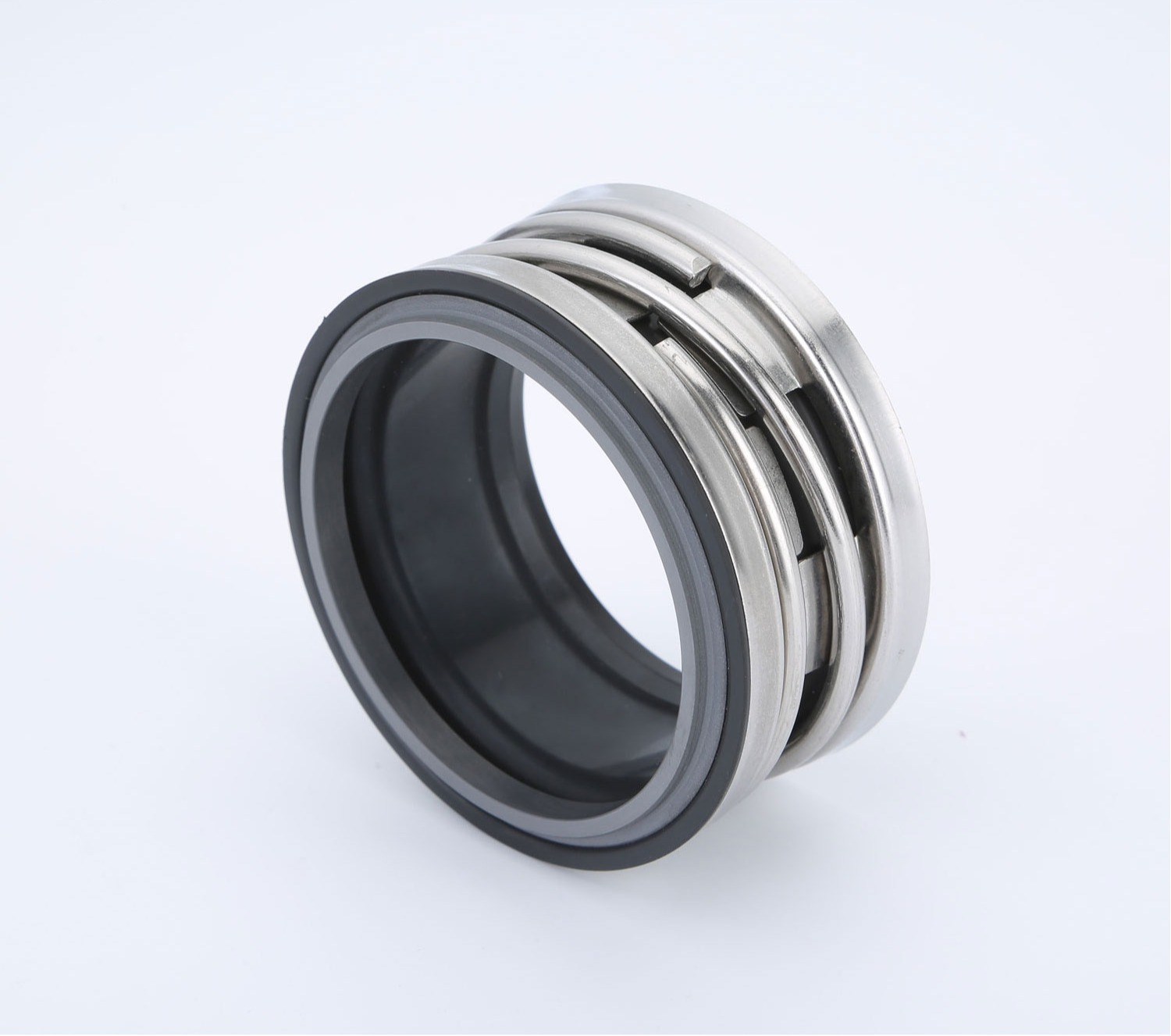

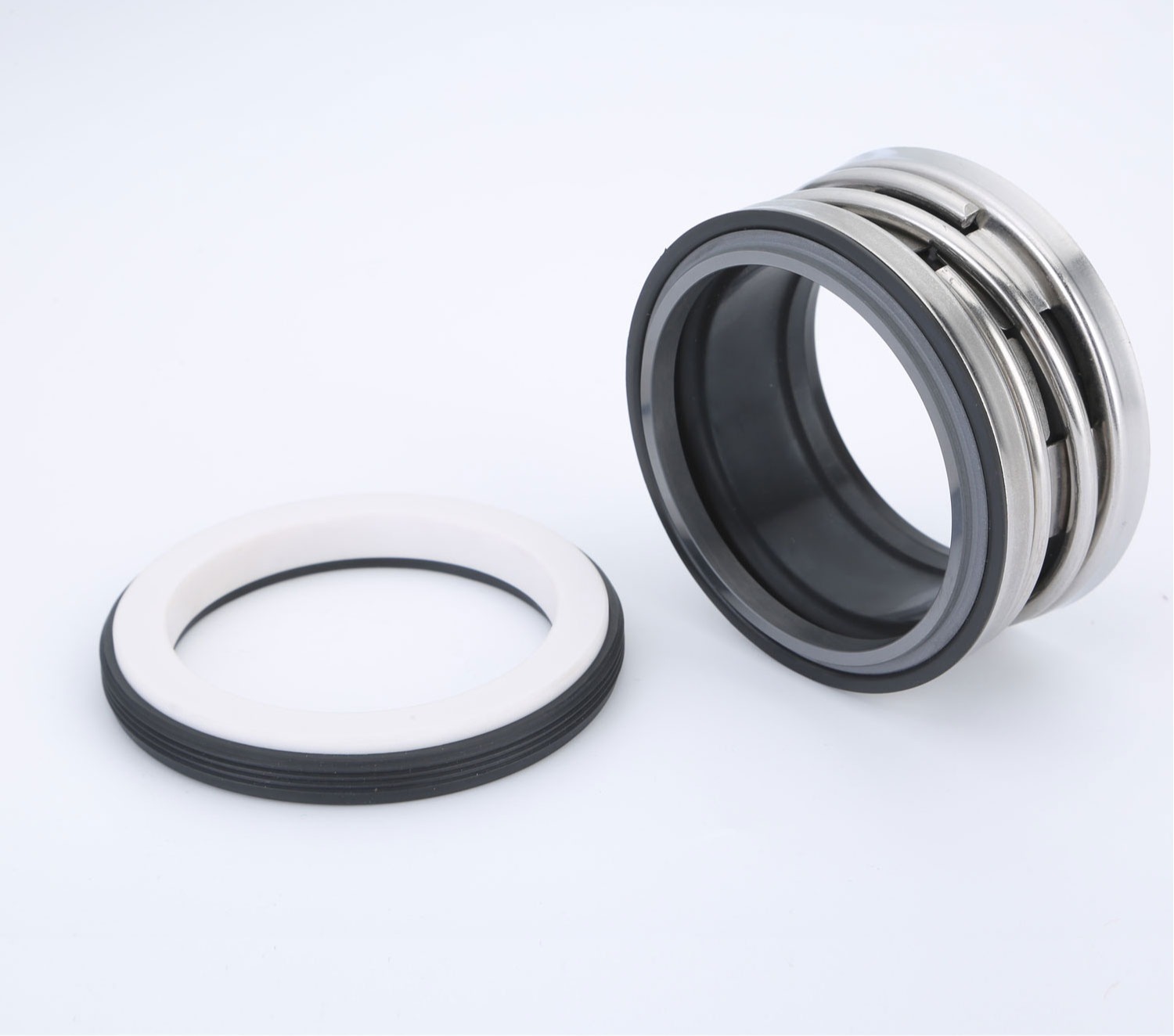

AS 2100
Compact, unitized, single-spring elastomer bellows seal for maximum durability and performance. Ideal for centrifugal, rotary and turbine pumps, compressors, chillers and other rotary equipment. Often found in water-based applications such as wastewater treatment, potable water, HVAC, pool and spa.
Materials
Rotary Face / Stationary Face / Elastomer / Spring / Metal Parts
Multiple configurations: Viton, NBR, EPDM with Carbon, Ceramic or SiC faces
1 Variant
| Model | Materials | GA |
|---|---|---|
| 2100 Series | Multiple configurations: Viton, NBR, EPDM with Carbon, Ceramic or SiC faces | — |
Operating Conditions & Materials
Pressure
1.2 MPa or less
Temperature
-20 ~ 120 ºC
Linear Speed
10 m/s or less
Mediums
Oil, water, sewage, food and beverage, paper pulp and other weak-corrosion content.
Customization Available
Changes of materials for getting other operating parameters are possible. Contact us with your requirements.
