Paper & Pulp Seals

Singleend, double balanced, independent direction of rotation, wave spring with spring protector. The still spring structure allows high speed operating conditions. The spring is separated from the sealed mediums so it will not be jammed. Simple structure, easy to install with stable performance. Widely used in paper pulp production, pharmacy, food processing, sewage treatment and chemical processing.

The JCS1C is a singleacting seal integrated into the target device. Developed for environmentally clean and lubricating liquids with low consistency (< 2%), such as water, various oils, solvents and pulp. The balanced design allows troublefree operation even in sudden pressure fluctuations, ensuring reliable and longlasting operation under demanding conditions.

The JCS2A is a doubleacting seal integrated into the target device. Developed for pumps used for environmentally hazardous and abrasive liquids when operating limits of singleacting seals are exceeded. The doublebalanced design allows both pressurized and nonpressurized sealant use, ensuring reliable operation under demanding conditions.

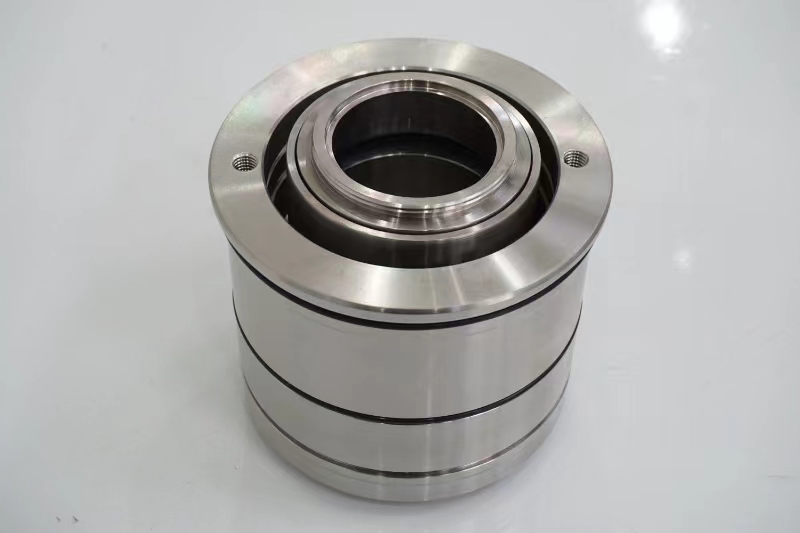

The Type SE1 is a customerfitted single, balanced component or cartridge seal designed for clean and lubricating fluids such as water, oils, solvents and paper stock. Easy to install and maintain with advanced technical capabilities including a patented thermal method for seal face holding and an elastic thrust ring.

JCS1 is a rugged, pumpintegrated single seal designed for clean and lubricating fluids such as water, oils, solvents and lowconsistency paper stocks. Easy to install from the impeller side with advanced technical capabilities including a patented drive mechanism for seal faces and selfaligning, elastically mounted thrust ring.

JCS1F — Single applicationspecific seal with flush into the medium. A variant of JCS

The Type SE2 is a dual, balanced cartridge seal designed for severe applications found in the pulp and paper industry and slurry applications. Typically used for abrasive and environmentally hazardous liquids in cooking, evaporation and causticizing facilities. Features a patented doublebalance design allowing both pressurized and unpressurized dual seal arrangements.

Type SE1F — single, balanced cartridge seal with flush. A variant of SE1AP.

AS RO Pusher Mechanical Seals for Paper Pulp Pumps, Mixers and Water Pumps.

Single cartridge variant seal for Sulzer SALOMIX SL80 horizontal mixer.
