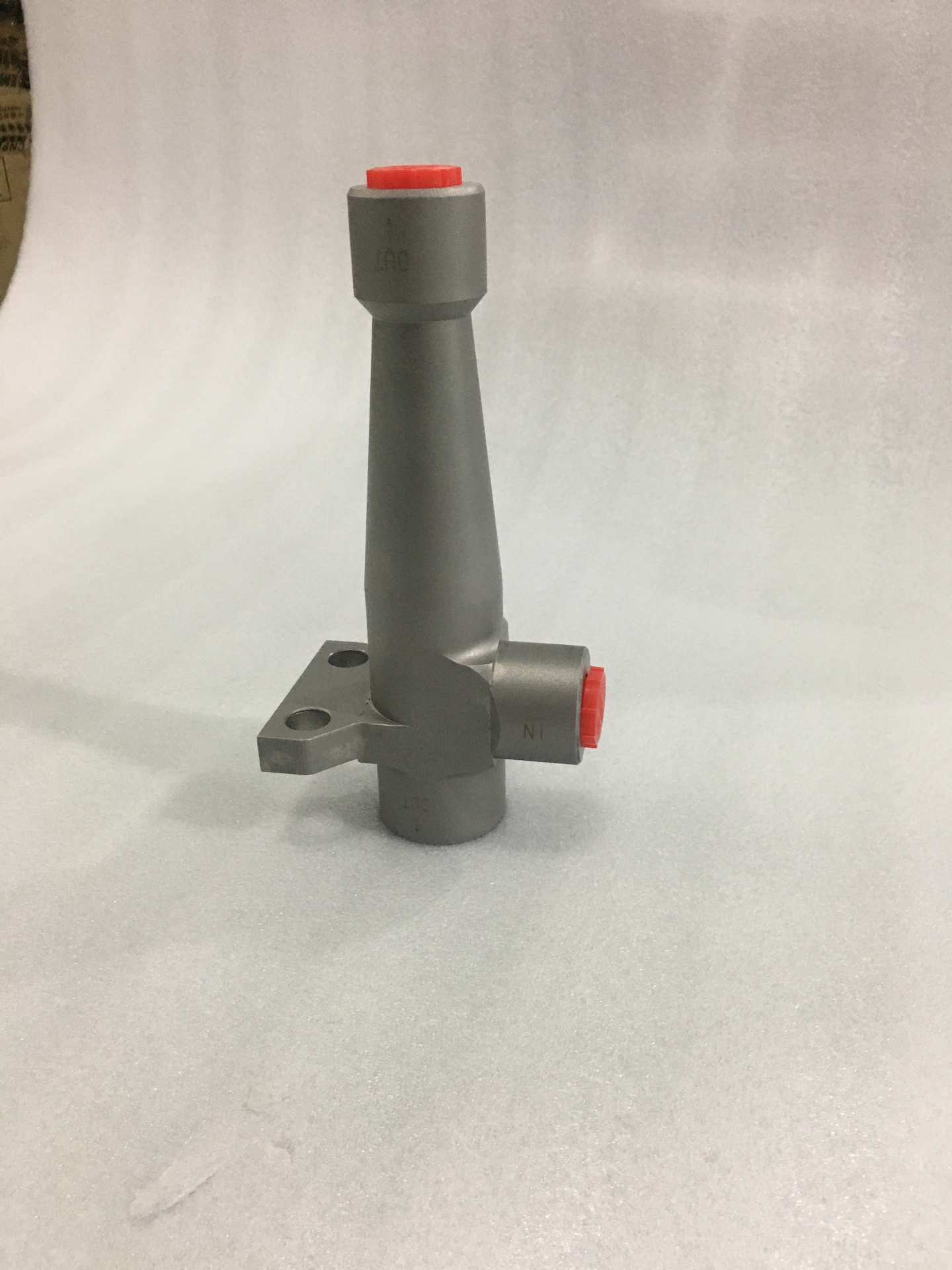

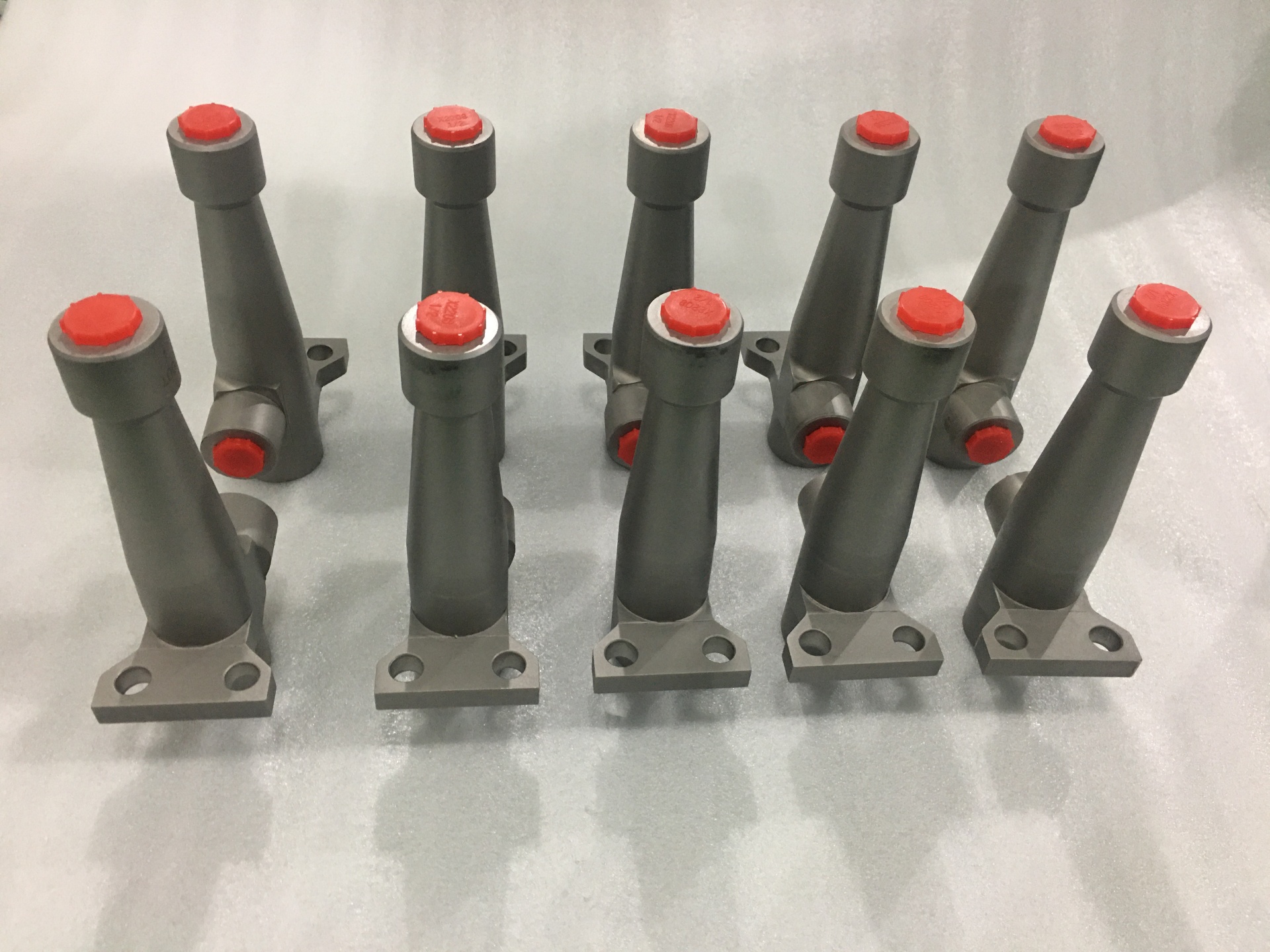

AS Cyclone Separator
Astra Seals AS Cyclone Separator for mechanical seal support. Removes solid particles from seal flush fluid using centrifugal separation. Protects seal faces from abrasive damage in slurry pump applications. No moving parts for maintenance-free operation.
Construction Materials
SS316L body / SS316 connections / Precision filtration elements
1 Variant
| Model | Materials | GA |
|---|---|---|
| AS Cyclone Separator | SS316L body / SS316 connections / Precision filtration elements | — |
Operating Conditions & Materials
Pressure
0 ~ 1.5 MPa
Temperature
-20 ~ 120 ºC
Mediums
Flush fluid filtration for mechanical seals. Removes solid particles from seal flush lines.
Customization Available
Available in various sizes and filtration capacities. Contact us with your requirements.
System Specifications
Flow Rate
5 ~ 50 L/min
Connection Size
1/2" NPT / 3/4" NPT / 1" NPT
Separation Efficiency
> 95% for particles > 10 μm
Design Pressure
0 ~ 1.5 MPa
Body Volume
0.5 ~ 3 L
Maintenance
No moving parts — maintenance-free
Applicable Standards
API 682 Plan 31 / Plan 41
Notes
Particle separation by centrifugal force. Clean fluid exits from the top outlet to the seal; solids collect at the bottom for periodic draining.
