AS BIA, Type 21, Type 43
BIA (also known as Type 21 or Type 43) Mechanical Seal for Clean Water Pumps, Piping Pumps and Vacuum Pumps. Single end, unbalanced, independent direction of rotation, rubber bellow, bellow transmission. Compact structure with good compatibility, stability and easy installation. Can be an alternative to similar products from EG&G SEAL OL. Widely used in oil and water circulation pumps, piping pumps, and vacuum pumps for industries such as sewage treatment and paper-making.
Materials
Rotary Face / Stationary Face / Elastomer / Spring / Metal Parts
Carbon/SiC/TC / Al2O3/SiC/TC / NBR/EPDM/Viton / SS304/SS316
1 Variant
| Model | Materials | GA |
|---|---|---|
| BIA, Type 21, Type 43 | Carbon/SiC/TC / Al2O3/SiC/TC / NBR/EPDM/Viton / SS304/SS316 | — |
Operating Conditions & Materials
Pressure
0.8 MPa or less
Temperature
-20 ~ 120 ºC
Linear Speed
10 m/s or less
Mediums
Oil, water, weak acid and alkali and other corrosive mediums.
Customization Available
Changes of materials for getting other operating parameters are possible. Contact us with your requirements.

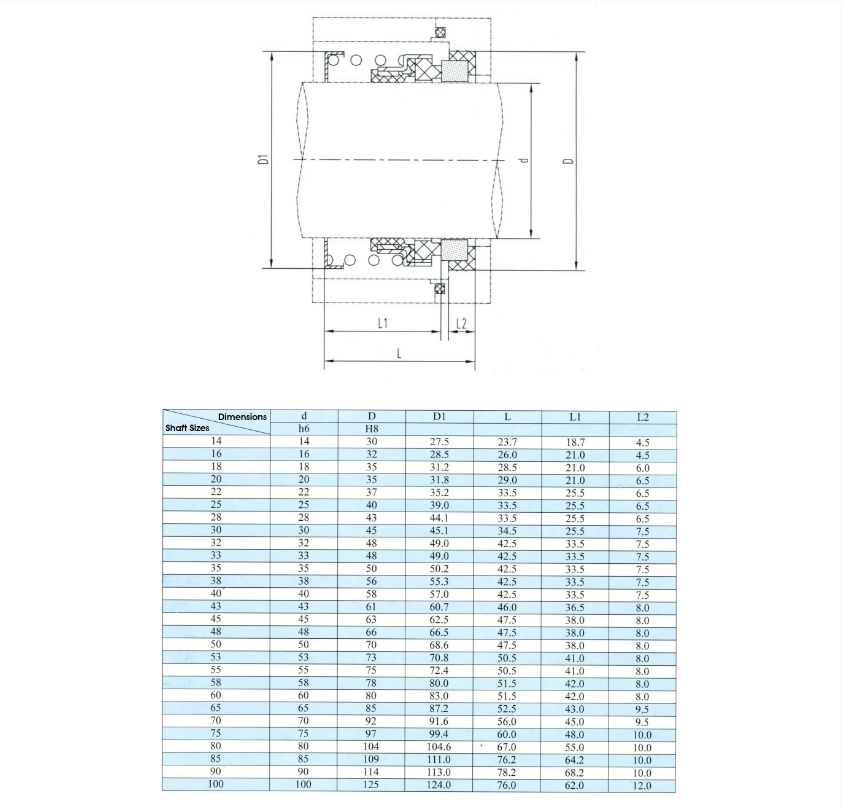

Installation Dimensions
