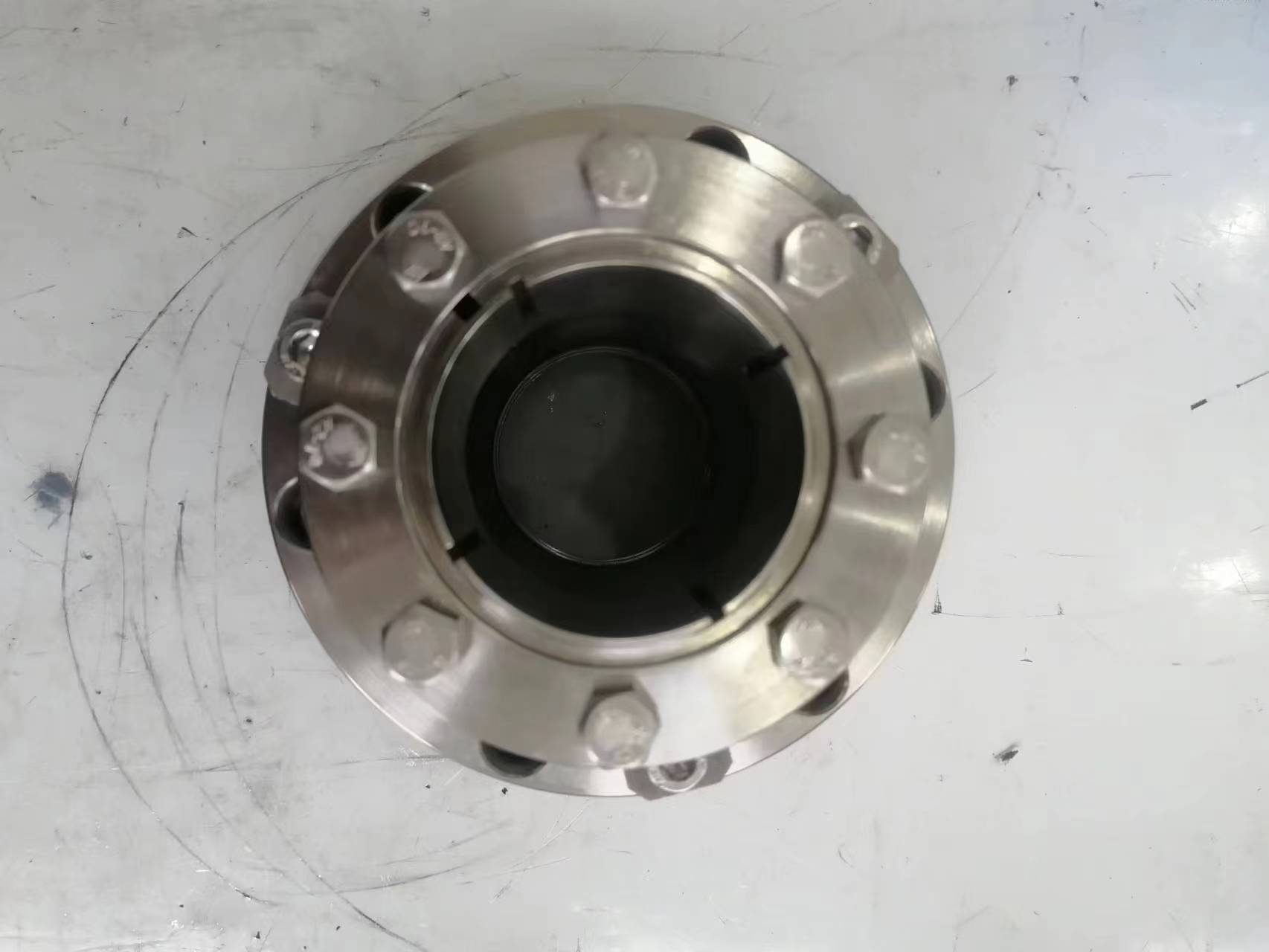

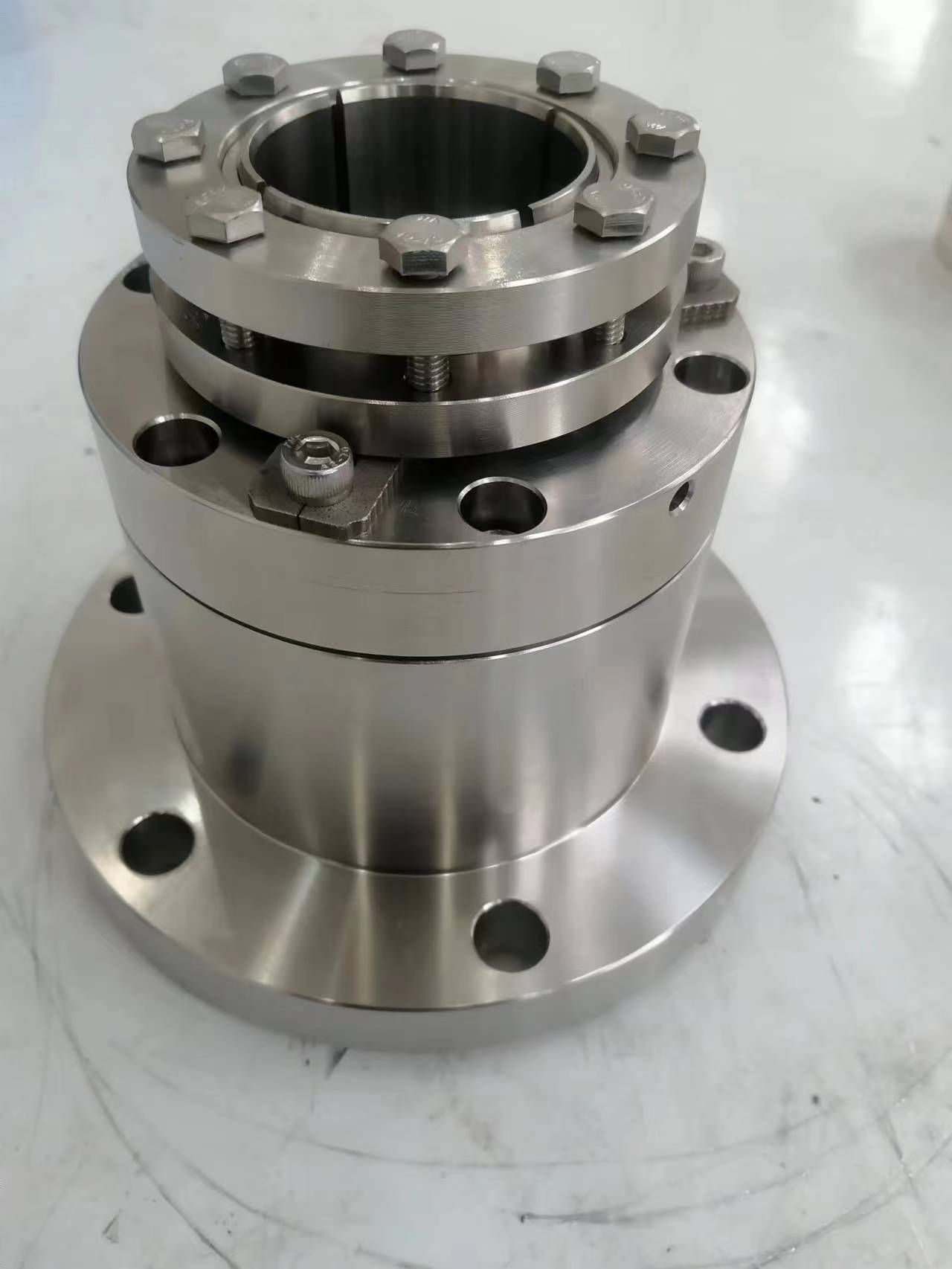

AS HJCK-50
HJCK-50/60/70 Mechanical Seal for Horizontal/Vertical Agitation Equipment, Food Processing Devices and Sterilizers.
Structural Features: double end, unbalanced, multi springs. This component has a compact structure with good compatibility and easy installation. Anti counter pressure design increases the safe if accidents happen.
- When the sealed medium temperature is higher than 180 ℃, the cooling water jacket is needed and the total installation height will need to be added by 100 mm.
- When the pressure is bigger than 0.3 MPa, auxiliary sealing devices are required.
Industrial Standards: HG21571-95, DIN-28138
Scopes of Application: mainly used in vertical and horizontal agitators, food processing machines and sterilizers for industries such as chemical engineering, food processing, pharmacy and sewage treatment.
Materials
Rotary Face / Stationary Face / Elastomer / Spring / Metal Parts
TC/TC/Viton/SS316/SS316 - TC/Carbon/Viton
1 Variant
| Model | Materials | GA |
|---|---|---|
| HJCK-50 | TC/TC/Viton/SS316/SS316 - TC/Carbon/Viton | — |
Operating Conditions & Materials
Pressure
0.6 MPa or less
Temperature
-10 ~ 180 ºC
Linear Speed
5 m/s or less
Mediums
Water, oil, food, weak acid and alkali.
Customization Available
Changes of materials for getting other operating parameters are possible. Contact us with your requirements.
