AS AB30
AS AB30 Super Thin Mechanical Seals for Mixers.
Structural Features: single end, wave spring, balanced, any direction of rotation, drive sleeve transmission. This component has a simple structure and high reliability.
Industrial Standards: Specifically Designed
Scopes of Application: mainly used in slurry pumps and mixers.
Materials
Rotary Face / Stationary Face / Elastomer / Spring / Metal Parts
SiC/SiC/FKM/SS316/SS316
1 Variant
| Model | Materials | GA |
|---|---|---|
| AB30 | SiC/SiC/FKM/SS316/SS316 | — |
Operating Conditions & Materials
Pressure
0.1 ~ 0.8 MPa
Temperature
-20 ~ 150 ºC
Linear Speed
10 m/s or less
Mediums
Oil, water, beverage and food.
Customization Available
Changes of materials for getting other operating parameters are possible. Contact us with your requirements.
Related Products

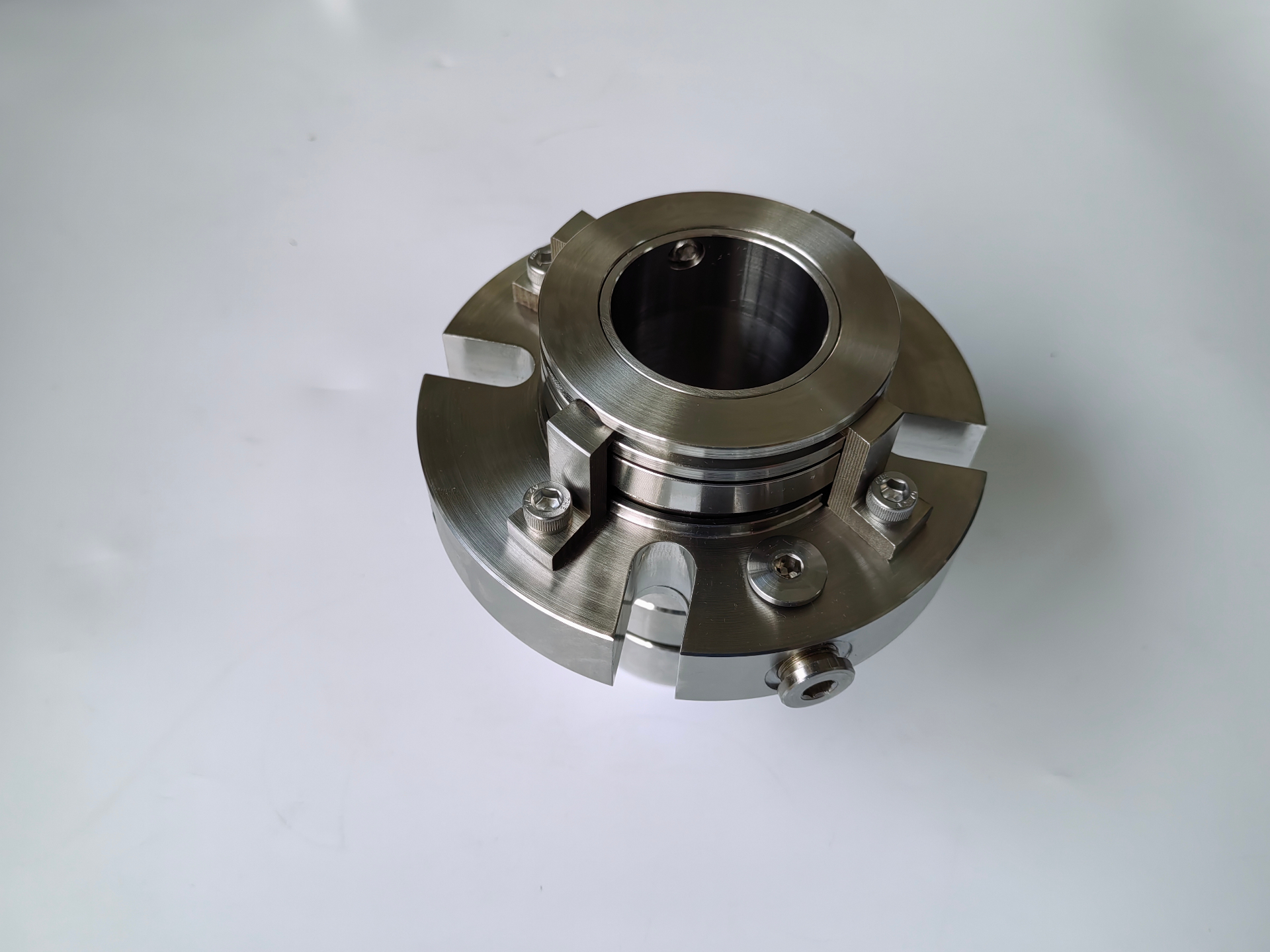

AS SB2
The Type SB2 is a dualcartridge seal. Its doublebalanced design ensures reliability and longevity in the most demanding conditions. Ideal for environmentally hazardous and abrasive fluids in pulp mills, minerals processing and slurry duties up to 40% solids by weight and 8 Mohs hardness.
AS HJCK-50
HJCK50/60/70 Mechanical Seal for Horizontal/Vertical Agitation Equipment, Food Processing Devices and Sterilizers.
AS Waukesha 220U2
AS Waukesha 220U2 Wave Spring Seal for Waukesha Lobe Pumps and Mixers.
Explore Related Mechanical Seal Categories
Compare adjacent seal types to find the best fit for your service conditions, pressure and temperature range.

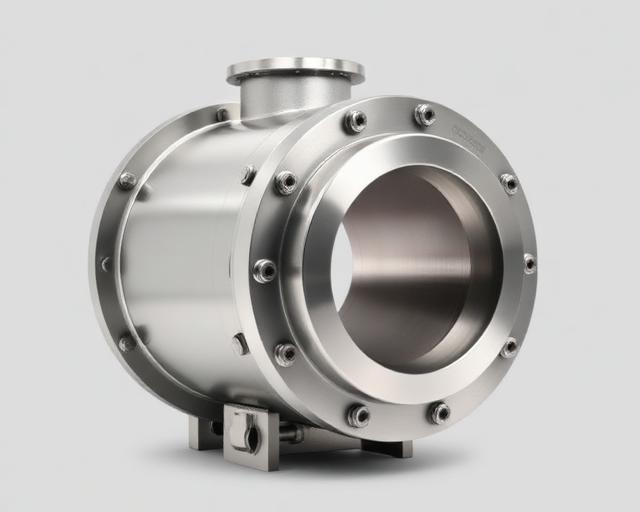

Mixer Seal — Vertical
Top-entry dry-running and liquid-lubricated seals for vertical mixers and agitators.

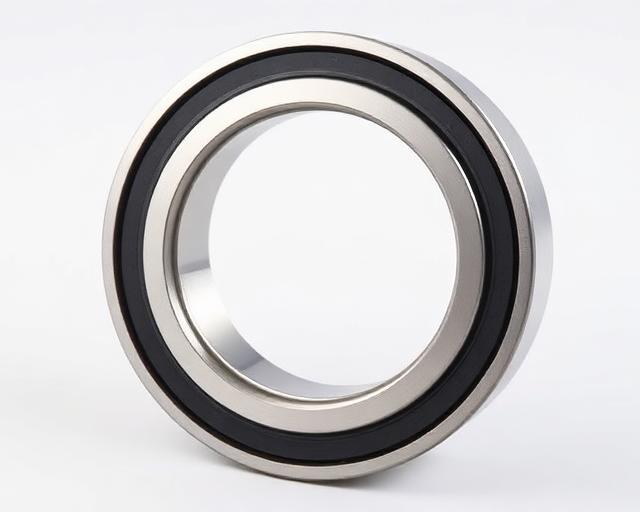

Slide Bearing
Precision SiC slide bearing systems for specialized mixer equipment.

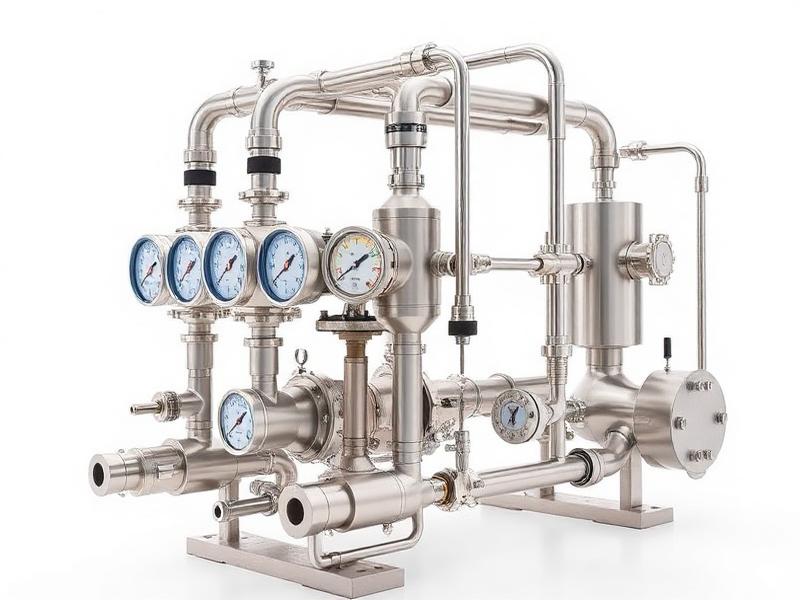

Support System
Seal support systems including API Plan 52/53 vessels, cyclone separators, flow units, and barrier liquid boosters.

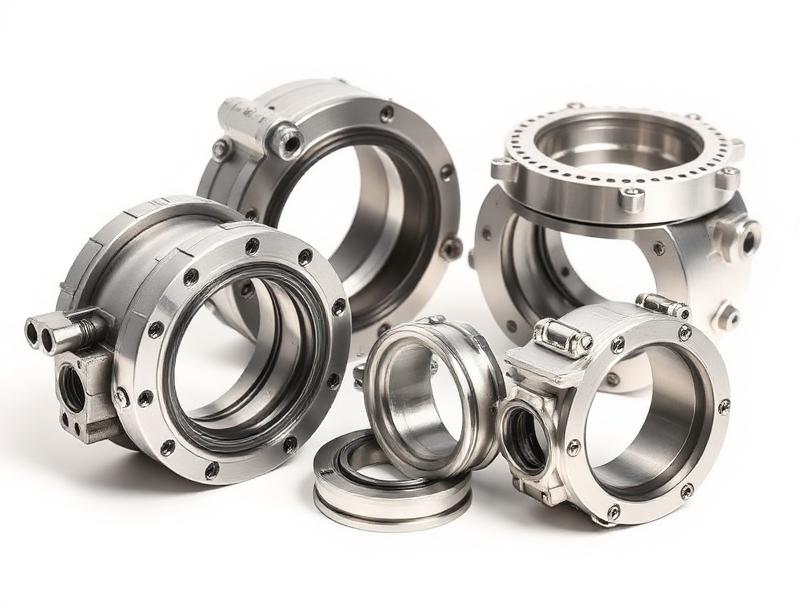

Special Seals
