AS C65 & 609
C65 and 609 Metal Bellow Mechanical Seals. Single end, balanced, independent direction of rotation, metal bellow, cartridge seal. Auxiliary seal ring made of expanded graphite for complex operating conditions and mixed sealed mediums. Easy to install and adjust with great performance in medium-and-high viscosity and high or low temperature content. Widely used in chemical engineering, oil refining, chemical fiber, food processing, pharmacy, thermoelectricity, and paper making.
Materials
Rotary Face / Stationary Face / Elastomer / Spring / Metal Parts
Carbon/SiC/TC / SiC/TC / Flexible Graphite / AM350/Inconel 718/HC-276 / 410S/SS316L/4J42/Hastelloy
1 Variant
| Model | Materials | GA |
|---|---|---|
| C65 & 609 | Carbon/SiC/TC / SiC/TC / Flexible Graphite / AM350/Inconel 718/HC-276 / 410S/SS316L/4J42/Hastelloy | — |
Operating Conditions & Materials
Pressure
-0.1 to 2.5 MPa
Temperature
-75 ~ 400 ºC
Linear Speed
15 m/s or less
Mediums
Oil, liquid hydrocarbon, acid, alkali, solvent, paper pulp and other high or low temperature and medium-and-high viscosity content.
Customization Available
Changes of materials for getting other operating parameters are possible. Contact us with your requirements.

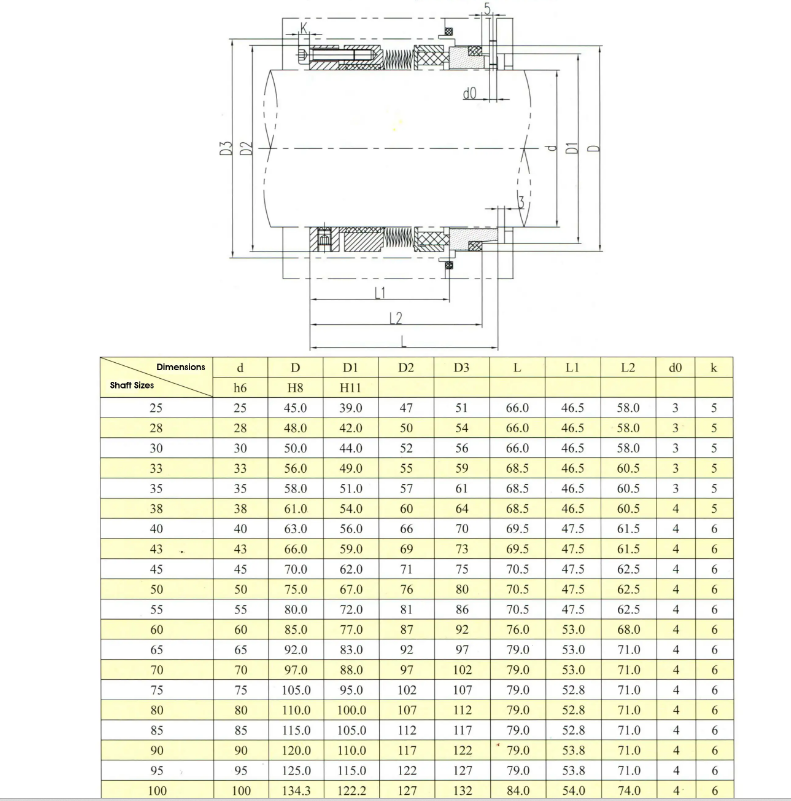

Installation Dimensions
