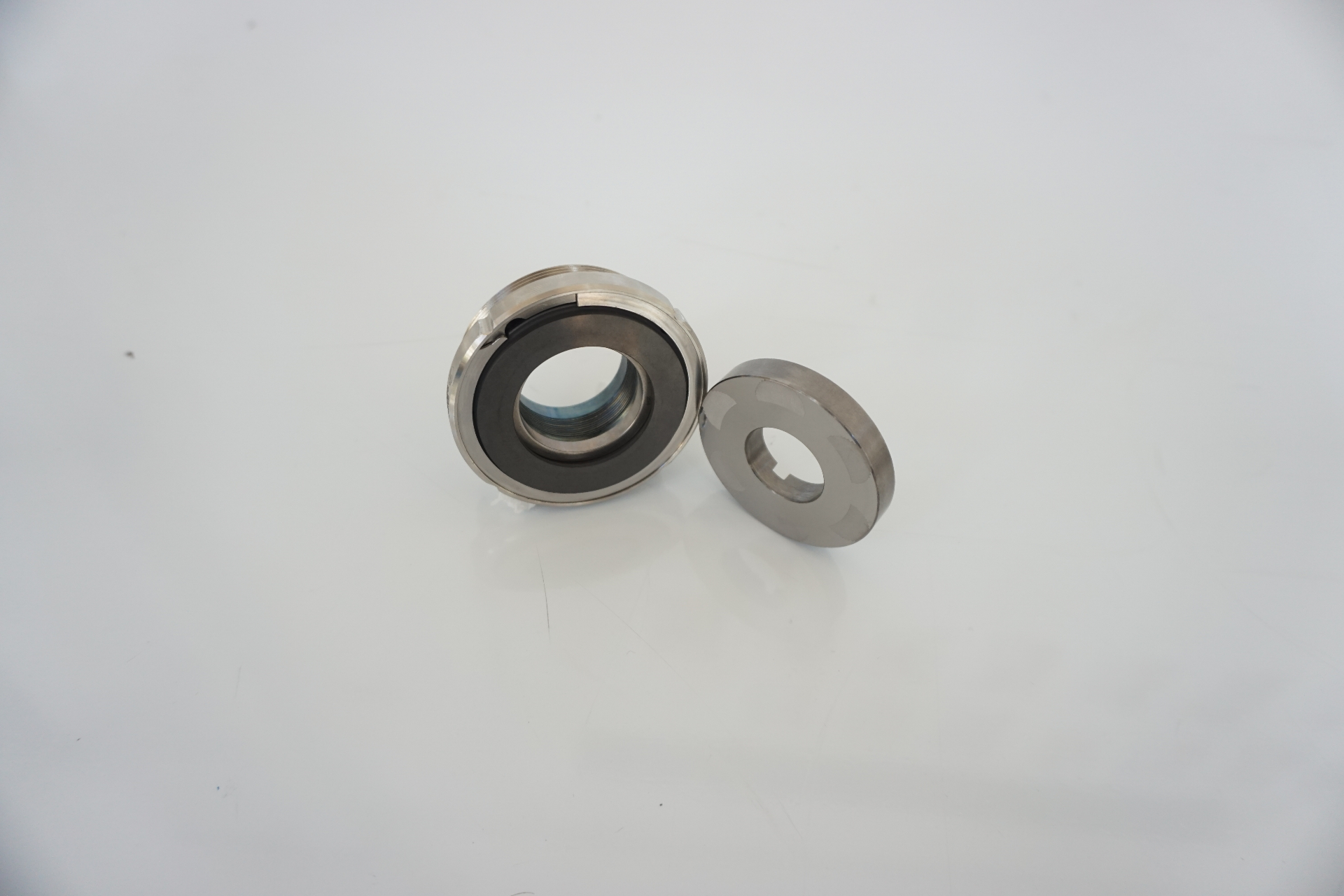

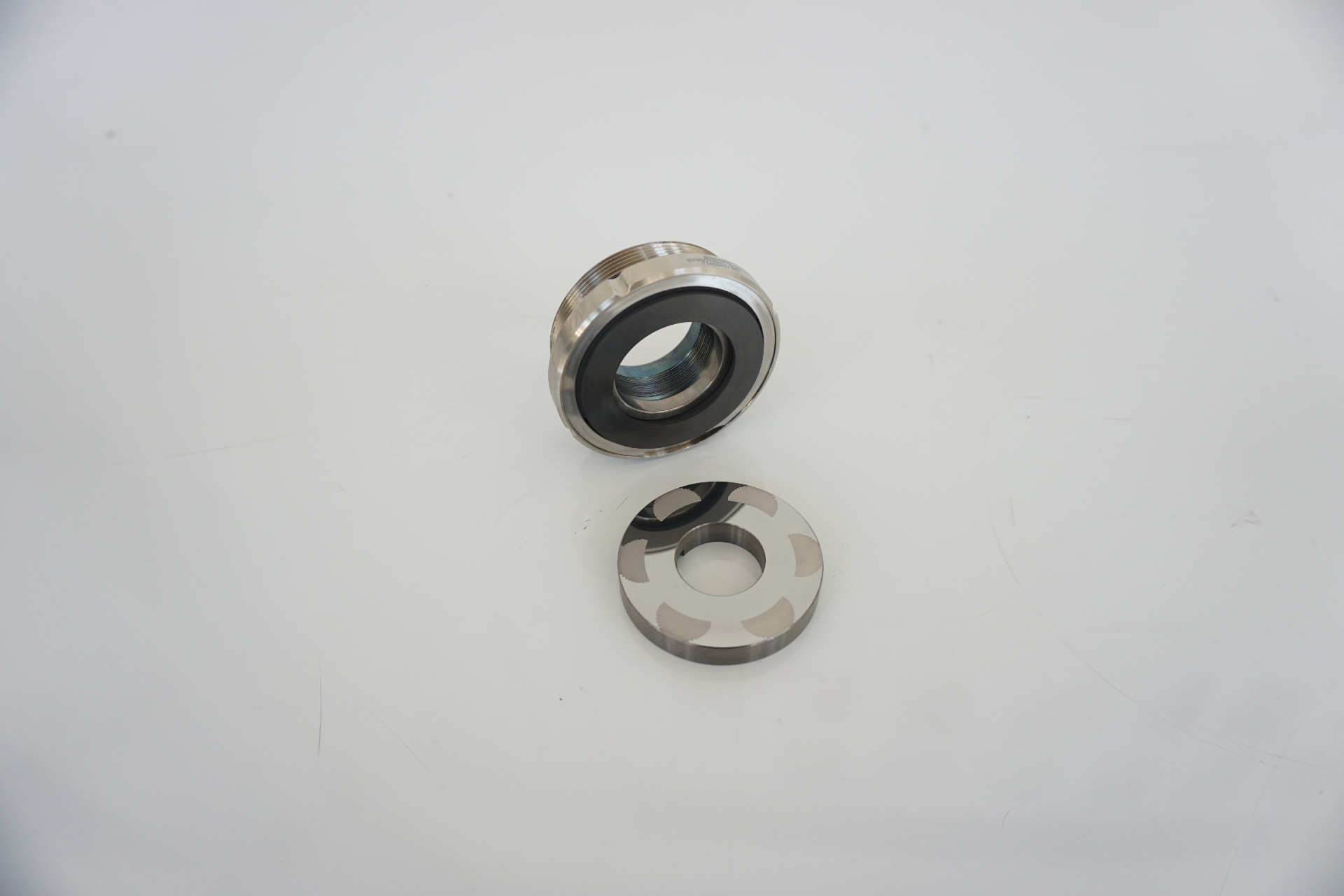

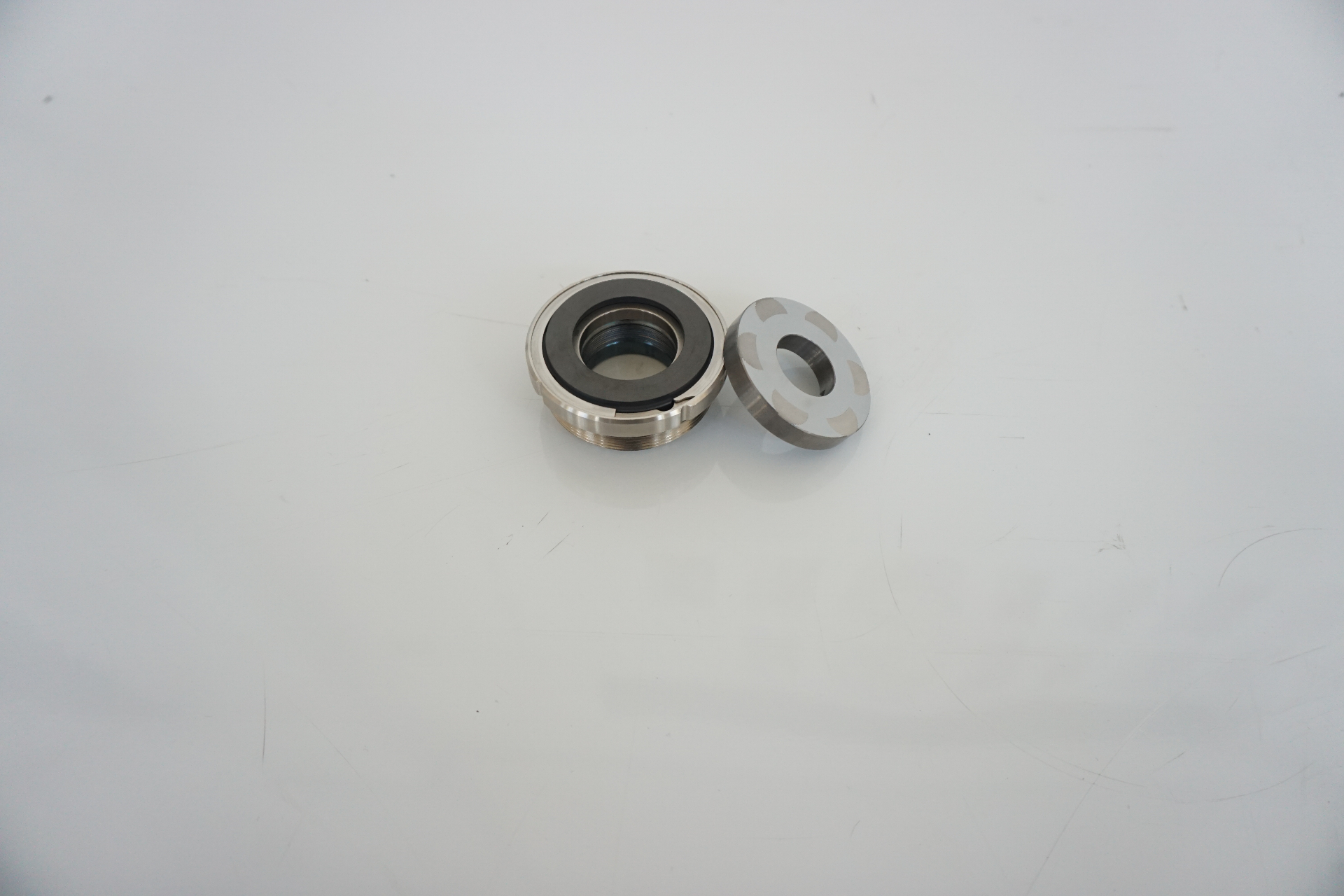

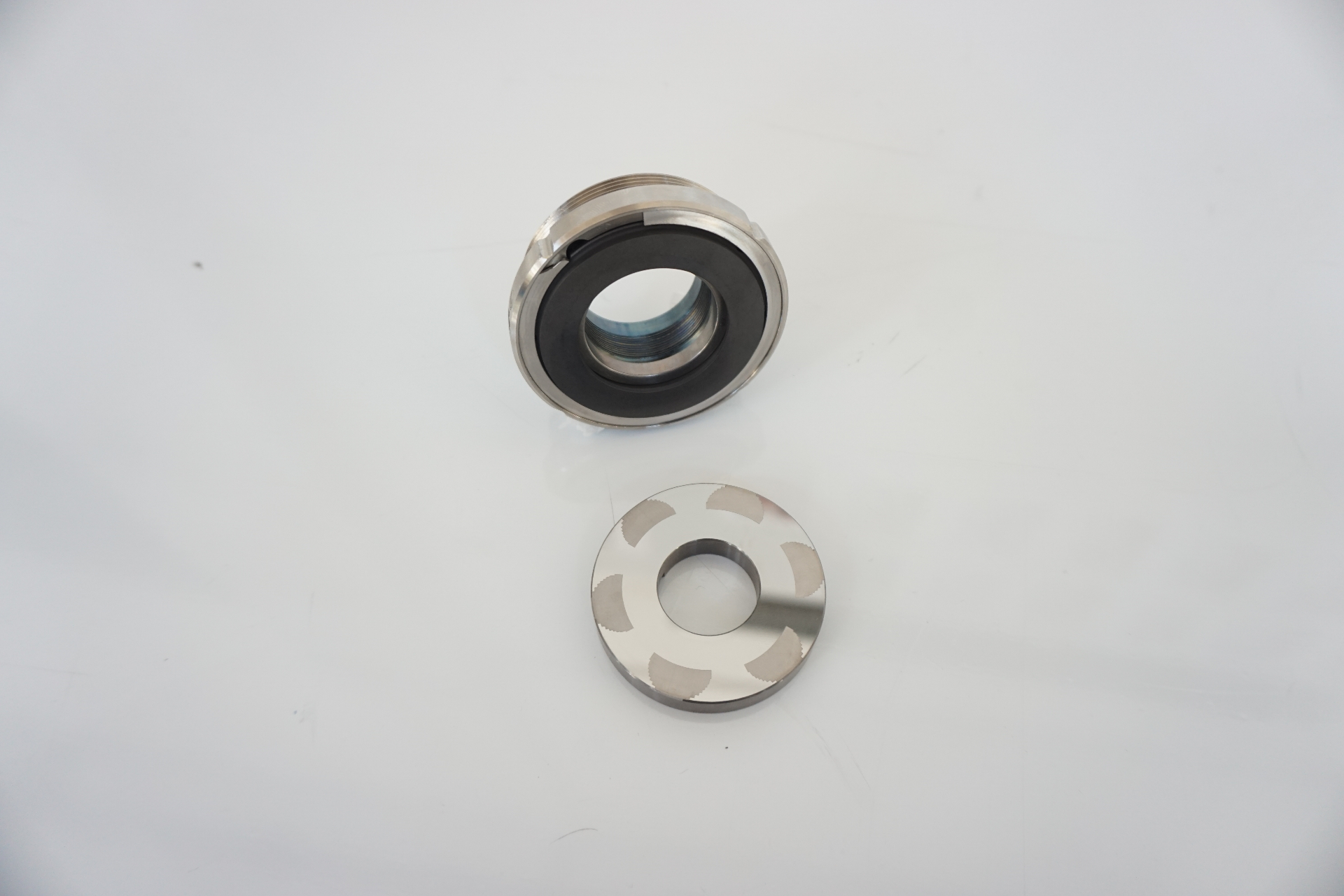

AS JC DGS B285-27
The Type 285 can safely seal the most common industrial liquid gasses, such as liquid nitrogen, oxygen, argon and carbon dioxide.
Technical Specifications
- Pressure: 7 BarG
- Temperature: -196 °C
- Rotation Speed: Up to 10000 r/min
- Medium: Liquid nitrogen, oxygen, argon and carbon dioxide
Design Features
- Single ended, static compensation unit.
- Compact axial dimensions of the seal, making it particularly suitable for centrifugal pumps with short sealing chamber lengths.
- For extremely low temperature mediums that would have gasification happen.
Materials
Rotary Face / Stationary Face / Elastomer / Spring / Metal Parts
Tungsten Carbide/Carbon/Fluorosilicone/Inconel 718/SS316
1 Variant
| Model | Materials | GA |
|---|---|---|
| Cryogenic DGS Type 285-27 | Tungsten Carbide/Carbon/Fluorosilicone/Inconel 718/SS316 | — |
Operating Conditions & Materials
Pressure
0 ~ 7 BarG
Temperature
-196 ~ 50 ºC
Linear Speed
50 m/s or less
Mediums
Liquid nitrogen, oxygen, argon, carbon dioxide, and other cryogenic liquid gases.
Customization Available
Adaptable for various cryogenic pump shaft sizes and operating pressures. Contact us with your requirements.
