AS MFL85N
JBMFO, AKA MFL85N or 680 and 680M Metal Bellow Mechanical Seal. Single end, balanced, independent direction of rotation, bellow transmission. The bellow provides sealing faces with closing force and transmits torque. O-ring has no axial movements for good tracing ability and strong disturbance resistance. Easy to install and adjust with especially good performance in medium-and-low viscosity mediums. Widely used in petrochemical engineering, oil refining, chemical processing, chemical fiber manufacturing, food and beverage processing, pharmacy, thermoelectricity and paper making.
Materials
Rotary Face / Stationary Face / Elastomer / Spring / Metal Parts
Carbon/SiC/TC / SiC/TC / NBR/EPDM/Viton/Aflas/FFKM / SS316/AM350/Inconel 718/HC-276
1 Variant
| Model | Materials | GA |
|---|---|---|
| MFL85N | Carbon/SiC/TC / SiC/TC / NBR/EPDM/Viton/Aflas/FFKM / SS316/AM350/Inconel 718/HC-276 | — |
Operating Conditions & Materials
Pressure
-0.1 ~ 2.5 MPa
Temperature
-40 ~ 200 ºC
Linear Speed
15 m/s or less
Mediums
Hot water, oil, liquid hydrocarbon, acid, alkali, solvents, paper pulp and other medium-and-low-viscosity content.
Customization Available
Changes of materials for getting other operating parameters are possible. Contact us with your requirements.

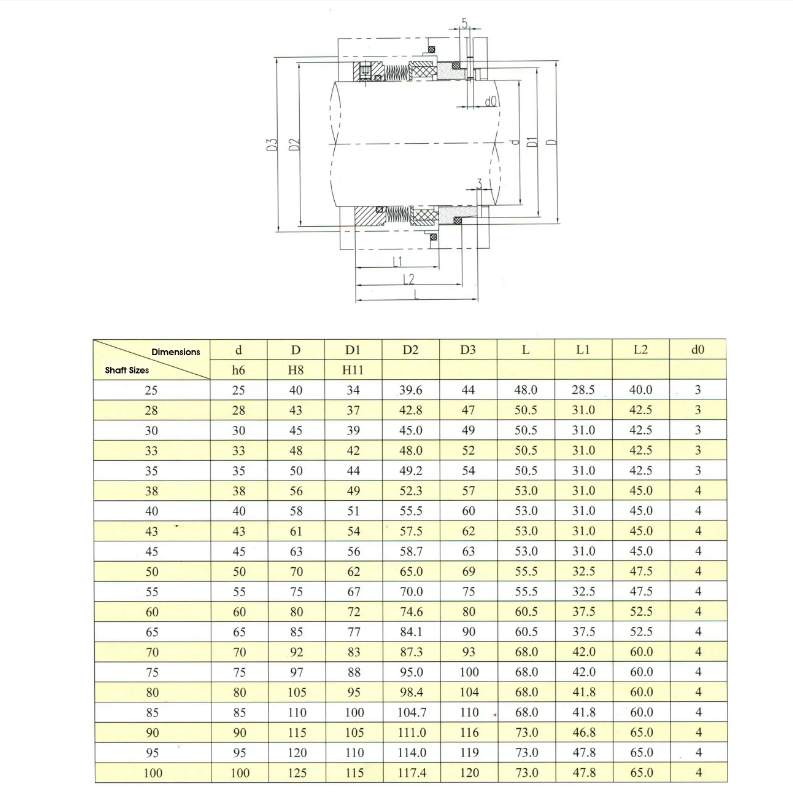

Installation Dimensions
