AS SB1

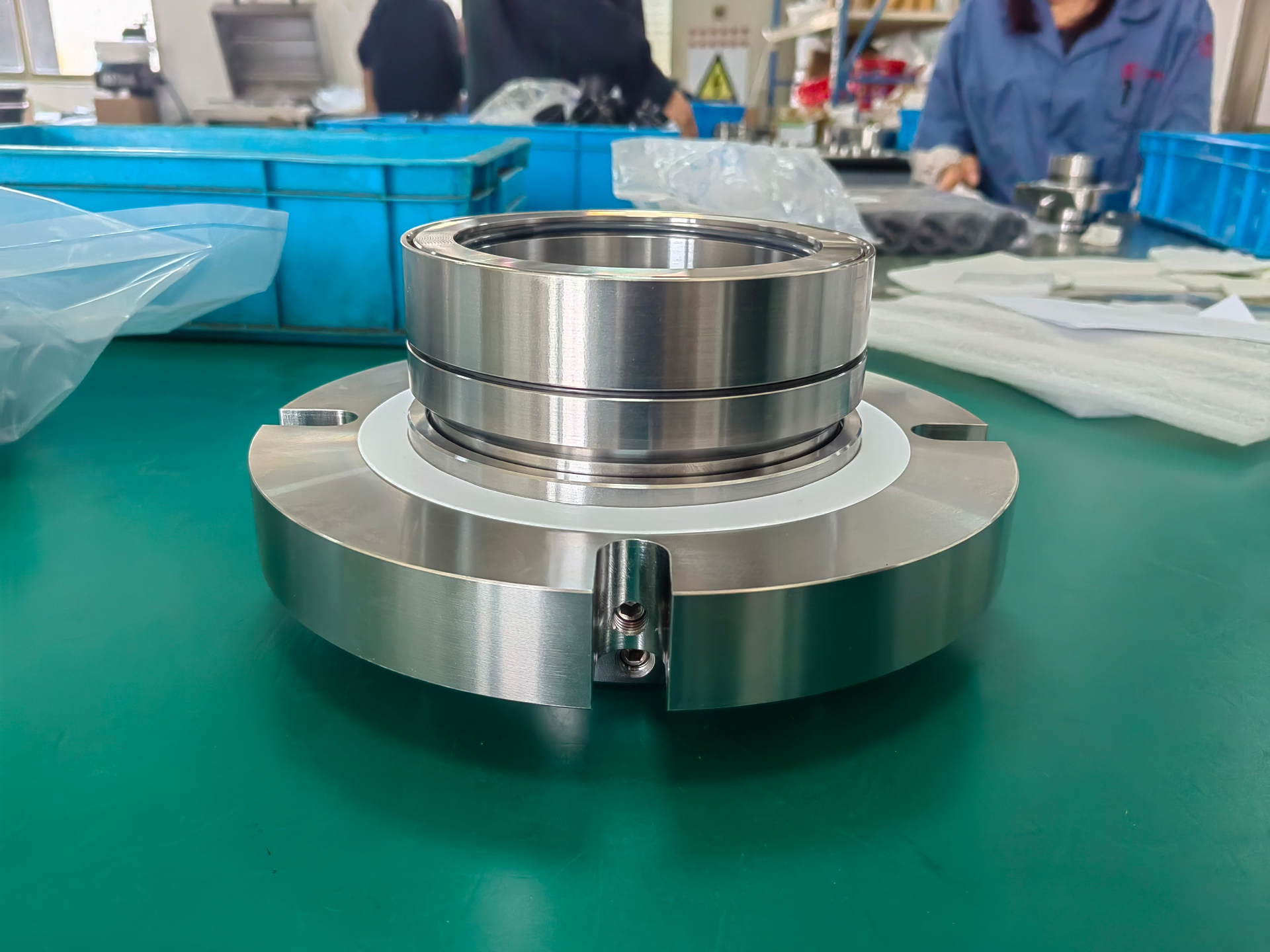

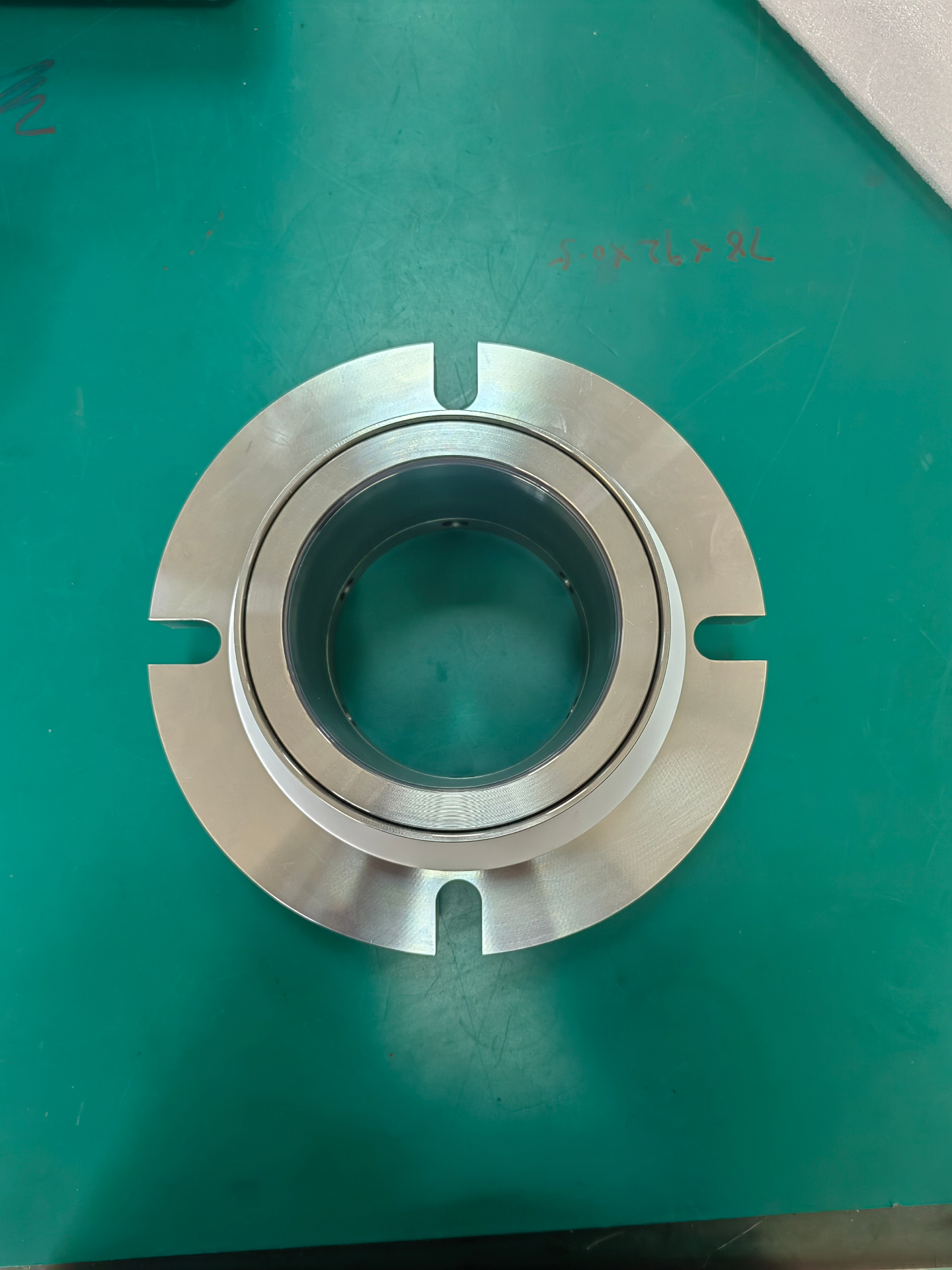

The Type SB1 is a single-cartridge seal for clean fluids and lubricants. Versatile, easy to install and maintain with advanced features including patented seal face holders and elastic mating ring.
Materials
Rotary Face / Stationary Face / Elastomer / Spring / Metal Parts
SiC/SiC/FEP and EPDM/HC276/2205 Duplex
1 Variant
| Model | Materials | GA |
|---|---|---|
| SB1-110-QRMO | SiC/SiC/FEP and EPDM/HC276/2205 Duplex | GA-307650-FN |
Operating Conditions & Materials
Pressure
1.5 MPa or less
Temperature
-20 ~ 130 ºC
Linear Speed
15 m/s or less
Mediums
Paper pulp, abrasive slurries. For SULZER ZRS-40 centrifugal pumps.
Customization Available
Changes of materials for getting other operating parameters are possible. Contact us with your requirements.
