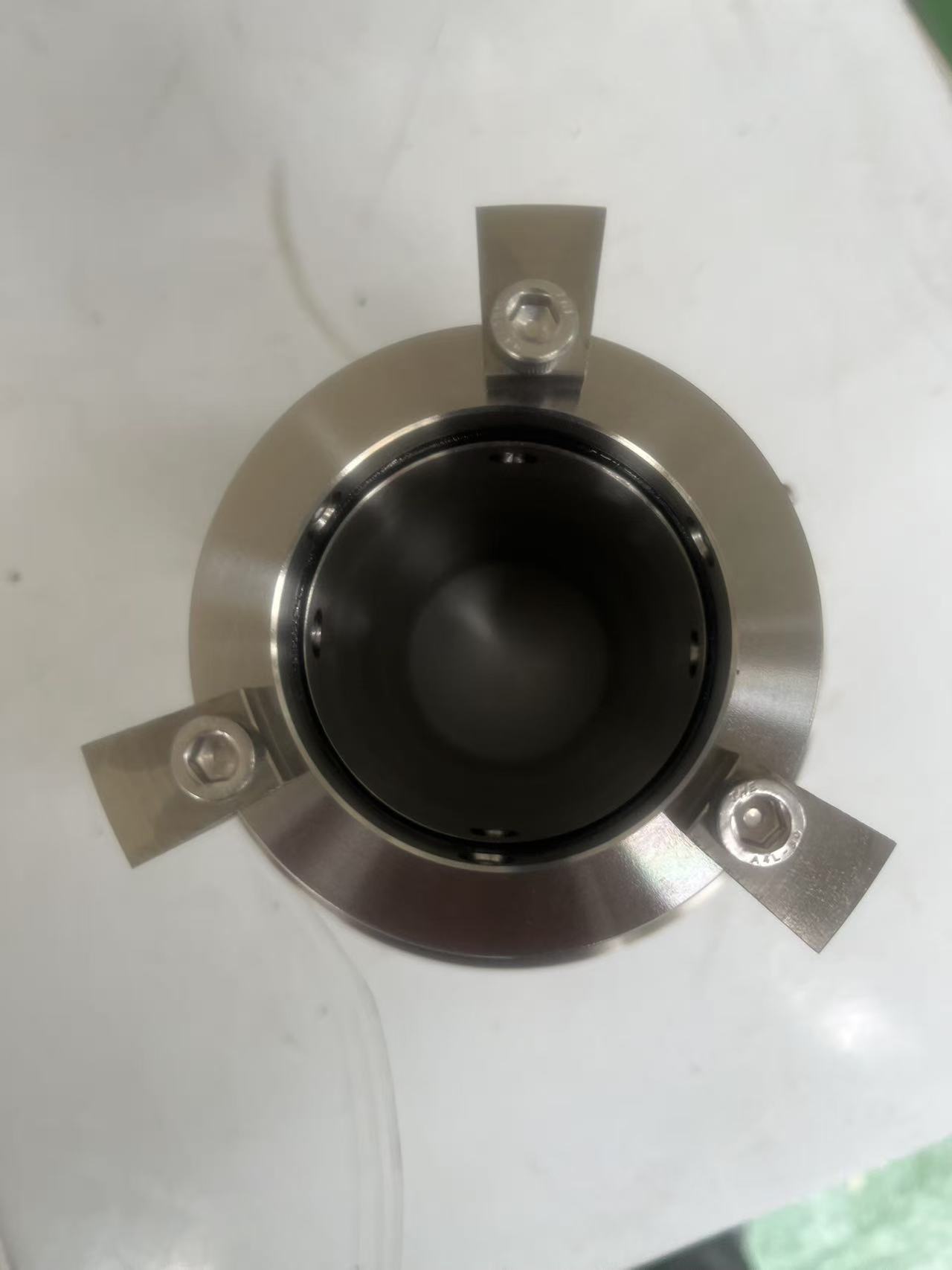

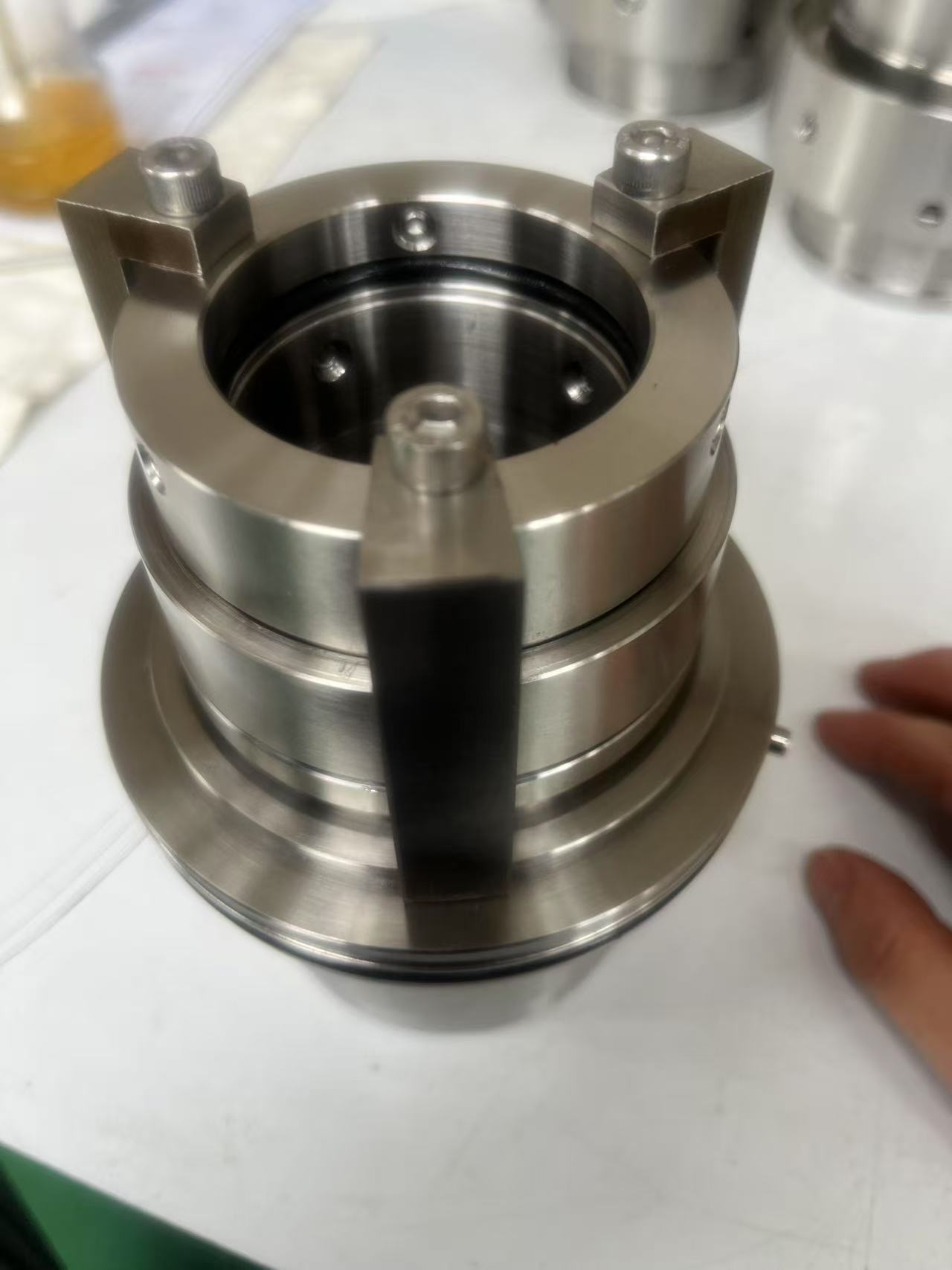

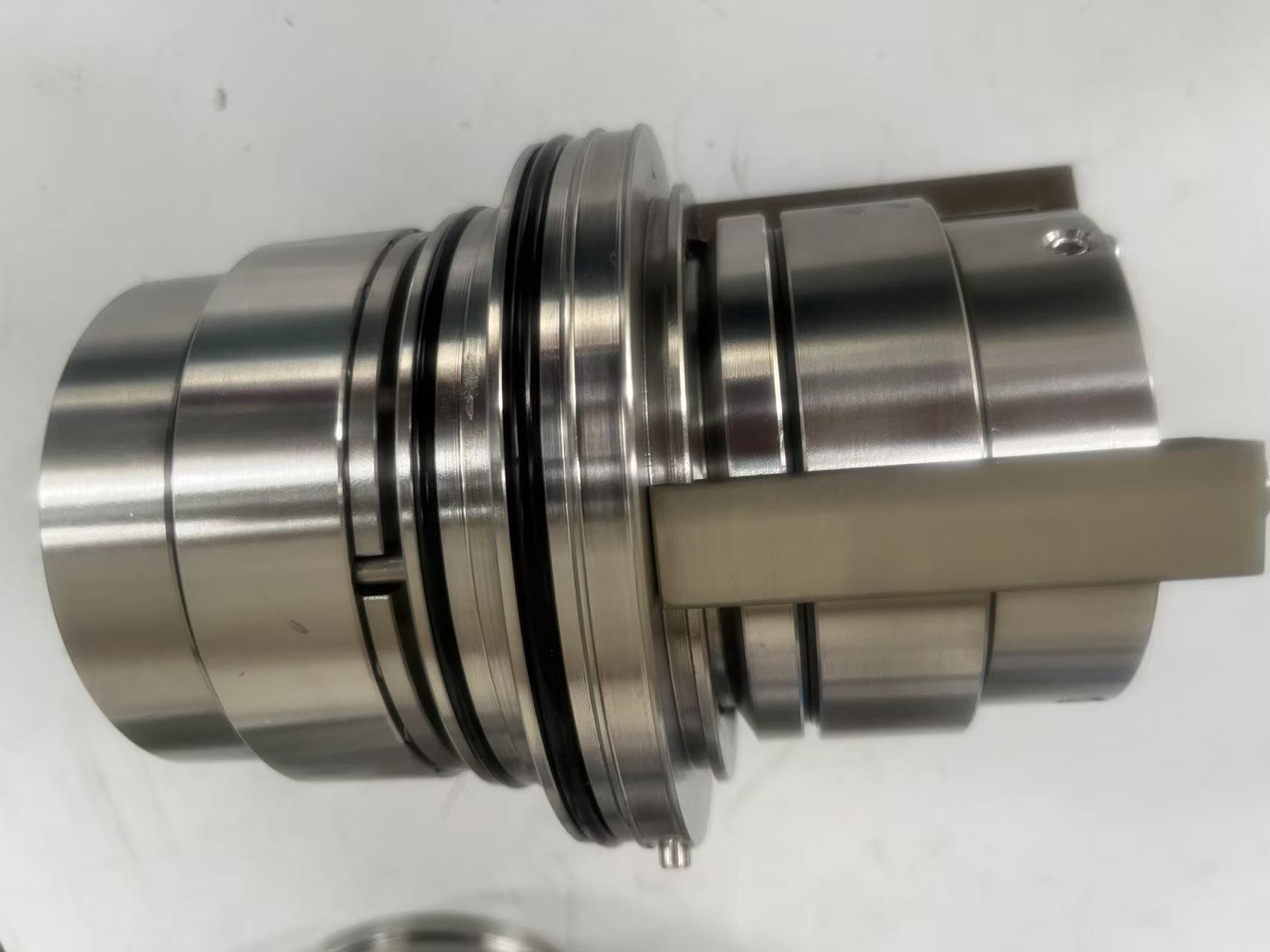

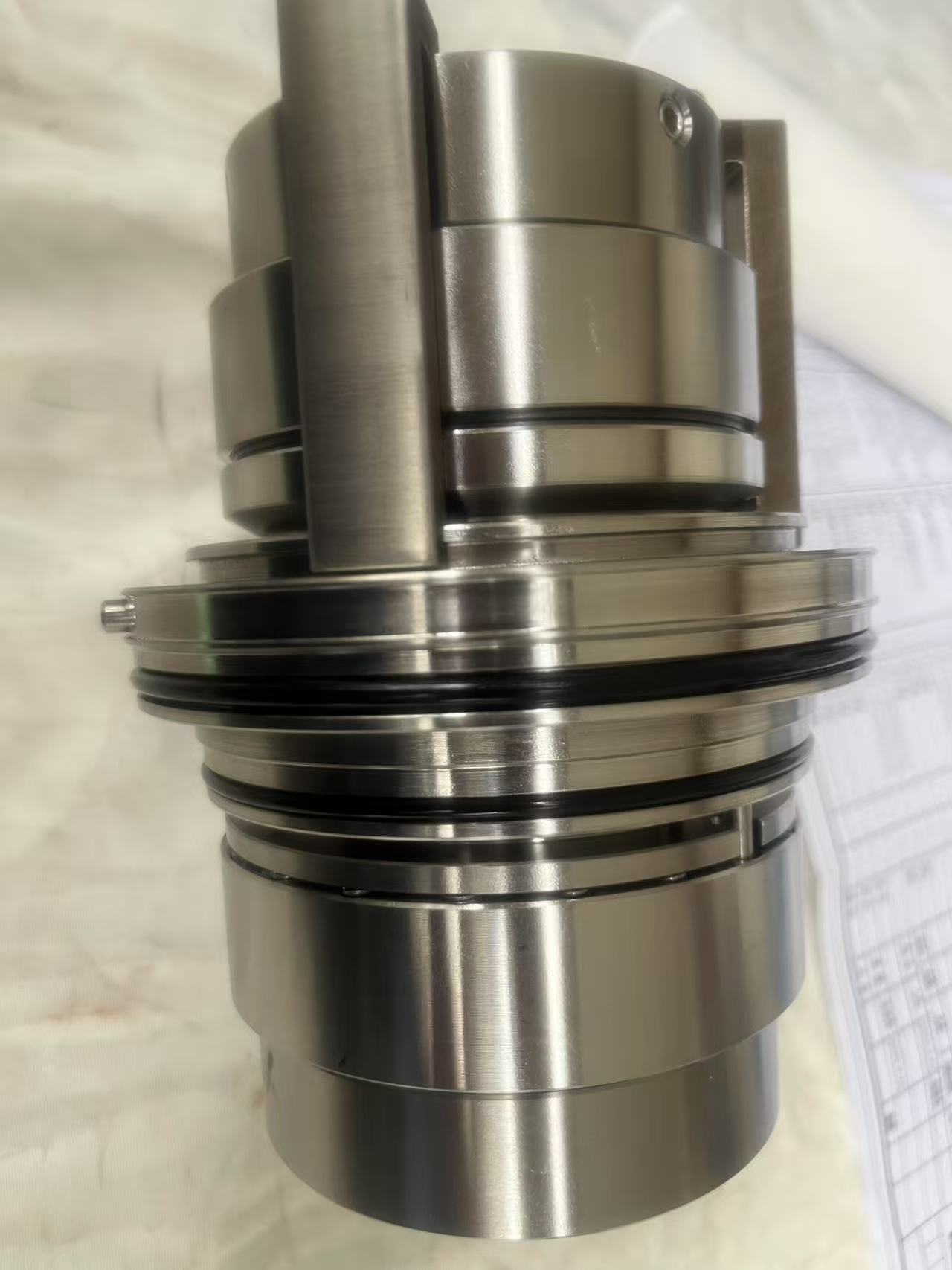

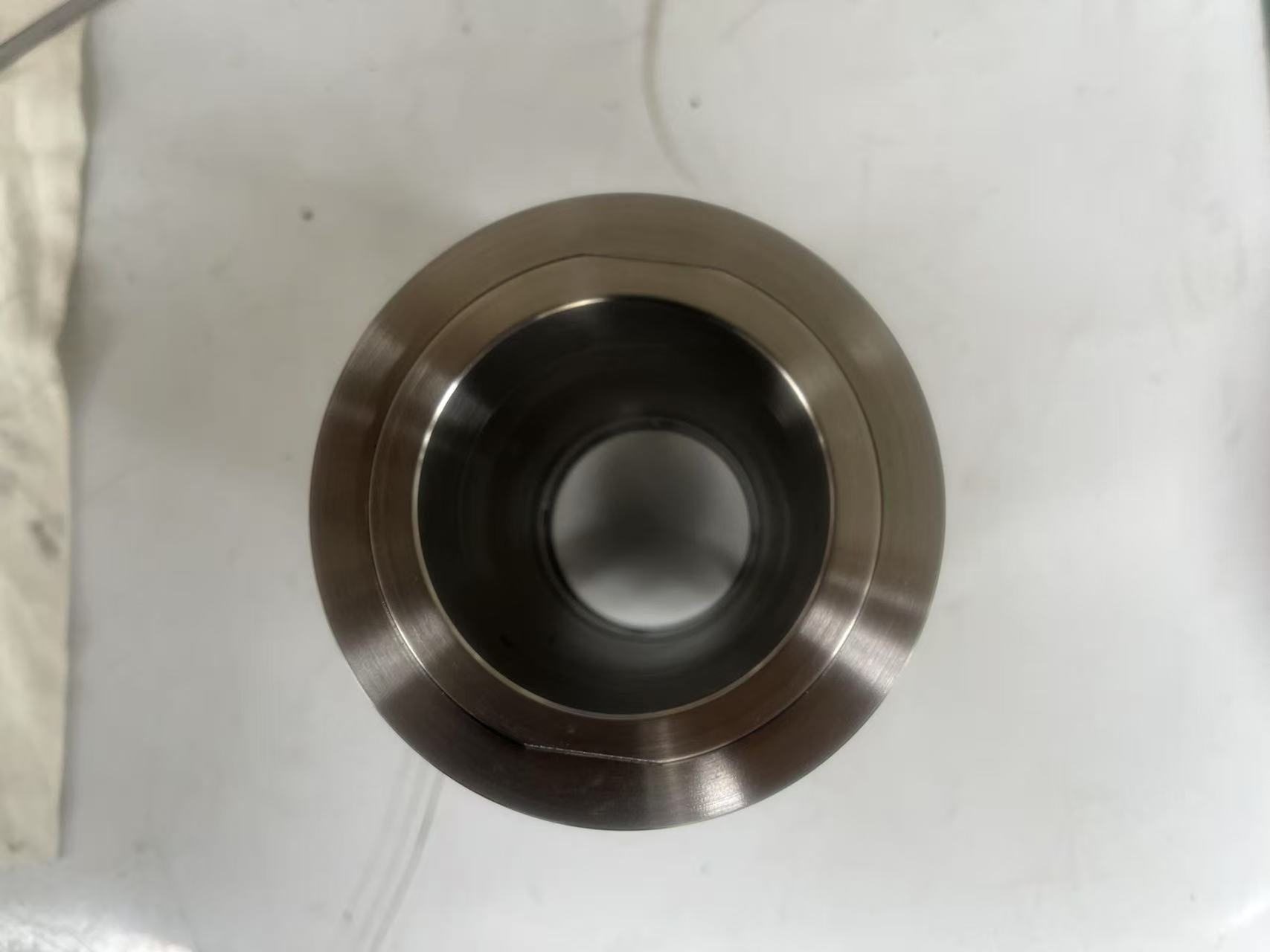

AS SE2C-55-QREG-305005-00
SE2C fully cartridge seal based on SE2 structure, specifically designed for Sulzer Salomix SLR mixers.
Materials
Rotary Face / Stationary Face / Elastomer / Spring / Metal Parts
SiC/SiC/EPDM/HC276/SS329 Duplex - SiC/SiC/EPDM
1 Variant
| Model | Materials | GA |
|---|---|---|
| SE2C-55-QREG | SiC/SiC/EPDM/HC276/SS329 Duplex - SiC/SiC/EPDM | GA-305005 |
Operating Conditions & Materials
Pressure
1.5 MPa or less
Temperature
-20 ~ 130 ºC
Linear Speed
15 m/s or less
Mediums
Paper pulp, abrasive slurries and chemical processing. For horizontal side entry mixers.
Customization Available
Changes of materials for getting other operating parameters are possible. Contact us with your requirements.
