AS Type 169
Type 169 Multiple Spring PTFE Elastomer Bellow Mechanical Seal for Chemical Pumps. Single end, multiple springs, balanced PTFE elastomer bellow. Uses multiple small springs and PTFE bellows as compensation components. Rotary component driven by PTFE bellow. Outboard installed. Widely used in chemical pumps, especially alkali pumps that work with alkali liquid containing solid particles.
Materials
Rotary Face / Stationary Face / Elastomer / Spring / Metal Parts
SiC/TC / SiC/TC / Aflas/Viton/PTFE/FFKM / SS316/SS316L/HC276
1 Variant
| Model | Materials | GA |
|---|---|---|
| Type 169 | SiC/TC / SiC/TC / Aflas/Viton/PTFE/FFKM / SS316/SS316L/HC276 | — |
Operating Conditions & Materials
Pressure
0 to 0.5 MPa
Temperature
0 ~ 130 ºC
Linear Speed
14 m/s or less
Mediums
Strong alkali, with solid particles between 10% to 20%, alkali density not higher than 42%.
Customization Available
Changes of materials for getting other operating parameters are possible. Contact us with your requirements.

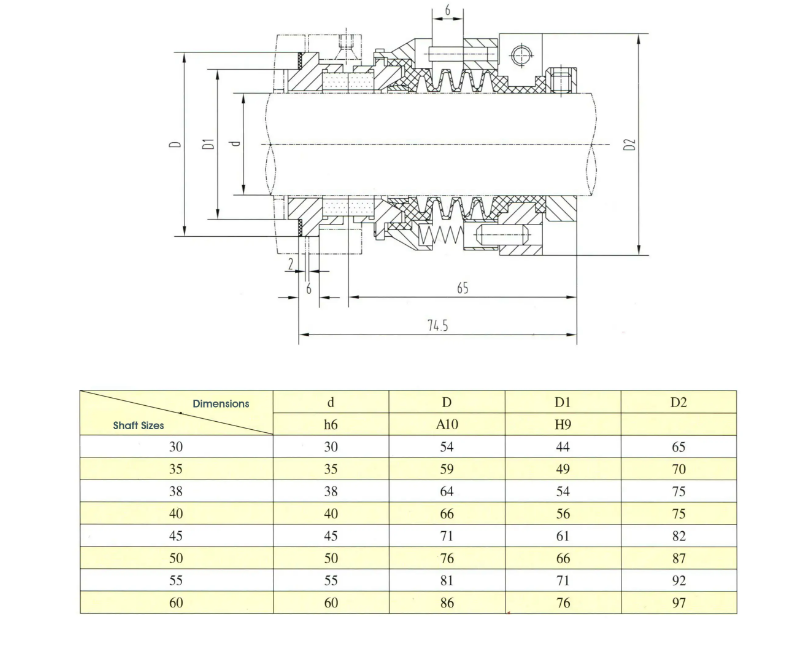

Installation Dimensions
