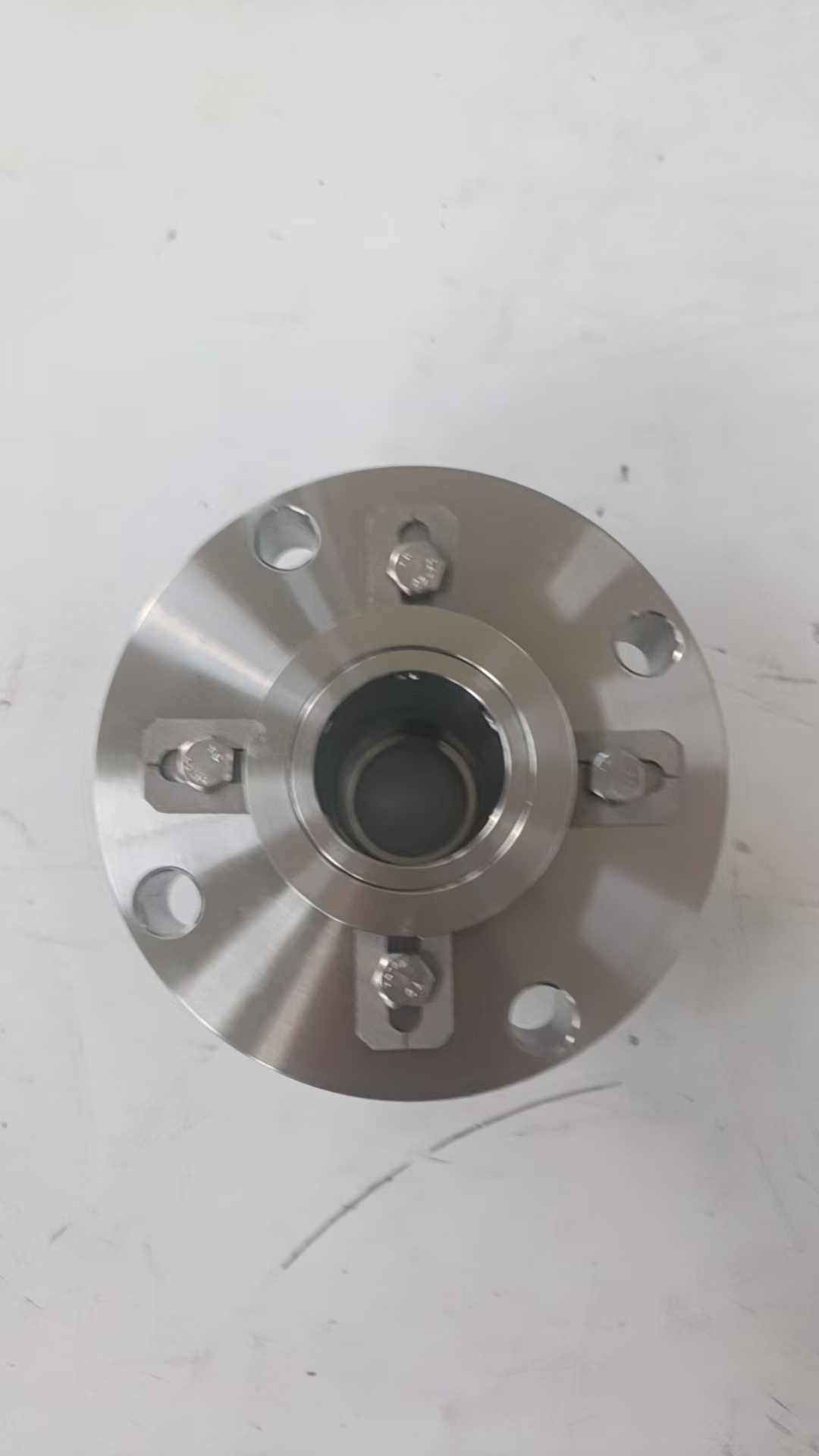

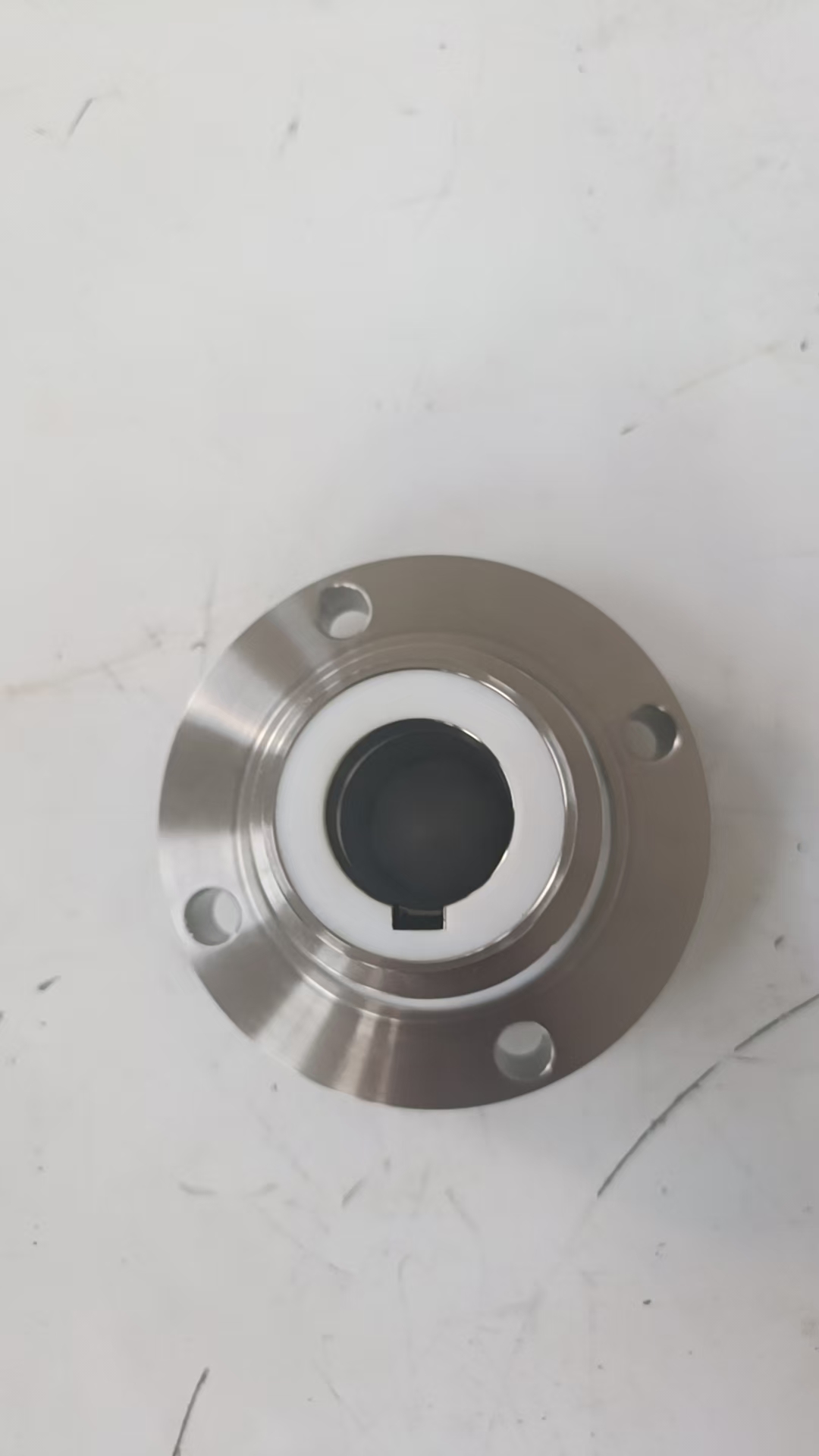

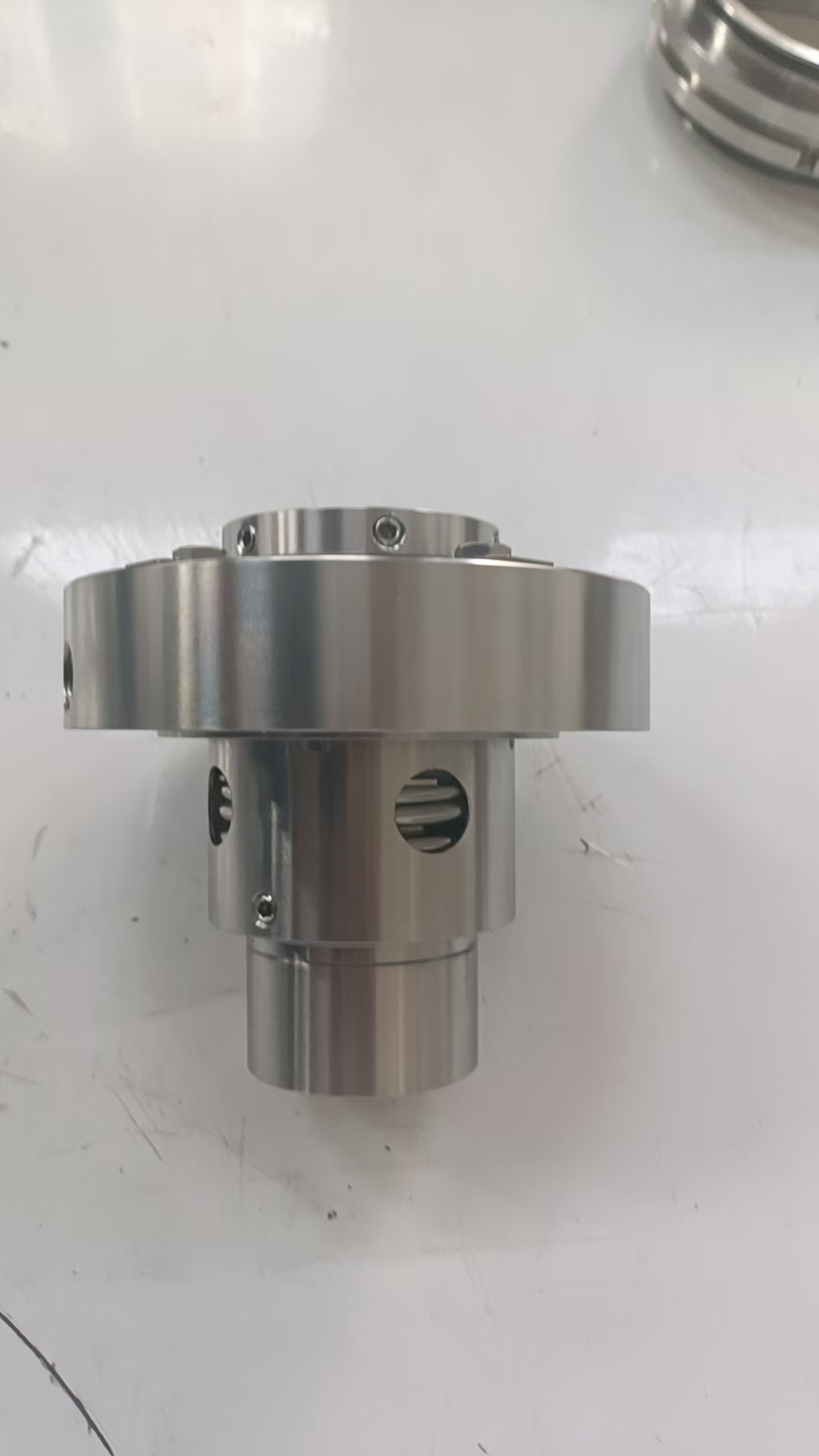

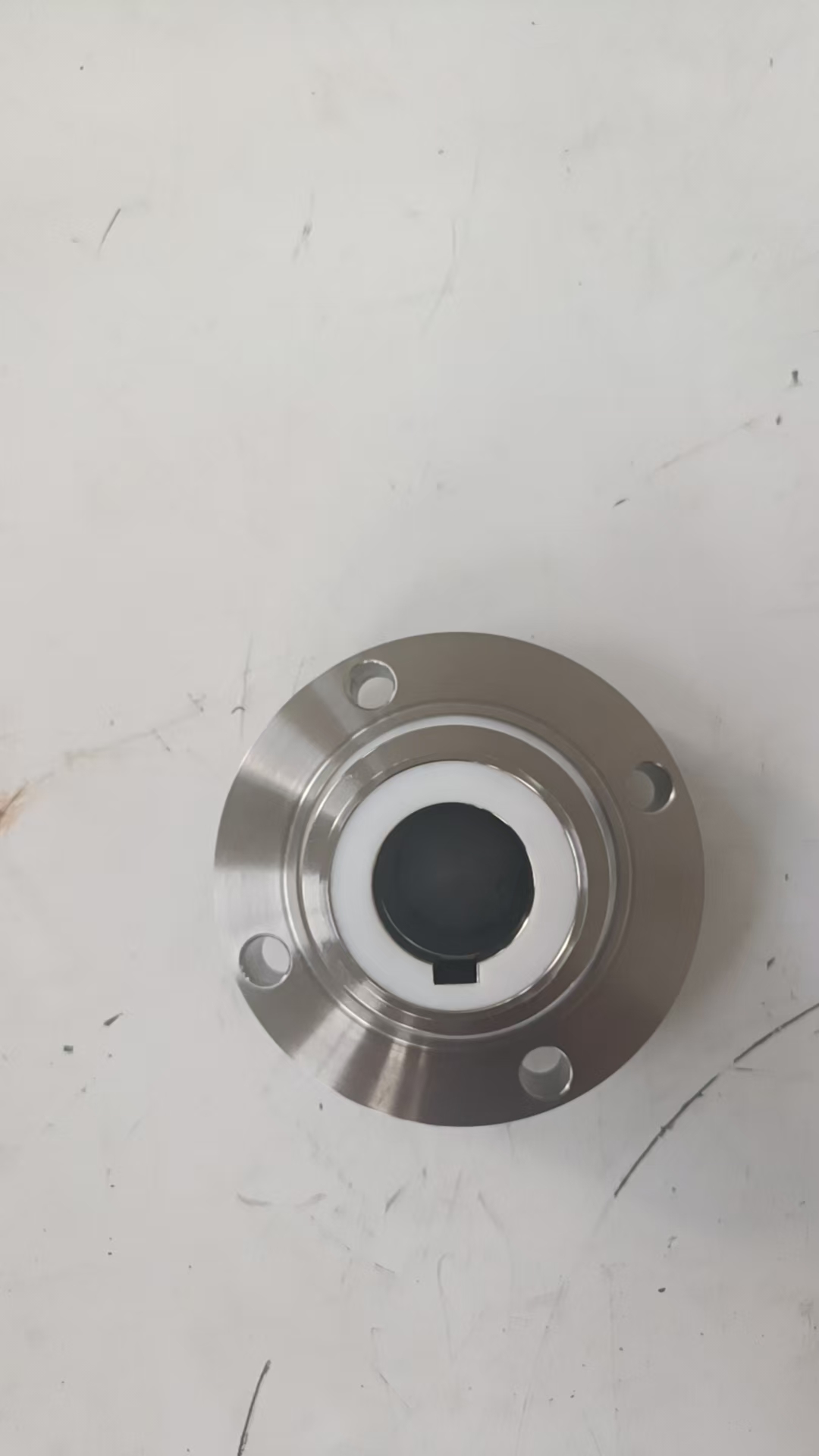

AS 025-C45B-45
Engineering seal for JINB100-80-160 Pump, suitable for mediums like urea solutions. Standard balanced seal, single spring. Operating temp -20 to 120°C, pressure ≤1.6 MPa, speed ≤3000 r/min.
Materials
Rotary Face / Stationary Face / Elastomer / Spring / Metal Parts
SiC/SiC/EPDM/SS316/SS316
1 Variant
| Model | Materials | GA |
|---|---|---|
| C45B-45 | SiC/SiC/EPDM/SS316/SS316 | — |
Operating Conditions & Materials
Pressure
2.0 MPa or less
Temperature
-40 ~ 200 ºC
Linear Speed
25 m/s or less
Mediums
Water, sewage, industrial process fluids.
Customization Available
Changes of materials for getting other operating parameters are possible. Contact us with your requirements.
