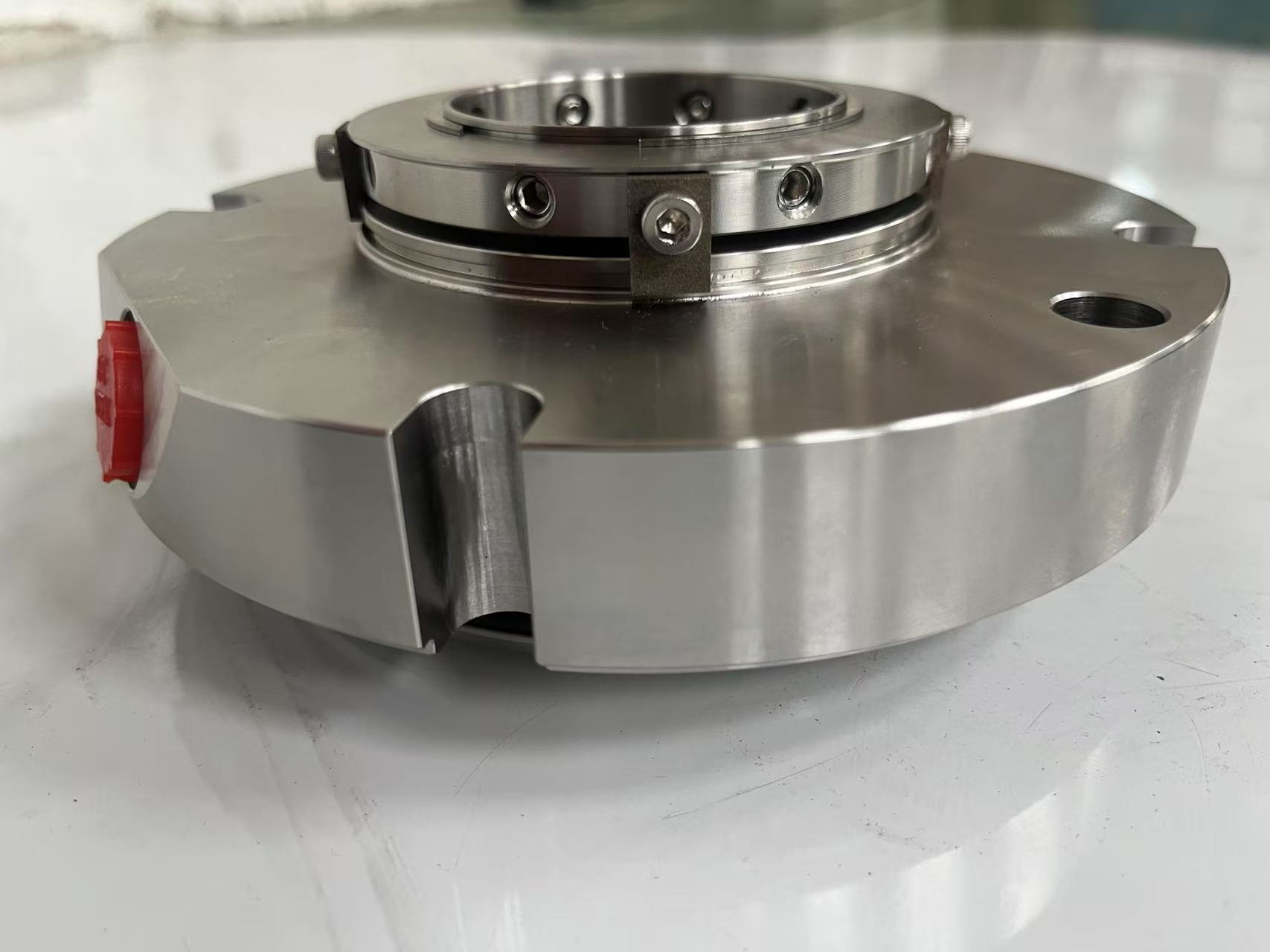

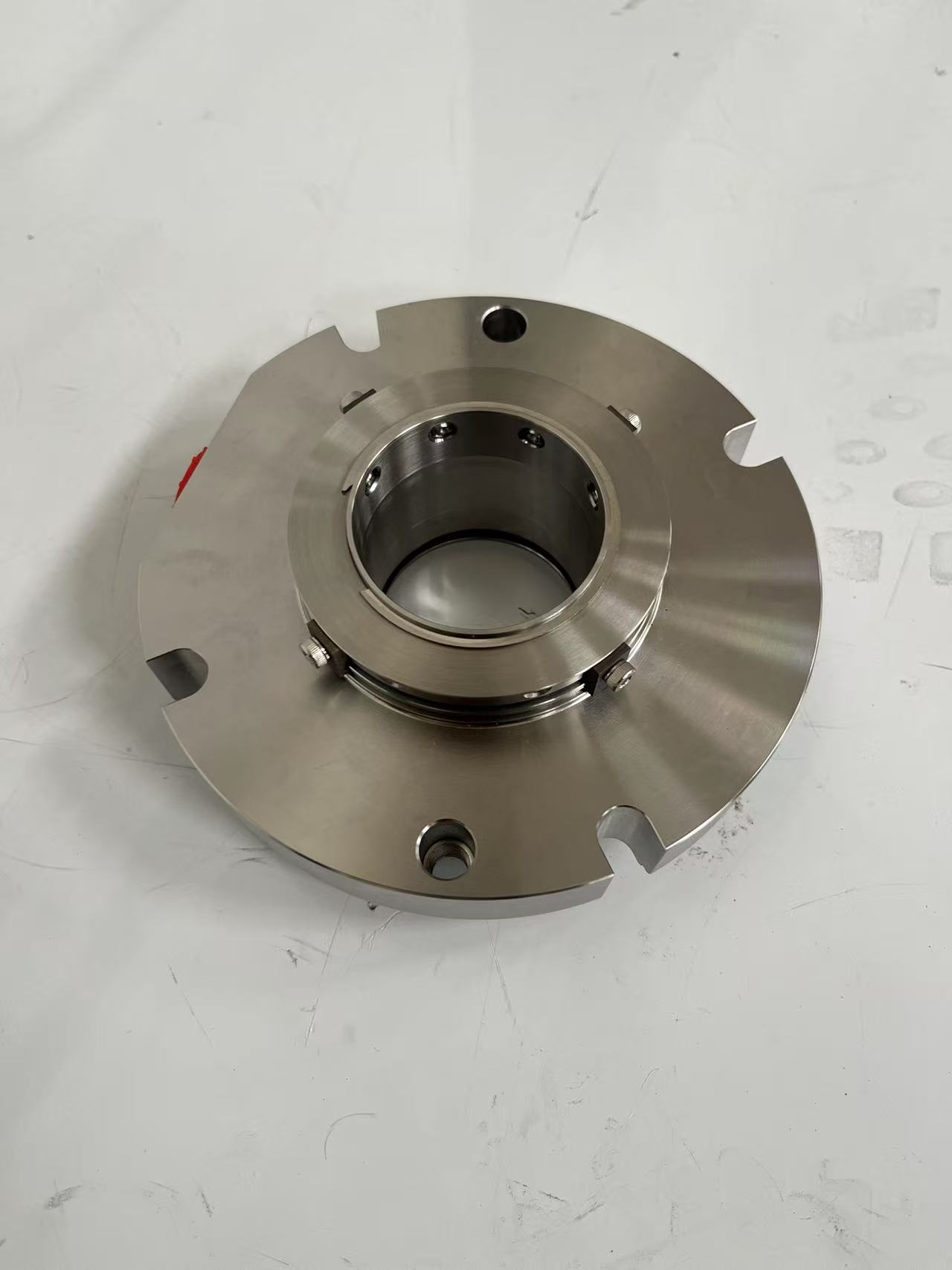

AS 5610V-43-GA-197516
Universal Cartridge Seal — the modular family concept provides interchangeable components so you can apply one seal family throughout your plant. More applications with less inventory, simplified maintenance, reduced downtime.
Materials
Rotary Face / Stationary Face / Elastomer / Spring / Metal Parts
SiC/SiC/Viton/HC276/SS316
1 Variant
| Model | Materials | GA |
|---|---|---|
| 5610V-43 | SiC/SiC/Viton/HC276/SS316 | GA-197516 |
Operating Conditions & Materials
Pressure
2.0 MPa or less
Temperature
-40 ~ 200 ºC
Linear Speed
25 m/s or less
Mediums
Water, sewage, chemicals. For ABS LG 2B pumps.
Customization Available
Changes of materials for getting other operating parameters are possible. Contact us with your requirements.
