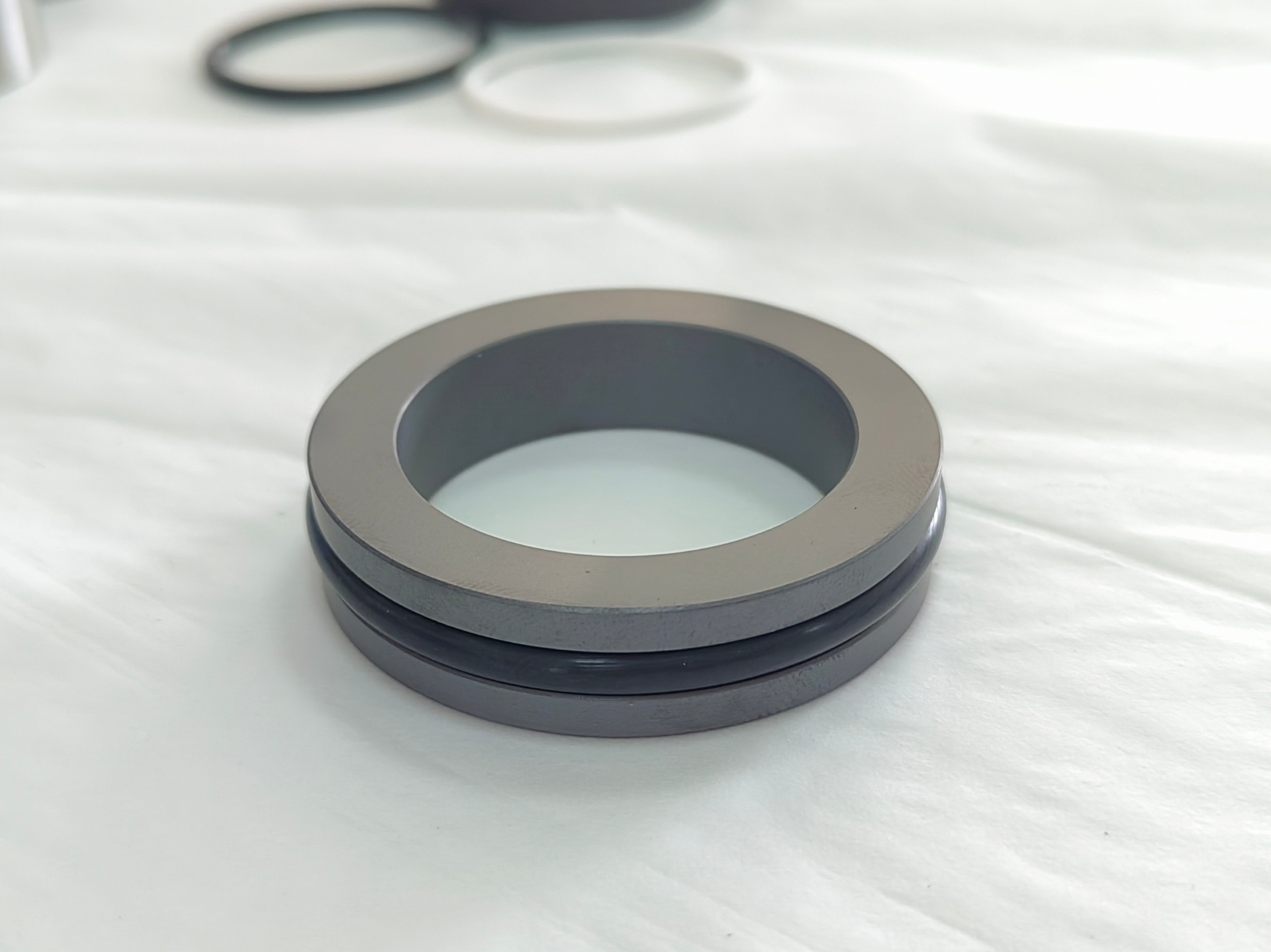

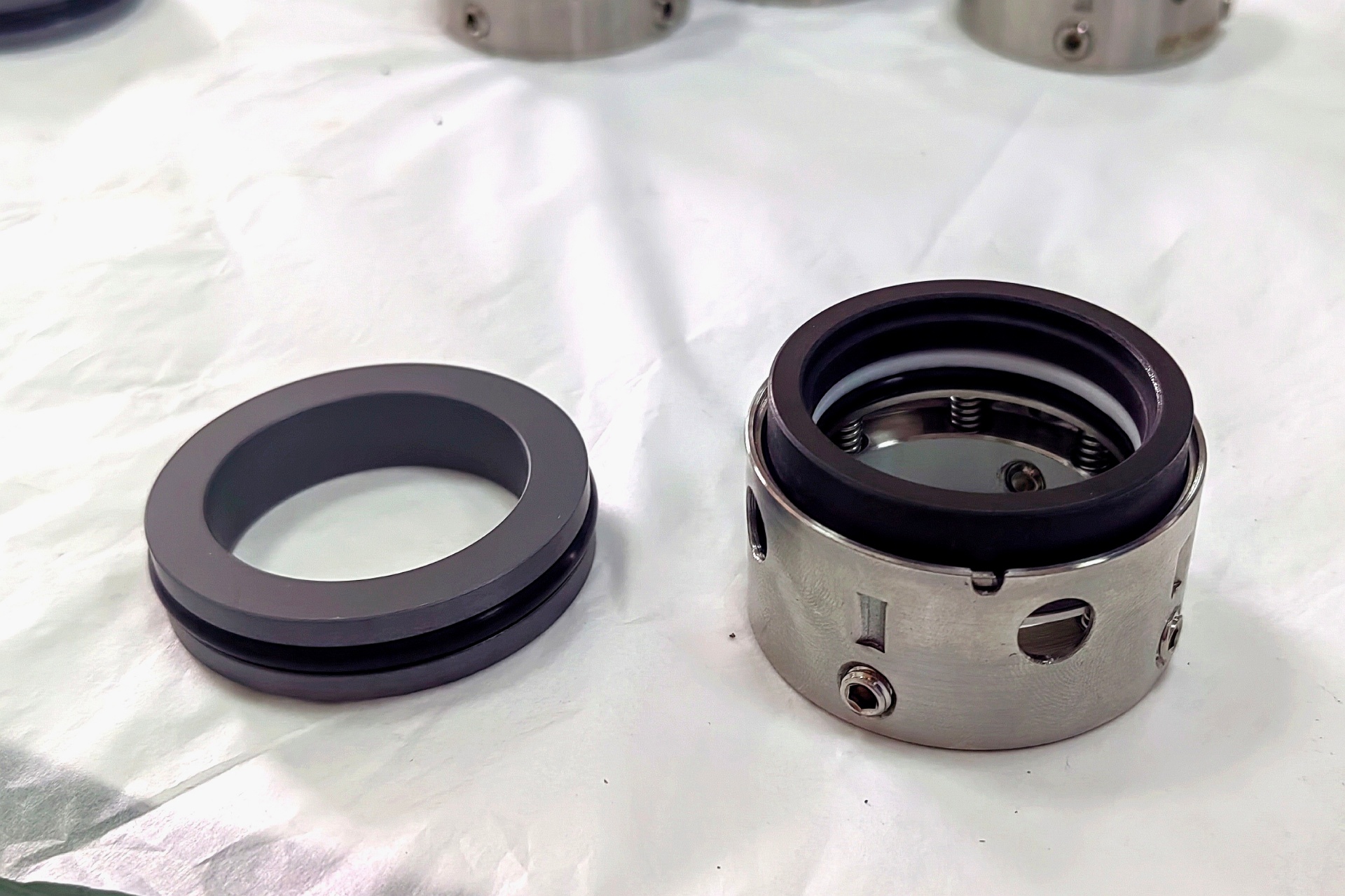

AS Type 8-O
High-pressure Elastomer O-ring Seal available in a wide variety of materials. The Type 8B1 and Type 8B1T seals are balanced construction for higher pressures. These are component seals that can be shaft mounted or built into a cartridge.
Materials
Rotary Face / Stationary Face / Elastomer / Spring / Metal Parts
TC/TC/Viton/SS316/SS316
1 Variant
| Model | Materials | GA |
|---|---|---|
| Type 8-O-3.5" | TC/TC/Viton/SS316/SS316 | M206496 |
Operating Conditions & Materials
Pressure
1.5 MPa or less
Temperature
-20 ~ 200 ºC
Linear Speed
15 m/s or less
Mediums
Paper pulp, slurries. For Black Clawson Mixers.
Customization Available
Changes of materials for getting other operating parameters are possible. Contact us with your requirements.
Related Products
AS 5610V-43-GA-197516
Universal Cartridge Seal — the modular family concept provides interchangeable components so you can apply one seal family throughout your plant. More applications with less inventory, simplified maintenance, reduced downtime.
AS 5610Q-38-GA-128706
Type 5610Q seal provides a quench gland with carbon ring throttle bushing. Universal cartridge design.

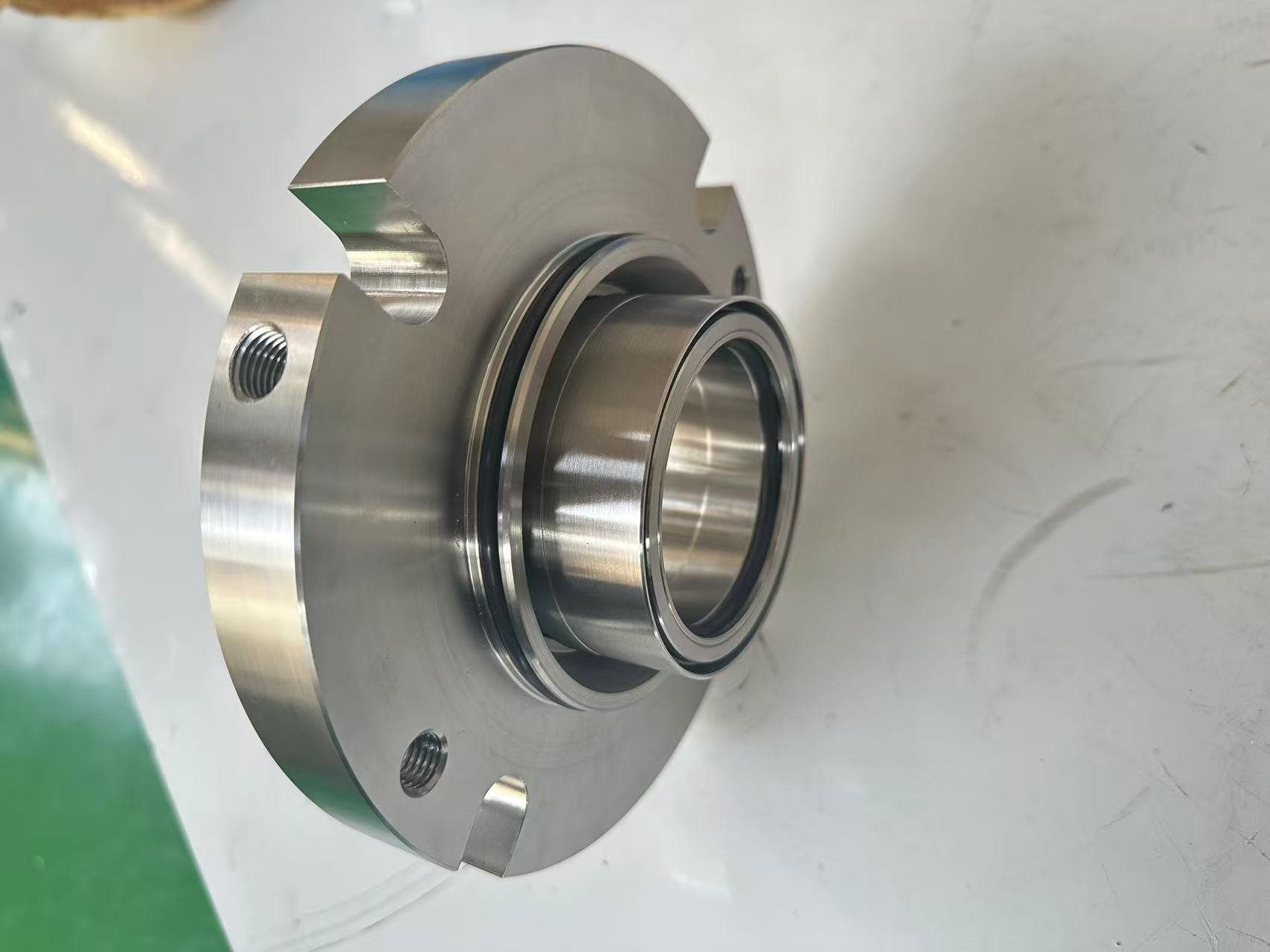

AS 4610-65-GA-214821
