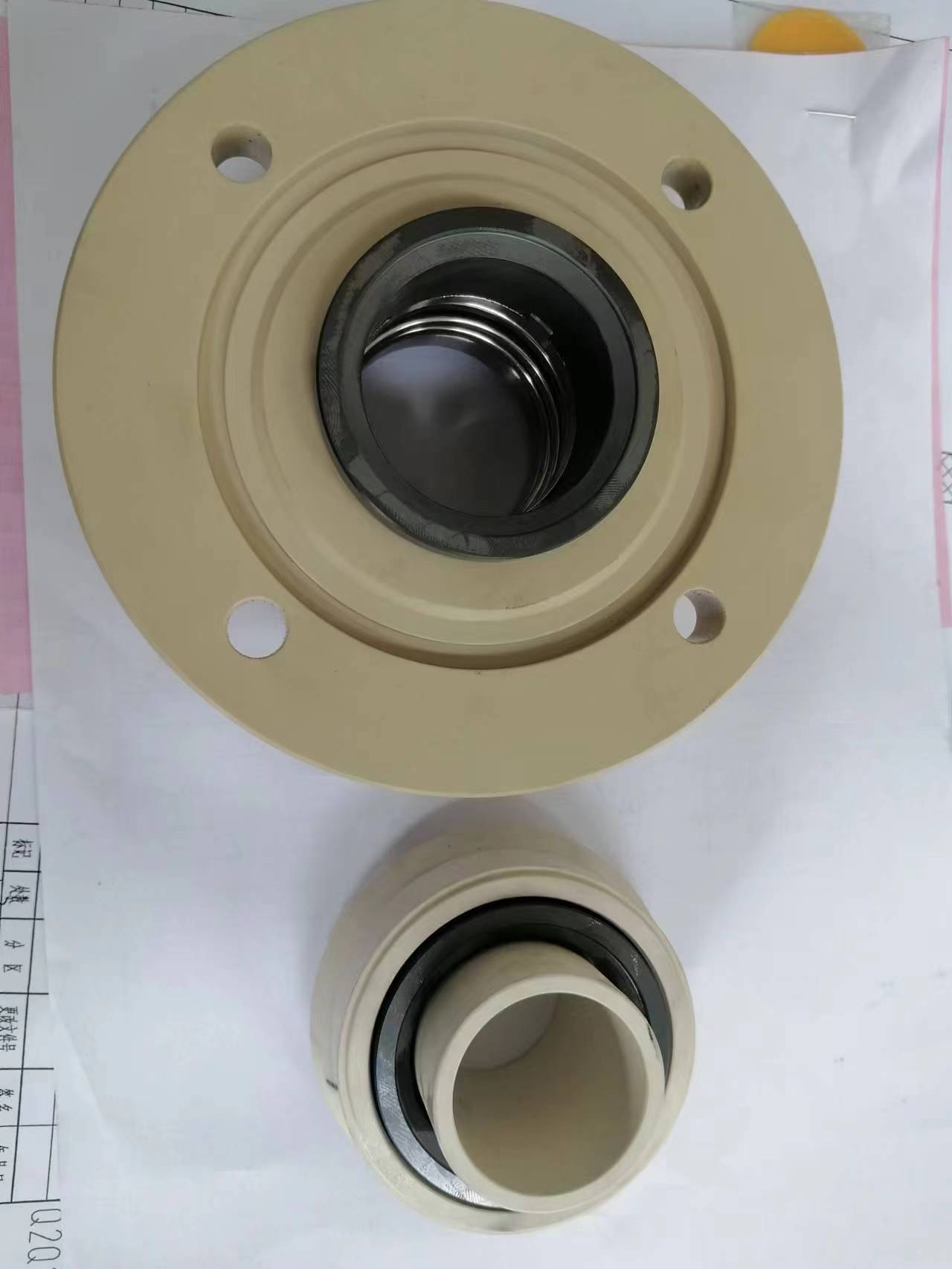

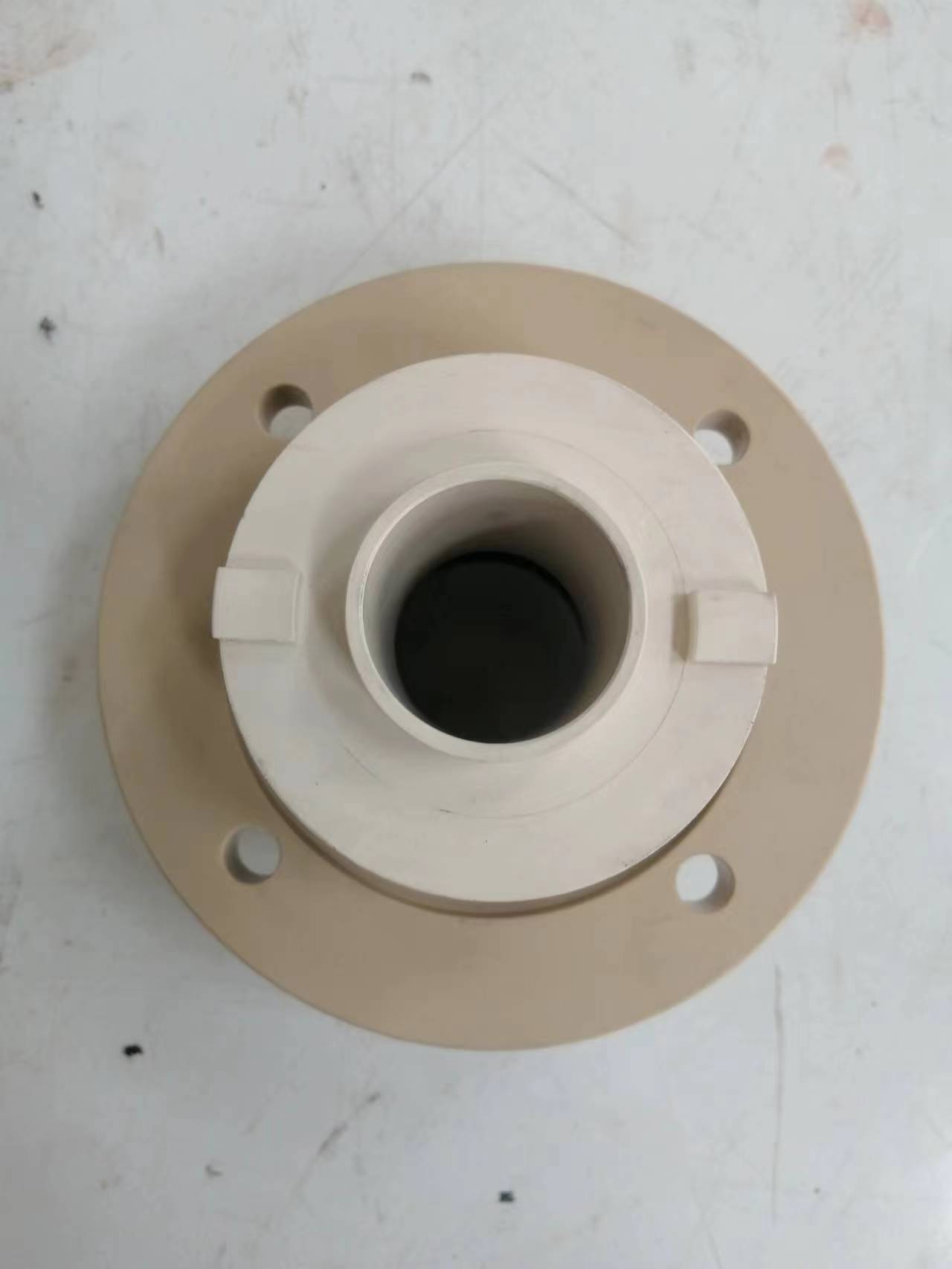

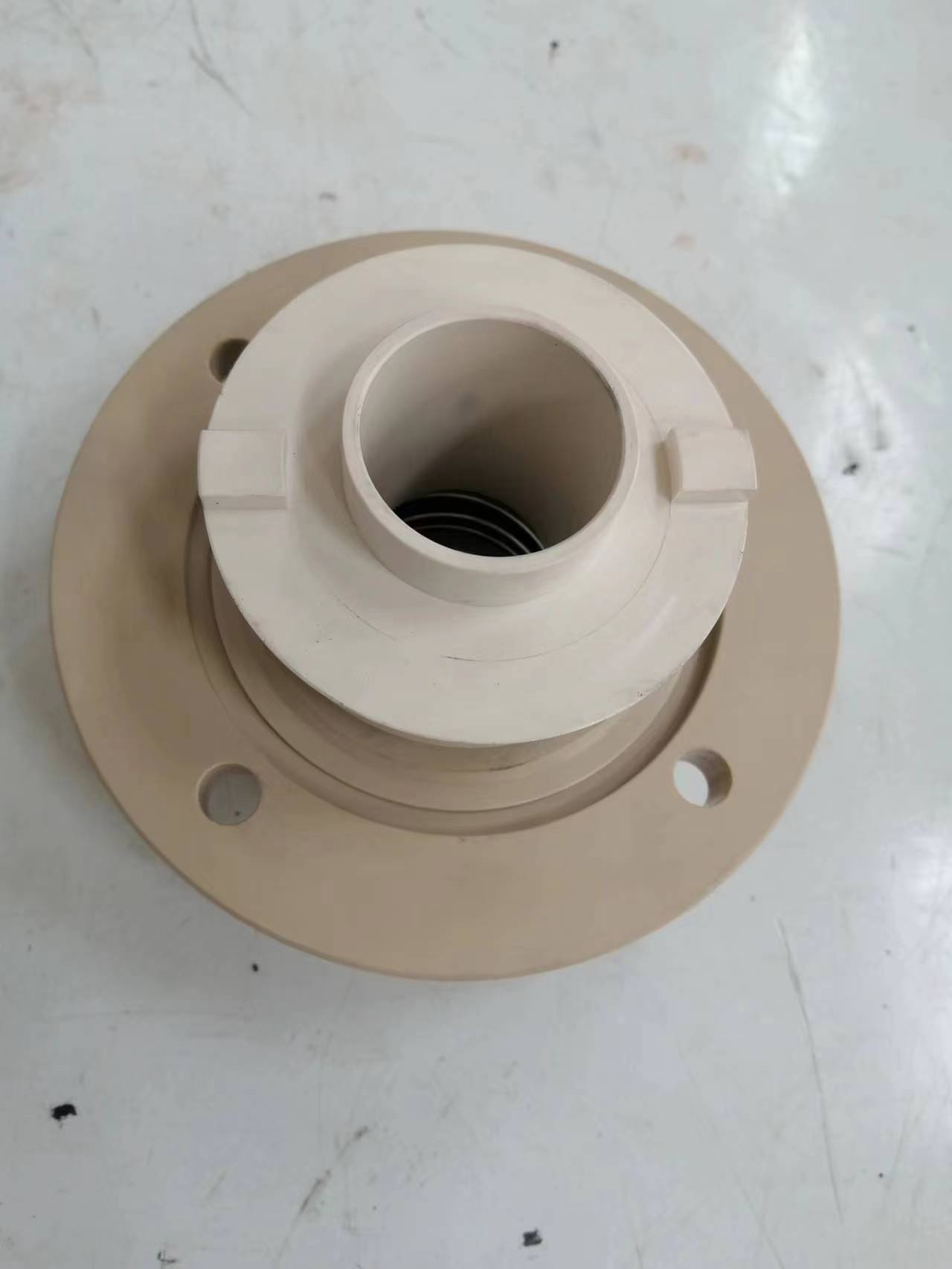

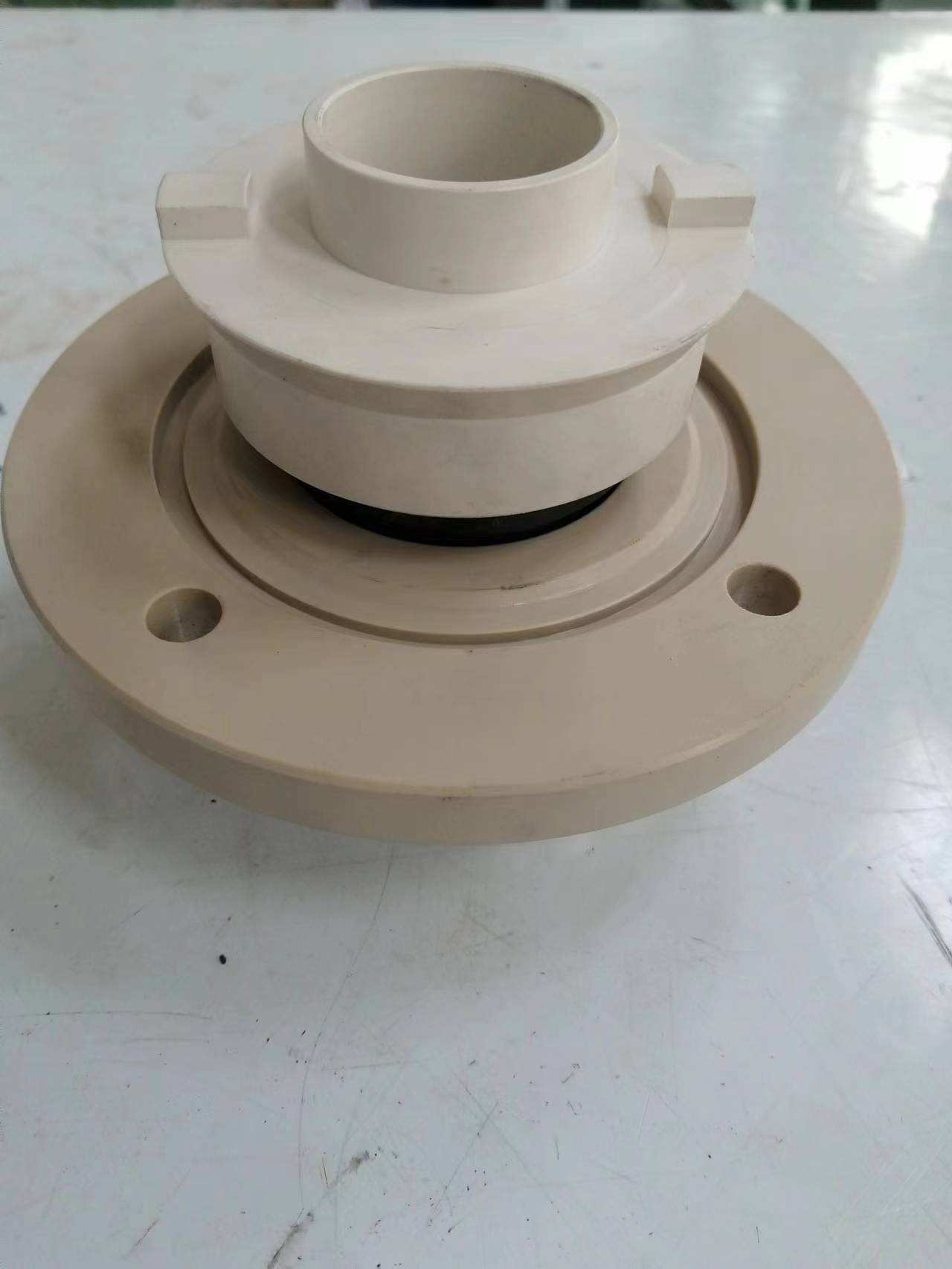

AS 028-CJ-35
Engineering seal designed for soda ash pumps in soda ash workshop.
Materials
Rotary Face / Stationary Face / Elastomer / Spring / Metal Parts
SSiC/SSiC/PEEK and FEP/SS316/SS316
1 Variant
| Model | Materials | GA |
|---|---|---|
| CJ-35 | SSiC/SSiC/PEEK and FEP/SS316/SS316 | — |
Operating Conditions & Materials
Pressure
2.0 MPa or less
Temperature
-40 ~ 200 ºC
Linear Speed
20 m/s or less
Mediums
Chemical process fluids, solvents, corrosive mediums.
Customization Available
Changes of materials for getting other operating parameters are possible. Contact us with your requirements.
