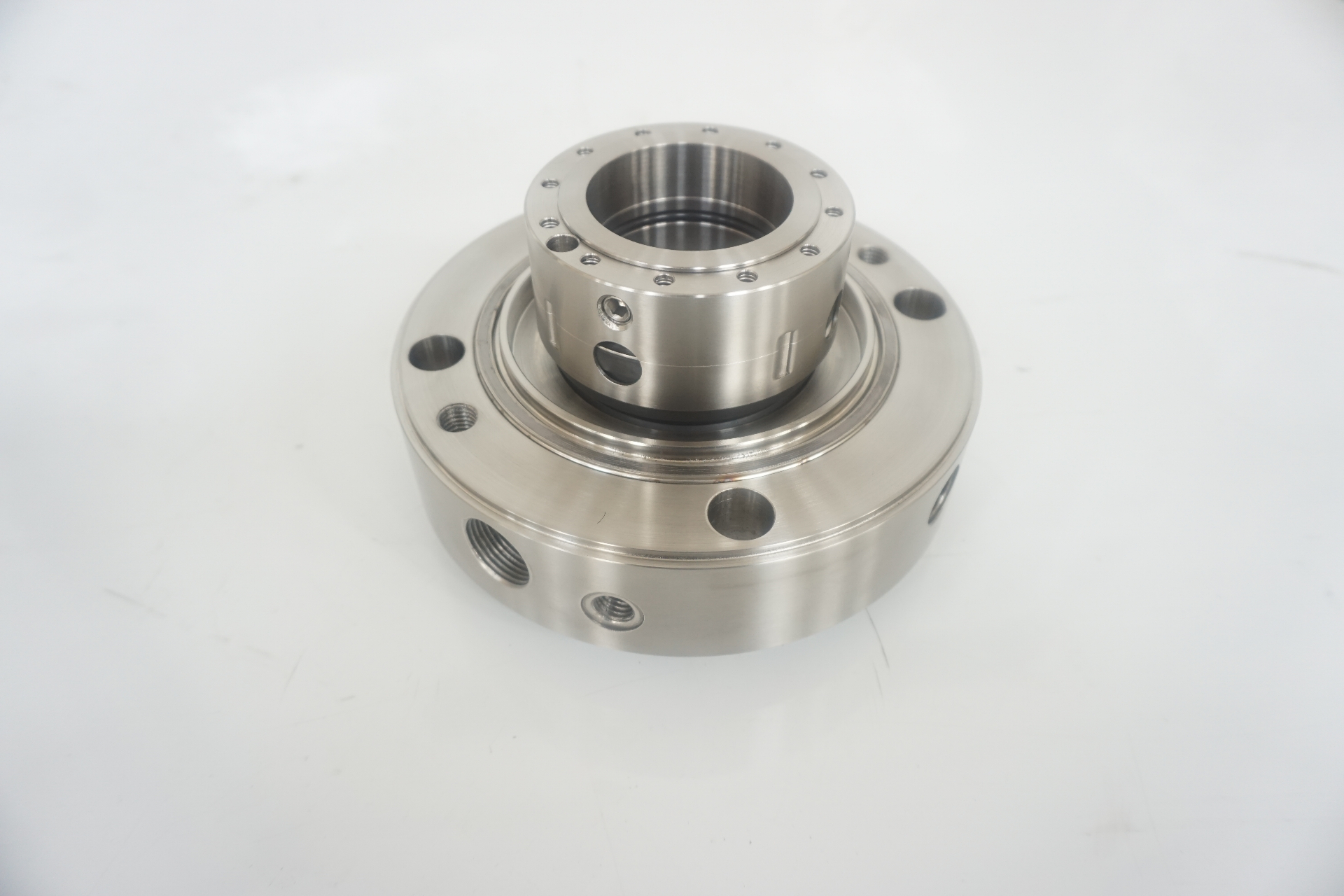

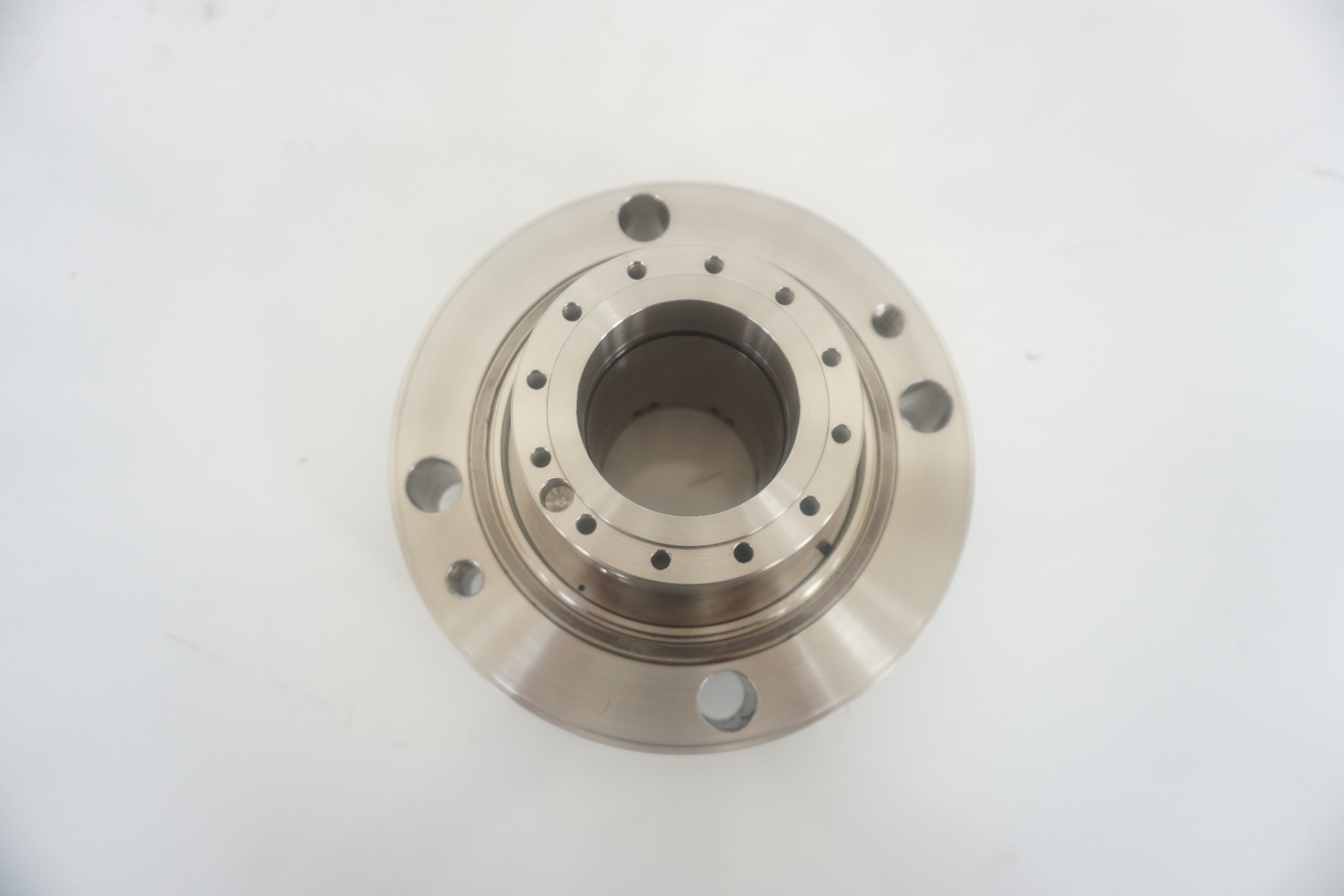

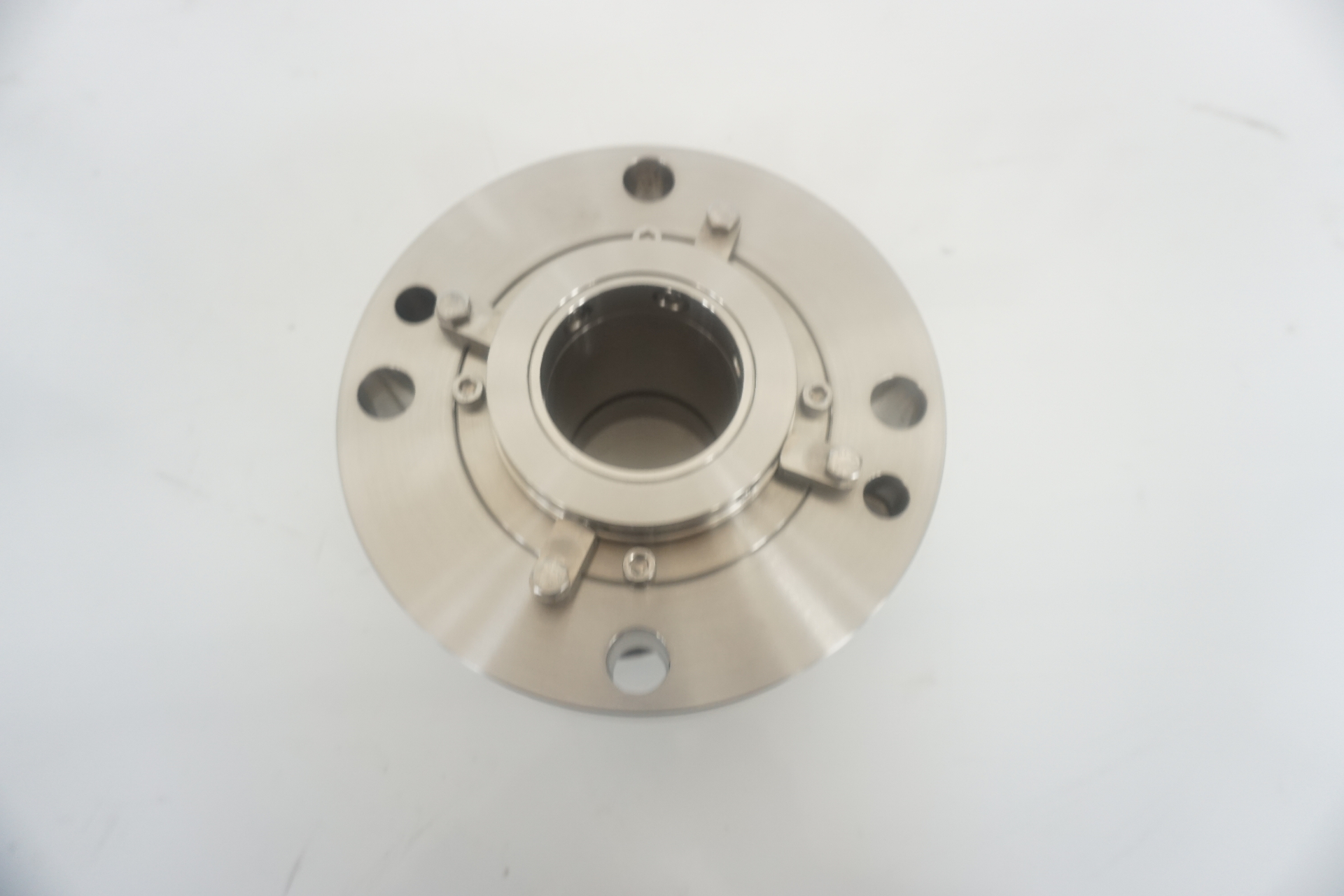

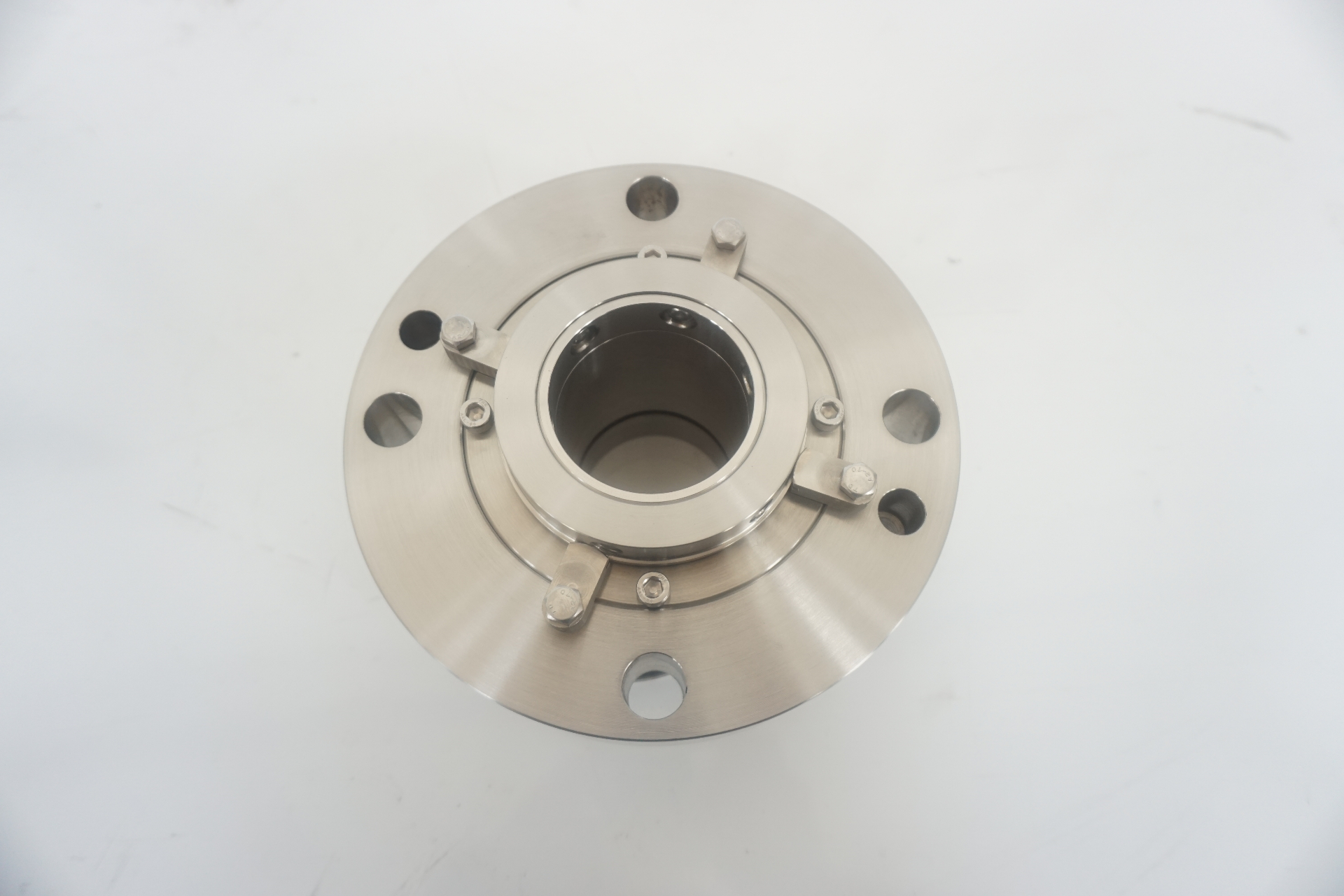

AS 1648-2.875-GA-273995
Multiple spring single cartridge seal, balanced, for horizontal overhung pump.
Materials
Rotary Face / Stationary Face / Elastomer / Spring / Metal Parts
Carbon/SiC/Viton/HC276/SS316
1 Variant
| Model | Materials | GA |
|---|---|---|
| 1648-2.875 | Carbon/SiC/Viton/HC276/SS316 | GA-273995 |
Operating Conditions & Materials
Pressure
2.0 MPa or less
Temperature
-40 ~ 200 ºC
Linear Speed
25 m/s or less
Mediums
Water, chemicals, process fluids.
Customization Available
Changes of materials for getting other operating parameters are possible. Contact us with your requirements.
