AS 2001 Series
2001, 2002, 2004, and 2005 Mechanical Seal for Vertical Type Agitation Equipment.
Structural Features: 2001 is single end, 2002/2004/2005 are double ends. 2001 is unbalanced, 2002/2004/2005 are balanced, bearing transmission. The component is cartridge seal with easy installation.
Industrial Standards: HG21571-95
Scopes of Application: mainly used in top driven vertical type agitation equipment, which does not have strict requirements for leakproofness. This component can work as an alternative to M461 (2001 and 2002) or M481 (2004 and 2005) of Burgmann.
Materials
Rotary Face / Stationary Face / Elastomer / Spring / Metal Parts
SiC/Carbon/Viton/SS316/SS316
5 Variants
| Model | Materials | GA |
|---|---|---|
| 2001 | SiC/Carbon/Viton/SS316/SS316 | — |
| 2002 | SiC/Carbon/Viton/SS316/SS316 | — |
| 2004 | SiC/Carbon/Viton/SS316/SS316 | — |
| 2005 | SiC/Carbon/Viton/SS316/SS316 | — |
| 2009 | SiC/Carbon/Viton/SS316/SS316 | — |
Operating Conditions & Materials
Pressure
-0.1 ~ 0.6 MPa (when the pressure is bigger than 0.6 MPa, the pressure balancing device is needed and its connection size can be customized)
Temperature
-20 ~ 150 ºC (cooling tank is required if the temperature is higher than 150 ºC and the installation height should be 100 mm higher than normal)
Linear Speed
2 m/s or less (2001) / 3 m/s or less (2002, 2004, 2005)
Mediums
Water, oil, weak acid, weak alkali, and other normal mediums (2001/2002). Flammable, explosive and poisonous gas (2004/2005).
Customization Available
Changes of materials for getting other operating parameters are possible. Contact us with your requirements.

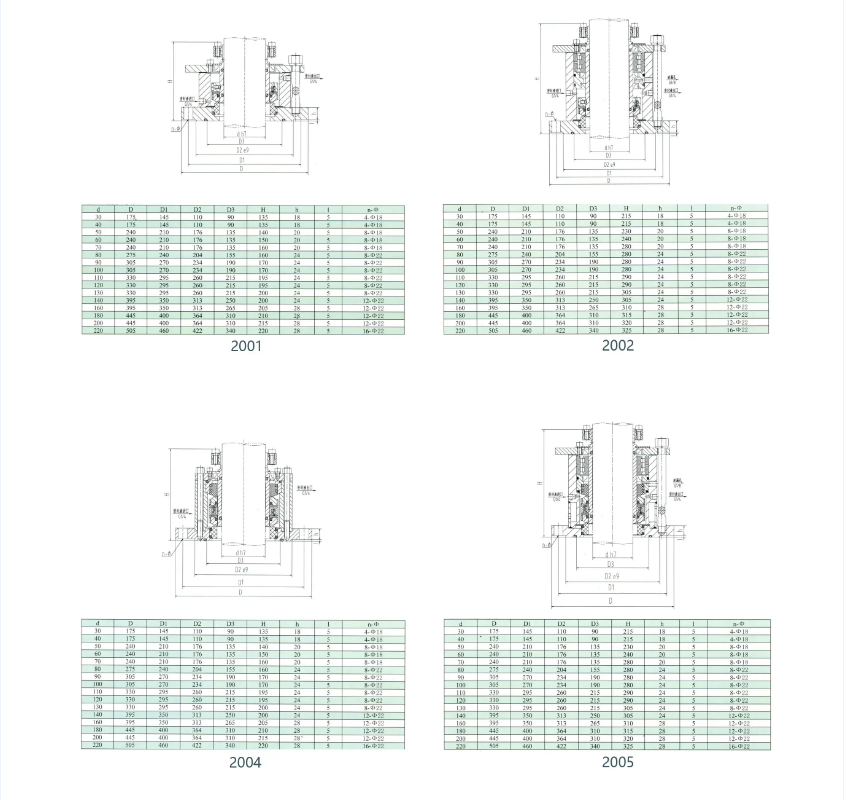

Installation Dimensions
