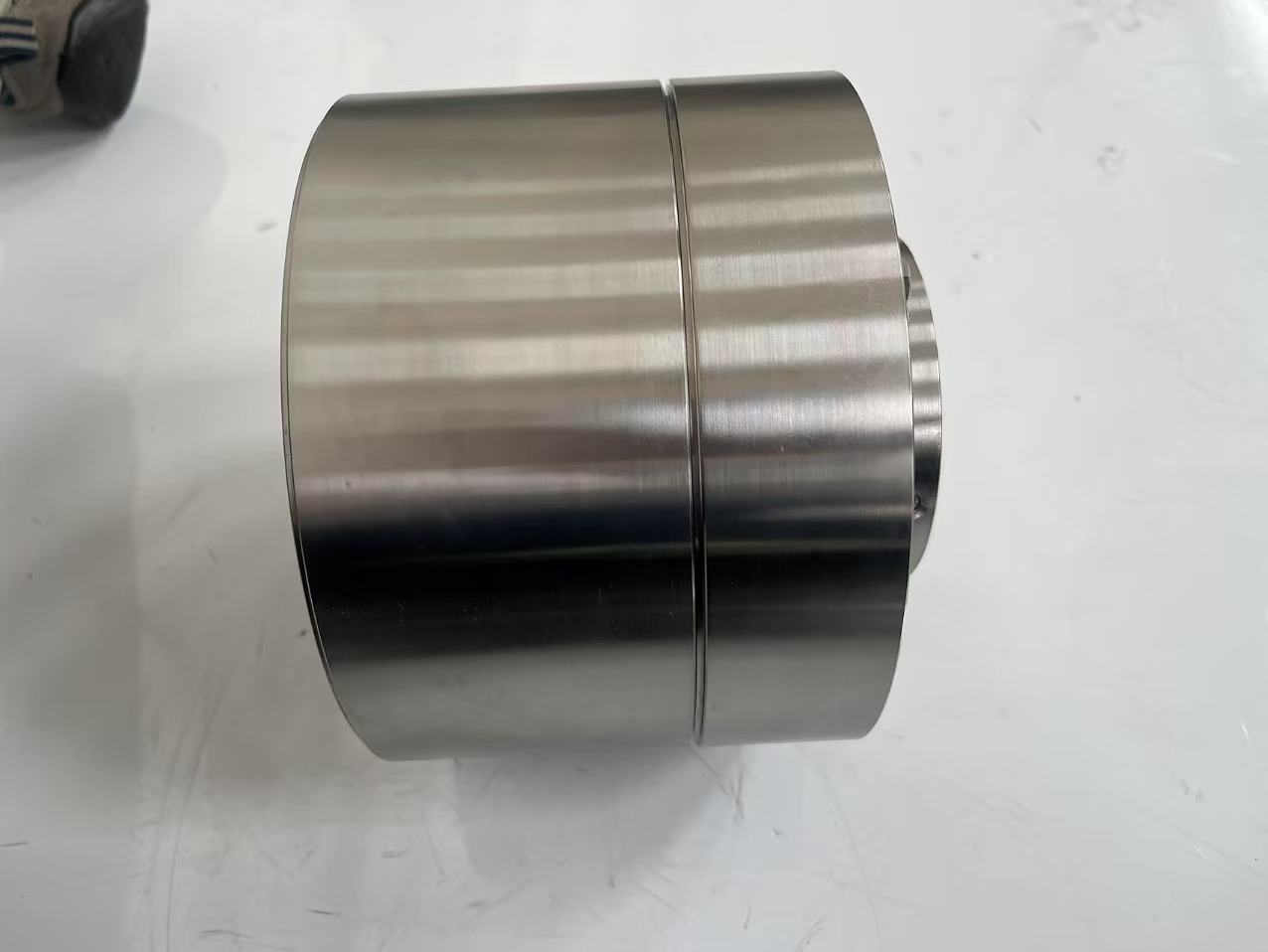

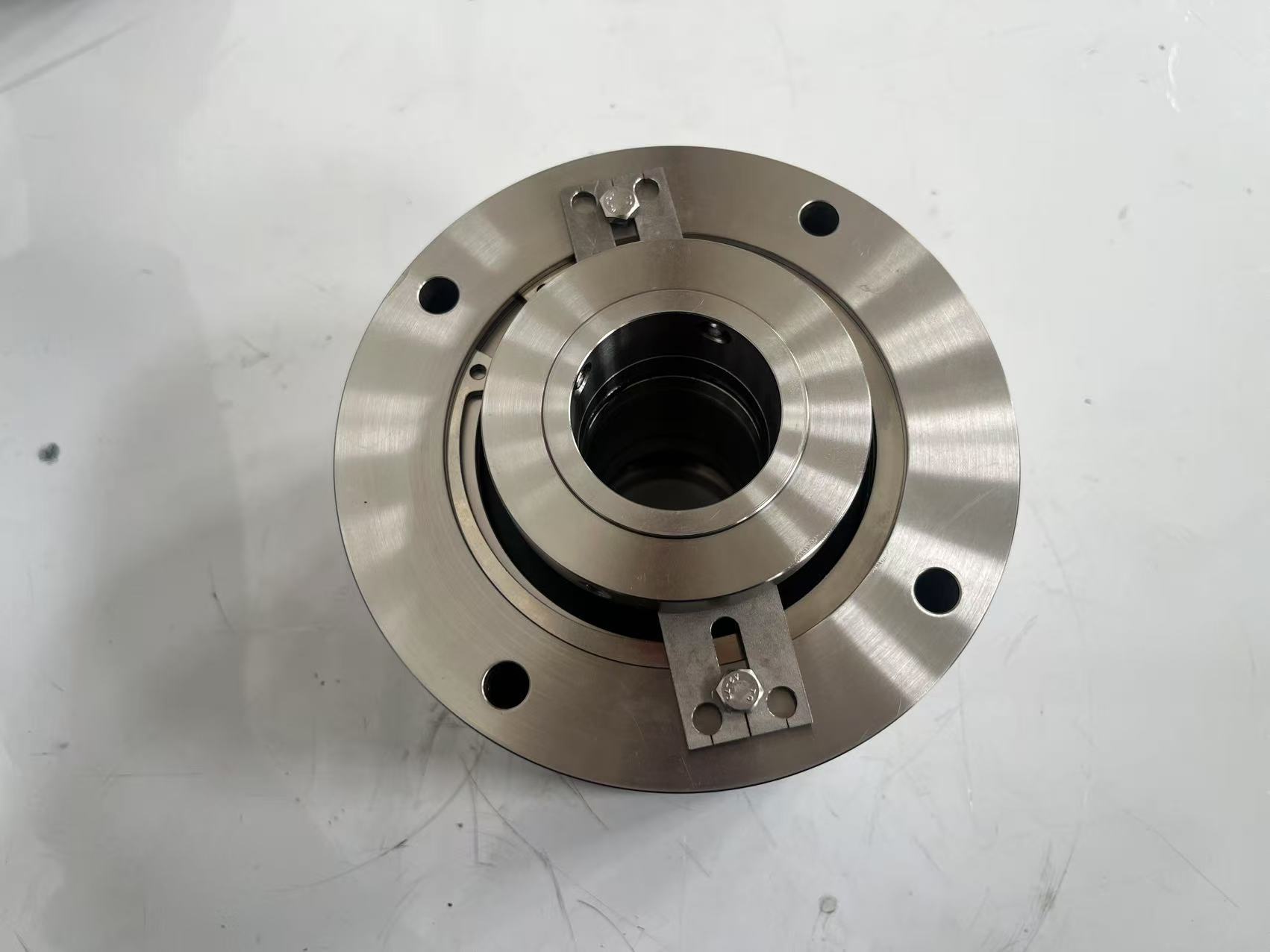

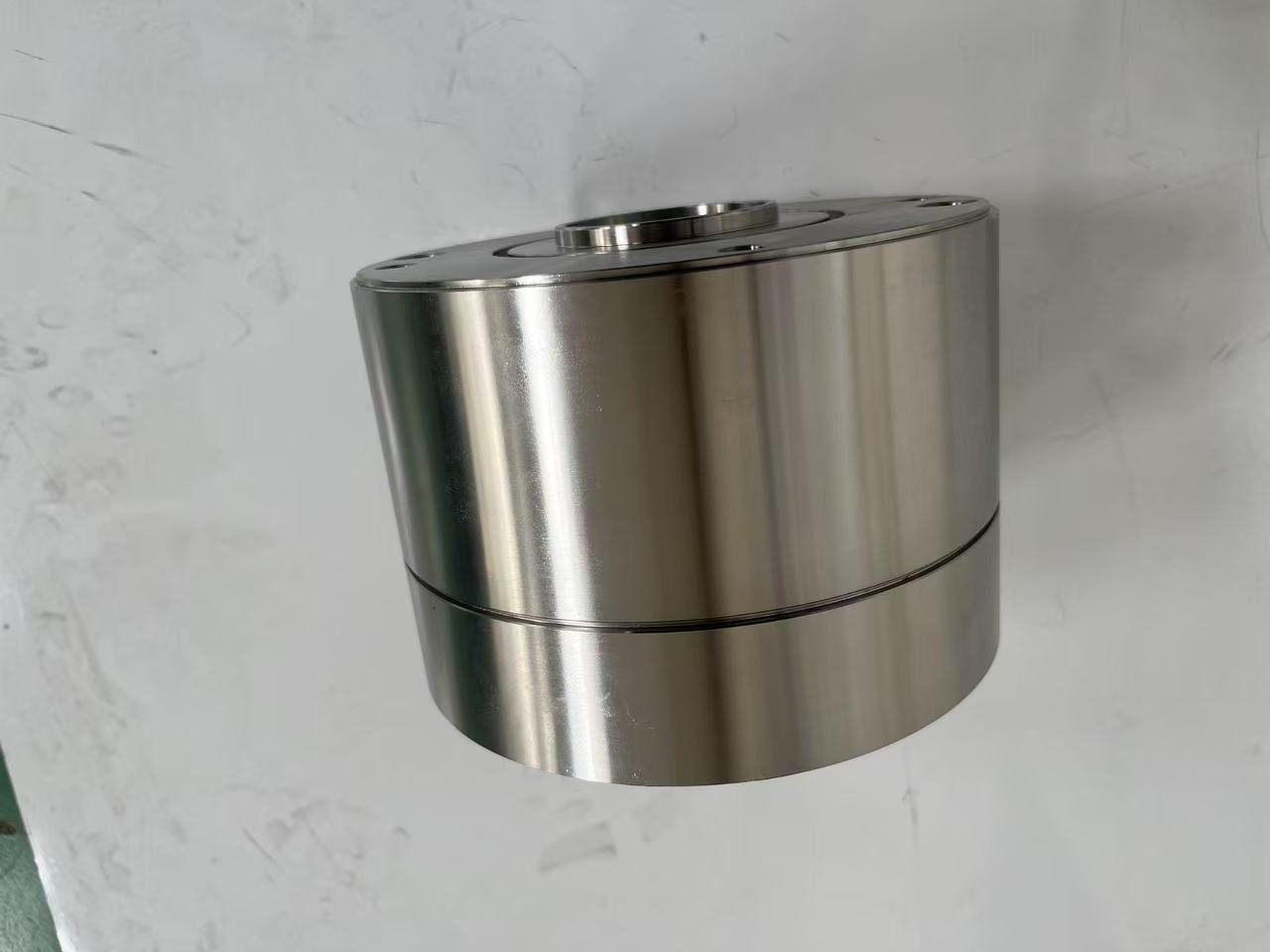

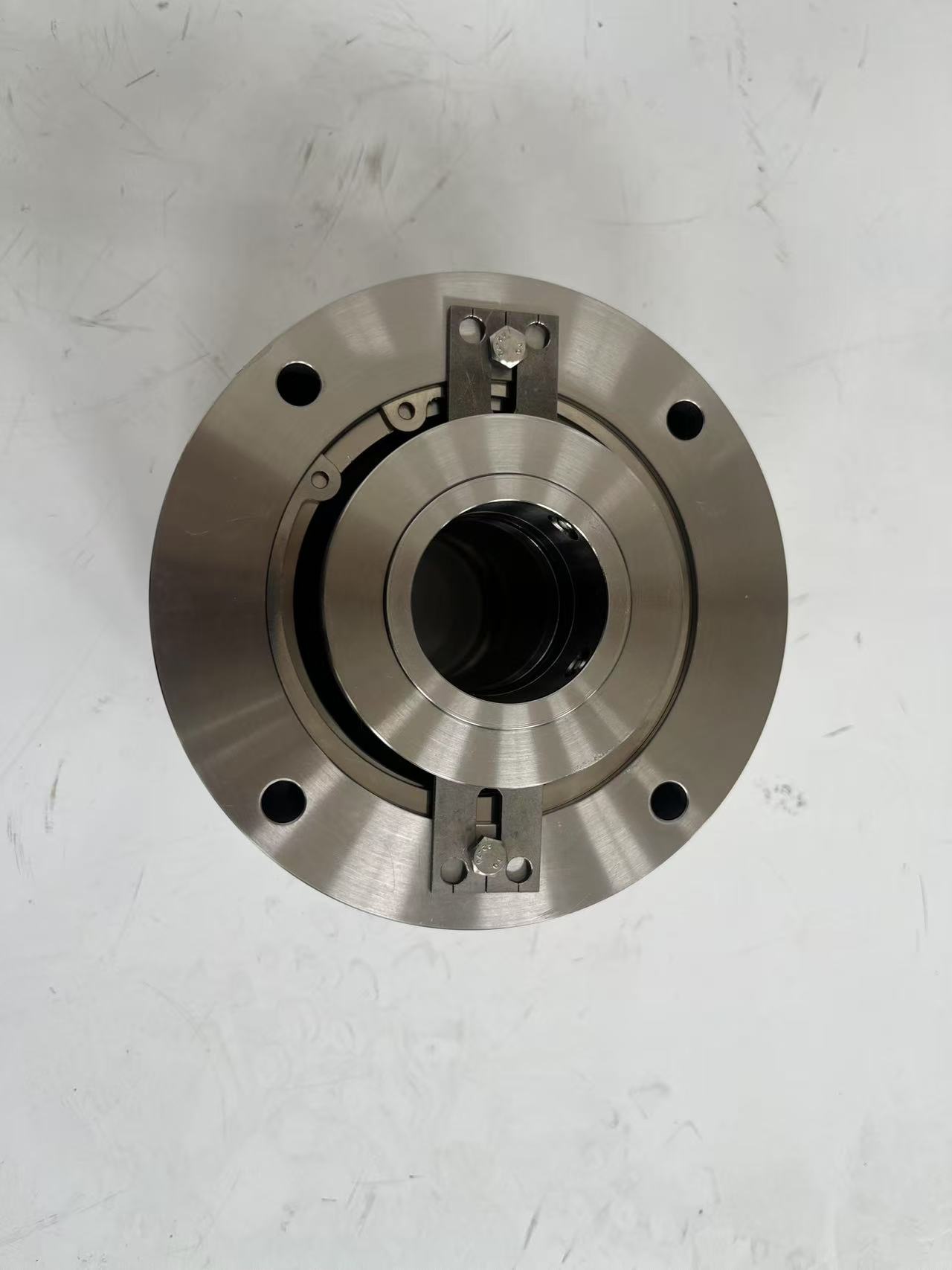

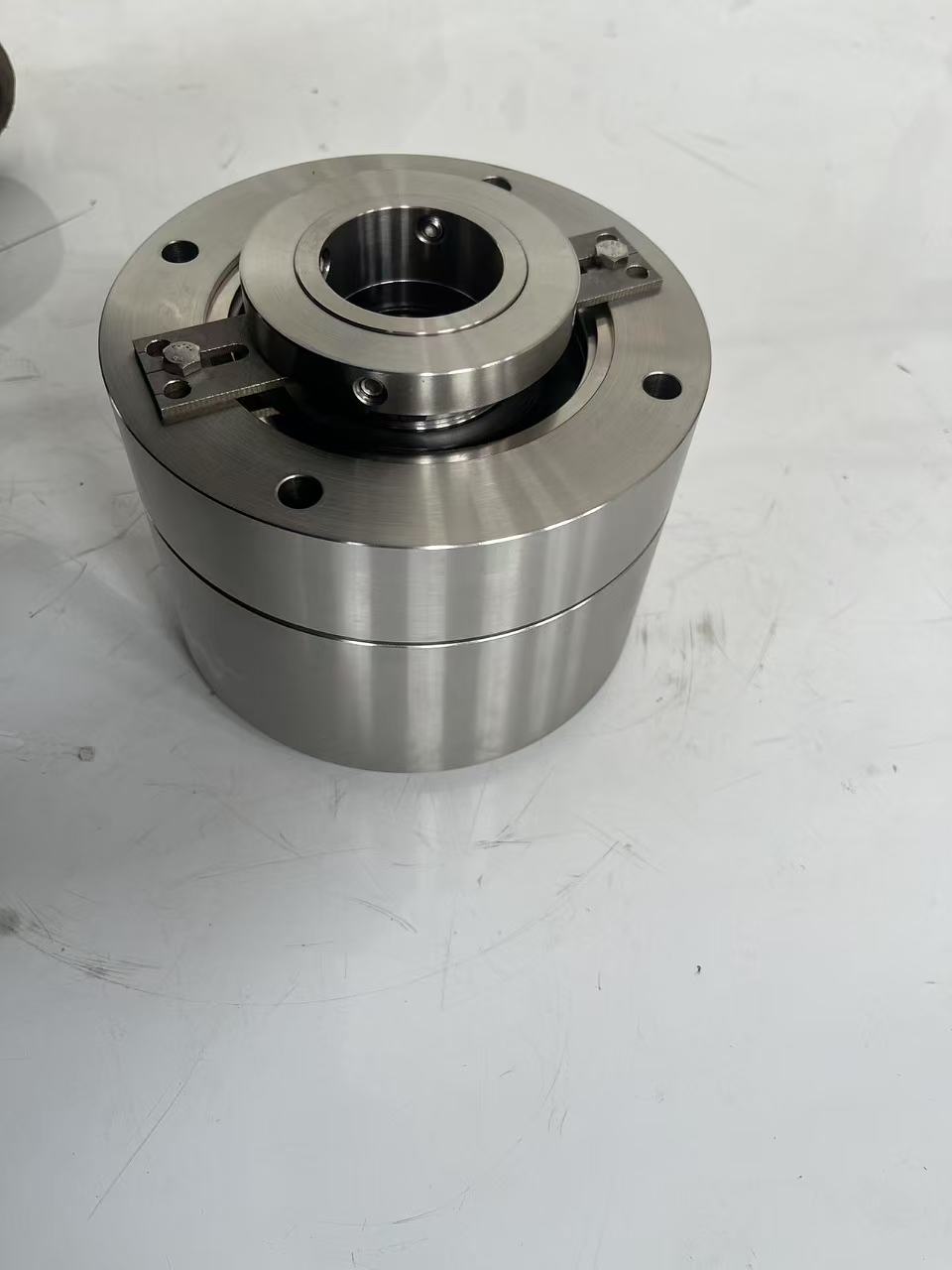

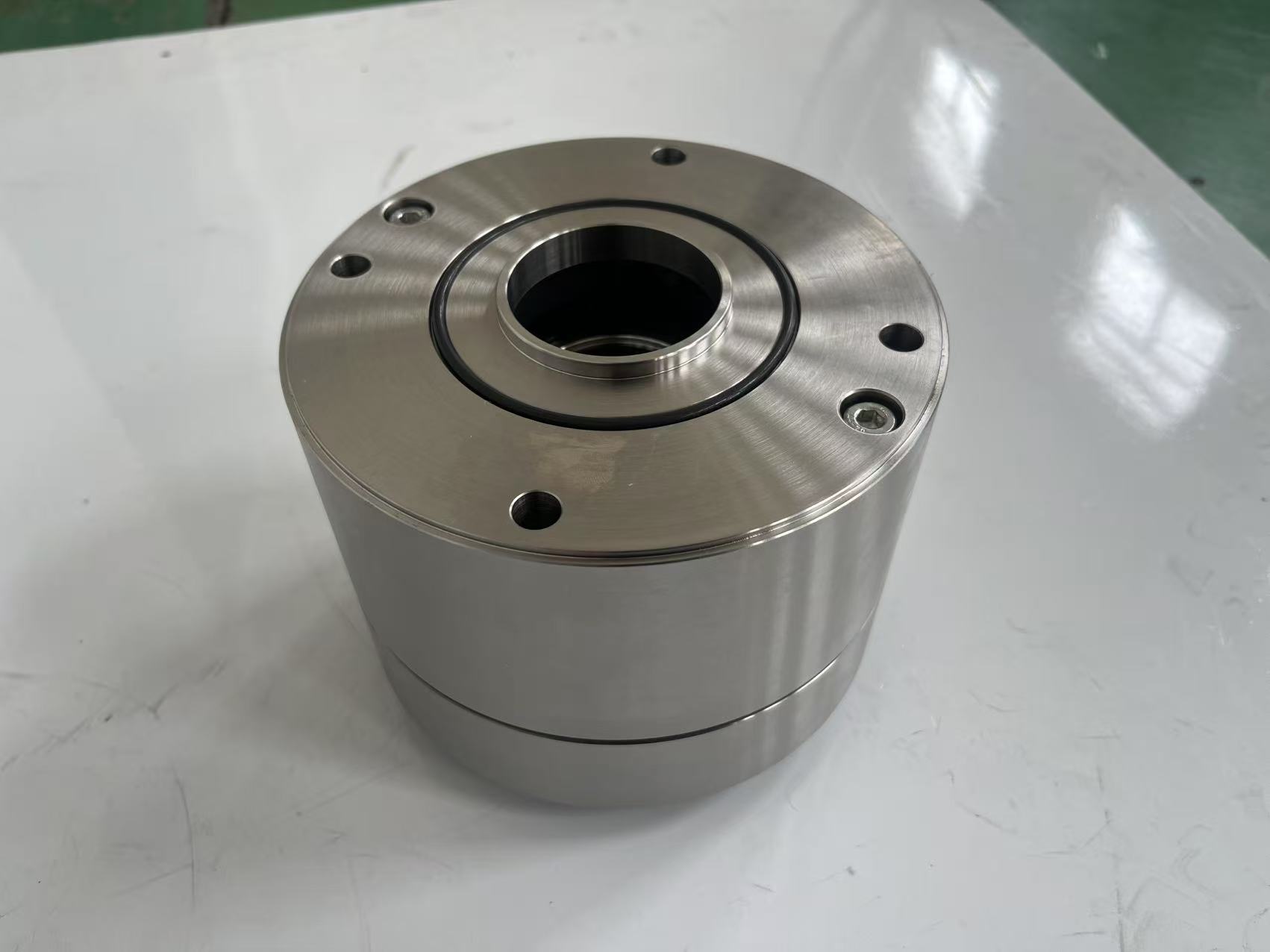

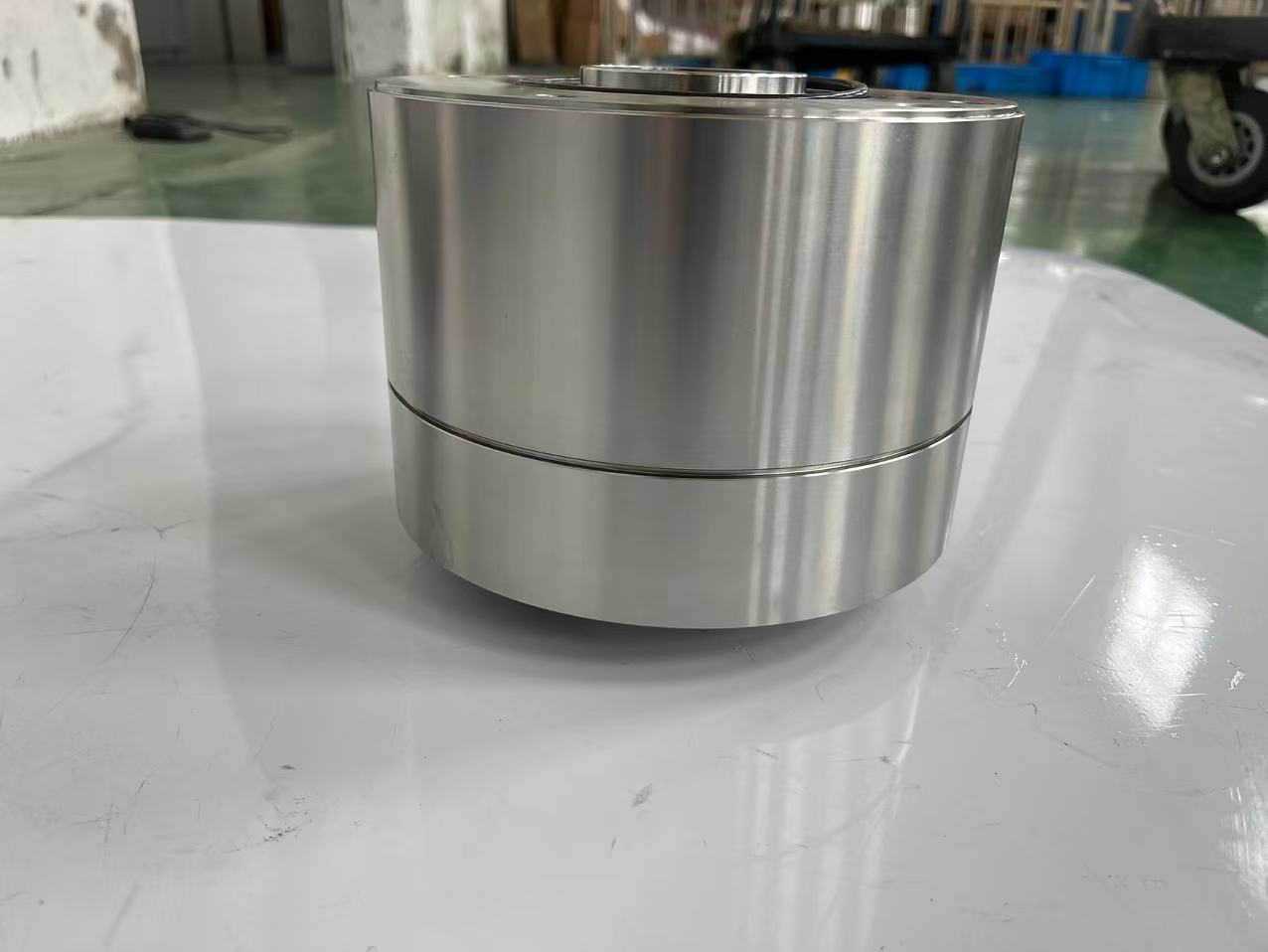

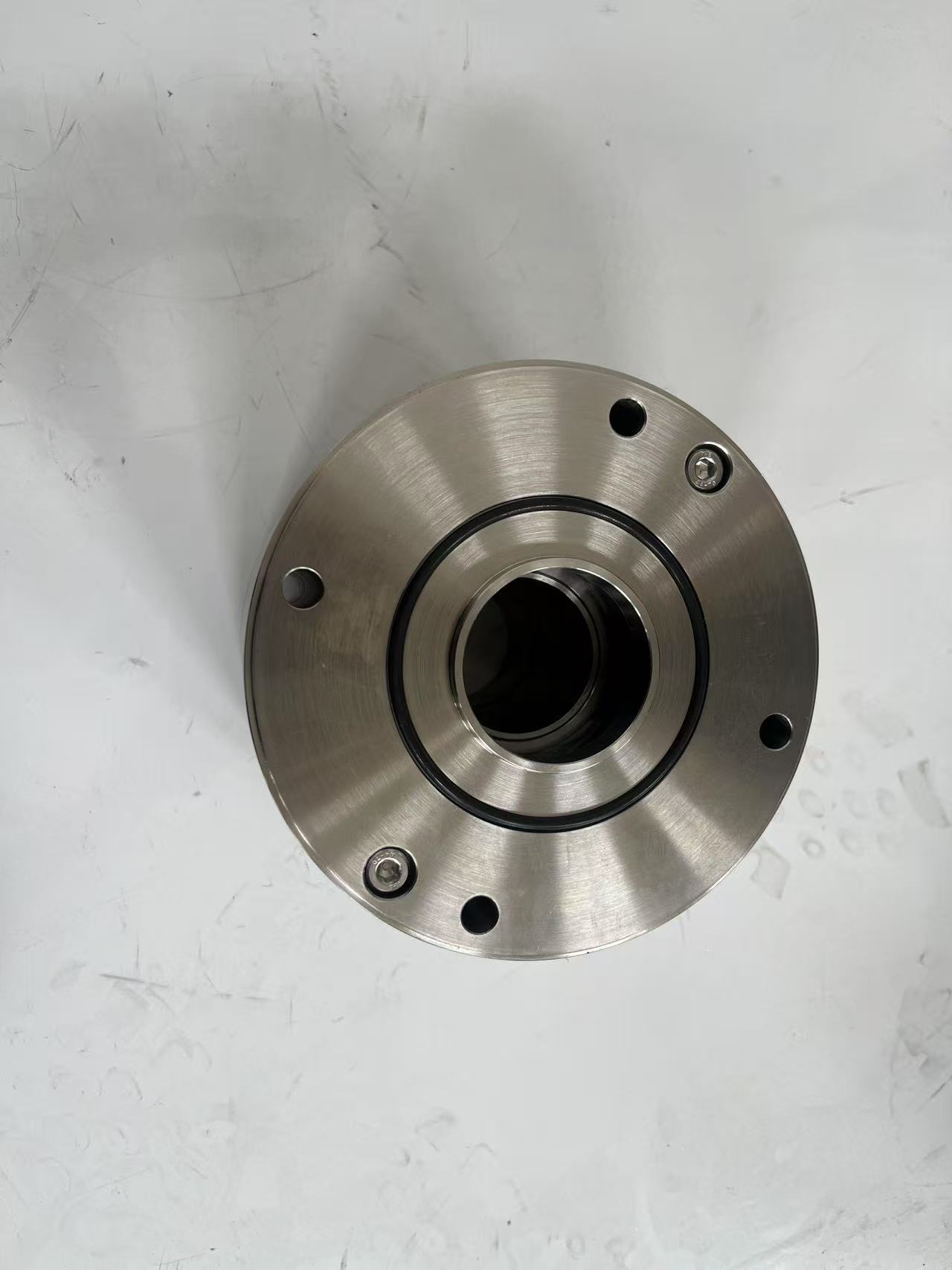

AS 32i

For: Vertical Top Entry Dry Running Mixers/Agitators

The cost-efficient Type 32 vessel seal is an outside-mounted balanced single-component seal with self-lubricating seal faces. Neither external cooling nor lubrication equipment or a supply system is required. Excellent for undemanding mixer applications and vacuum conditions.

Materials

Rotary Face / Stationary Face / Elastomer / Spring / Metal Parts

MetCar Dry Running Carbon/SSiC/FFKM/SS316/SS316

2 Variants

Model	Materials	GA
Type 32i-60	MetCar Dry Running Carbon/SSiC/FFKM/SS316/SS316	—
Type 32i-50.8	MetCar Dry Running Carbon+42 Alloy/SSiC/FFKM/SS316/SS316 with FAG bearing	GA-244966

Operating Conditions & Materials

Pressure

Vacuum ~ 0.6 MPa

Temperature

-20 ~ 200 ºC

Linear Speed

5 m/s or less

Mediums

Dry running applications. No external cooling or lubrication required. Suitable for undemanding mixer applications and vacuum conditions.

Customization Available

Changes of materials for getting other operating parameters are possible. Contact us with your requirements.

Related Products

AS 204B

204B Mechanical Seal for Top Driven Vertical Type Agitation Equipment, Fermentation Tanks, Seeding Tanks, Reaction Kettles and Sewage Treatment Devices.

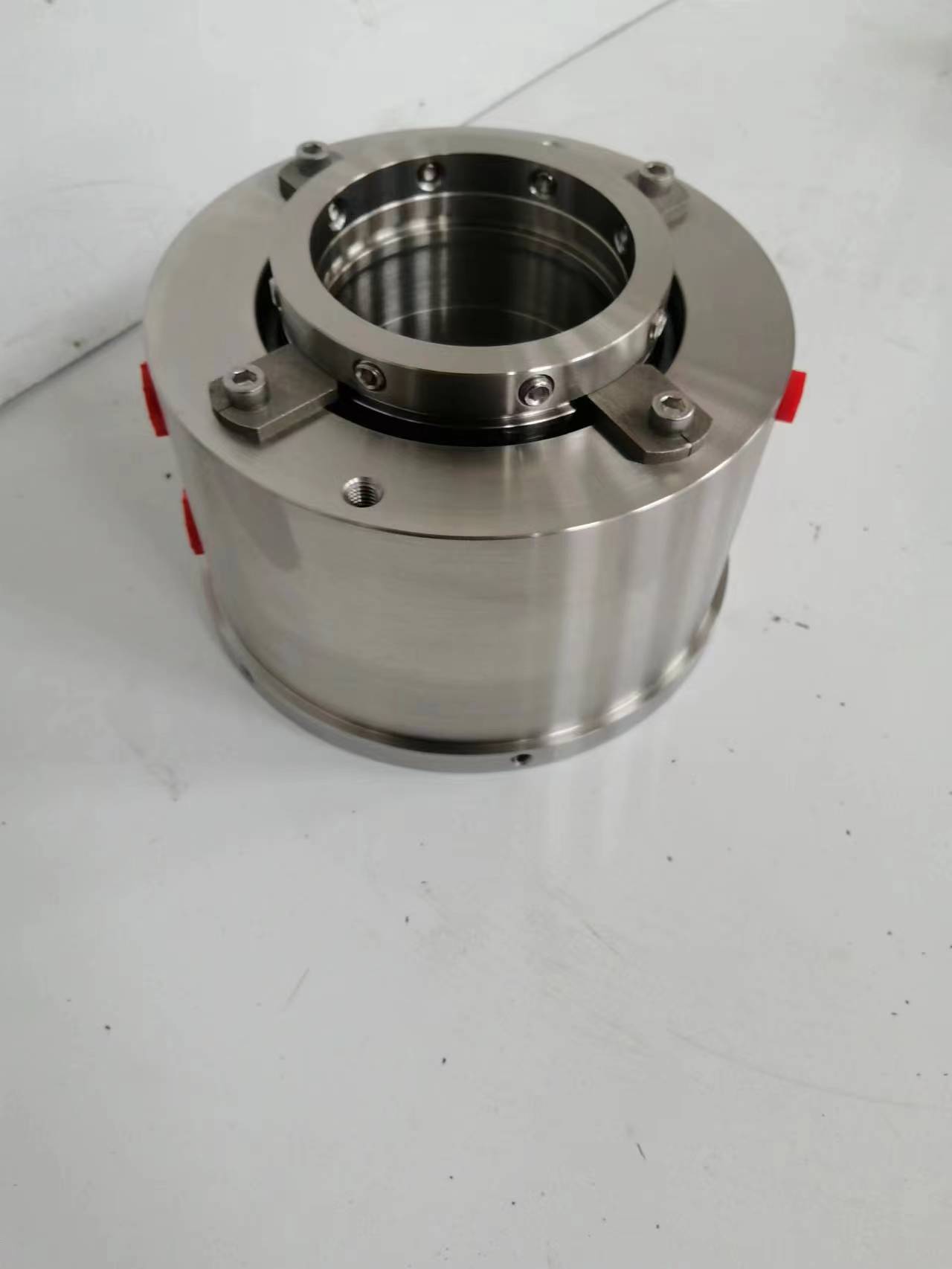

AS ESD34NY-80

Doubleacting liquid lubricated mechanical seal for low pressure applications up to 7 bar (abs.). Two identical pairs of seal rings in a backtoback arrangement. Suitable for high radial deflection of the shaft.

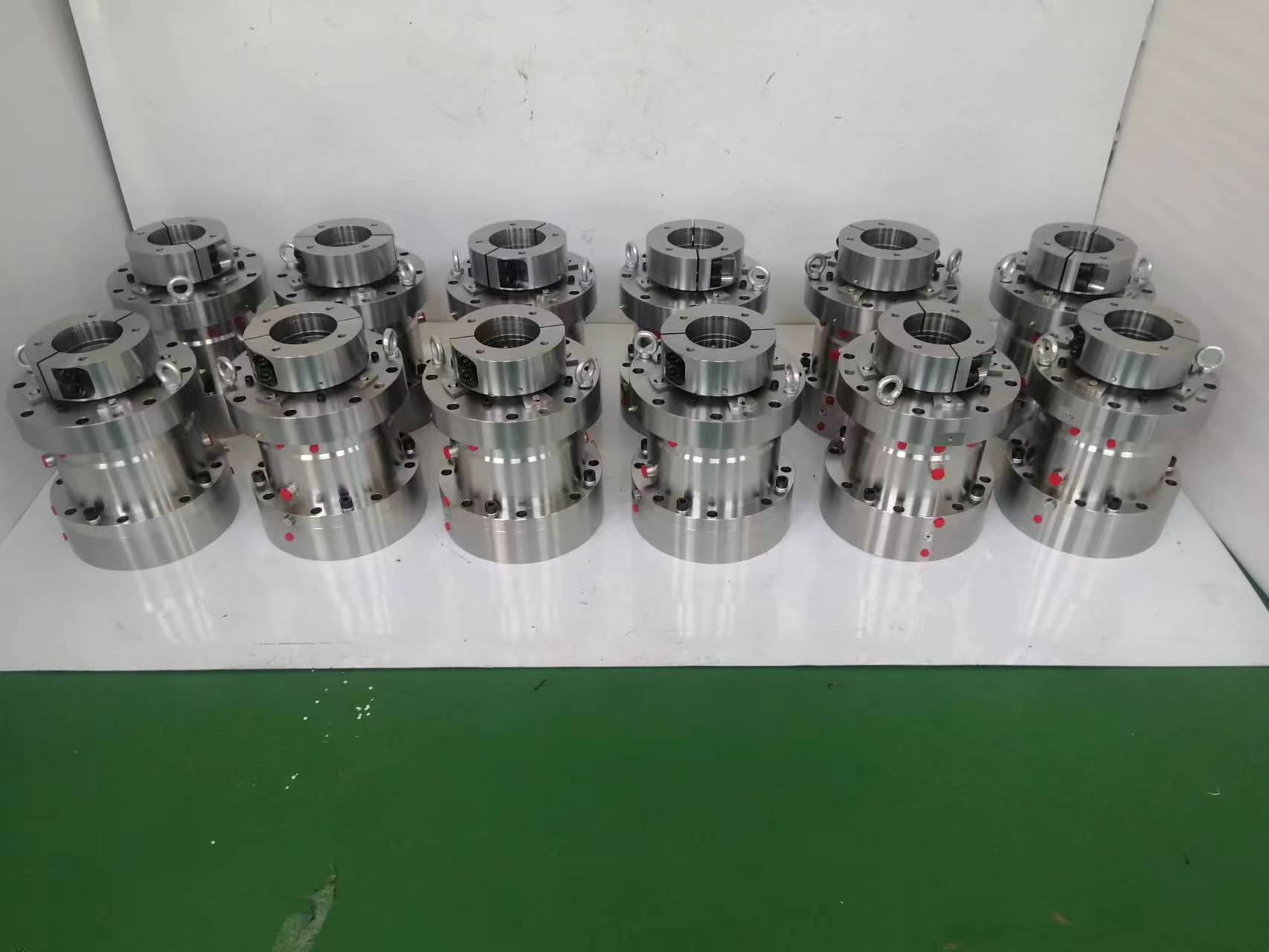

AS ESD64HD-120
