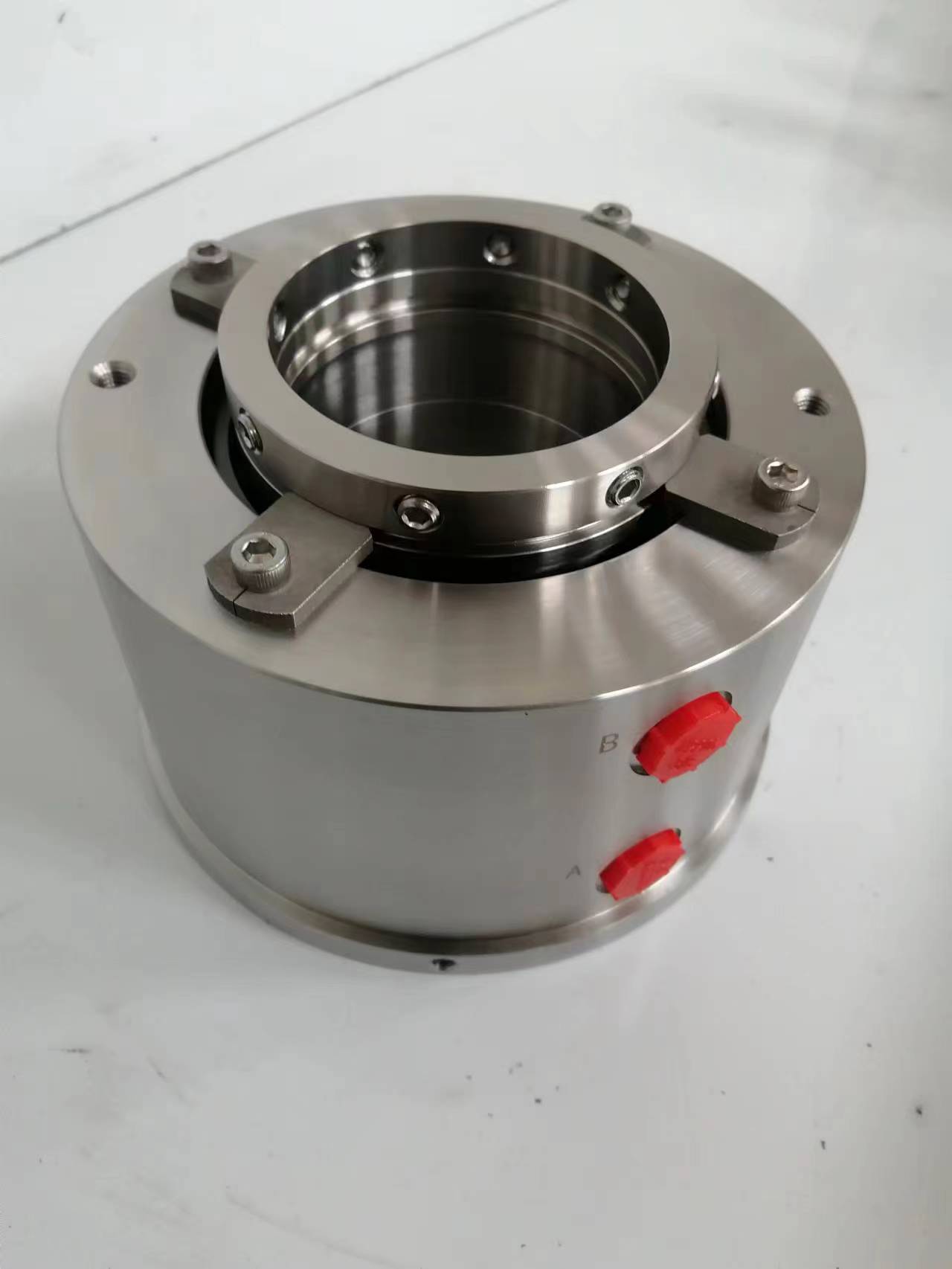

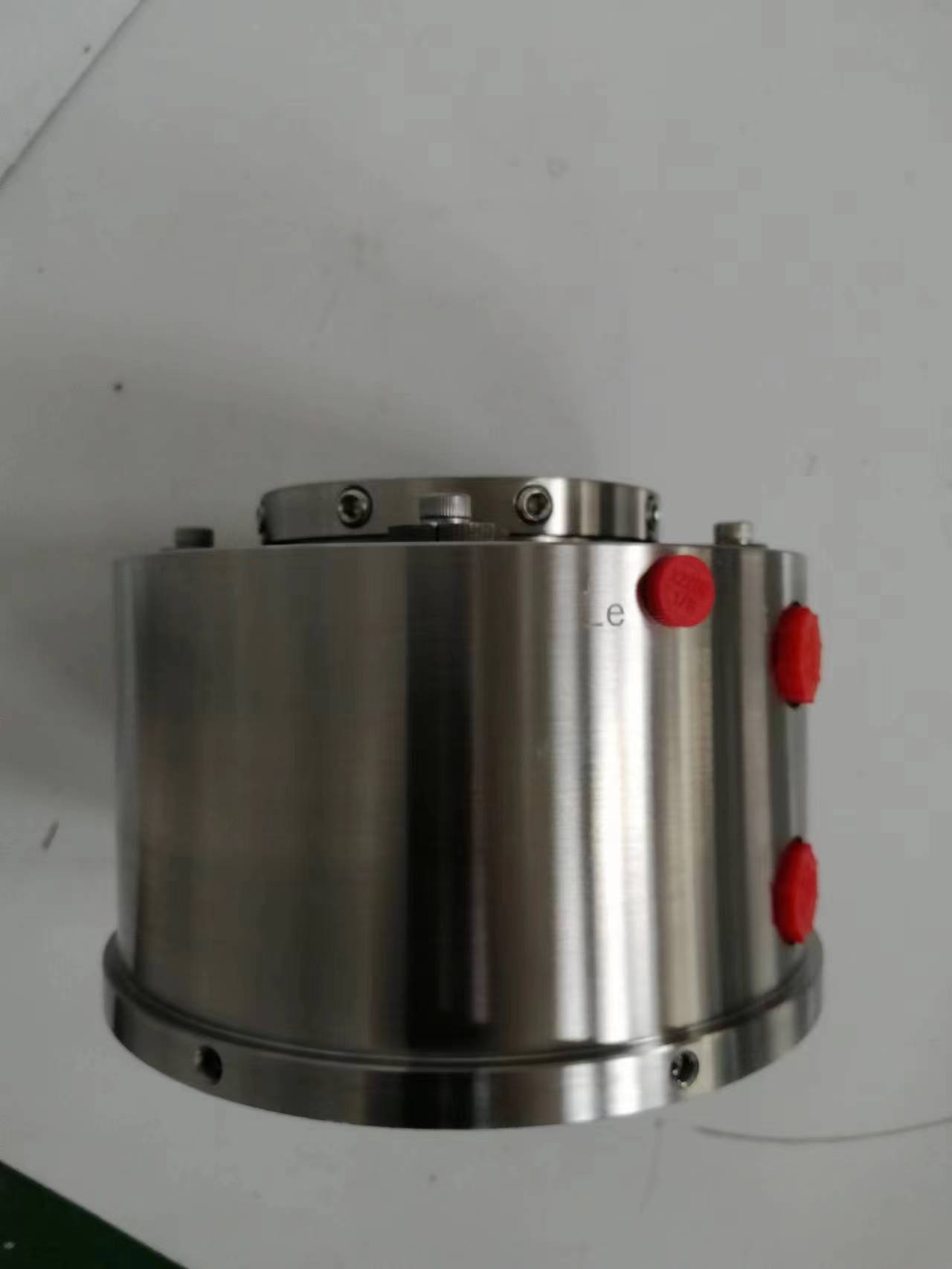

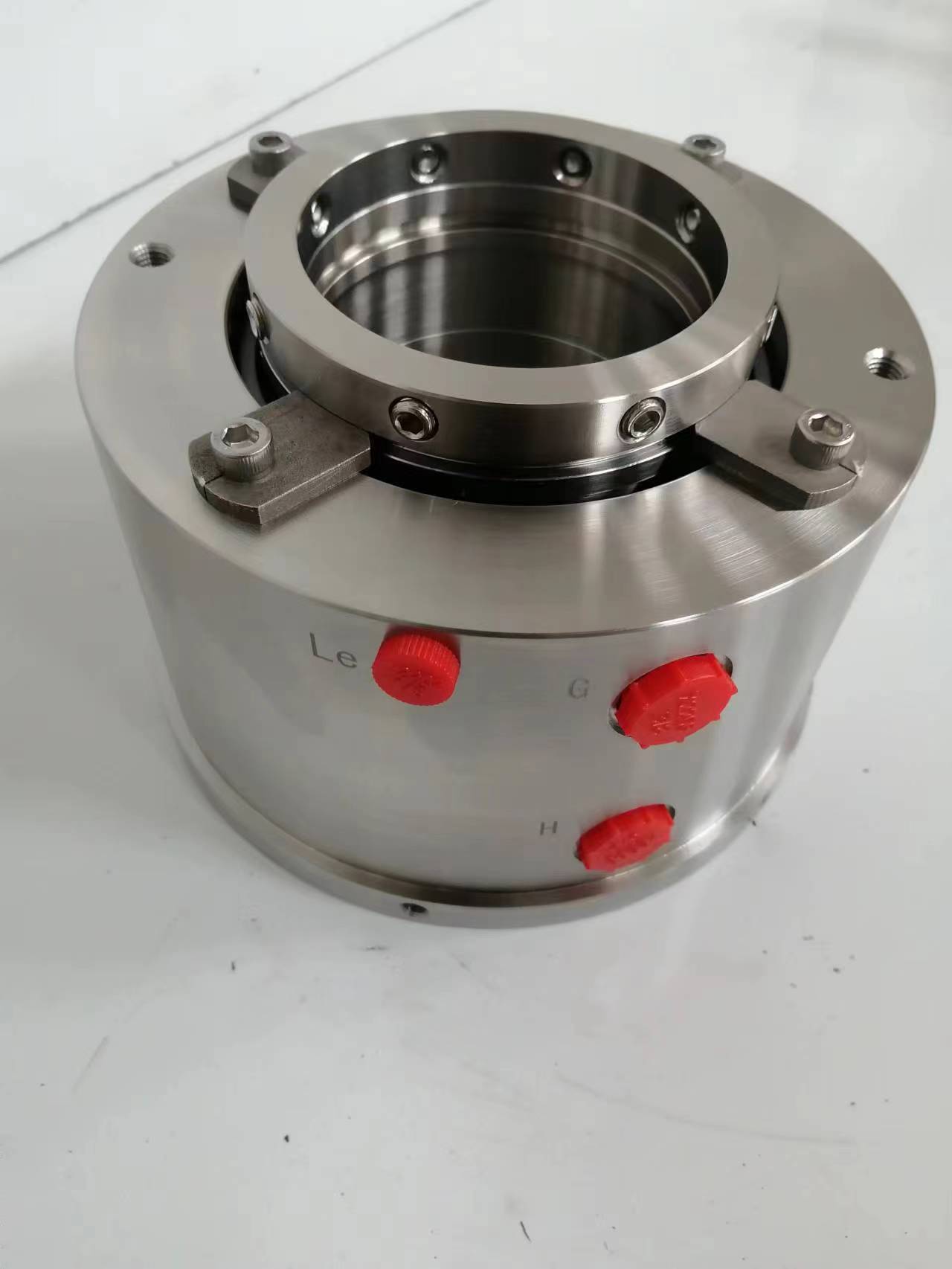

AS ESD34NY-80

For: EKATO Mixers

Double-acting liquid lubricated mechanical seal for low pressure applications up to 7 bar (abs.). Two identical pairs of seal rings in a back-to-back arrangement. Suitable for high radial deflection of the shaft.

Materials

Rotary Face / Stationary Face / Elastomer / Spring / Metal Parts

Carbon/SSiC/FEP/HC276/SS316 - Carbon/SSiC/Viton

1 Variant

Model	Materials	GA
ESD34NY-80	Carbon/SSiC/FEP/HC276/SS316 - Carbon/SSiC/Viton	—

Operating Conditions & Materials

Pressure

0.7 MPa or less

Temperature

-20 ~ 200 ºC

Linear Speed

5 m/s or less

Mediums

Low pressure mixer applications. Back-to-back arrangement suitable for high radial deflection of the shaft.

Customization Available

Changes of materials for getting other operating parameters are possible. Contact us with your requirements.
