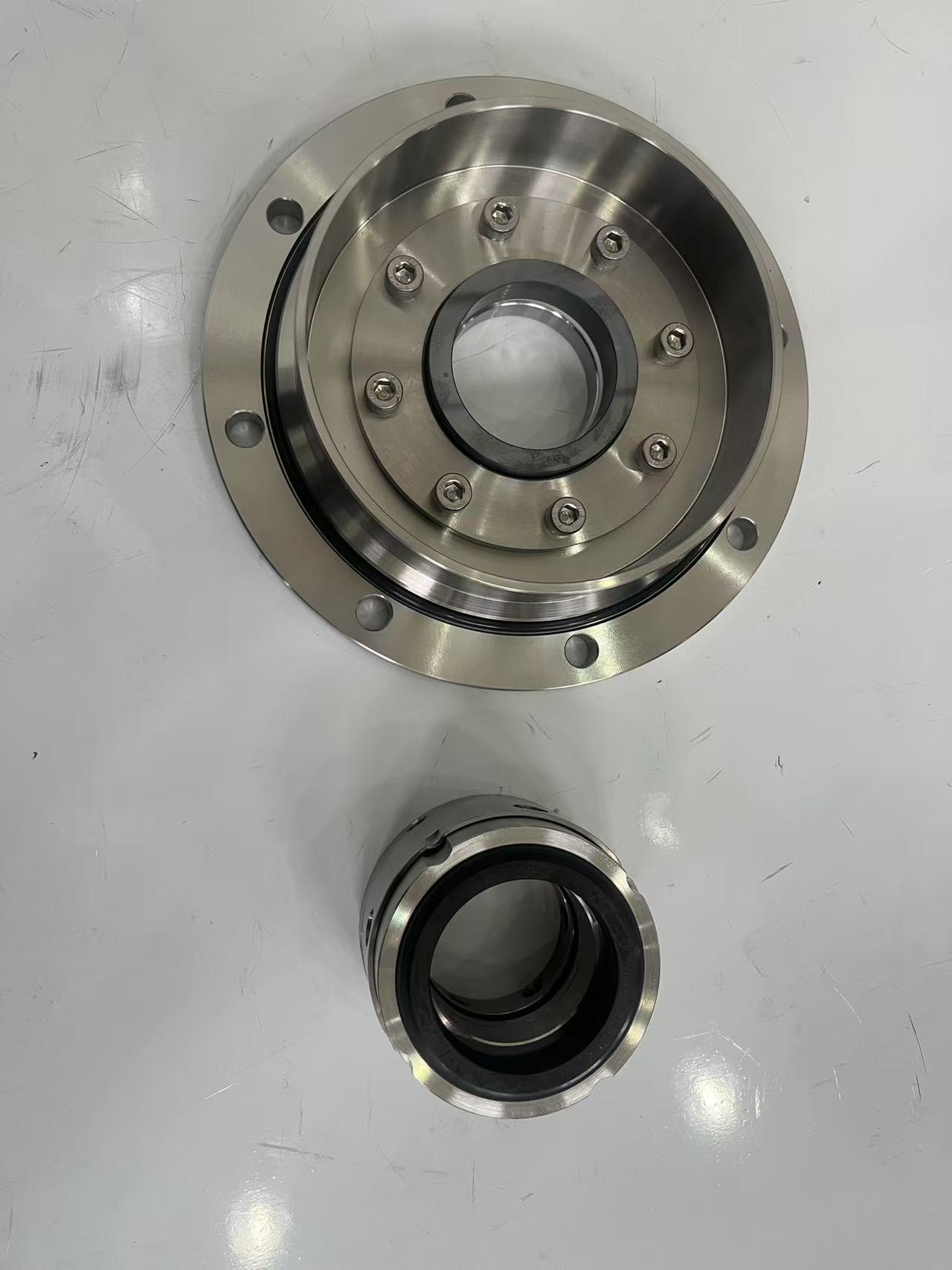

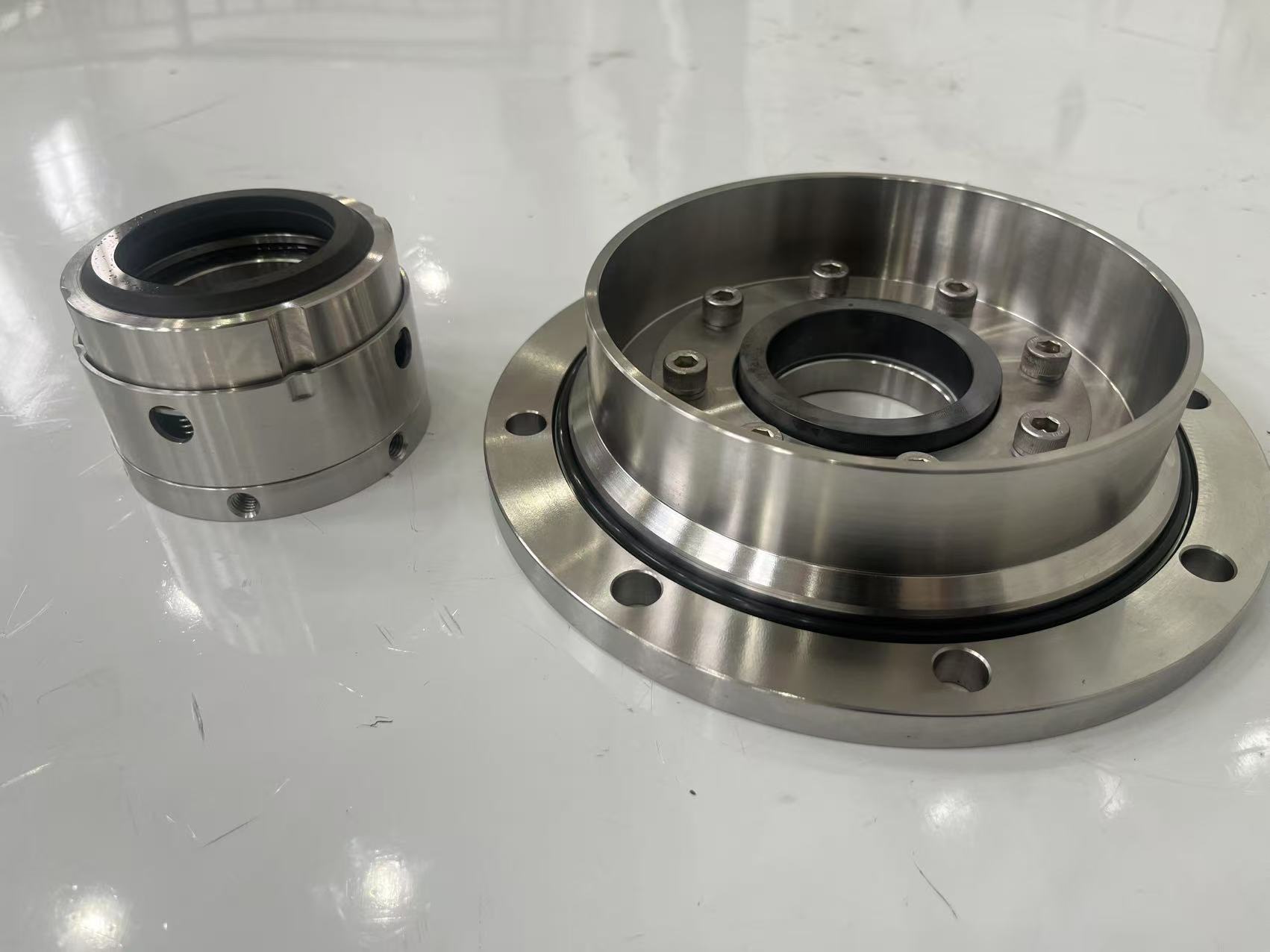

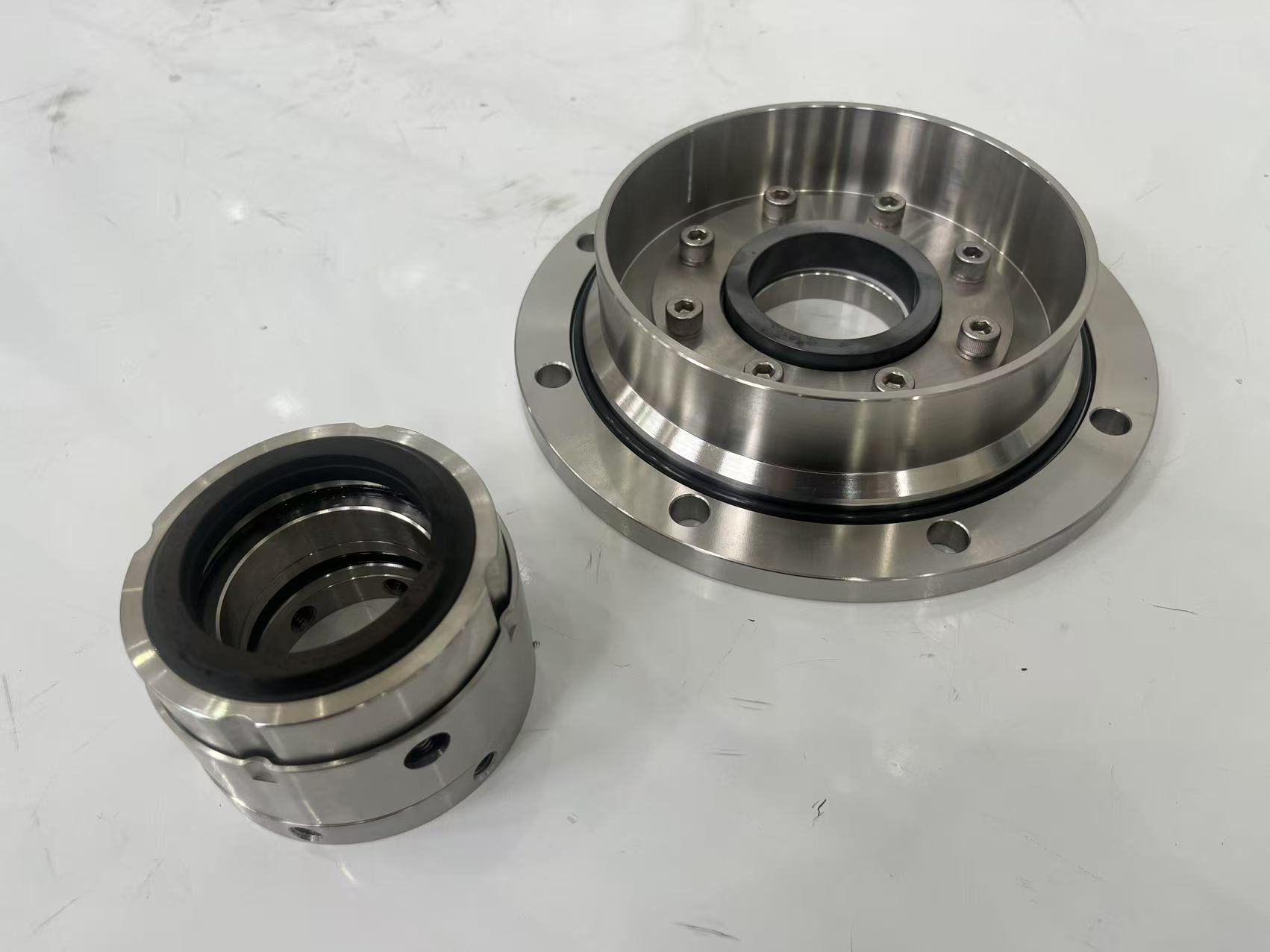

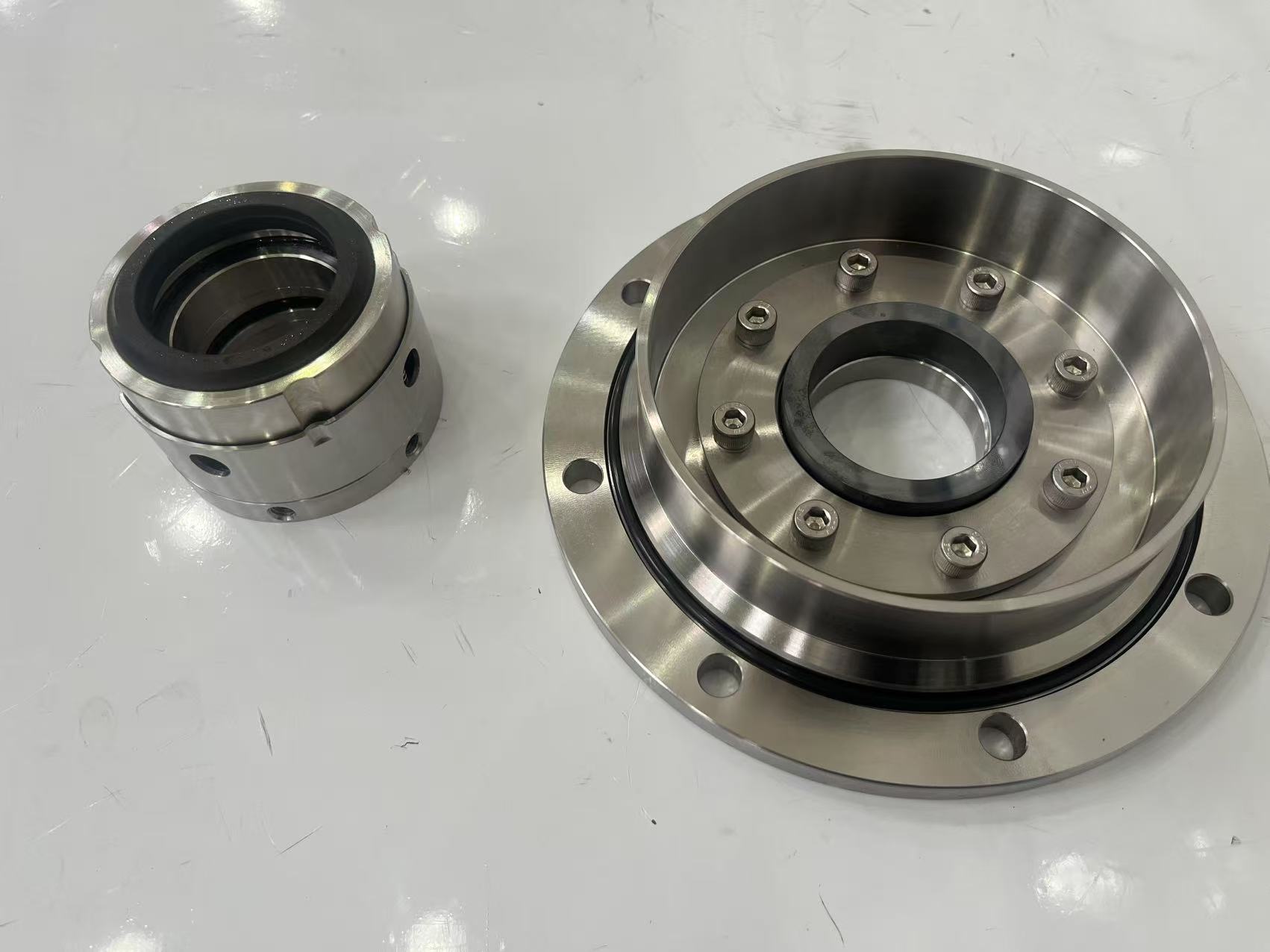

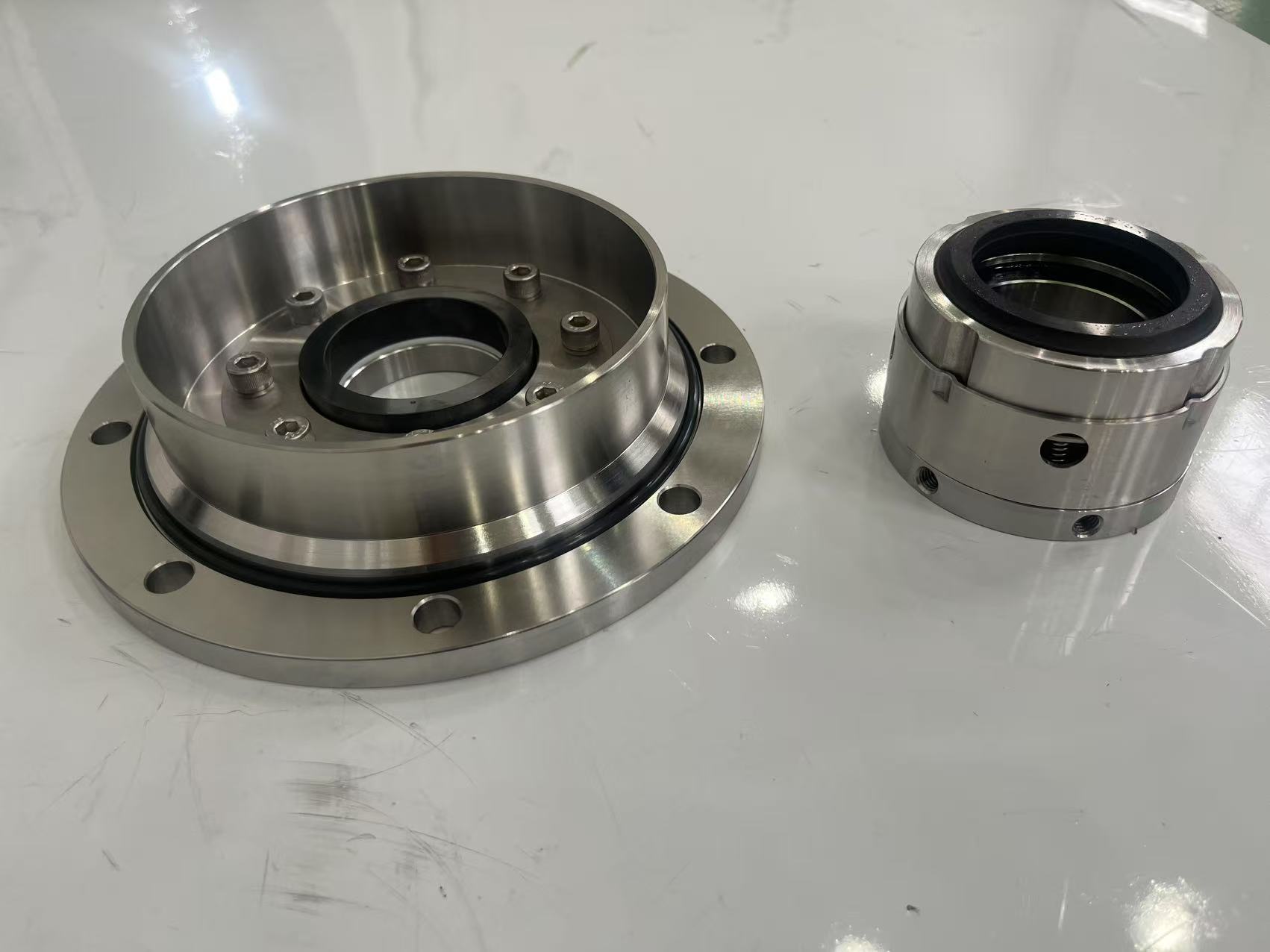

AS 204B-55RJ
Single end, multi springs, balanced, independent direction of rotation. Simple structure with high reliability for top driven vertical type agitation equipment.
Materials
Rotary Face / Stationary Face / Elastomer / Spring / Metal Parts
Carbon/SiC/Viton/SS316/SS316
1 Variant
| Model | Materials | GA |
|---|---|---|
| 204B-55RJ | Carbon/SiC/Viton/SS316/SS316 | — |
Operating Conditions & Materials
Pressure
-0.1 ~ 0.6 MPa
Temperature
-40 ~ 180 ºC
Linear Speed
2 m/s or less
Mediums
Oil, acid, alkali, and polymer suspensions. For top driven vertical type agitation equipment.
Customization Available
Changes of materials for getting other operating parameters are possible. Contact us with your requirements.
