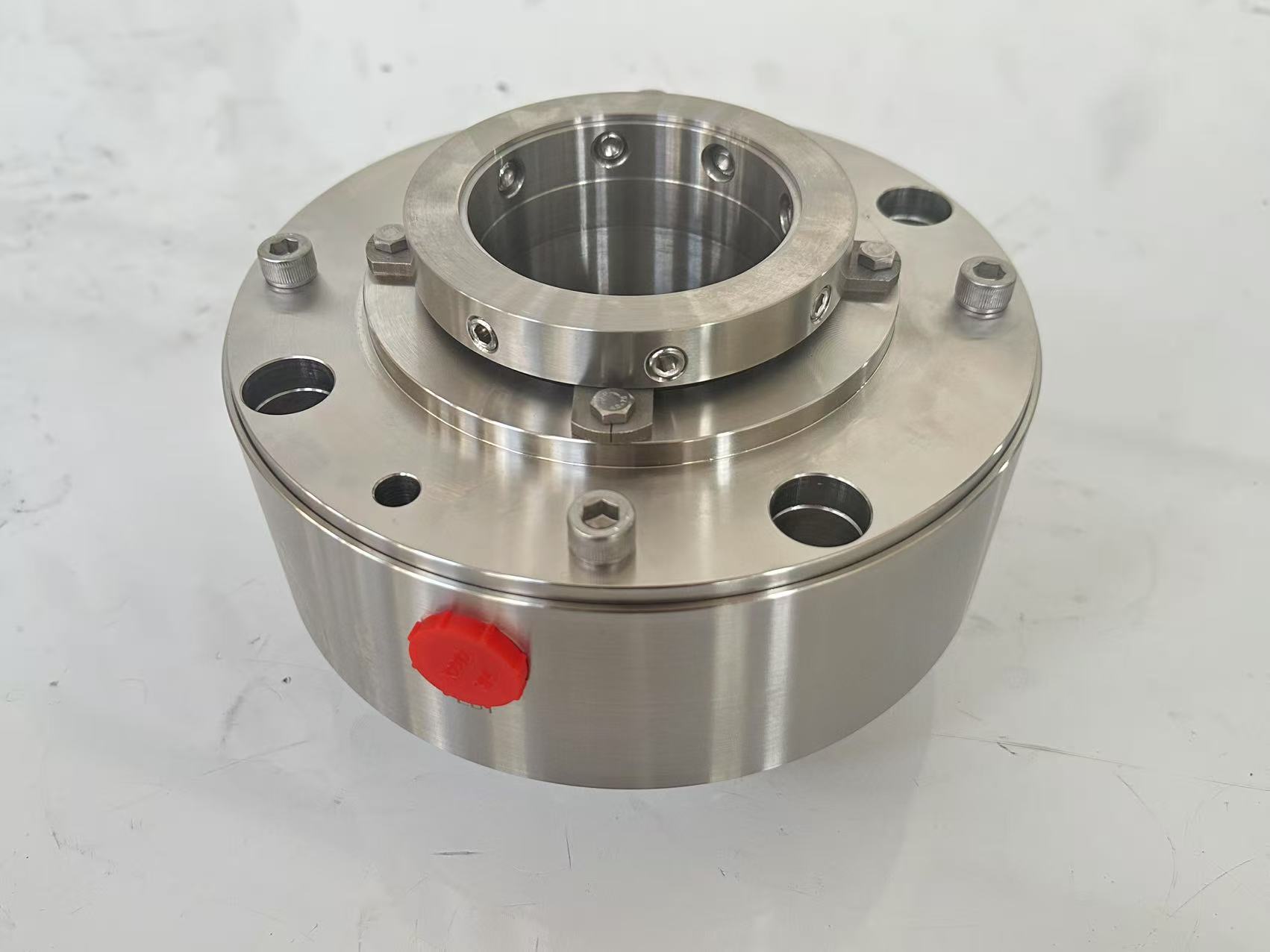

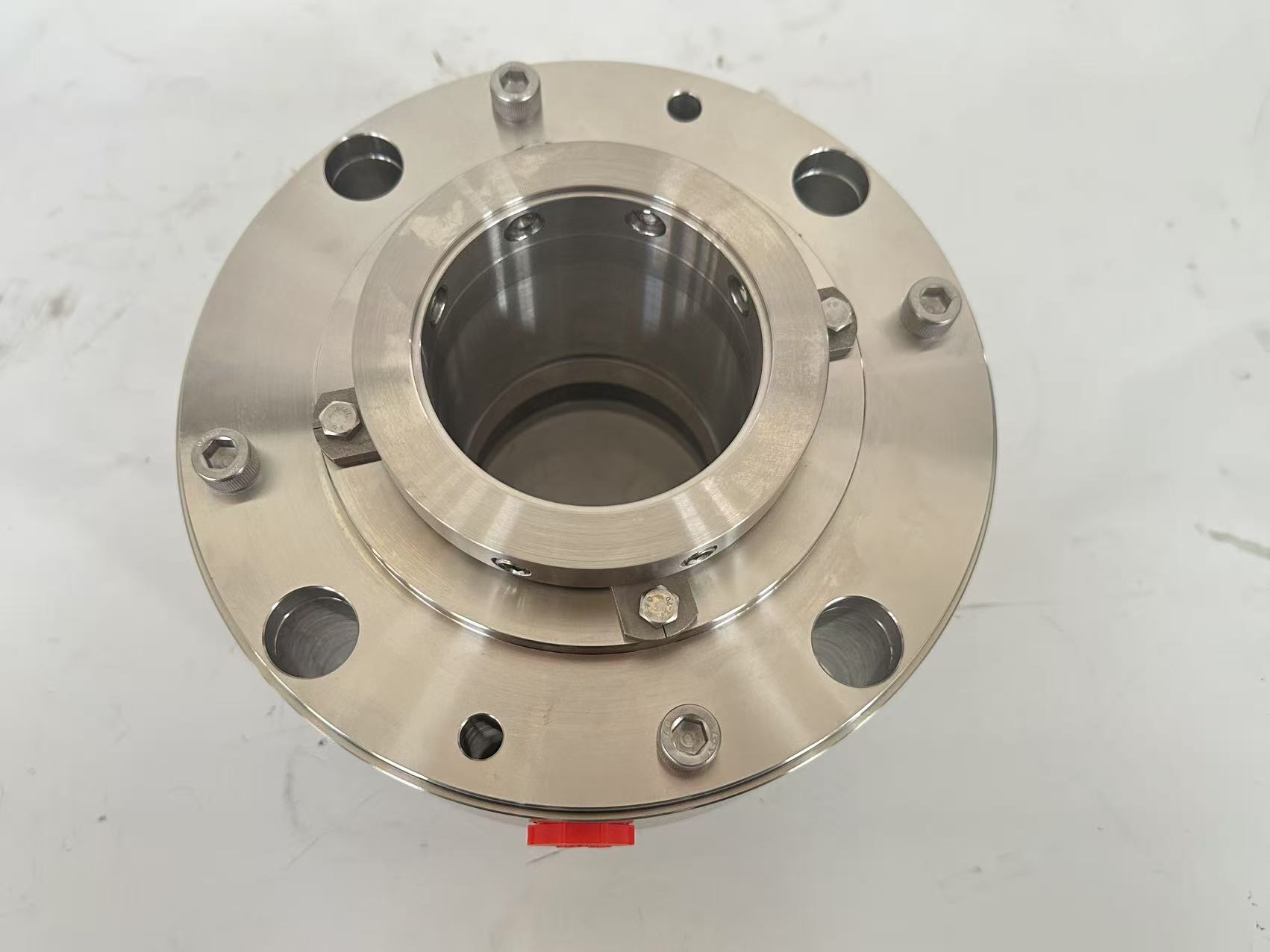

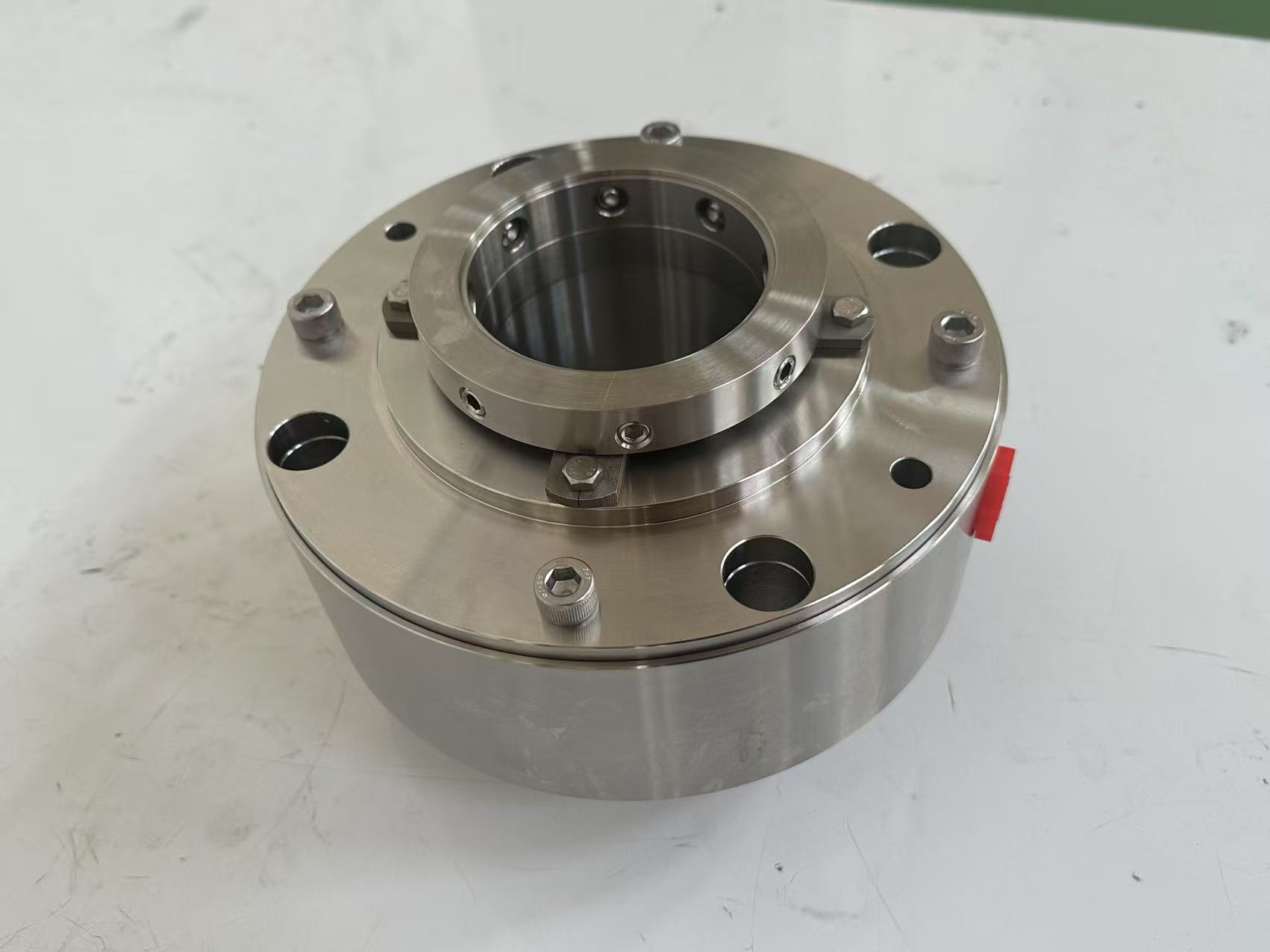

AS 25-H75VKP-D2-110-E302-00
Dual seal in back-to-back arrangement. Suitable for API 610 table 6 seal chambers. Double balanced cartridge.
Materials
Rotary Face / Stationary Face / Elastomer / Spring / Metal Parts
SiC/SiC/FFKM/HC276/Duplex 2205 - Antimony Filled Carbon/SiC/Viton/HC276/SS316
1 Variant
| Model | Materials | GA |
|---|---|---|
| H75VKP-D2-110-E302 | SiC/SiC/FFKM/HC276/Duplex 2205 - Antimony Filled Carbon/SiC/Viton/HC276/SS316 | — |
Operating Conditions & Materials
Pressure
2.5 MPa or less
Temperature
-20 ~ 220 ºC
Linear Speed
30 m/s or less
Mediums
Boiler feed water, high temperature high pressure pump applications.
Customization Available
Changes of materials for getting other operating parameters are possible. Contact us with your requirements.
