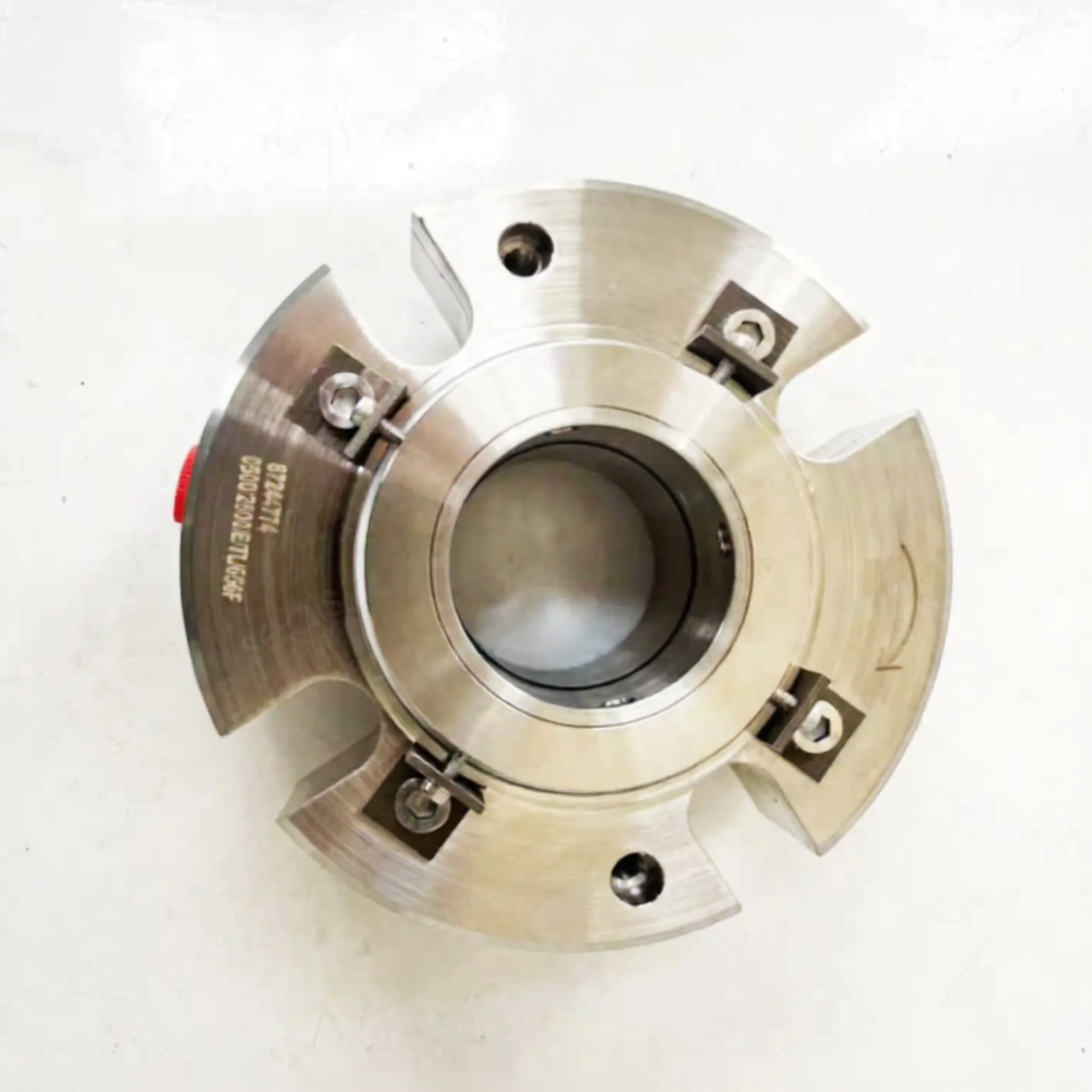

AS 2800E-P
Pump-specific variant of the 2800E dry gas seal. Pressurized dual cartridge design with spiral-grooved rotating face for non-contacting gas film operation.
Technical Specifications
- Pressure: ≤2.5 MPa
- Temperature: -20 to 150 °C
- Rotation Speed: Up to 3600 r/min
- Medium: Sedatives, reactants, process gases
Design Features
- Dual-balanced structure equivalent to John Crane 2800E, ensuring no leakage during seal gas failure.
- Compact axial dimensions suitable for centrifugal pumps with short sealing chamber lengths.
- Simple auxiliary system — uses nitrogen or process gas at 0.15–0.2 MPa above medium pressure.
Materials
Rotary Face / Stationary Face / Elastomer / Spring / Metal Parts
SSiC/Carbon/Viton/HC276/SS316
1 Variant
| Model | Materials | GA |
|---|---|---|
| 2800E-P | SSiC/Carbon/Viton/HC276/SS316 | — |
Operating Conditions & Materials
Pressure
0 ~ 2.5 MPa
Temperature
-20 ~ 150 ºC
Linear Speed
25 m/s or less
Mediums
Sedatives, reactants, process gases. Equivalent to John Crane 2800E for pump applications.
Customization Available
Material and size customization available for specific pump seal chamber dimensions. Contact us with your requirements.
