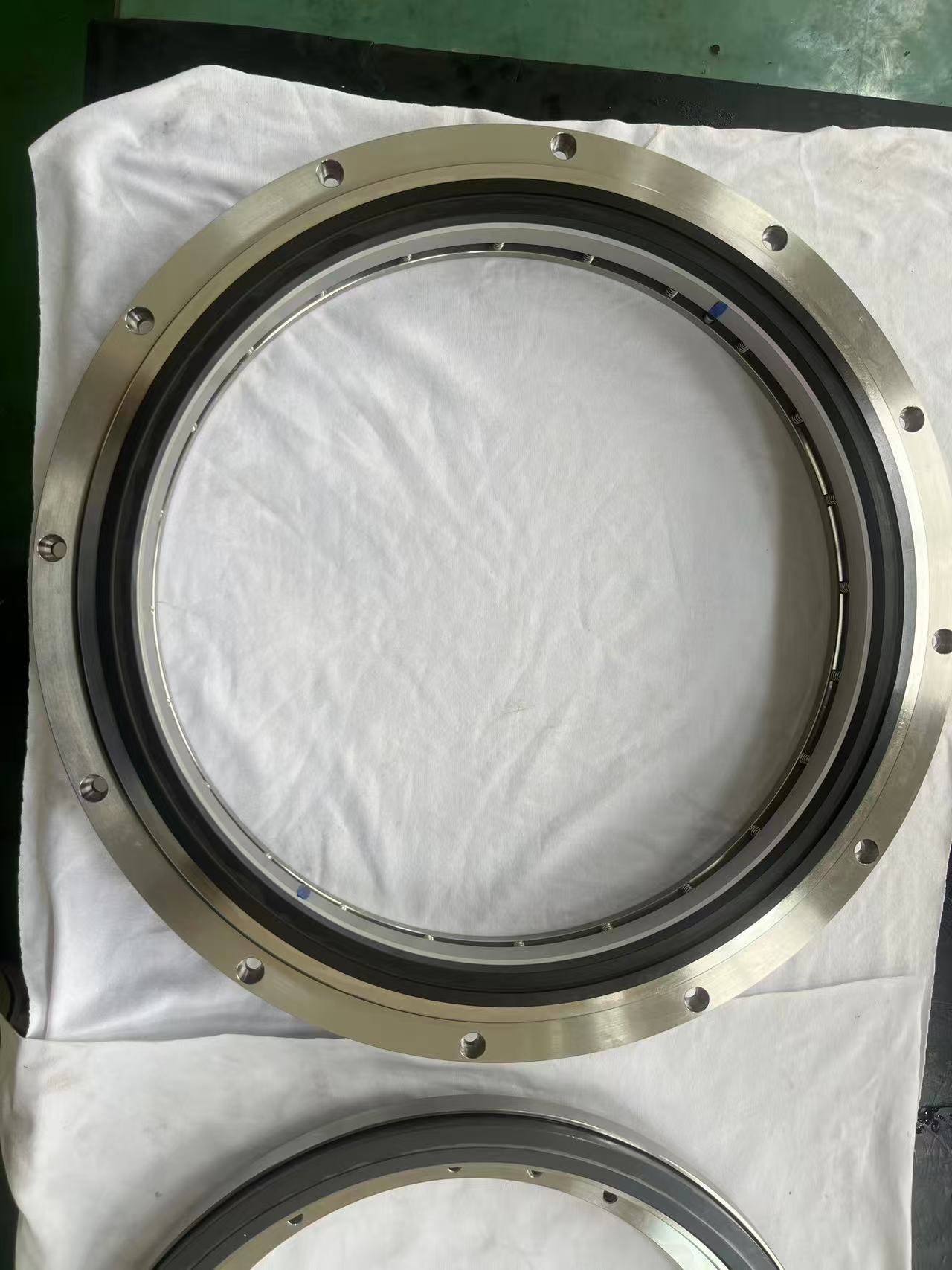

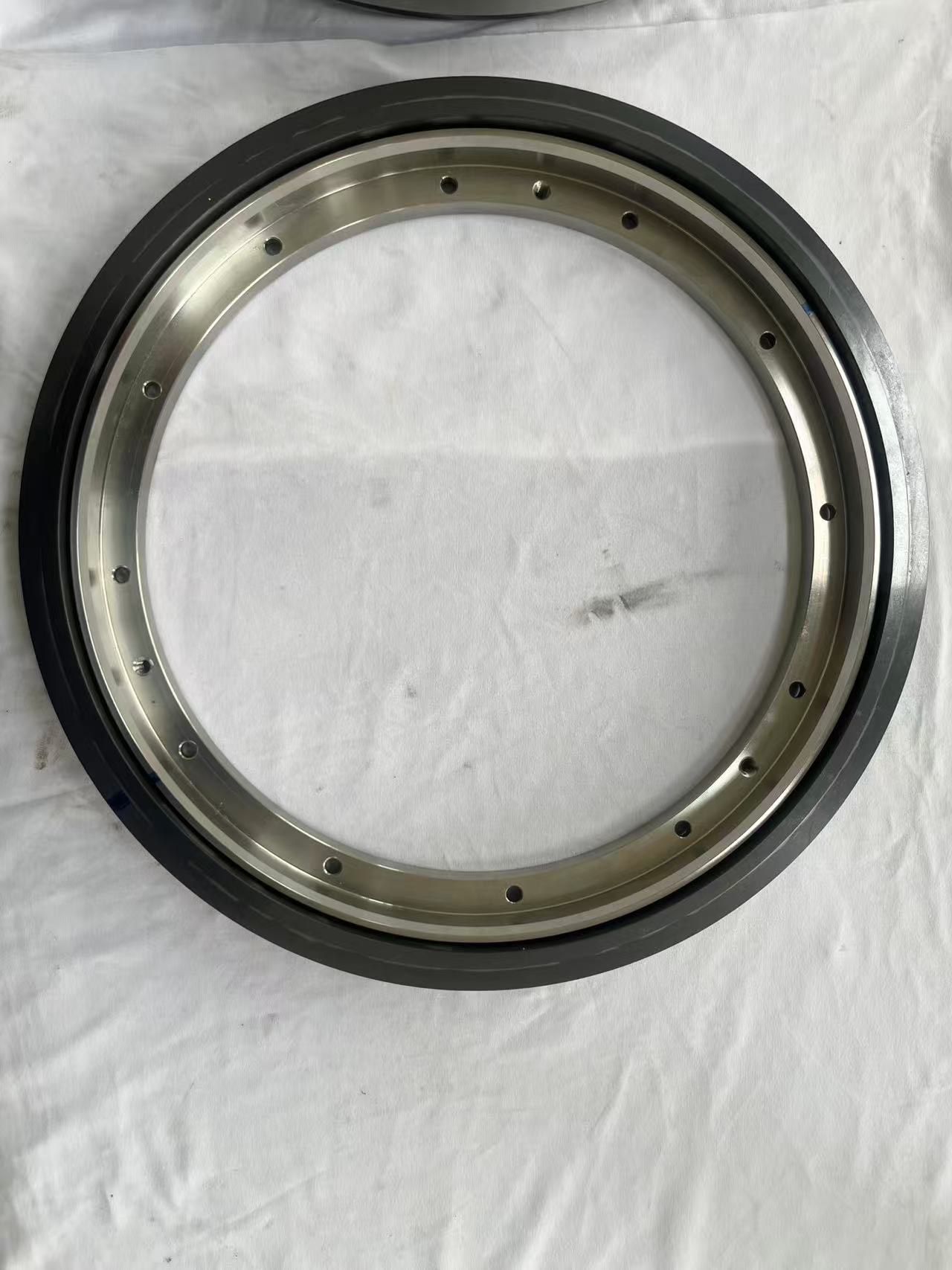

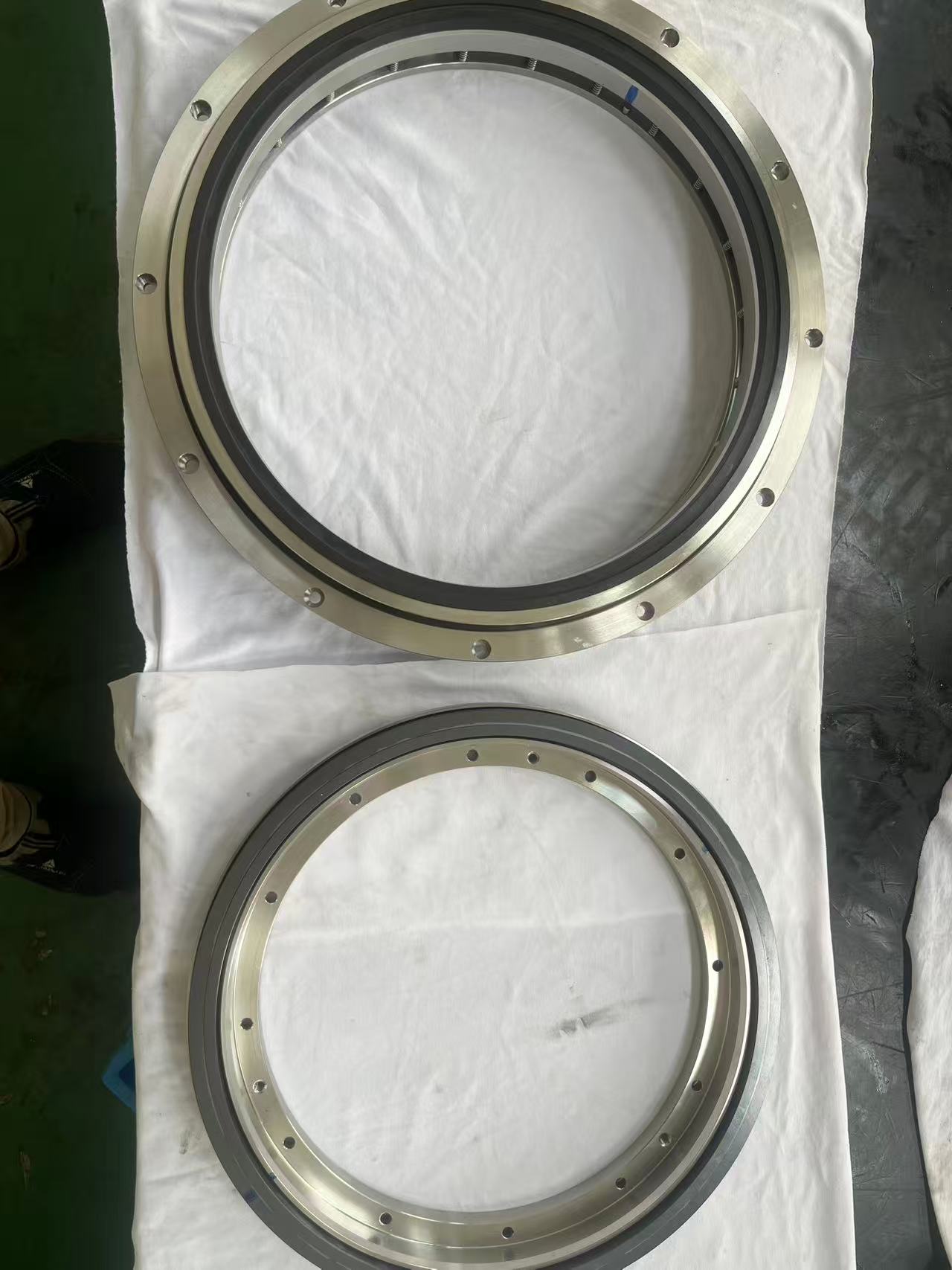

AS 30.M.12.10120-300
Engineering seal designed for Banbury mixer deployed in Belarus.
Materials
Rotary Face / Stationary Face / Elastomer / Spring / Metal Parts
SiC/Carbon/NBR/SS316/SS316
1 Variant
| Model | Materials | GA |
|---|---|---|
| 30.M.12.10120-300 | SiC/Carbon/NBR/SS316/SS316 | — |
Operating Conditions & Materials
Pressure
2.0 MPa or less
Temperature
-20 ~ 150 ºC
Linear Speed
15 m/s or less
Mediums
Water, oil, and weak corrosive mediums.
Customization Available
Changes of materials for getting other operating parameters are possible. Contact us with your requirements.
