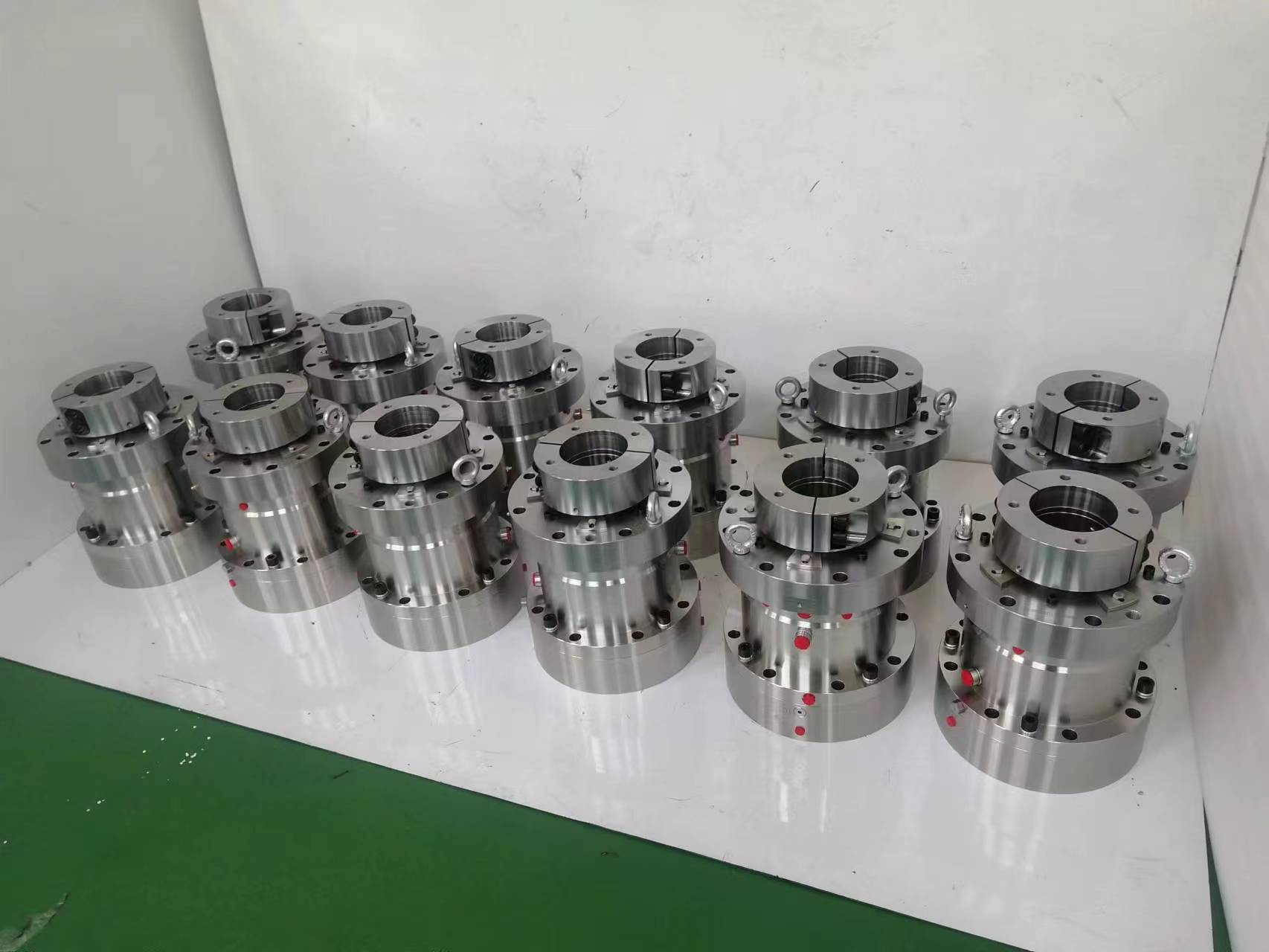

AS ESD64HD-120
High pressure and high temperature series seal — a double cartridge with hot-mounted face rings and integrated bearing system. Developed for working under pressures up to 100 bars. The triple-acting variant with two seal chambers can handle processes up to 200 bars and temperatures up to 400°C.
Materials
Rotary Face / Stationary Face / Elastomer / Spring / Metal Parts
Carbon/SSiC/FEP/HC276/SS316 - Carbon/SSiC/Viton
1 Variant
| Model | Materials | GA |
|---|---|---|
| ESD64HD-120 | Carbon/SSiC/FEP/HC276/SS316 - Carbon/SSiC/Viton | — |
Operating Conditions & Materials
Pressure
Vacuum ~ 10 MPa (up to 20 MPa triple-acting)
Temperature
-20 ~ 400 ºC
Linear Speed
5 m/s or less
Mediums
High pressure and high temperature autoclave applications. Pressures up to 100 bar (200 bar with triple-acting variant).
Customization Available
Changes of materials for getting other operating parameters are possible. Contact us with your requirements.
