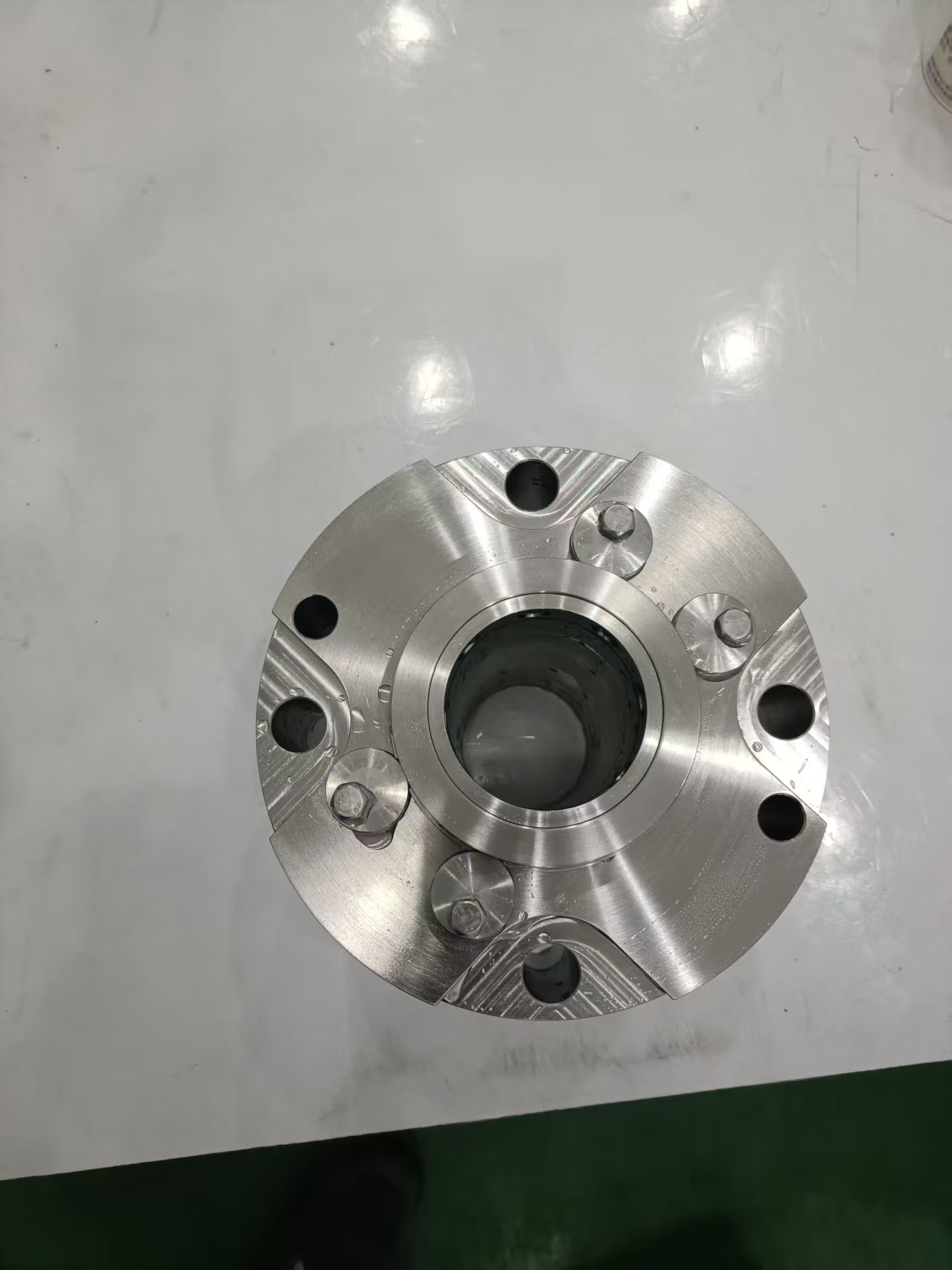

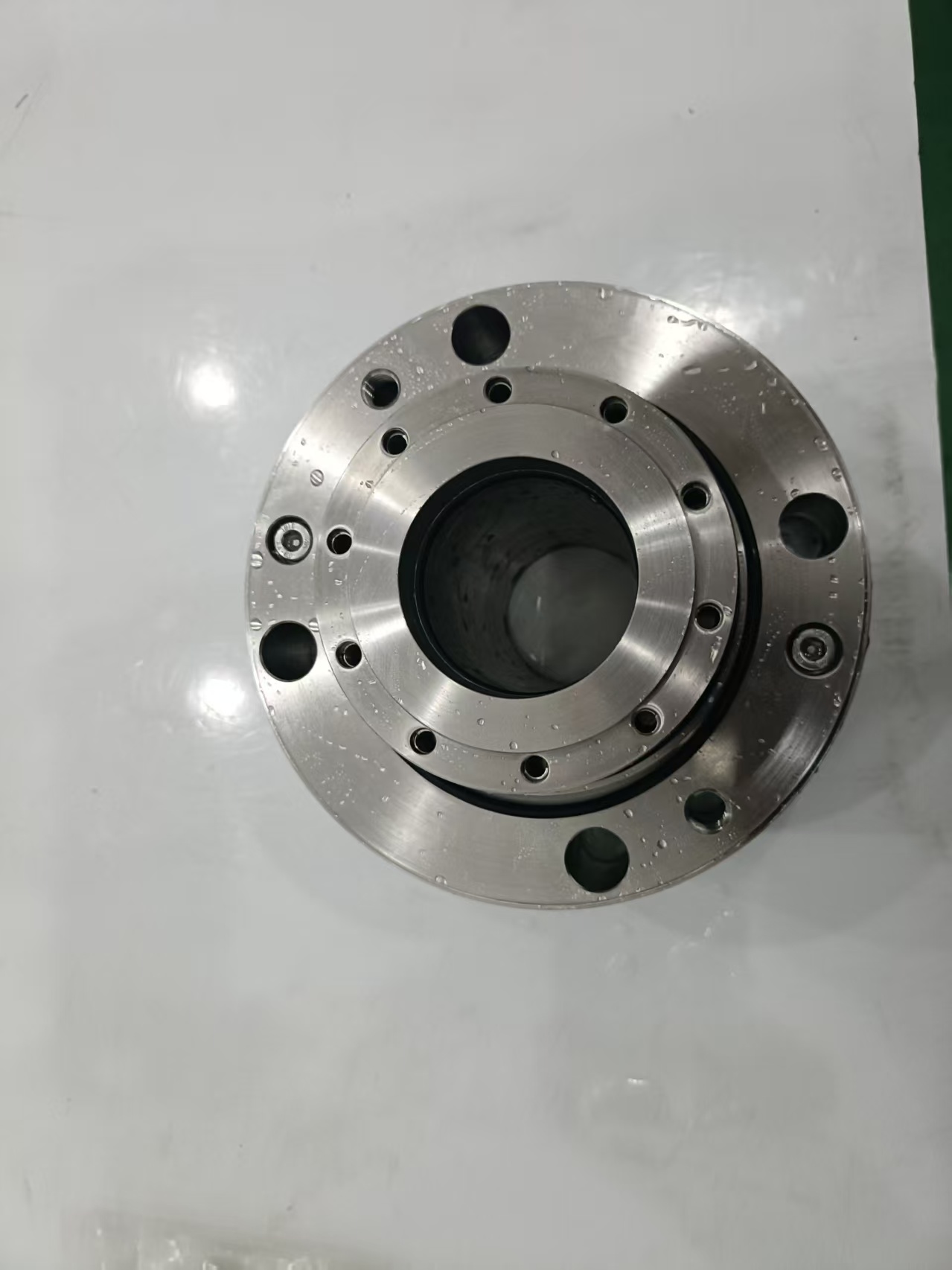

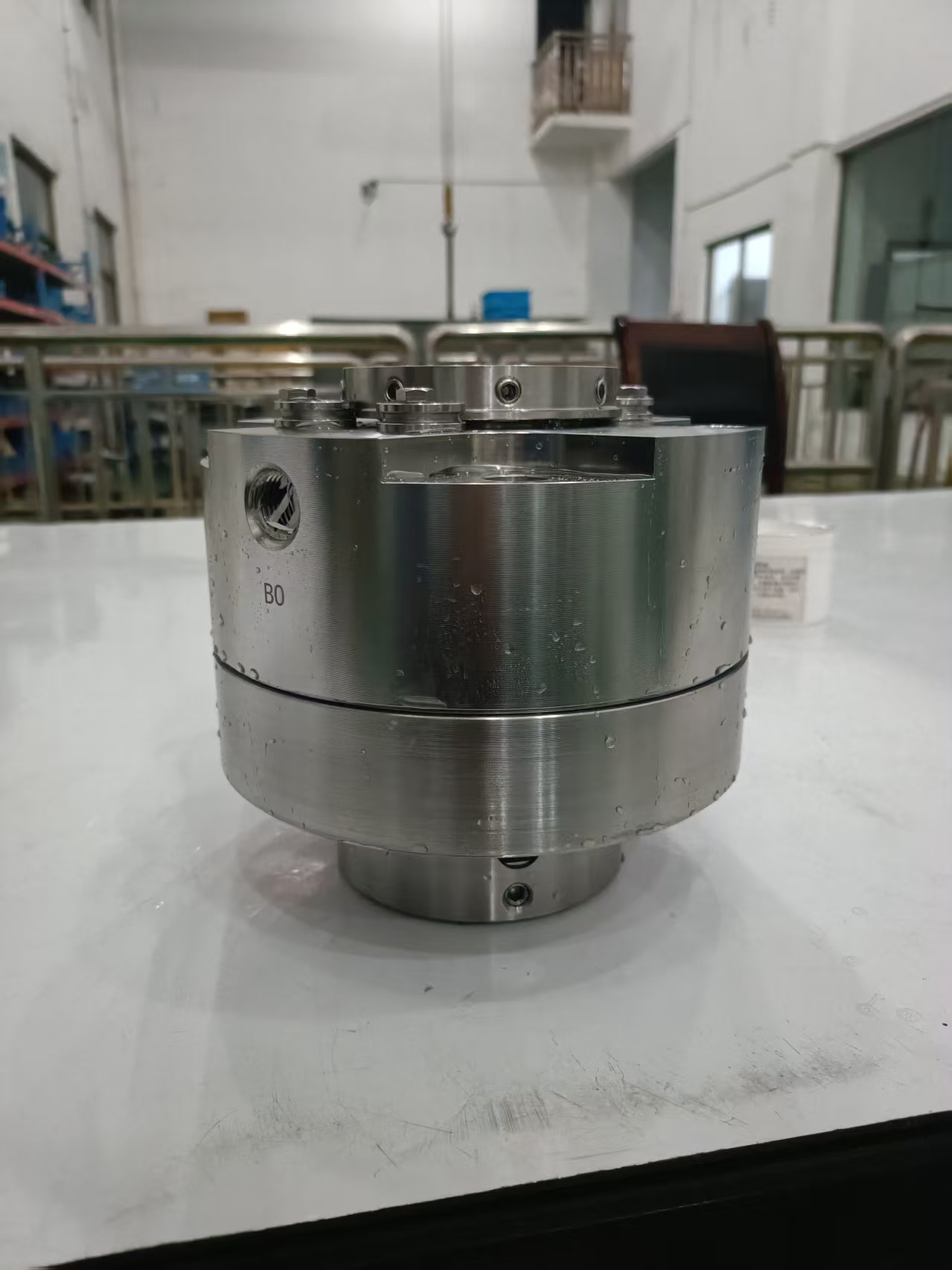

AS 3648-2-60-GA-144632
Type 3648 Category 2, Type A, Arrangement 3 dual pressurized cartridge seal. Inner seal is double-balanced to provide positive seal with pressure from either direction.
Materials
Rotary Face / Stationary Face / Elastomer / Spring / Metal Parts
Resin Carbon/SiC/Neoprene/HC276/SS316 - Resin Carbon/SiC/Neoprene
1 Variant
| Model | Materials | GA |
|---|---|---|
| 3648-2-60 | Resin Carbon/SiC/Neoprene/HC276/SS316 - Resin Carbon/SiC/Neoprene | GA-144632 |
Operating Conditions & Materials
Pressure
2.0 MPa or less
Temperature
-40 ~ 200 ºC
Linear Speed
25 m/s or less
Mediums
Paper pulp, water, sewage treatment. Double-end seal.
Customization Available
Changes of materials for getting other operating parameters are possible. Contact us with your requirements.
