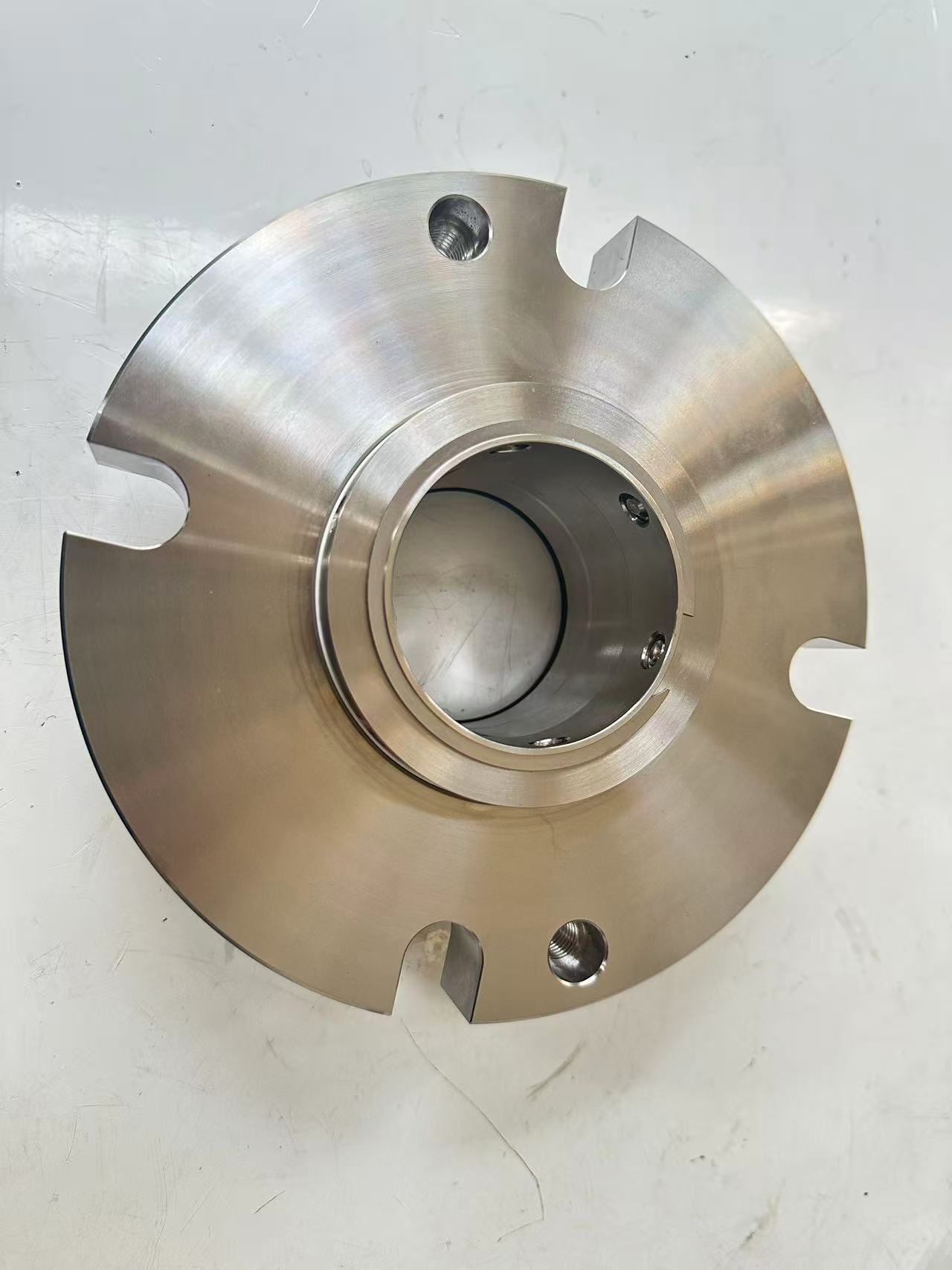

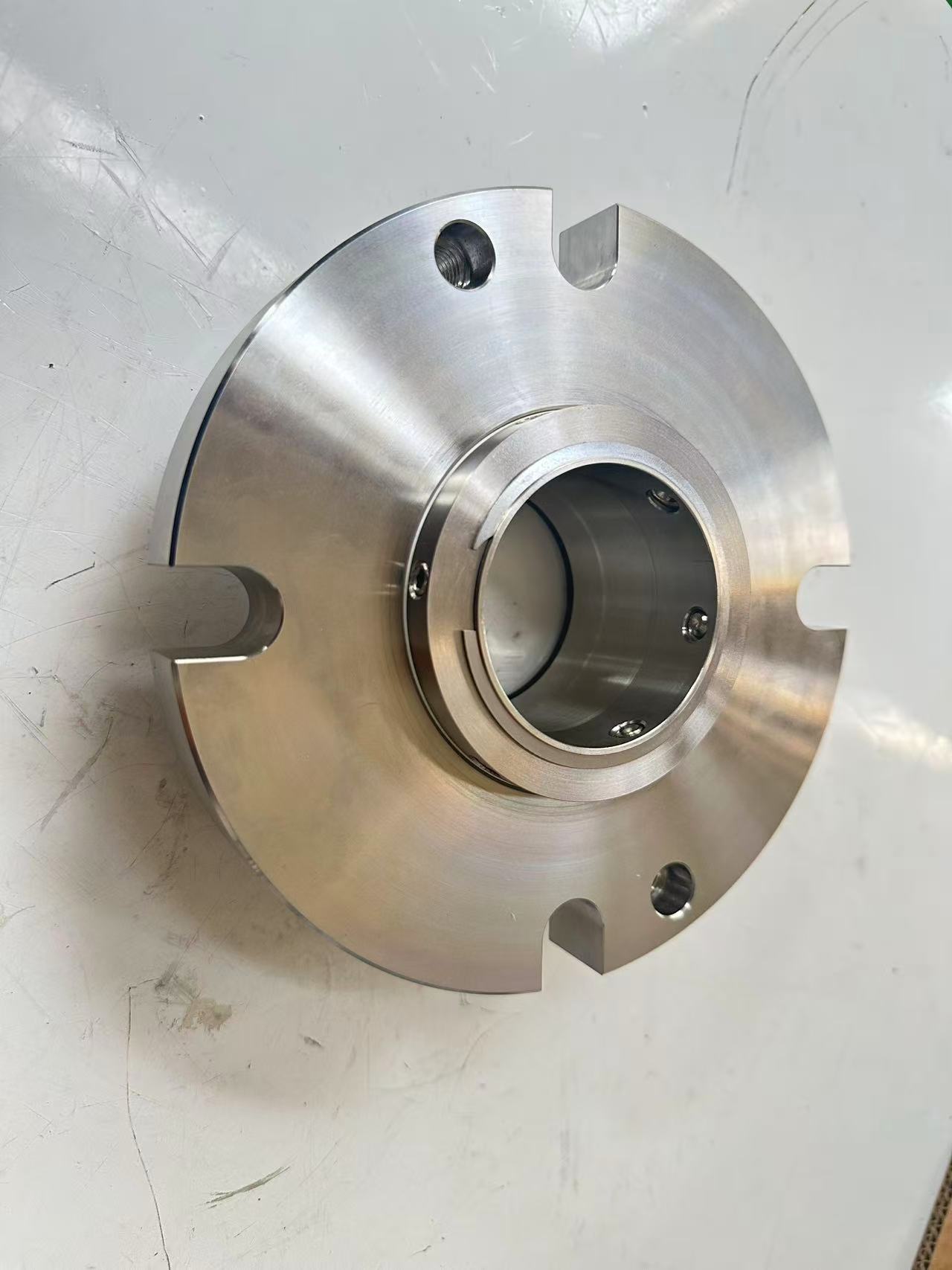

AS 4610-65-GA-214821
The Type 4610 single cartridge seal combines affordability with fluid-sealing dependability. Meets key industry pump standards for ANSI/DIN pumps, close-coupled pumps, vertical pumps and similar rotating shaft equipment.
Materials
Rotary Face / Stationary Face / Elastomer / Spring / Metal Parts
SiC Insert SS320/SiC/Viton/HC276/SS316
1 Variant
| Model | Materials | GA |
|---|---|---|
| 4610-65 | SiC Insert SS320/SiC/Viton/HC276/SS316 | GA-214821 |
Operating Conditions & Materials
Pressure
2.5 MPa or less
Temperature
-40 ~ 200 ºC
Linear Speed
25 m/s or less
Mediums
Water, sewage, industrial chemicals. For Sulzer ES 200-400 pumps.
Customization Available
Changes of materials for getting other operating parameters are possible. Contact us with your requirements.
