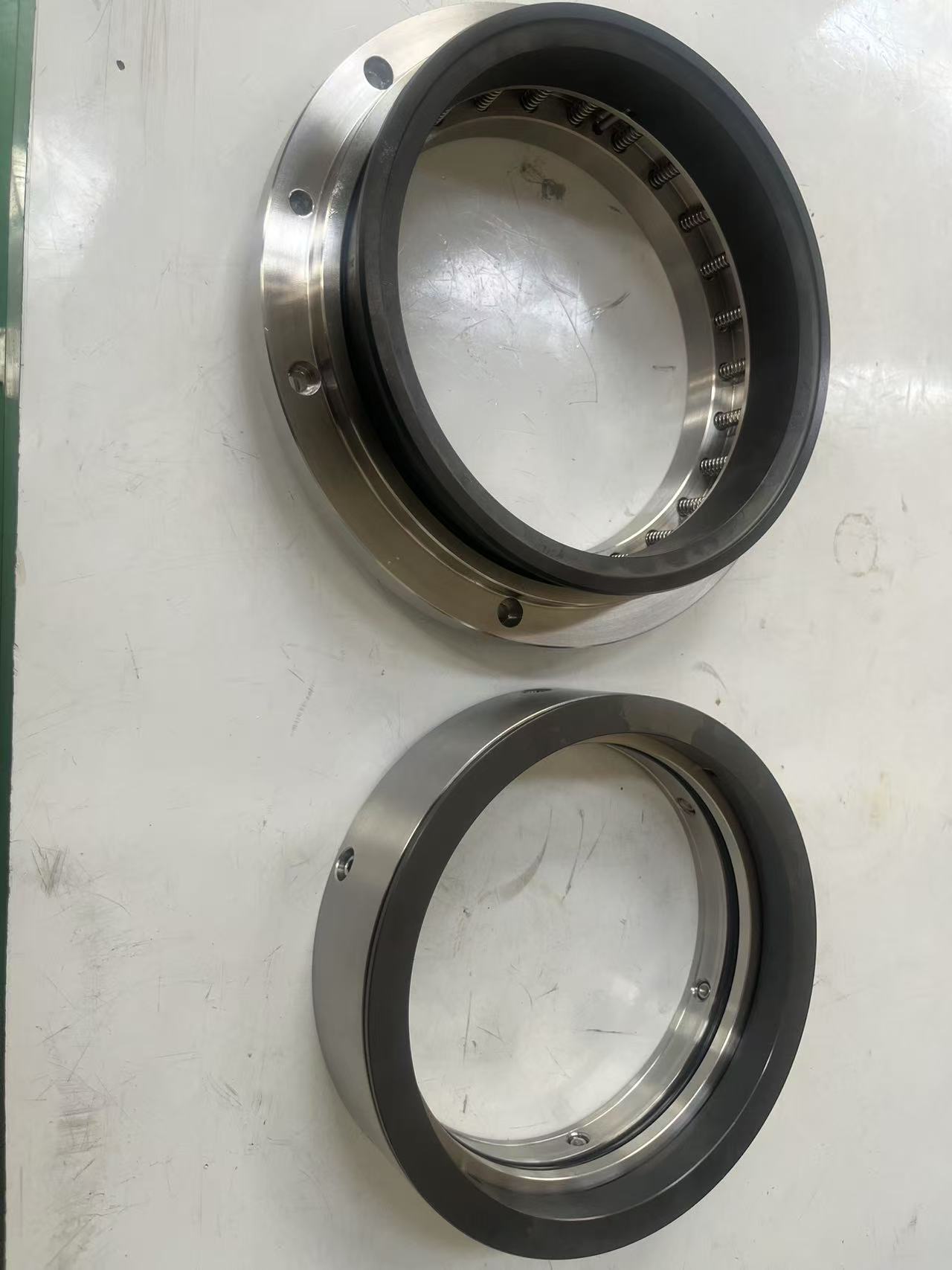

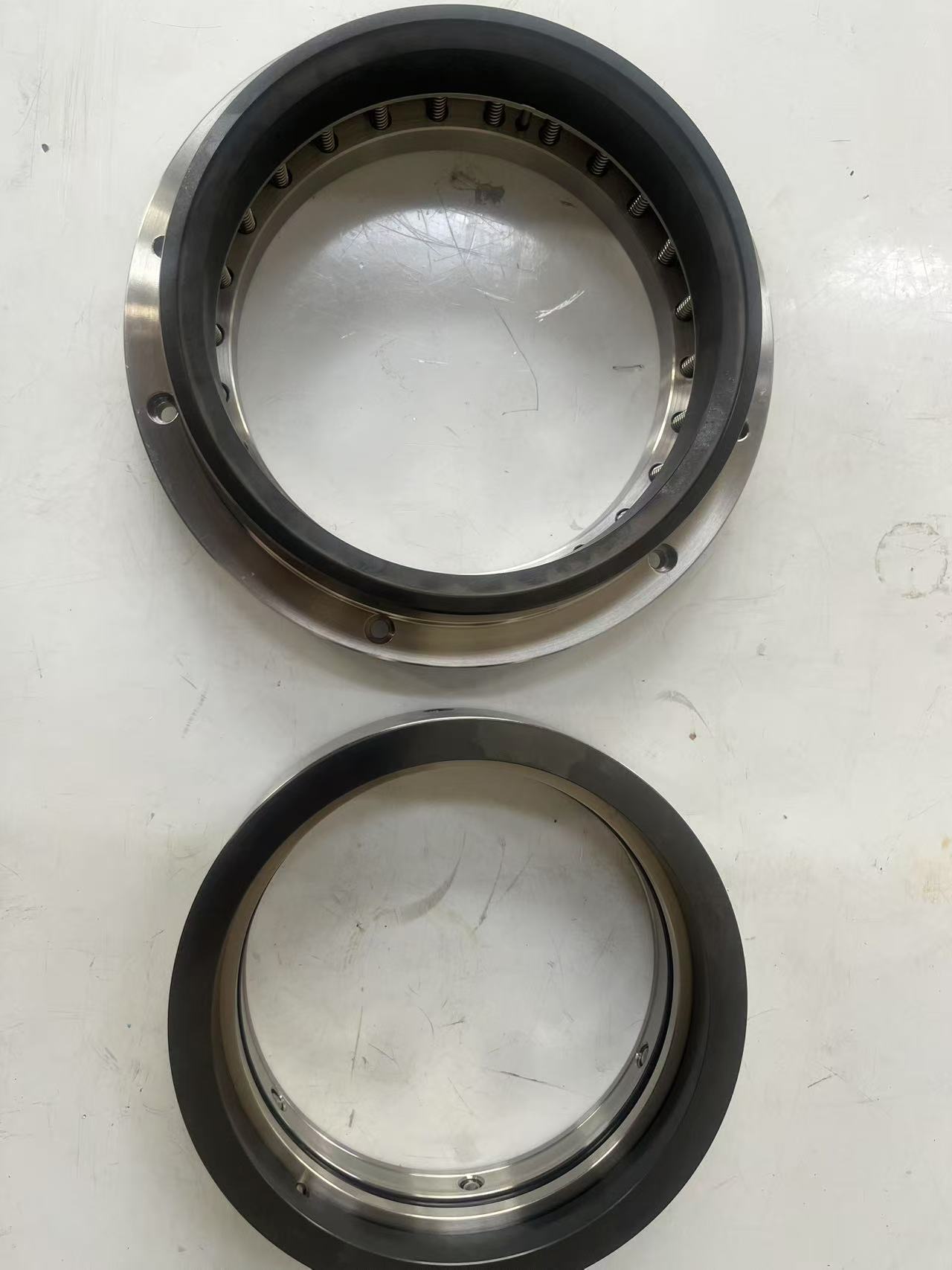

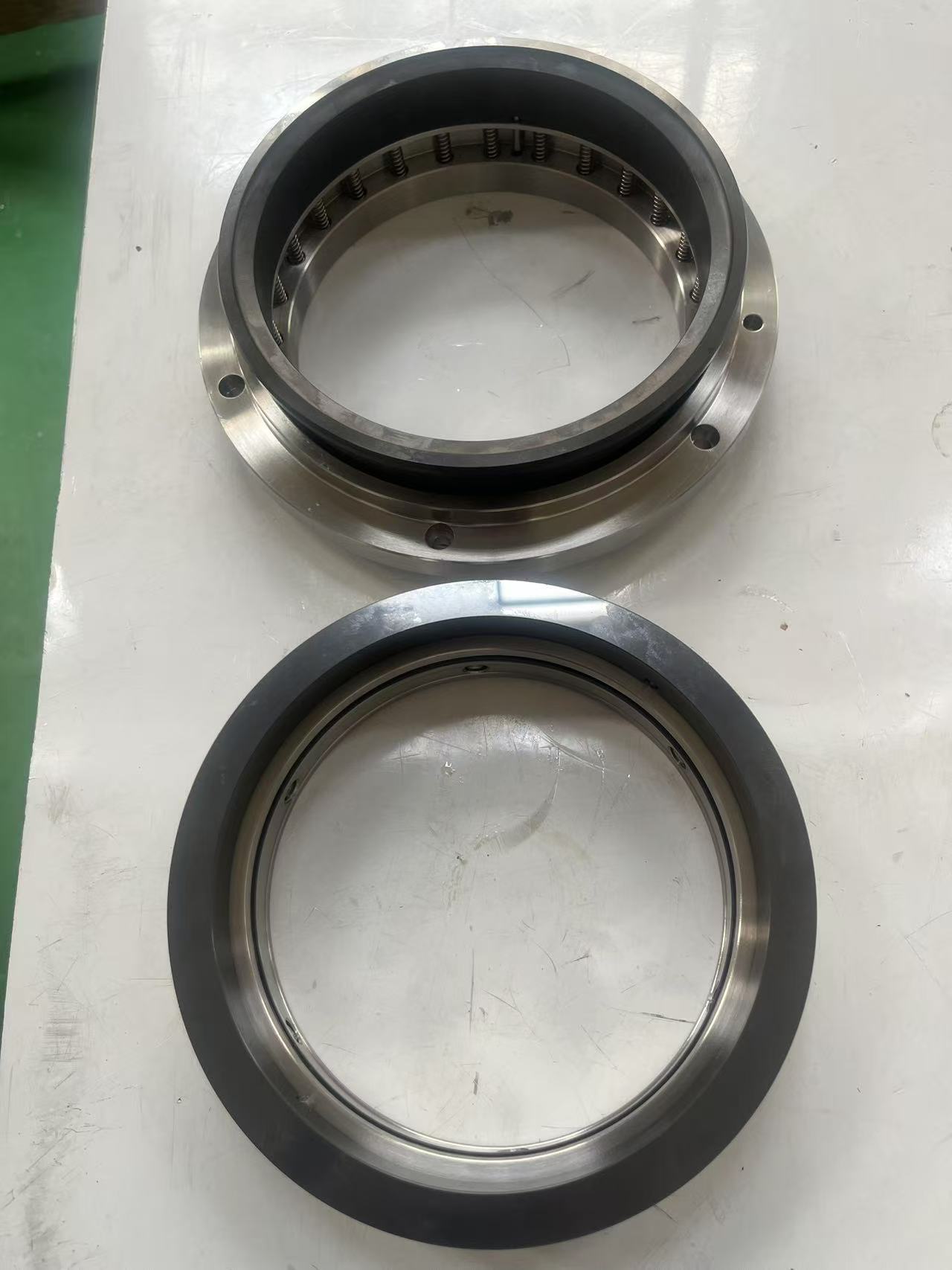

AS 4STC-165
A stationary component seal for the Amarex KRT, Sewatec and Amacan pump type series. Springs located outside the fluid, protected from contamination. Primary ring secured against falling out for vertically installed pumps.
Materials
Rotary Face / Stationary Face / Elastomer / Spring / Metal Parts
SiC/SiC/Viton/SS316/SS316
1 Variant
| Model | Materials | GA |
|---|---|---|
| 4STC Sewatec | SiC/SiC/Viton/SS316/SS316 | — |
Operating Conditions & Materials
Pressure
2.5 MPa or less
Temperature
-40 ~ 200 ºC
Linear Speed
25 m/s or less
Mediums
Water, sewage, industrial fluids. Cartridge seal for heavy duty pump applications.
Customization Available
Changes of materials for getting other operating parameters are possible. Contact us with your requirements.
