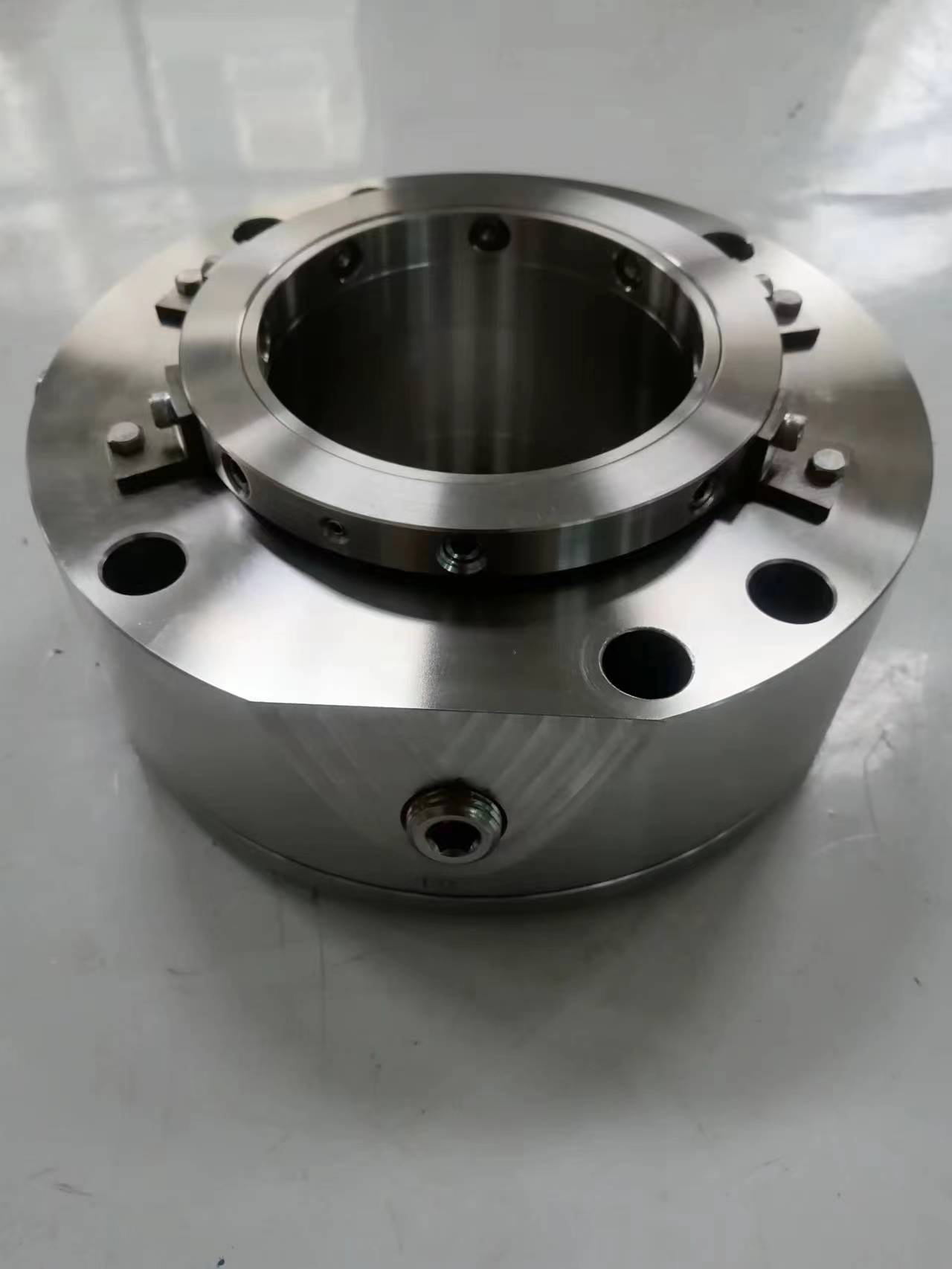

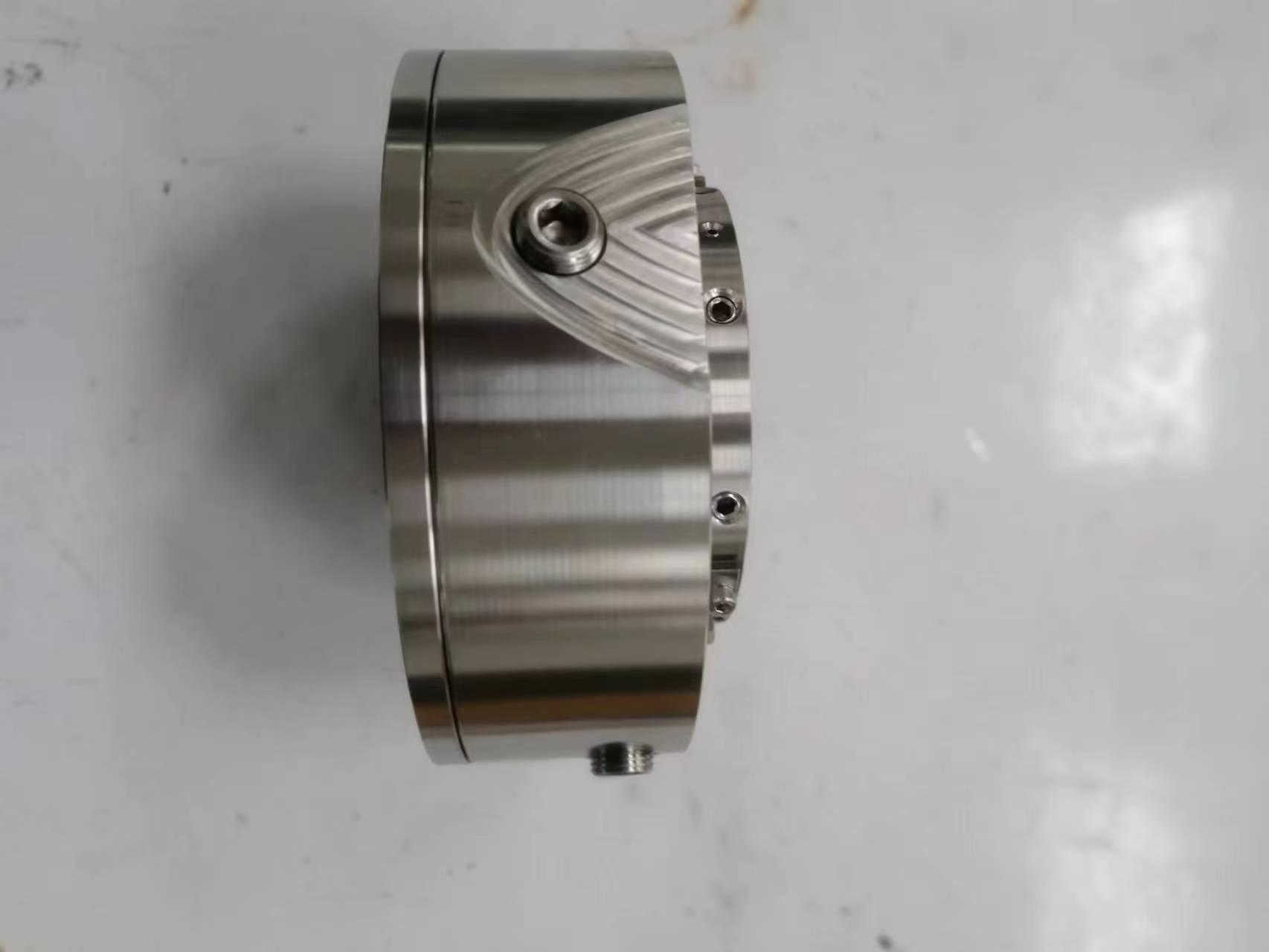

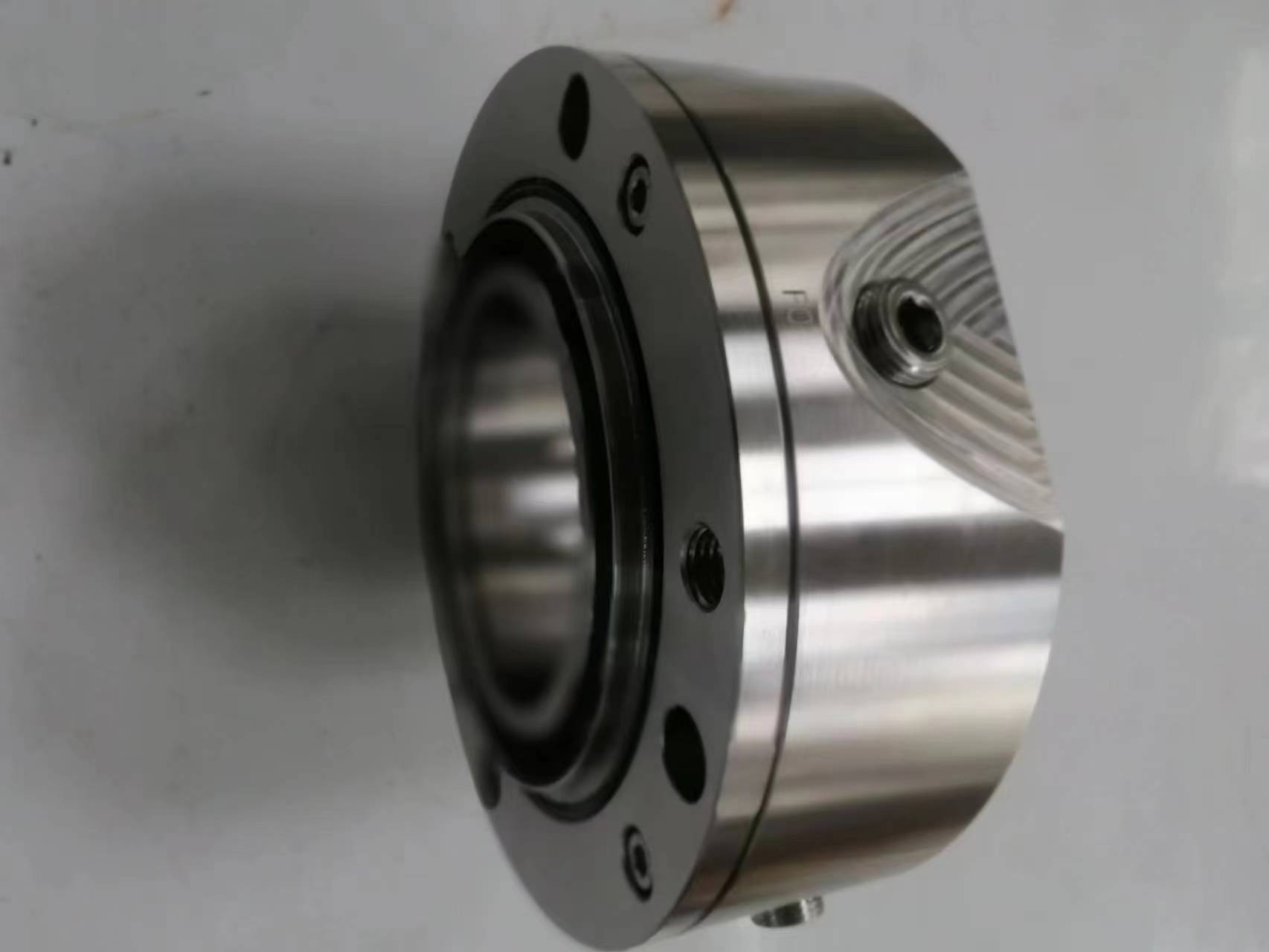

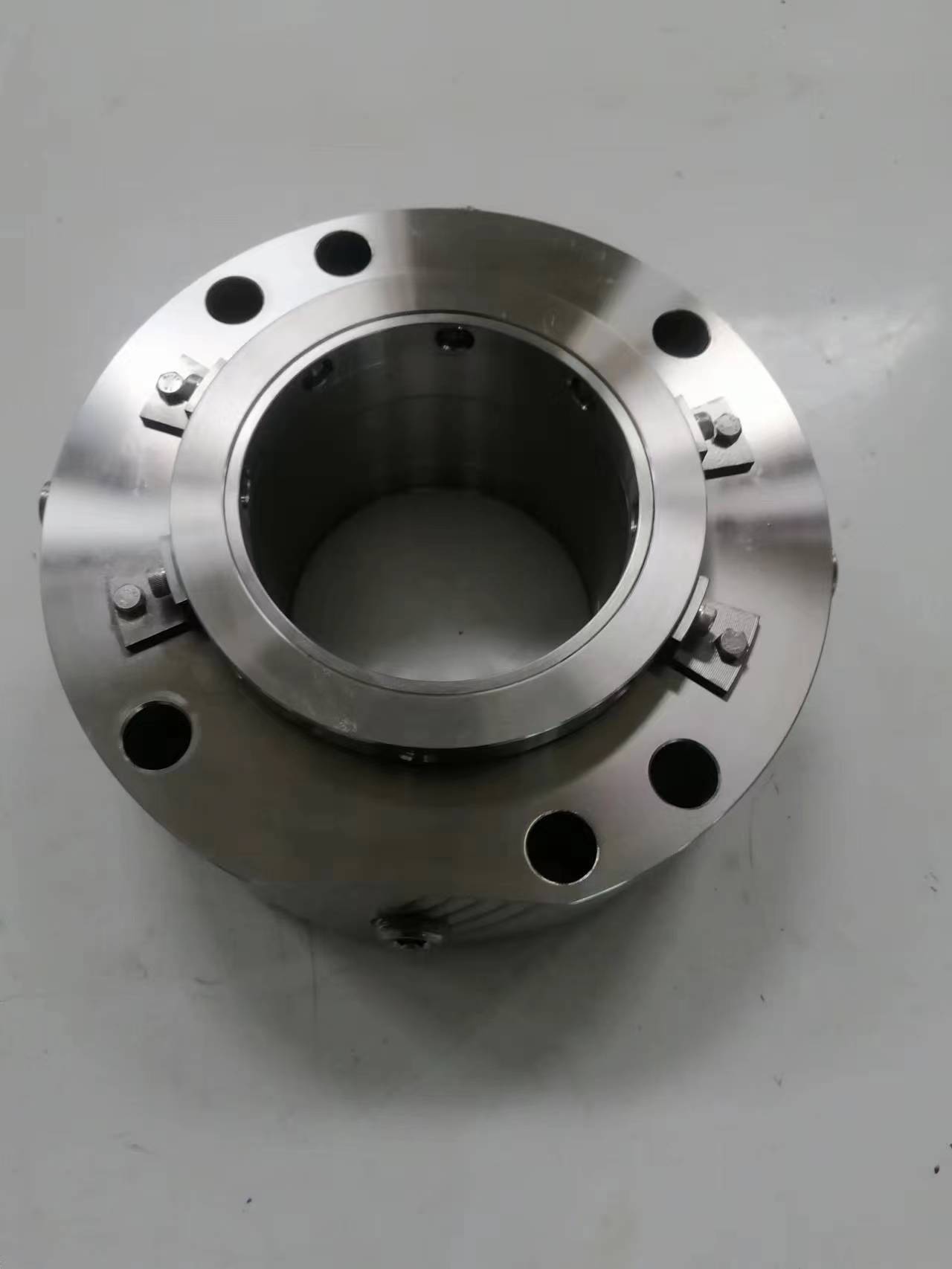

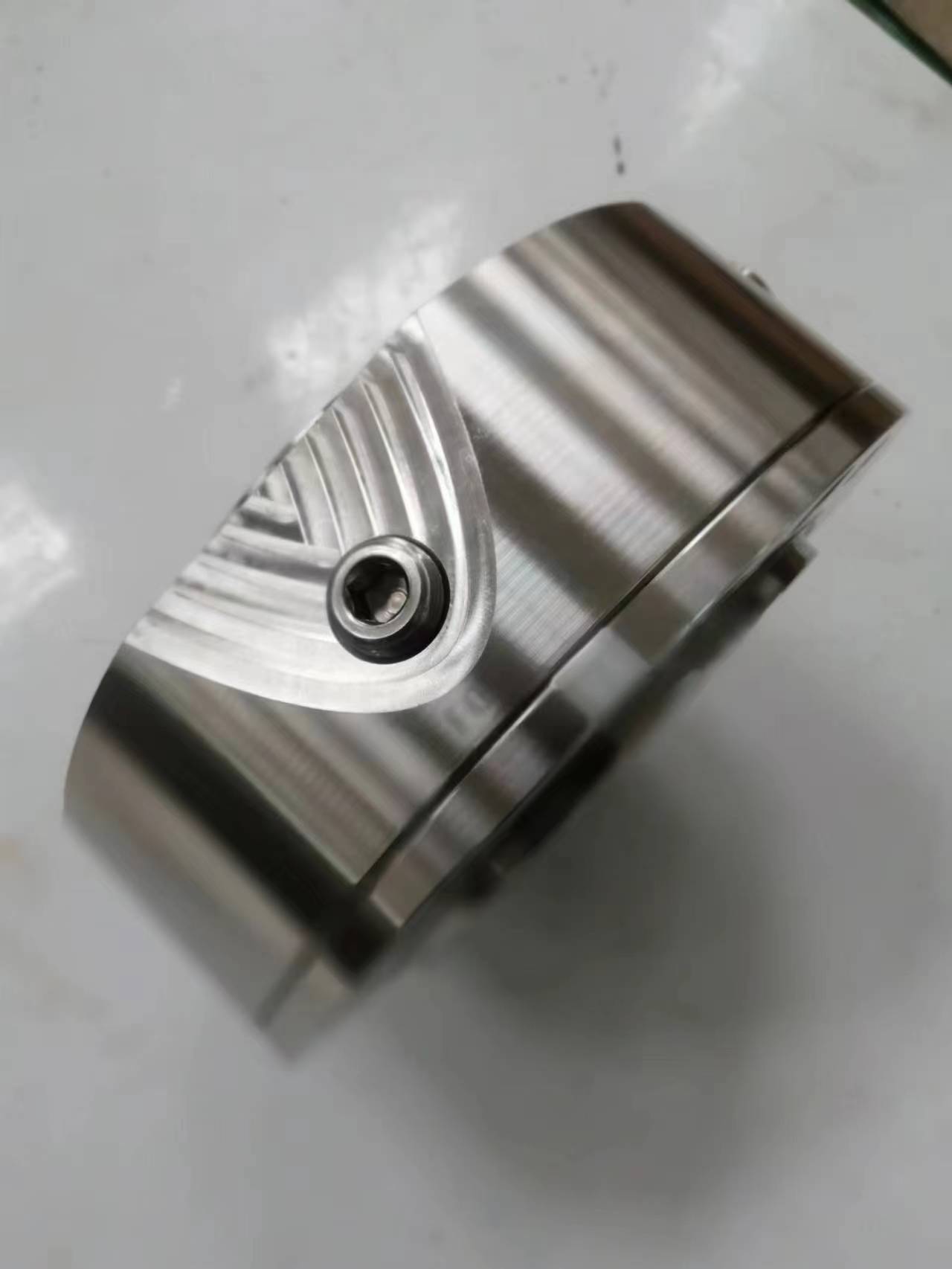

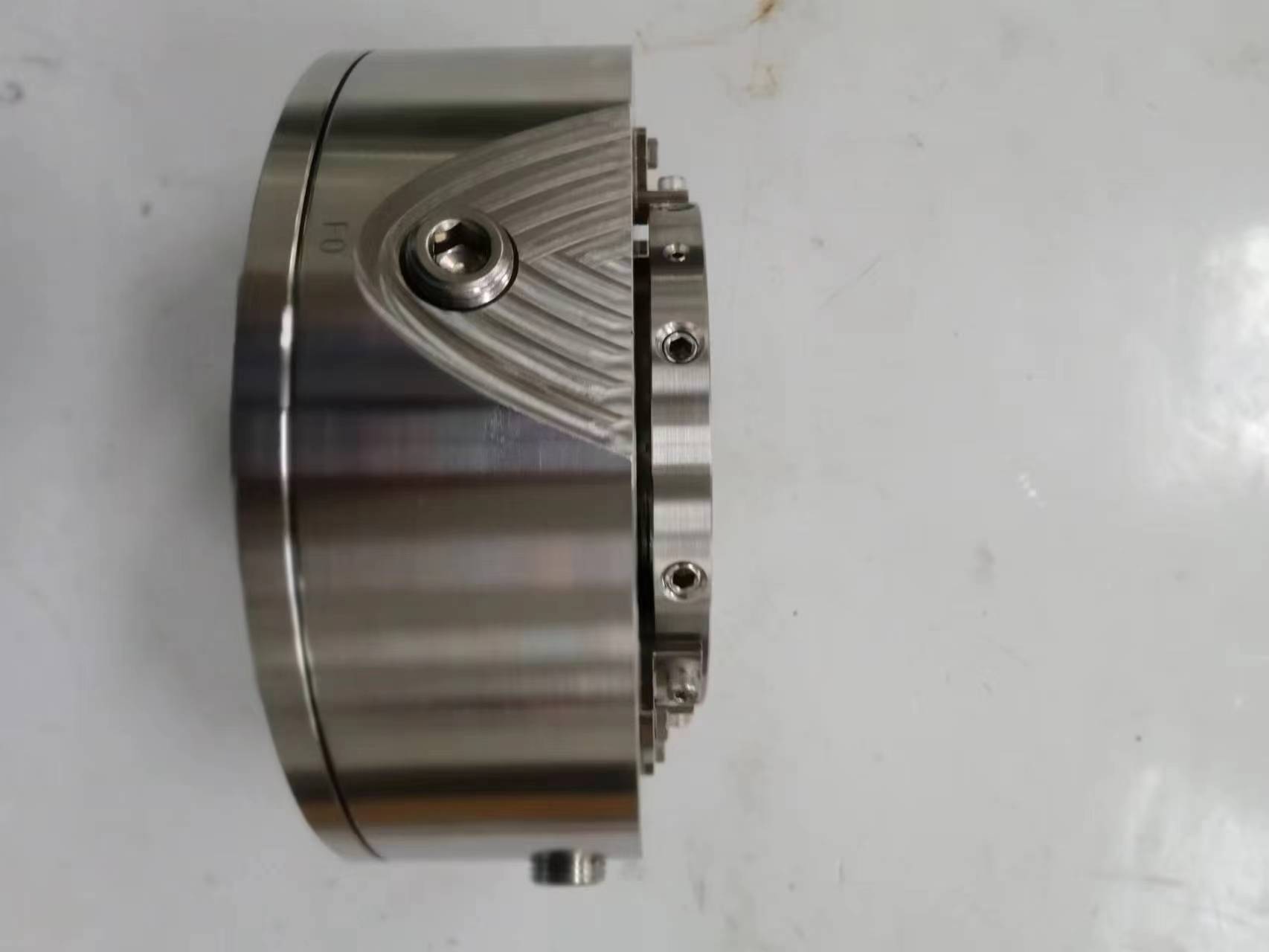

AS 5610P-1-110
Universal Cartridge Seal — single cartridge variant for Sulzer pumps.
Materials
Rotary Face / Stationary Face / Elastomer / Spring / Metal Parts
SiC/SiC/EPDM/HC276/SS316
1 Variant
| Model | Materials | GA |
|---|---|---|
| 5610P-1-110 | SiC/SiC/EPDM/HC276/SS316 | N250425 |
Operating Conditions & Materials
Pressure
2.5 MPa or less
Temperature
-40 ~ 200 ºC
Linear Speed
25 m/s or less
Mediums
Water, sewage, industrial process fluids.
Customization Available
Changes of materials for getting other operating parameters are possible. Contact us with your requirements.
