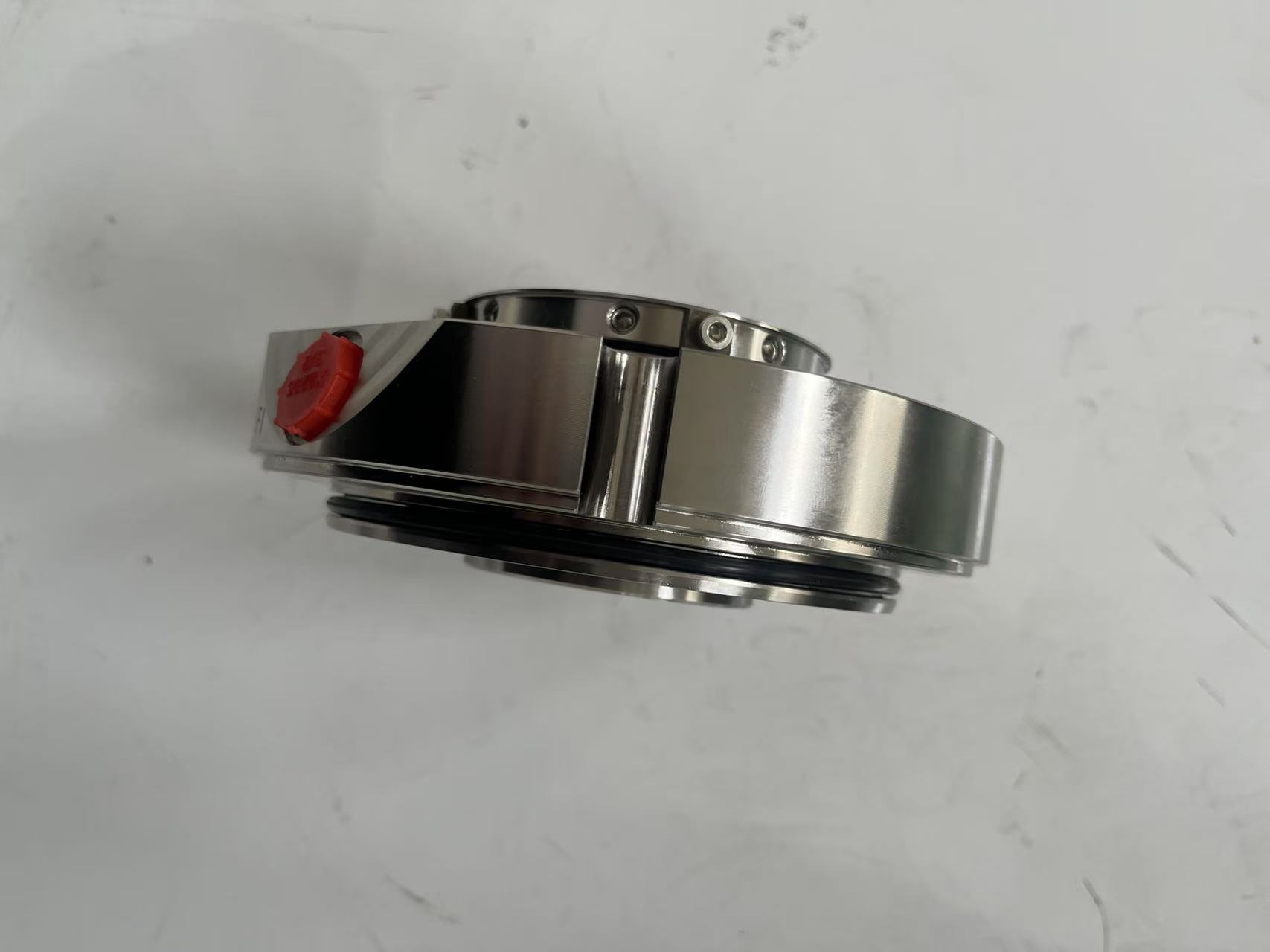

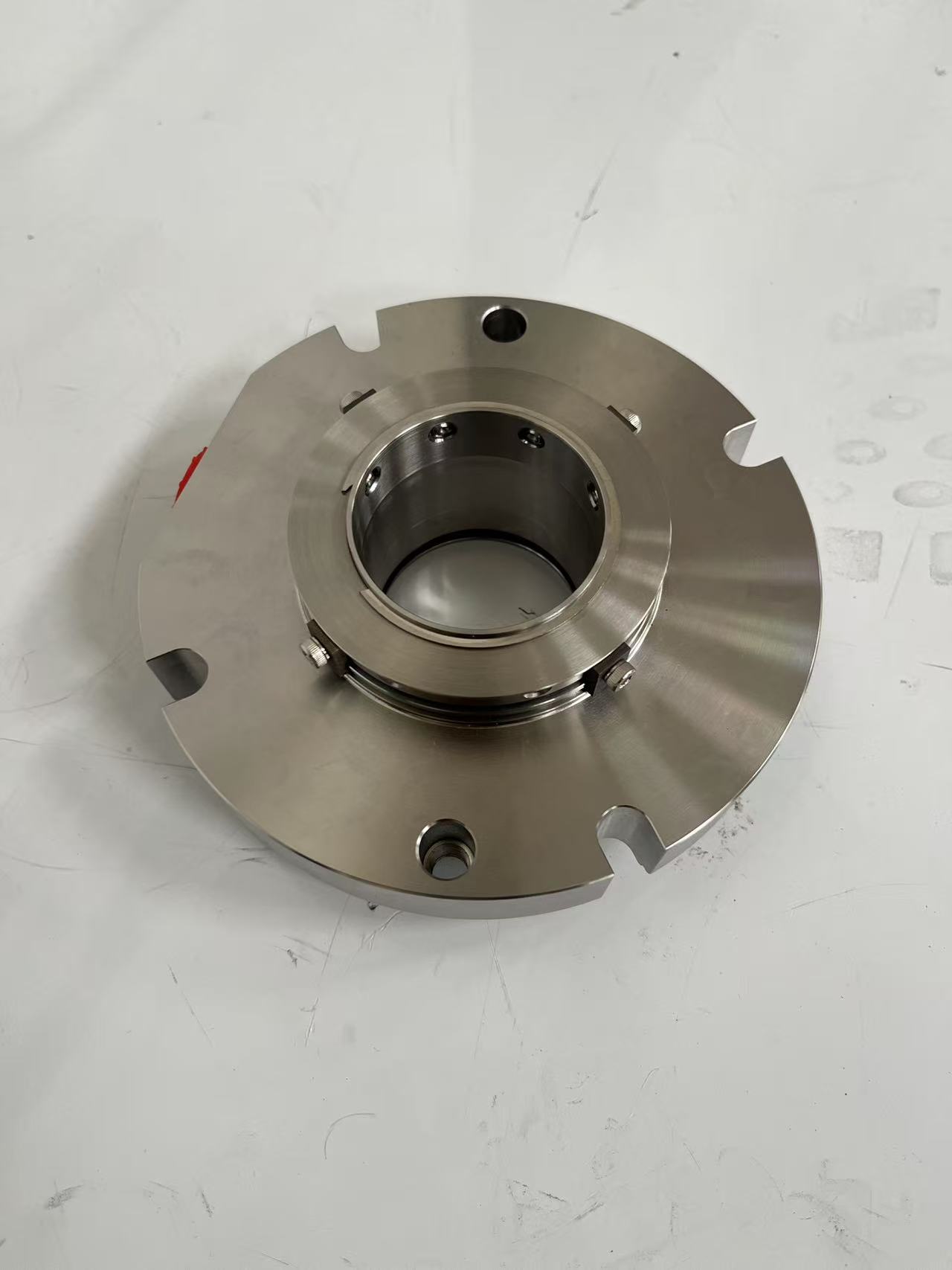

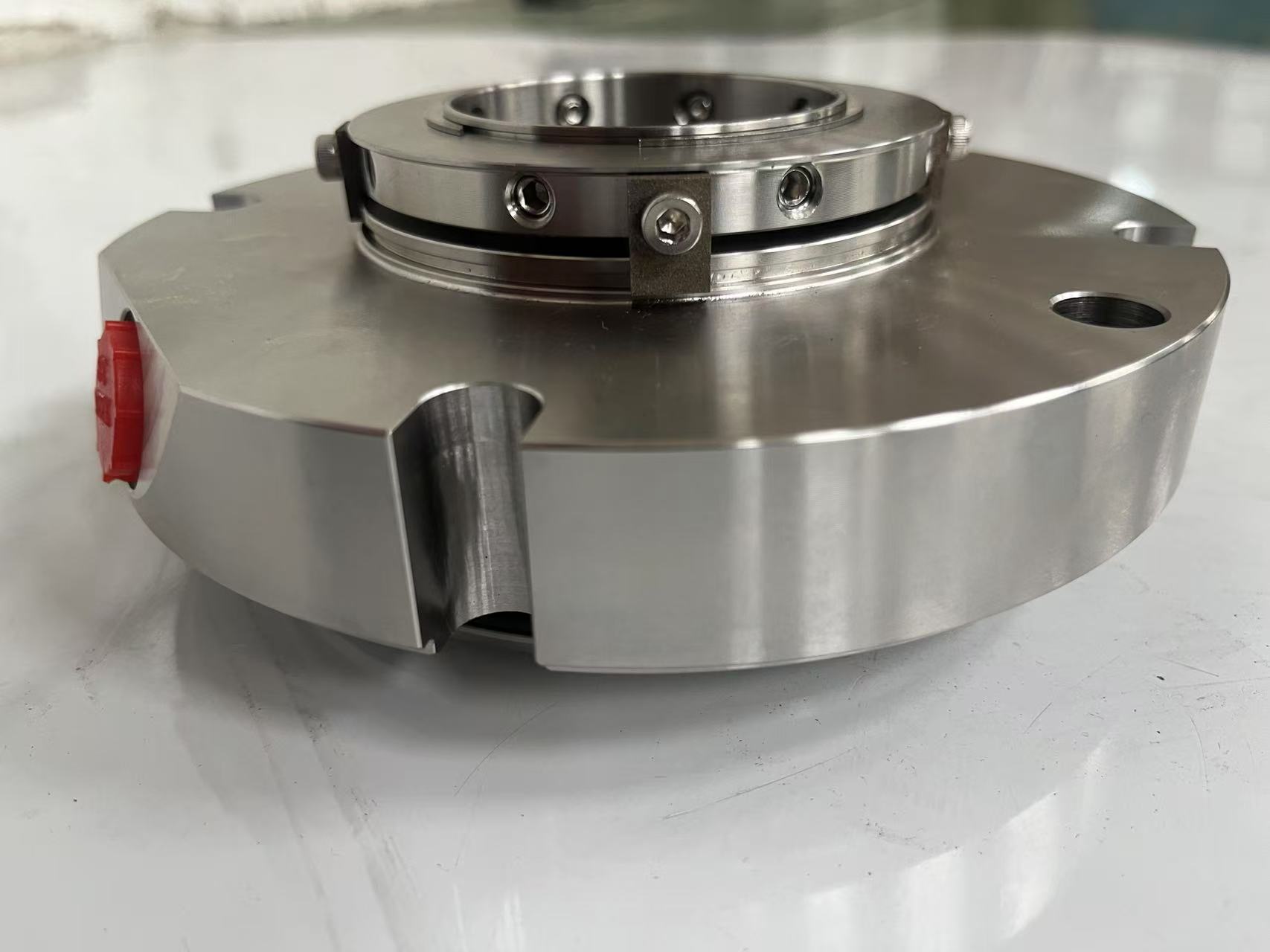

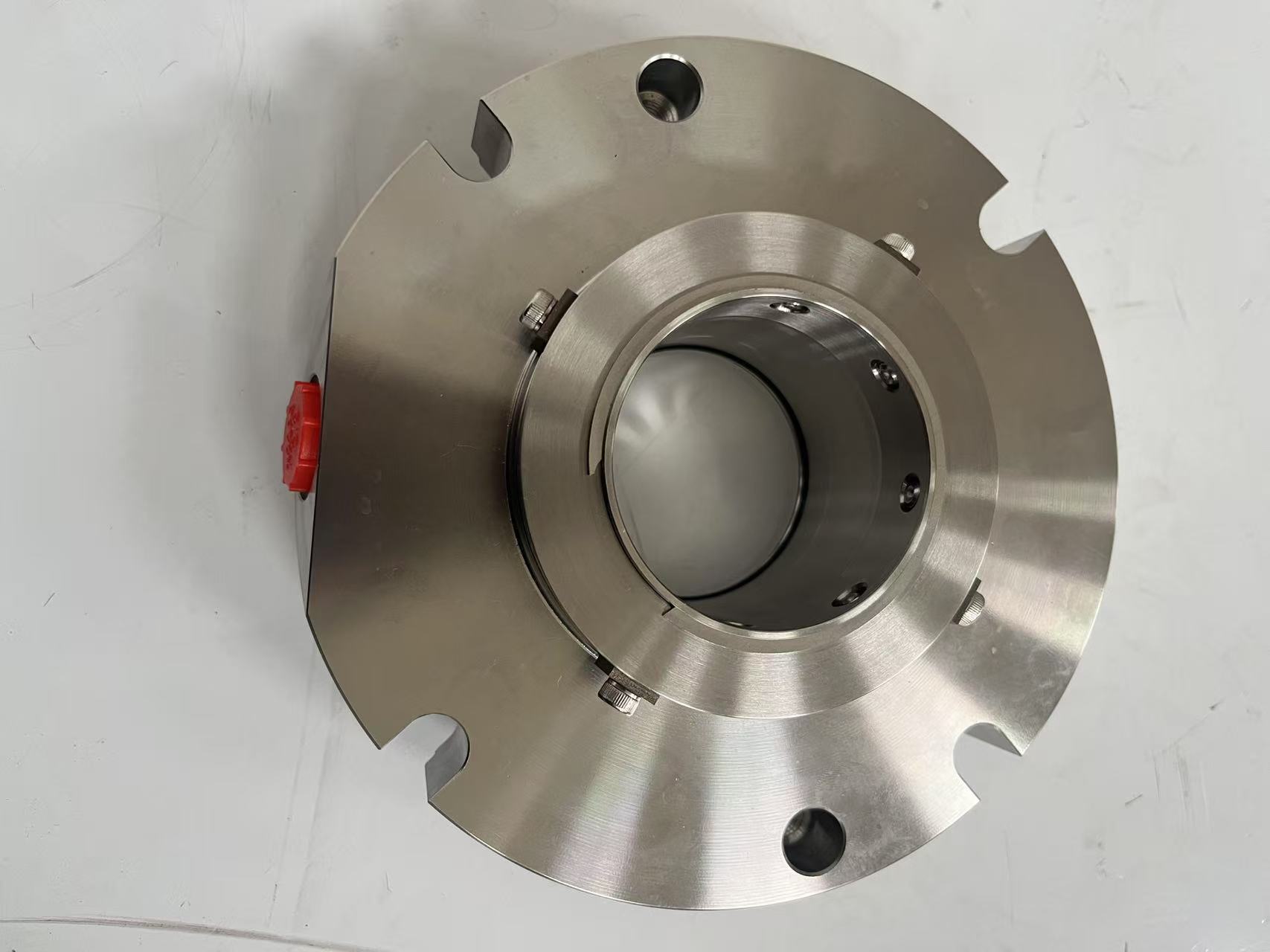

AS 5610V-57-GA-215553
High-performance mechanical seal designed for demanding industrial applications.
Materials
Rotary Face / Stationary Face / Elastomer / Spring / Metal Parts
SiC/SiC/Viton/HC276/SS316
1 Variant
| Model | Materials | GA |
|---|---|---|
| 5610V-57 | SiC/SiC/Viton/HC276/SS316 | GA-215553 |
Operating Conditions & Materials
Pressure
2.0 MPa or less
Temperature
-40 ~ 200 ºC
Linear Speed
25 m/s or less
Mediums
Paper pulp, water. For KMK PAPER LG3 pumps.
Customization Available
Changes of materials for getting other operating parameters are possible. Contact us with your requirements.
