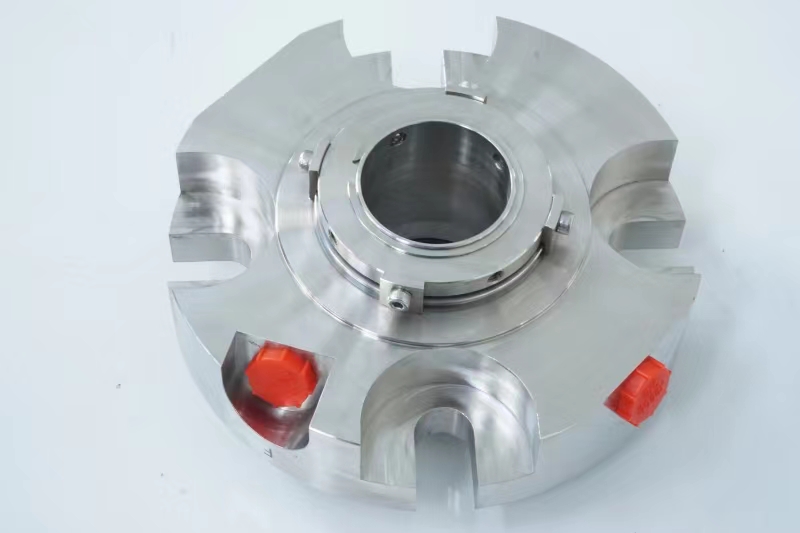

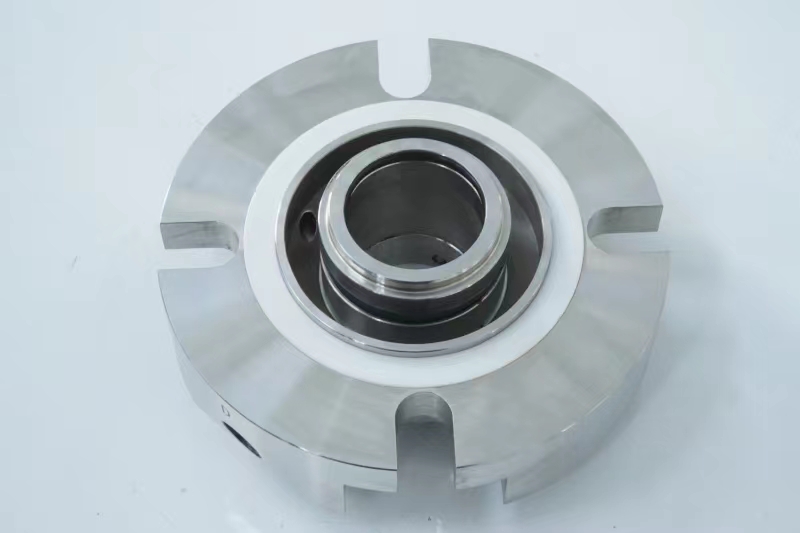

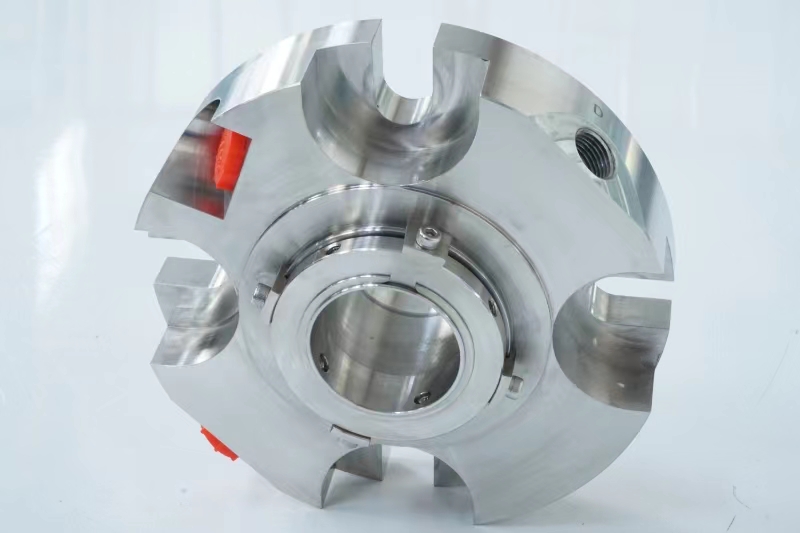

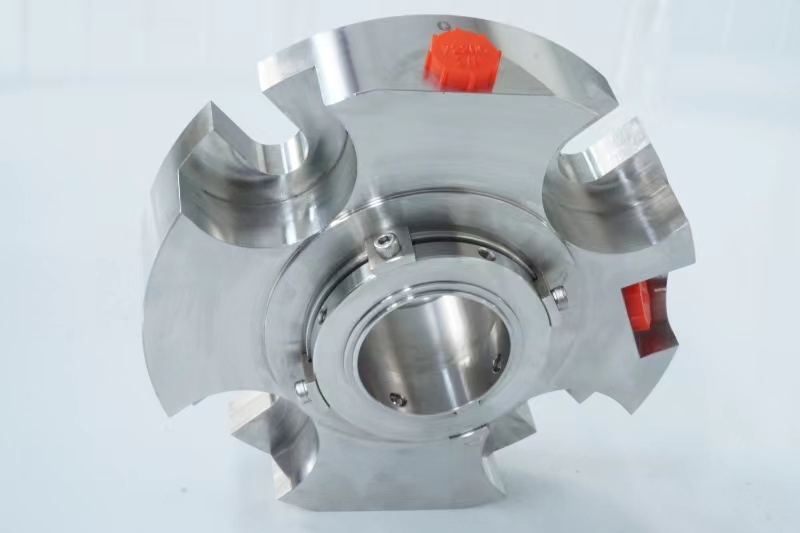

AS 5610VQ-1.75
Universal Cartridge Seal with quench gland for Goulds 3196 MTX Pump.
Materials
Rotary Face / Stationary Face / Elastomer / Spring / Metal Parts
Carbon/SSiC/Viton/HC276/SS316
1 Variant
| Model | Materials | GA |
|---|---|---|
| 5610VQ-1.75 | Carbon/SSiC/Viton/HC276/SS316 | H-SP-38068-10 |
Operating Conditions & Materials
Pressure
2.0 MPa or less
Temperature
-40 ~ 200 ºC
Linear Speed
25 m/s or less
Mediums
Paper pulp, water, chemicals.
Customization Available
Changes of materials for getting other operating parameters are possible. Contact us with your requirements.
