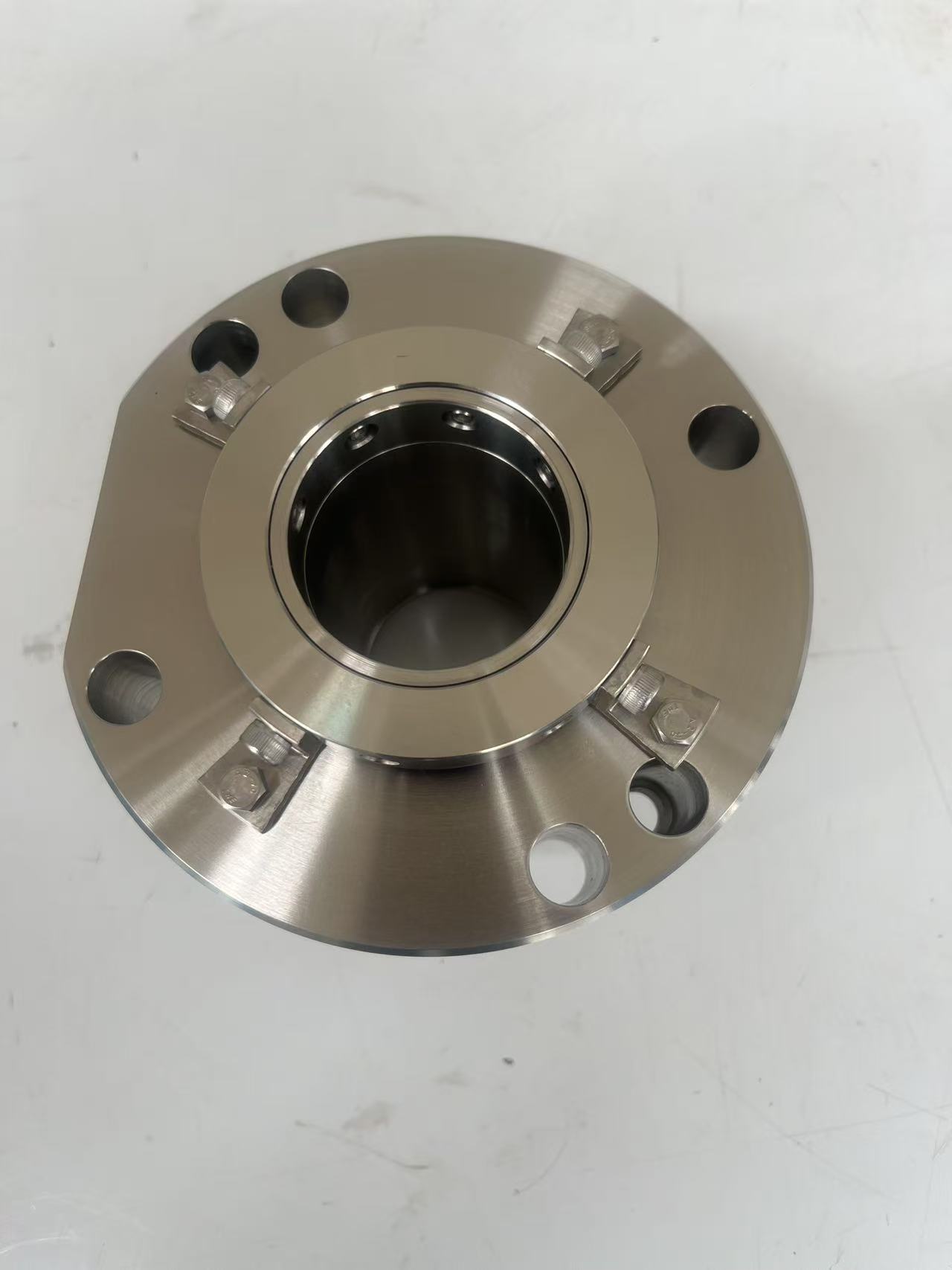

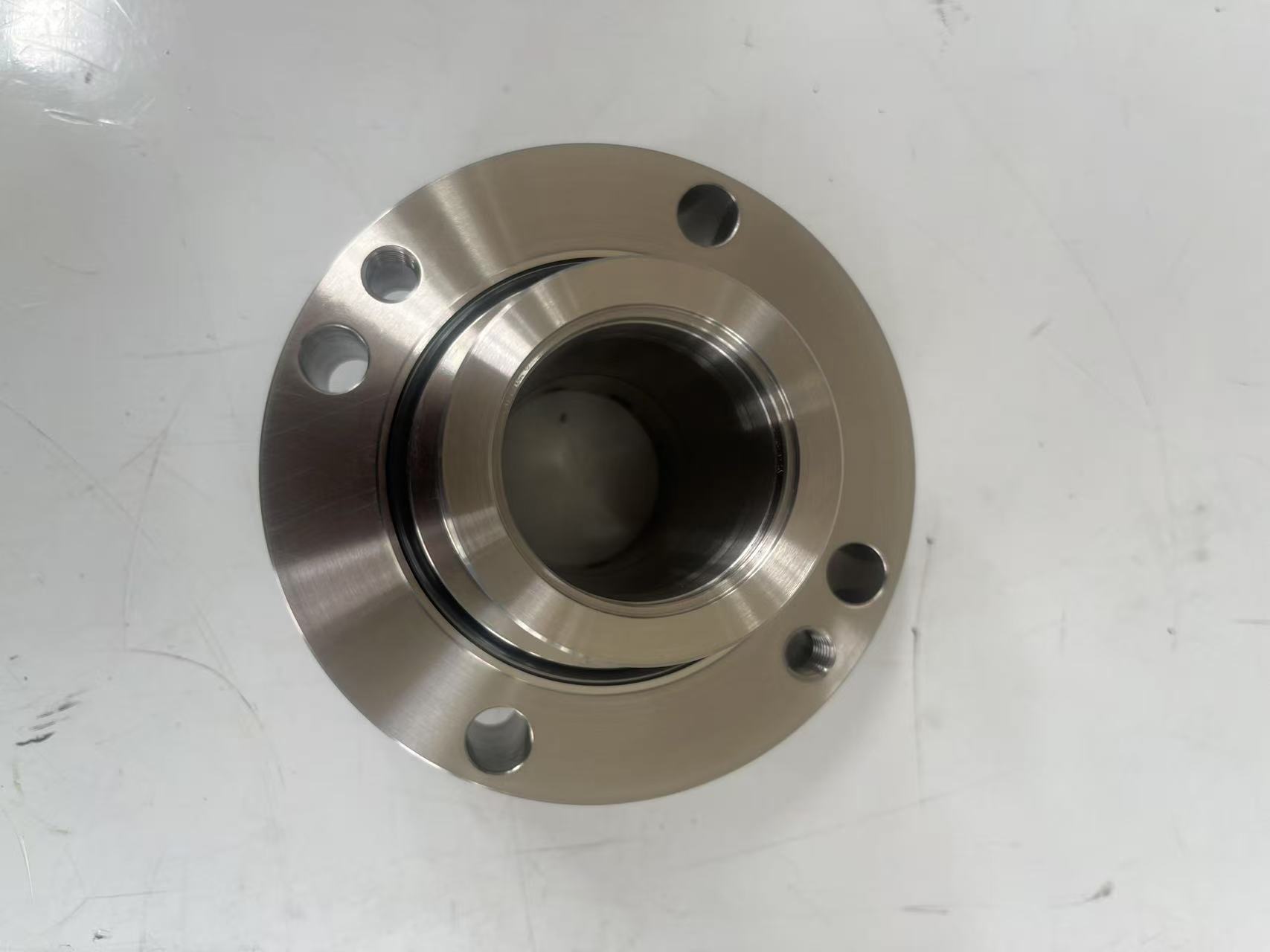

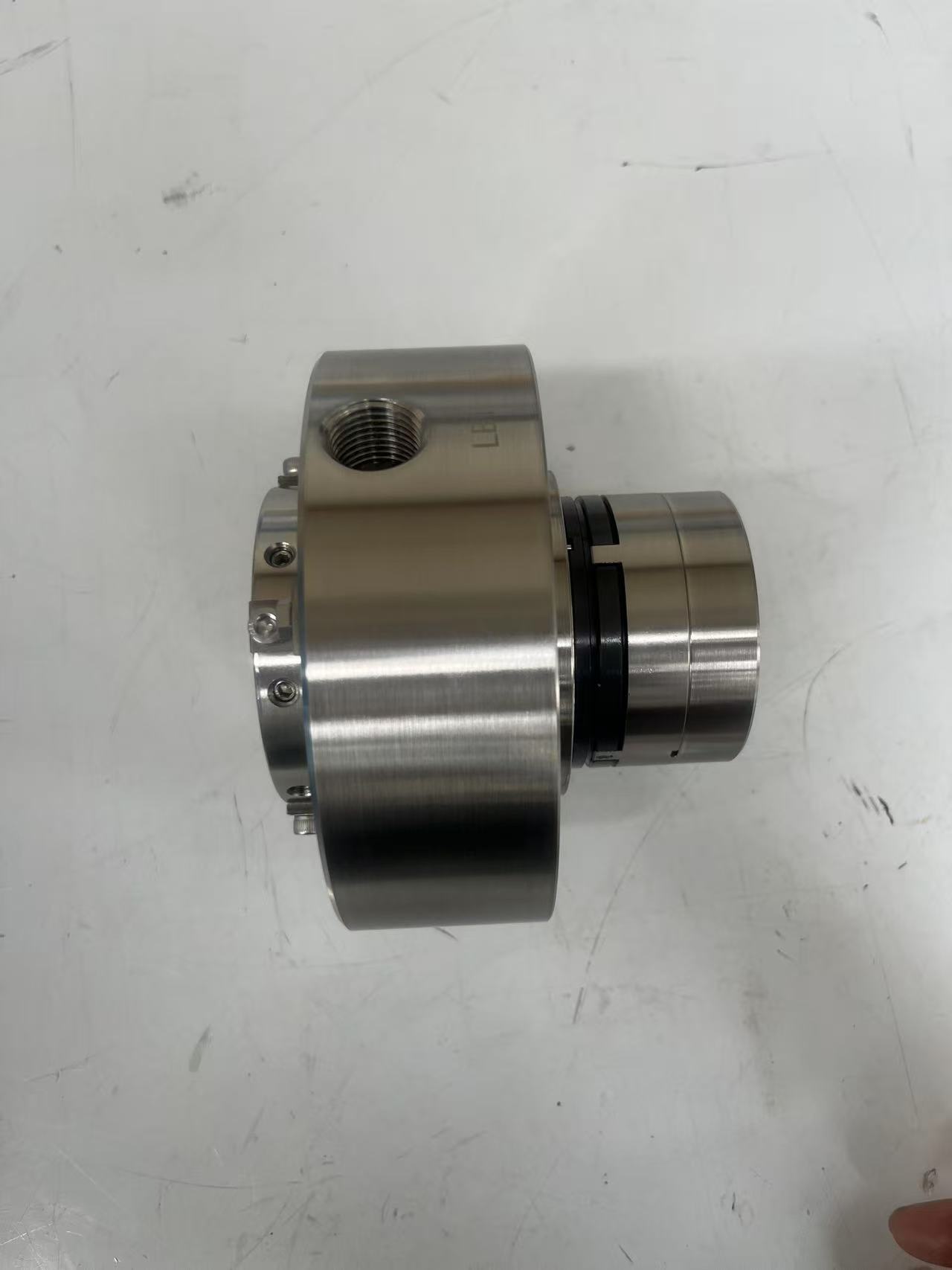

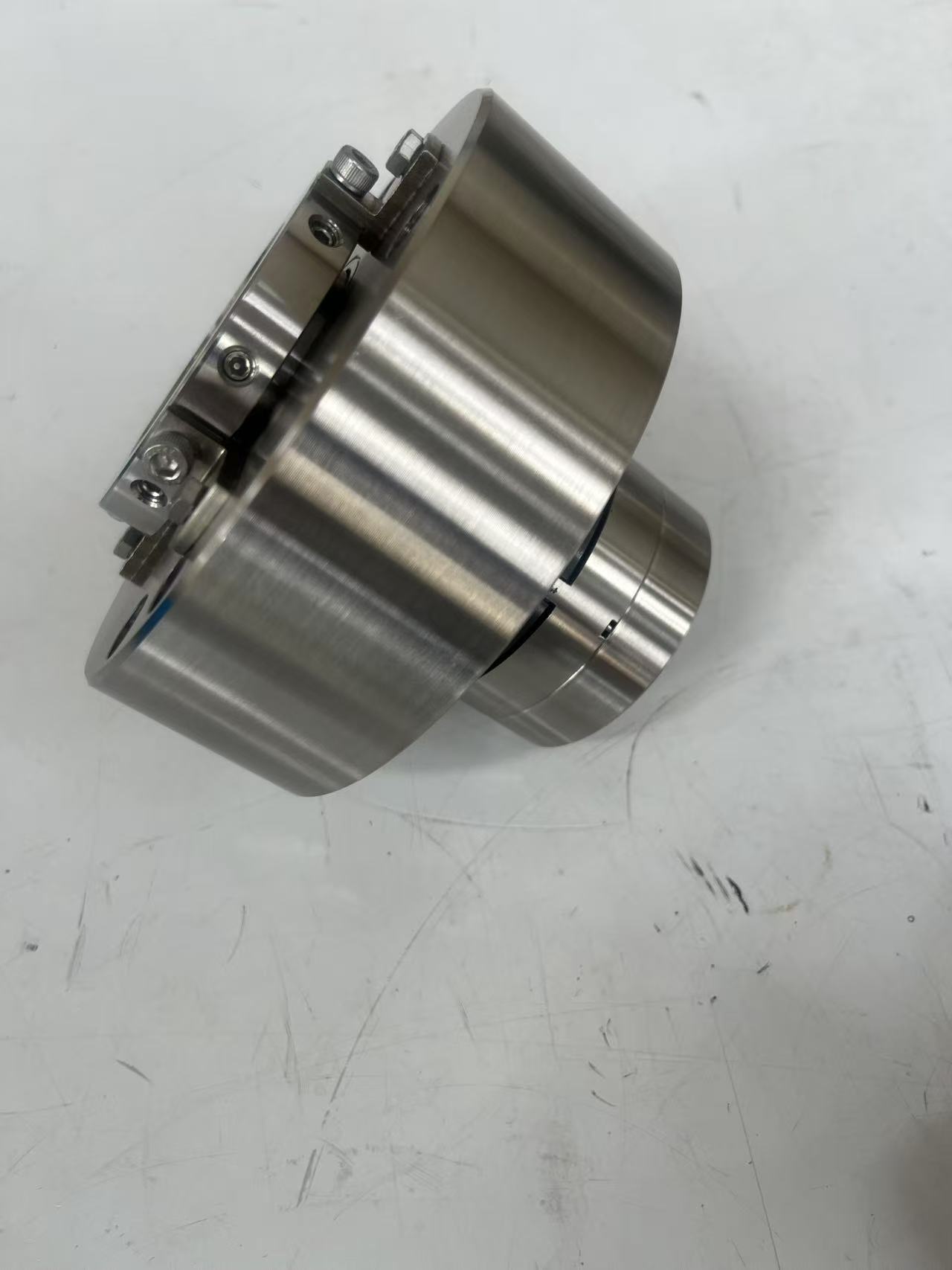

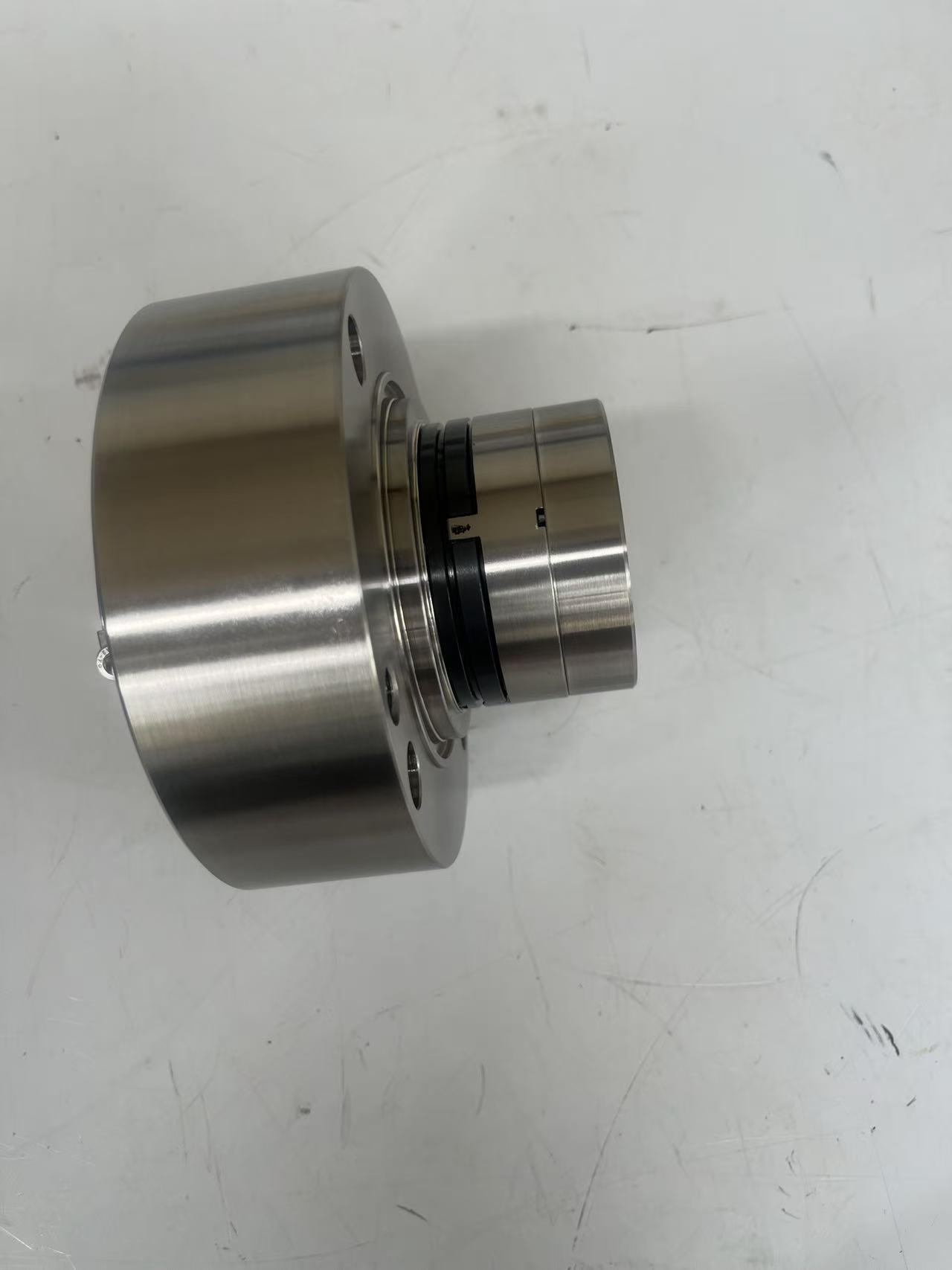

AS 5620P-1-50-WM1705-00
Universal Cartridge Seal — double cartridge variant for Sulzer pumps.
Materials
Rotary Face / Stationary Face / Elastomer / Spring / Metal Parts
SiC/SiC/EPDM/HC276/SS316
1 Variant
| Model | Materials | GA |
|---|---|---|
| 5620P-1-50 | SiC/SiC/EPDM/HC276/SS316 | WM1705 |
Operating Conditions & Materials
Pressure
2.5 MPa or less
Temperature
-40 ~ 200 ºC
Linear Speed
25 m/s or less
Mediums
Water, sewage, paper pulp, industrial process fluids. Double-end seal.
Customization Available
Changes of materials for getting other operating parameters are possible. Contact us with your requirements.
