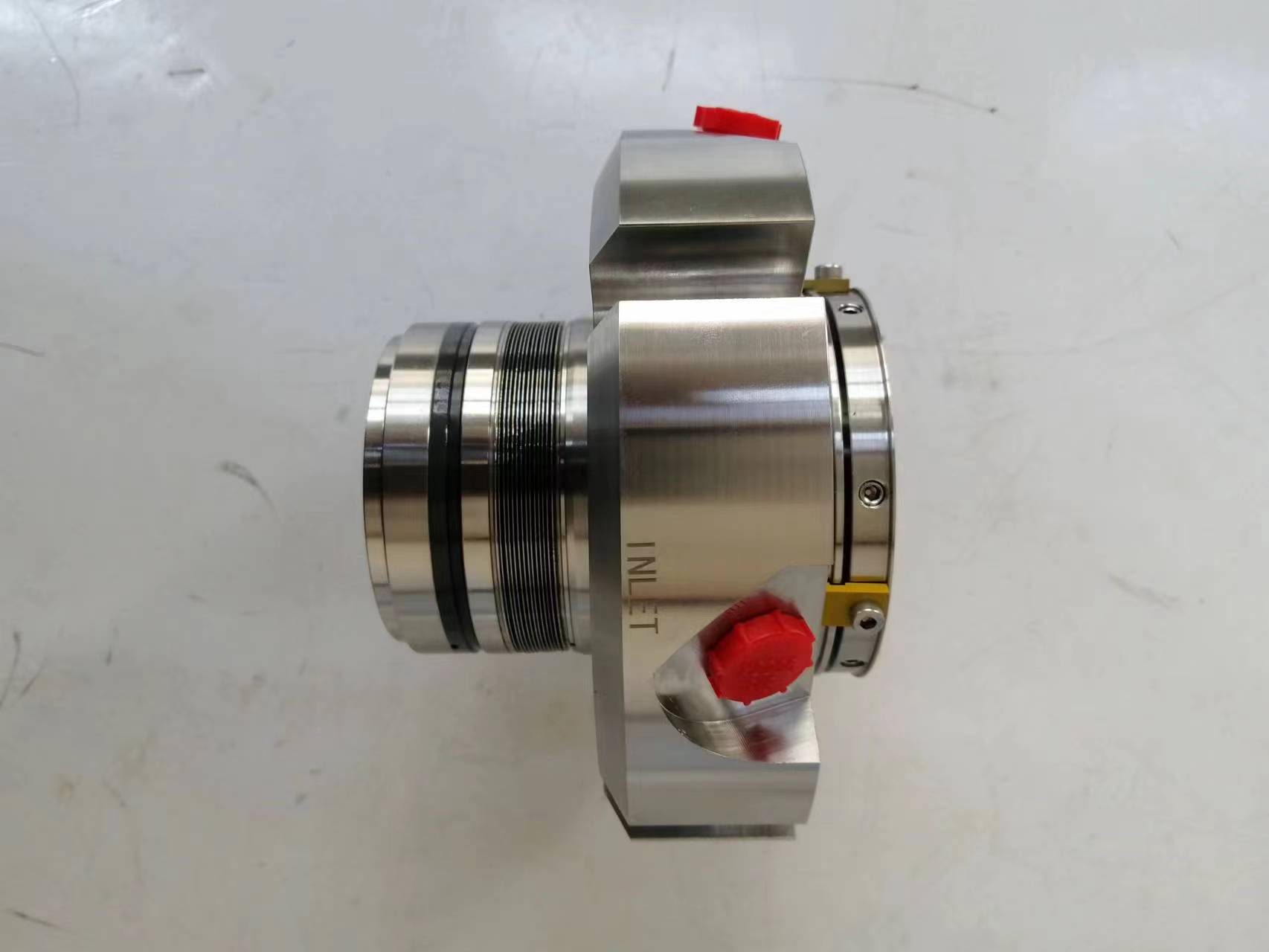

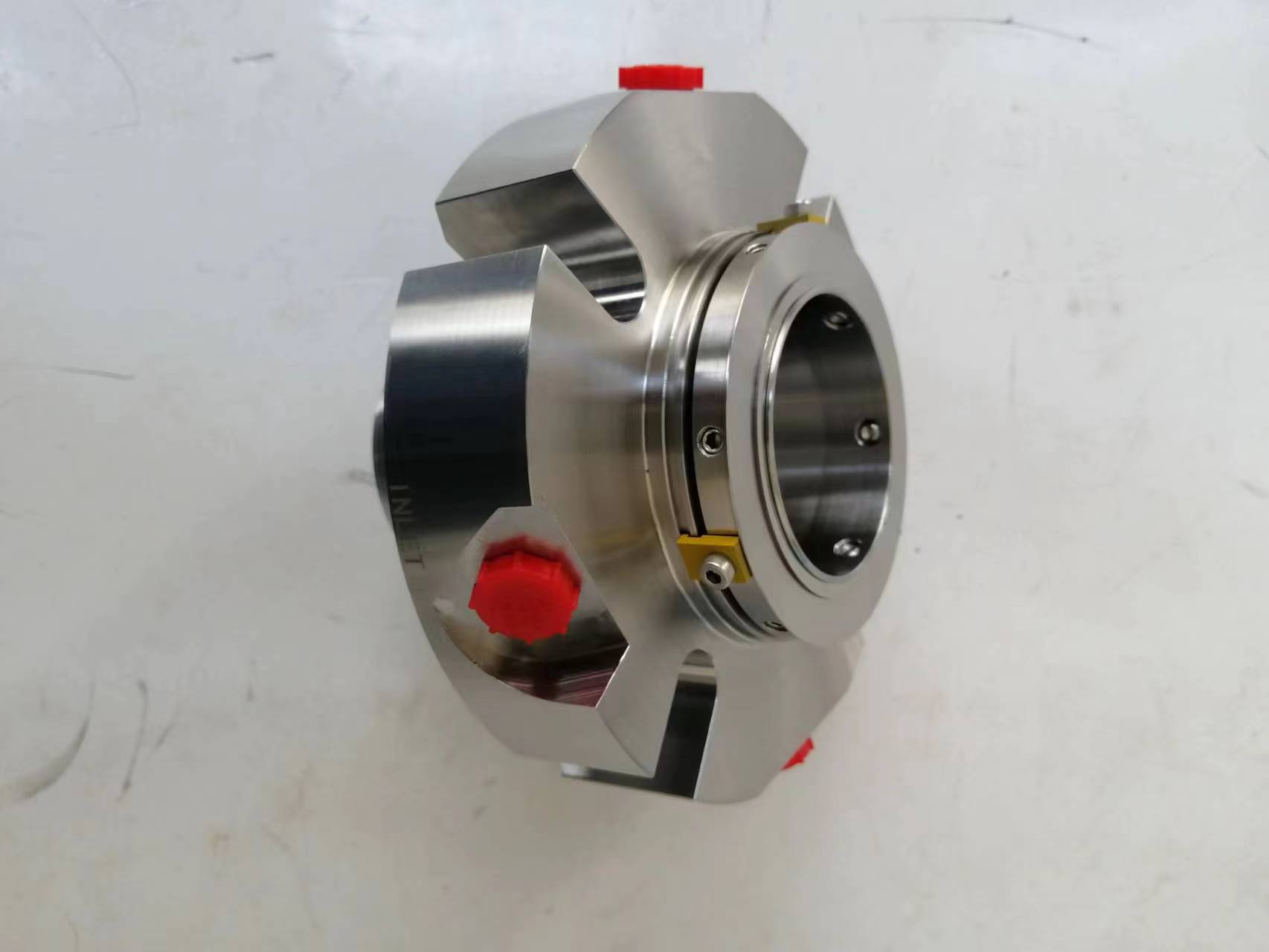

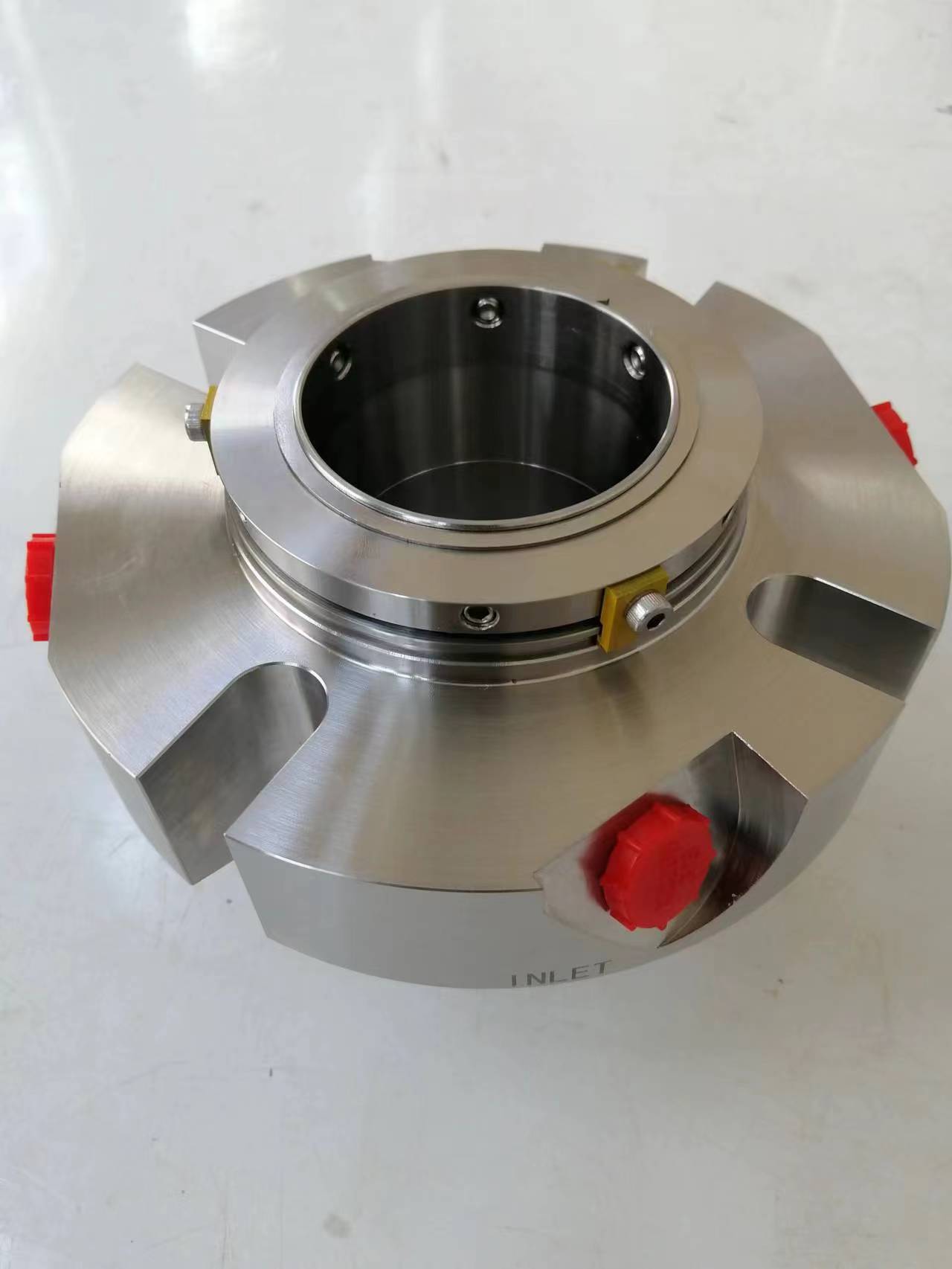

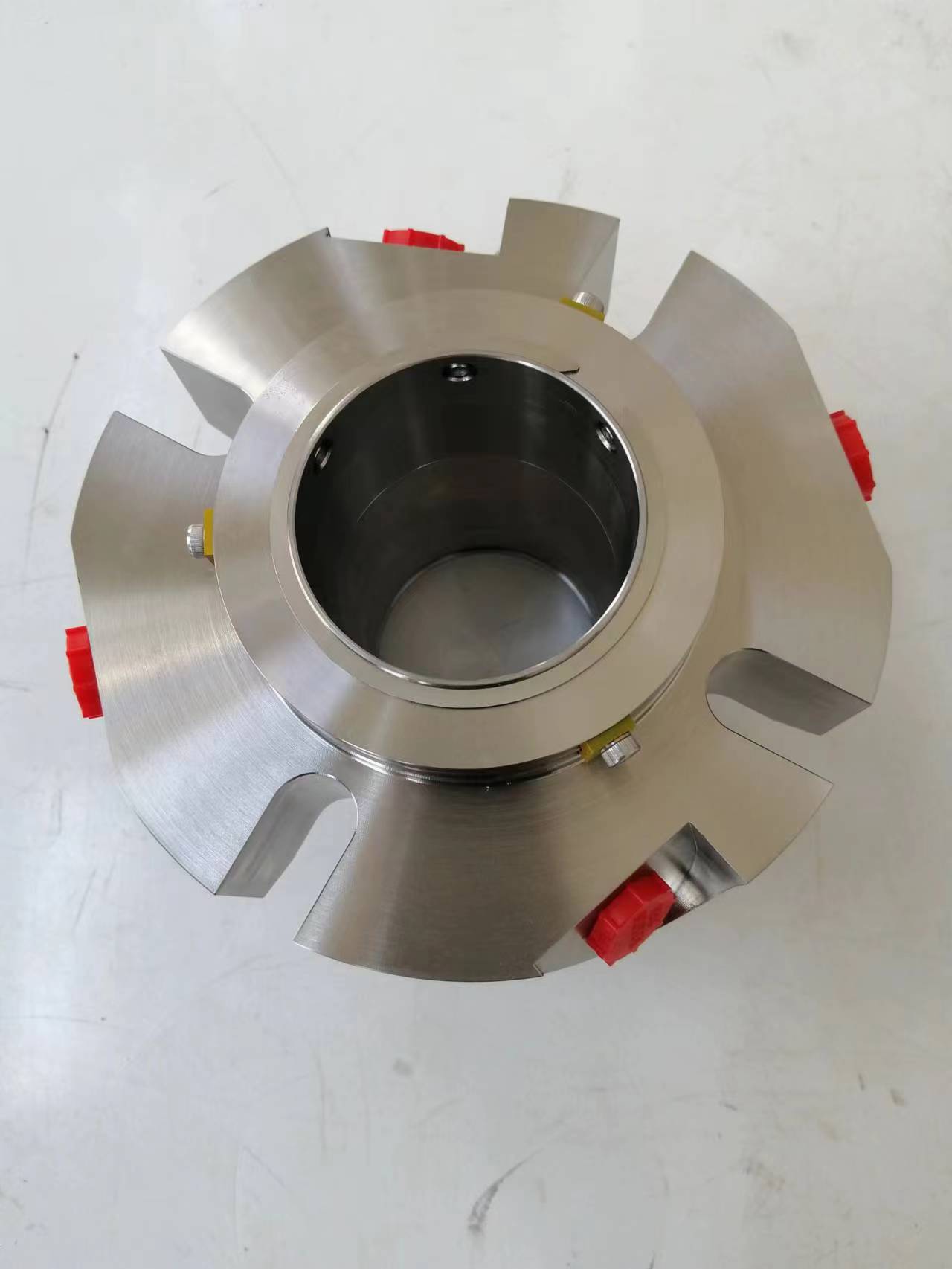

AS 5620P-65
5600 Series modular cartridge seal. 5620P is the multiple spring, double ended with self-pumping cartridge seal.
Materials
Rotary Face / Stationary Face / Elastomer / Spring / Metal Parts
SiC/SiC/EPDM/HC276/SS316 - SiC/SiC/EPDM
1 Variant
| Model | Materials | GA |
|---|---|---|
| 5620P-65 | SiC/SiC/EPDM/HC276/SS316 - SiC/SiC/EPDM | — |
Operating Conditions & Materials
Pressure
2.5 MPa or less
Temperature
-40 ~ 200 ºC
Linear Speed
25 m/s or less
Mediums
Water, sewage, paper pulp, chemicals. Double-end cartridge seal.
Customization Available
Changes of materials for getting other operating parameters are possible. Contact us with your requirements.
