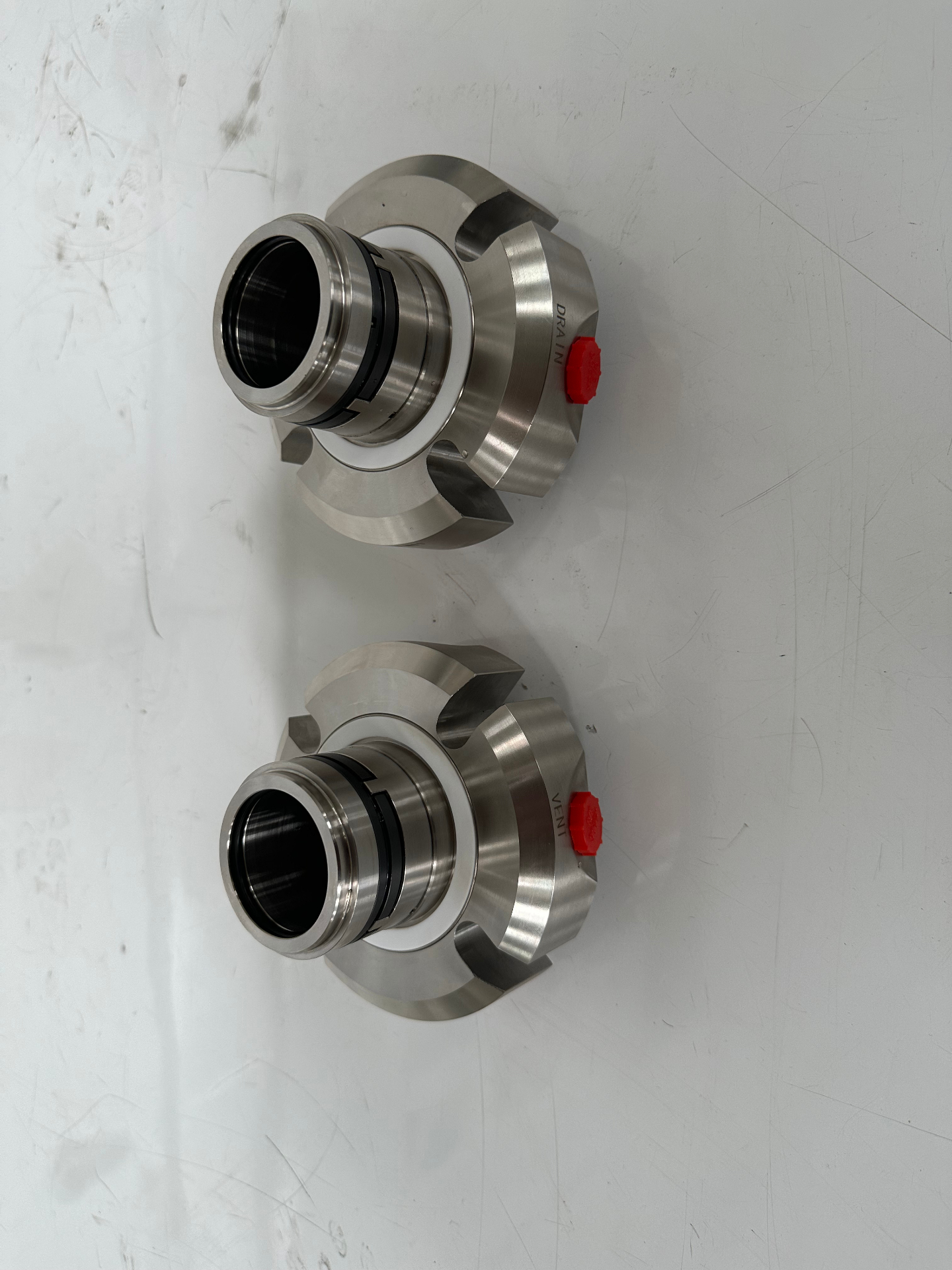

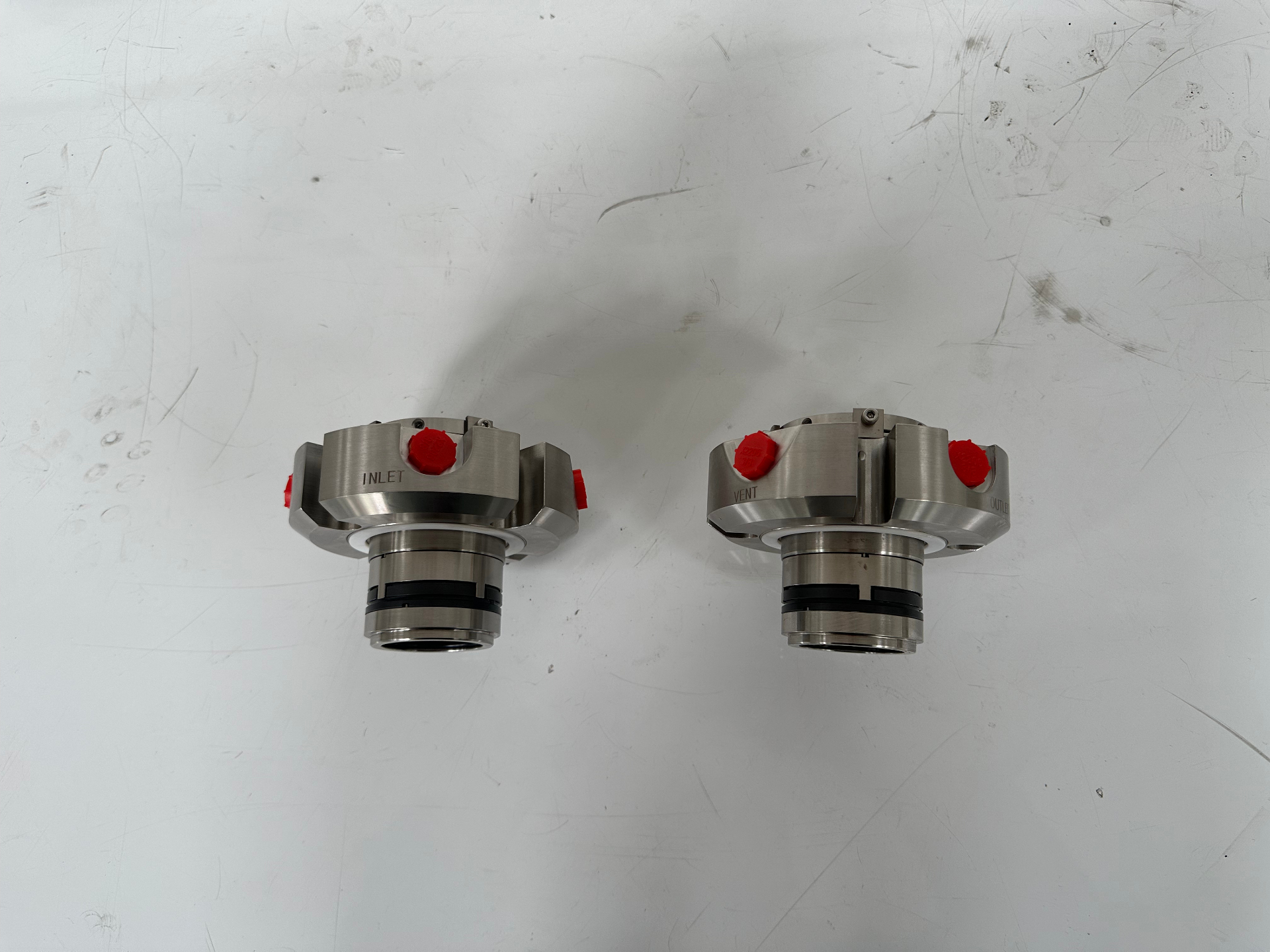

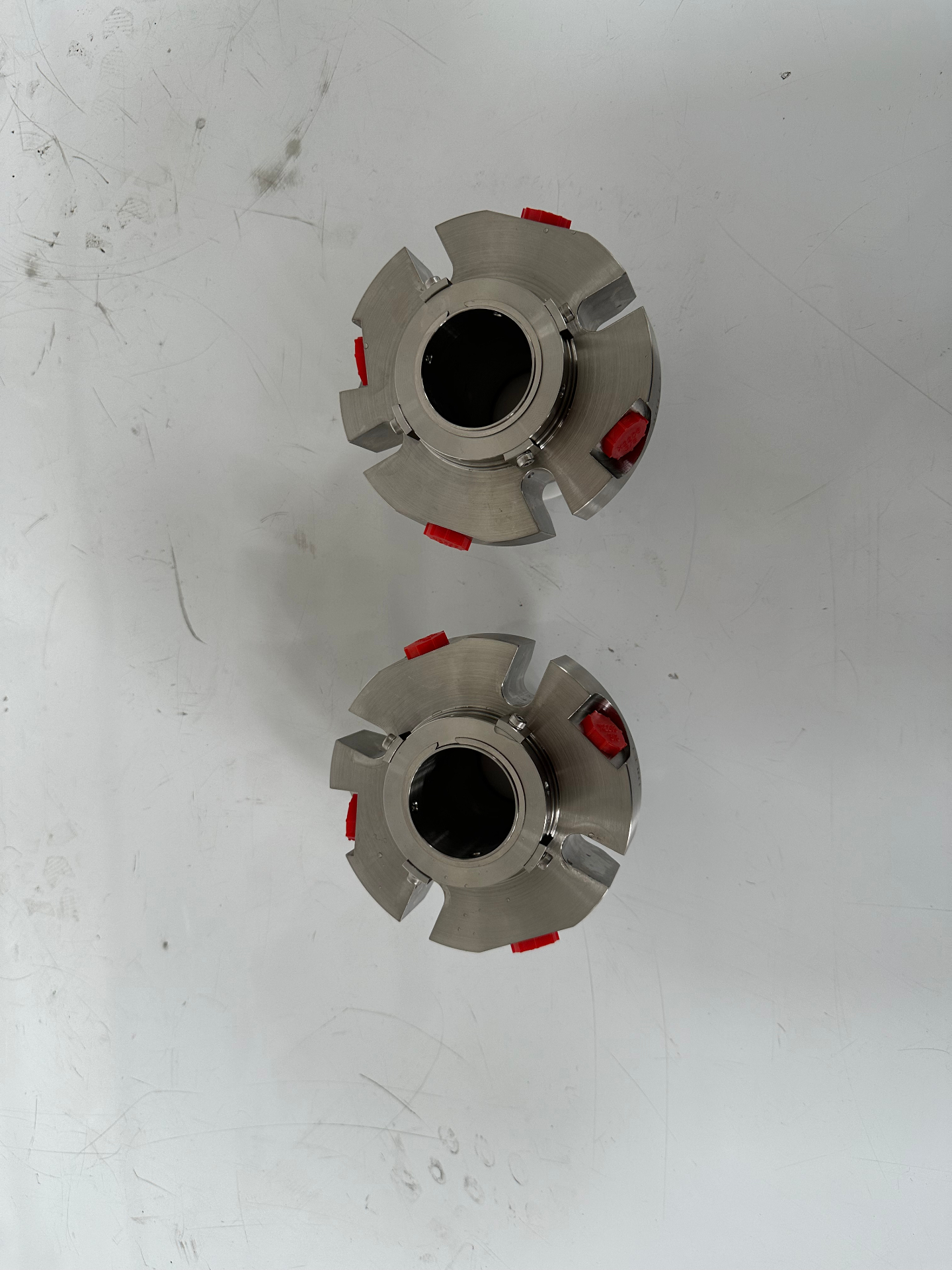

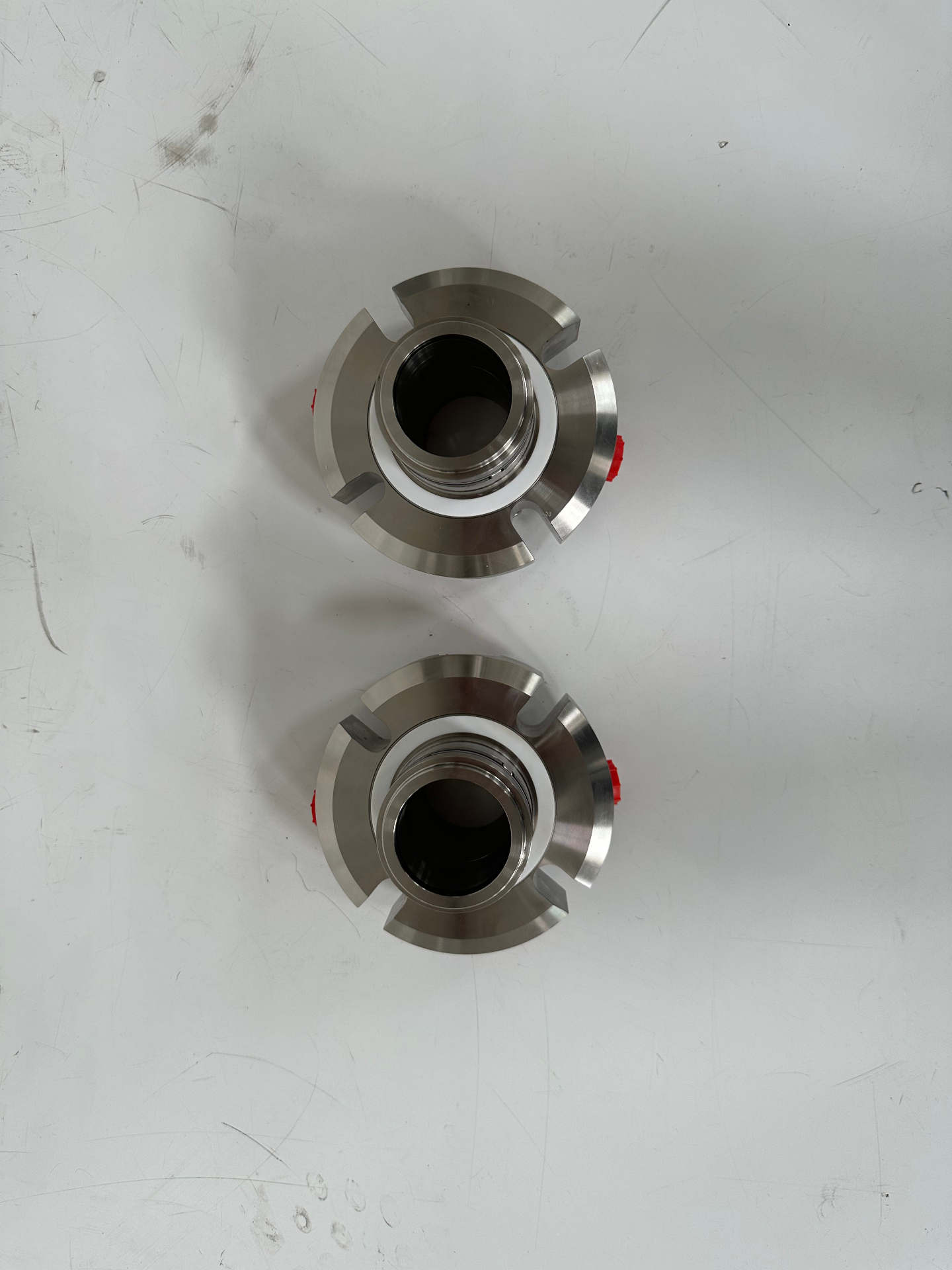

AS 5620V-45
5600 Series modular cartridge. 5620V is the wave spring, double ended cartridge for standard ANSI and large bore pumps.
Materials
Rotary Face / Stationary Face / Elastomer / Spring / Metal Parts
SiC/SiC/Viton/HC276/SS316 - SiC/SiC/Viton
1 Variant
| Model | Materials | GA |
|---|---|---|
| 5620V-45 | SiC/SiC/Viton/HC276/SS316 - SiC/SiC/Viton | — |
Operating Conditions & Materials
Pressure
2.5 MPa or less
Temperature
-40 ~ 200 ºC
Linear Speed
25 m/s or less
Mediums
Chemicals, solvents, process fluids. Double-end cartridge seal.
Customization Available
Changes of materials for getting other operating parameters are possible. Contact us with your requirements.
