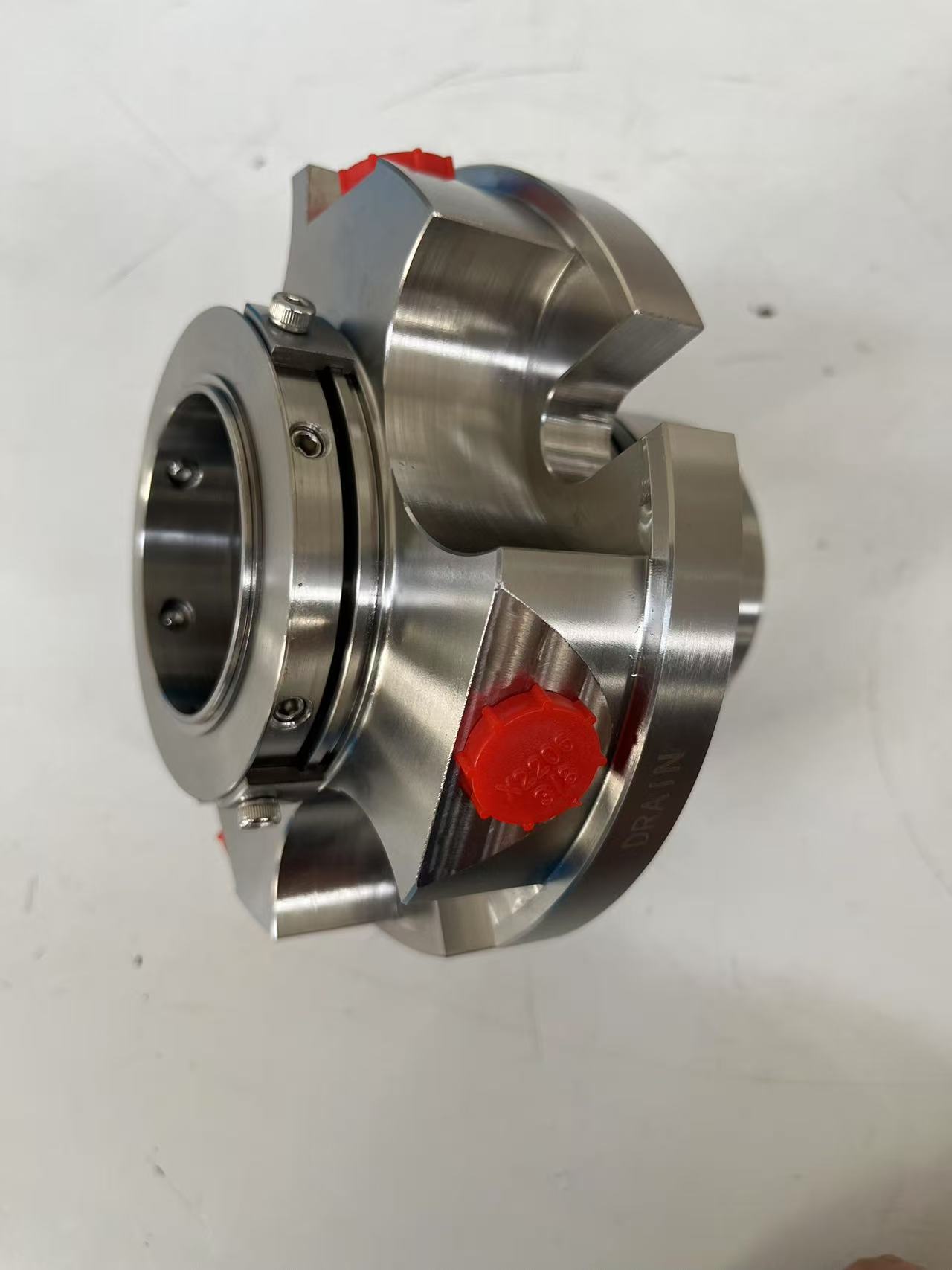

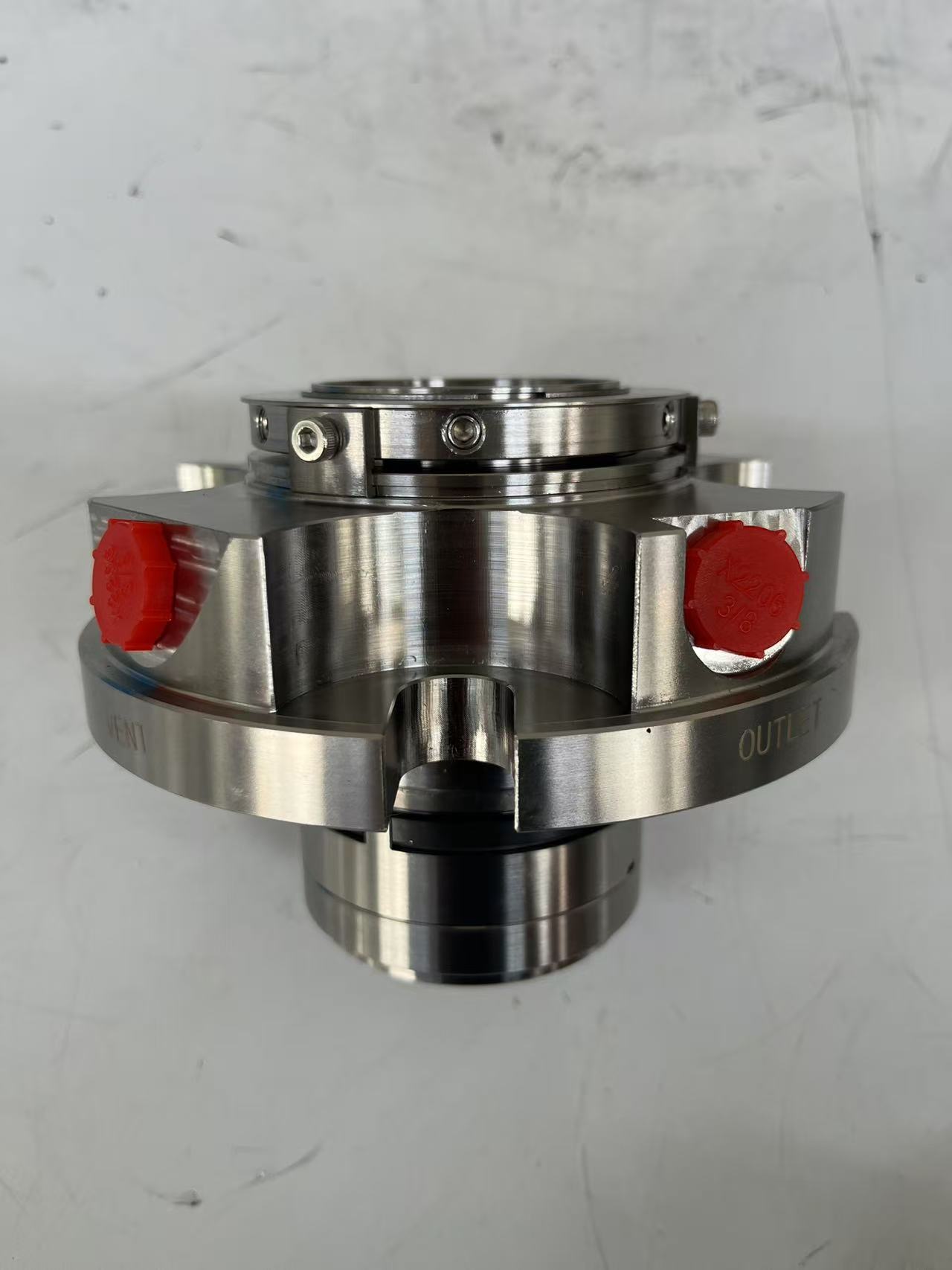

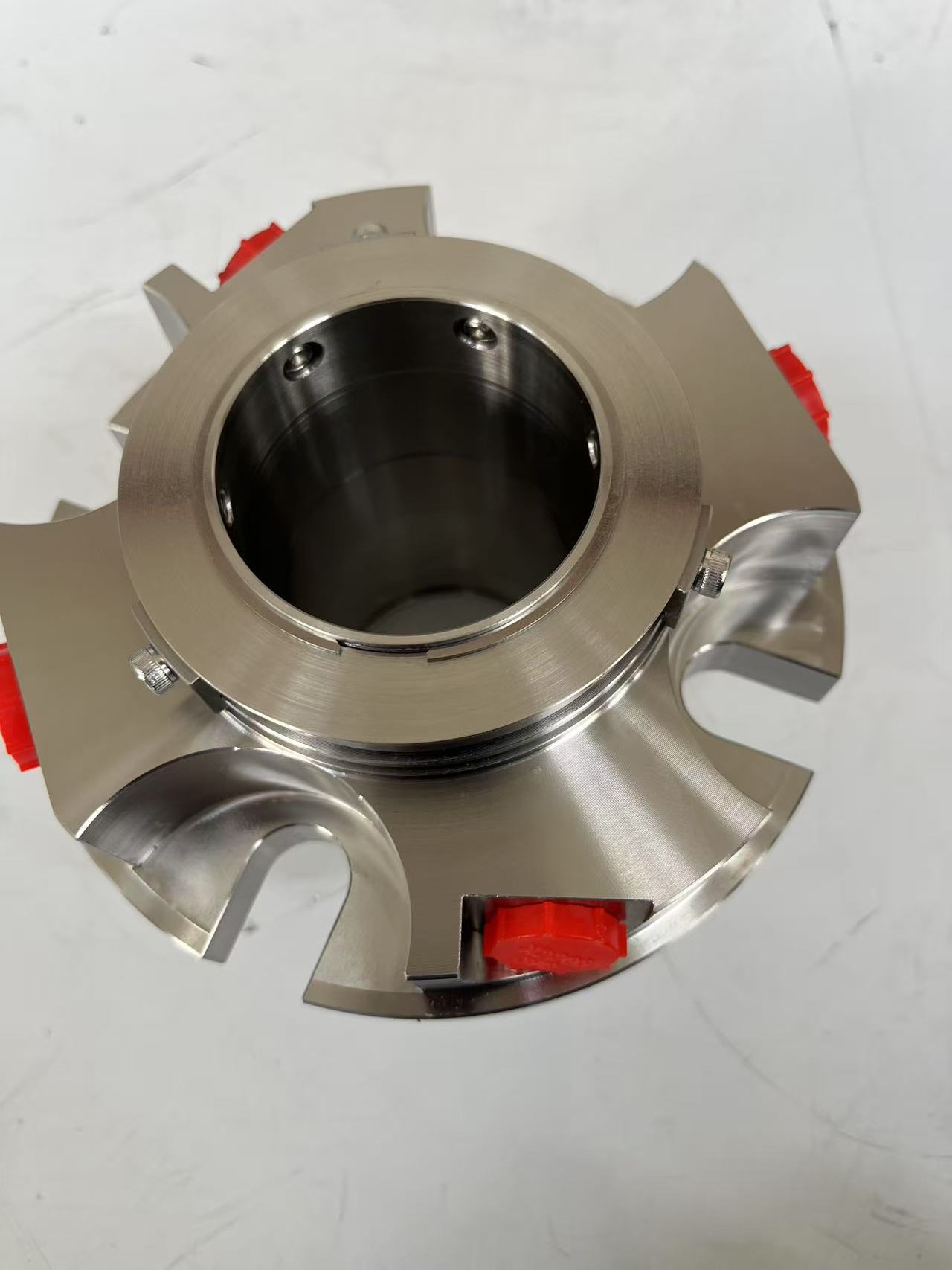

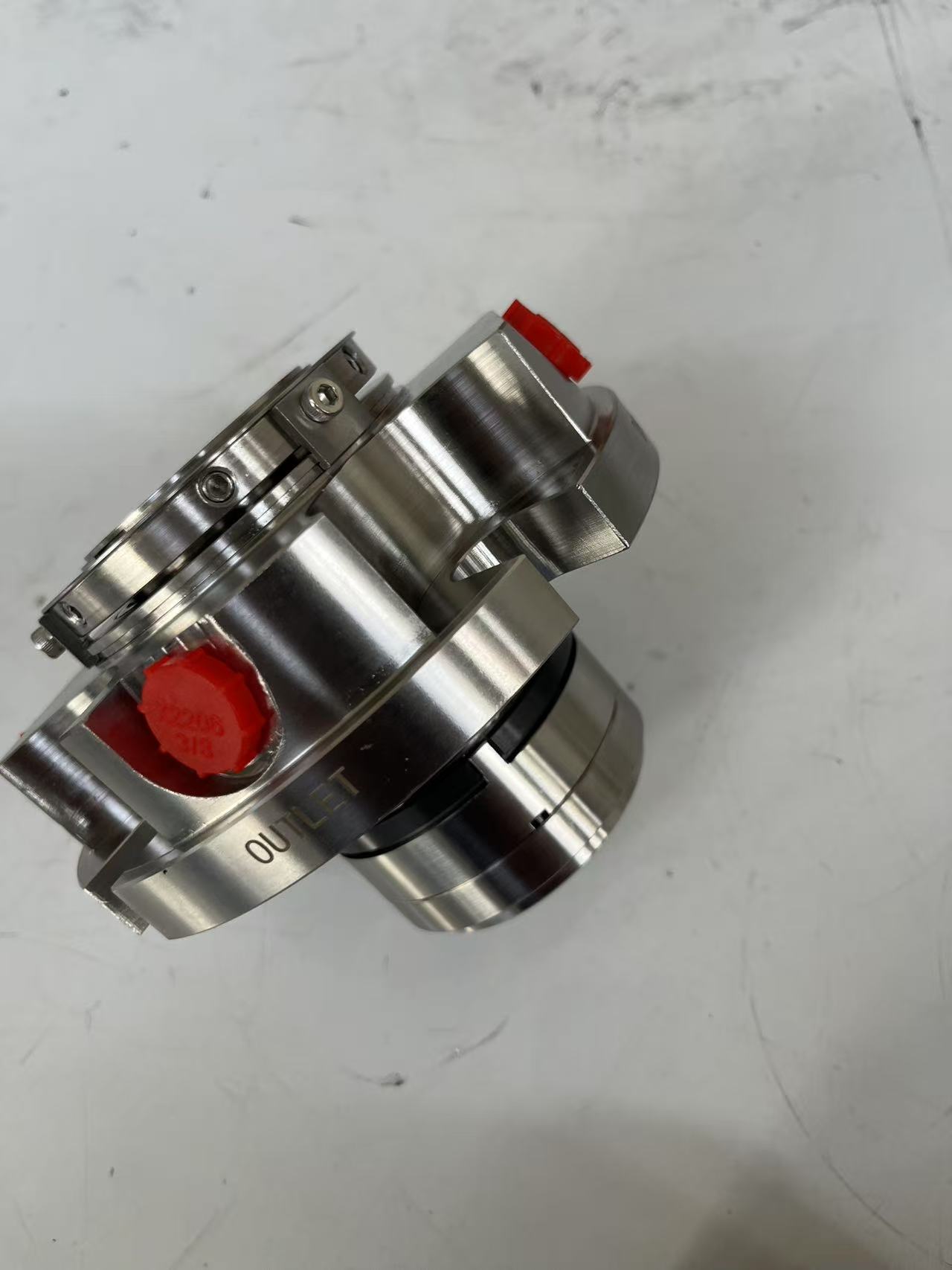

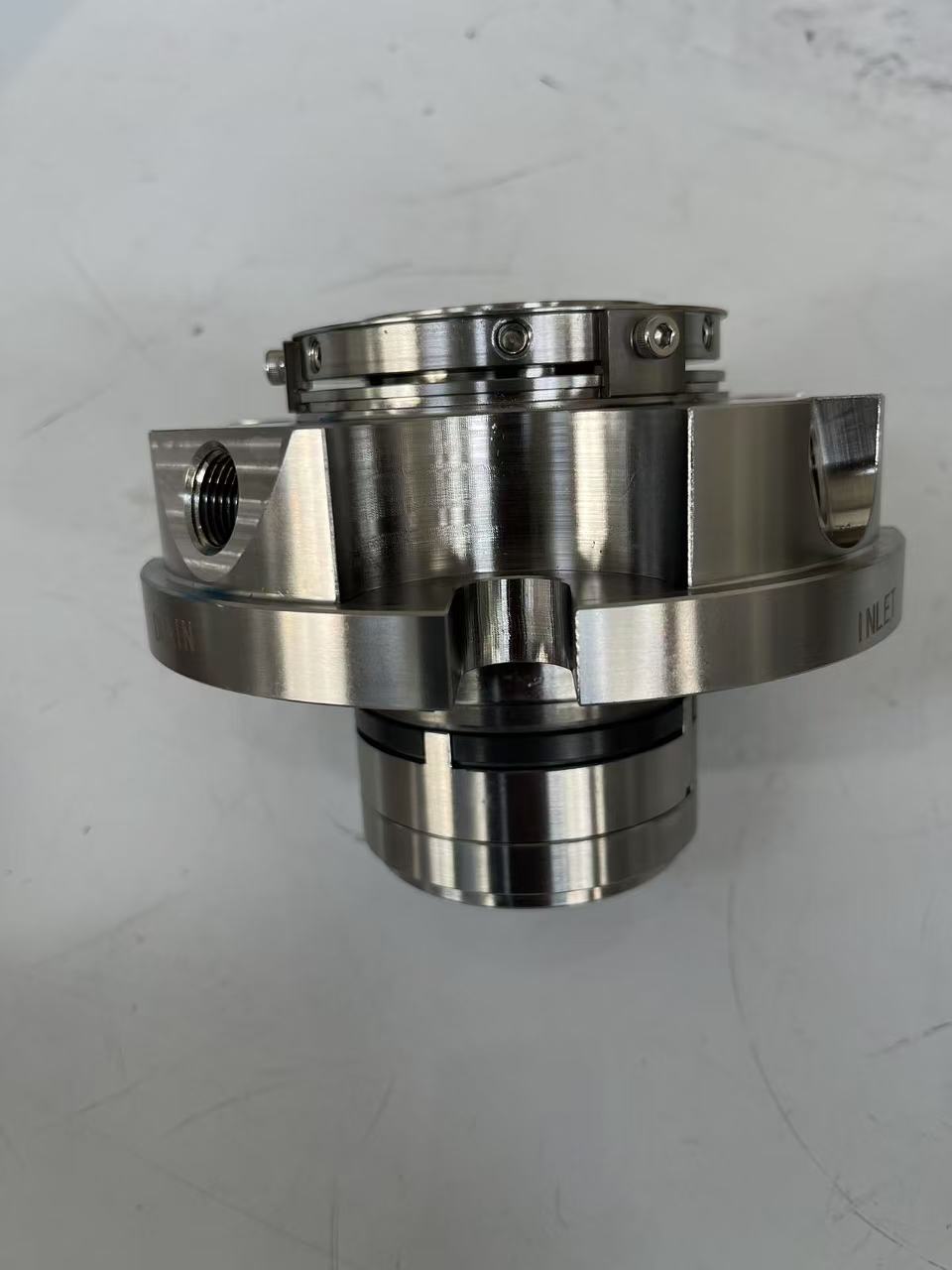

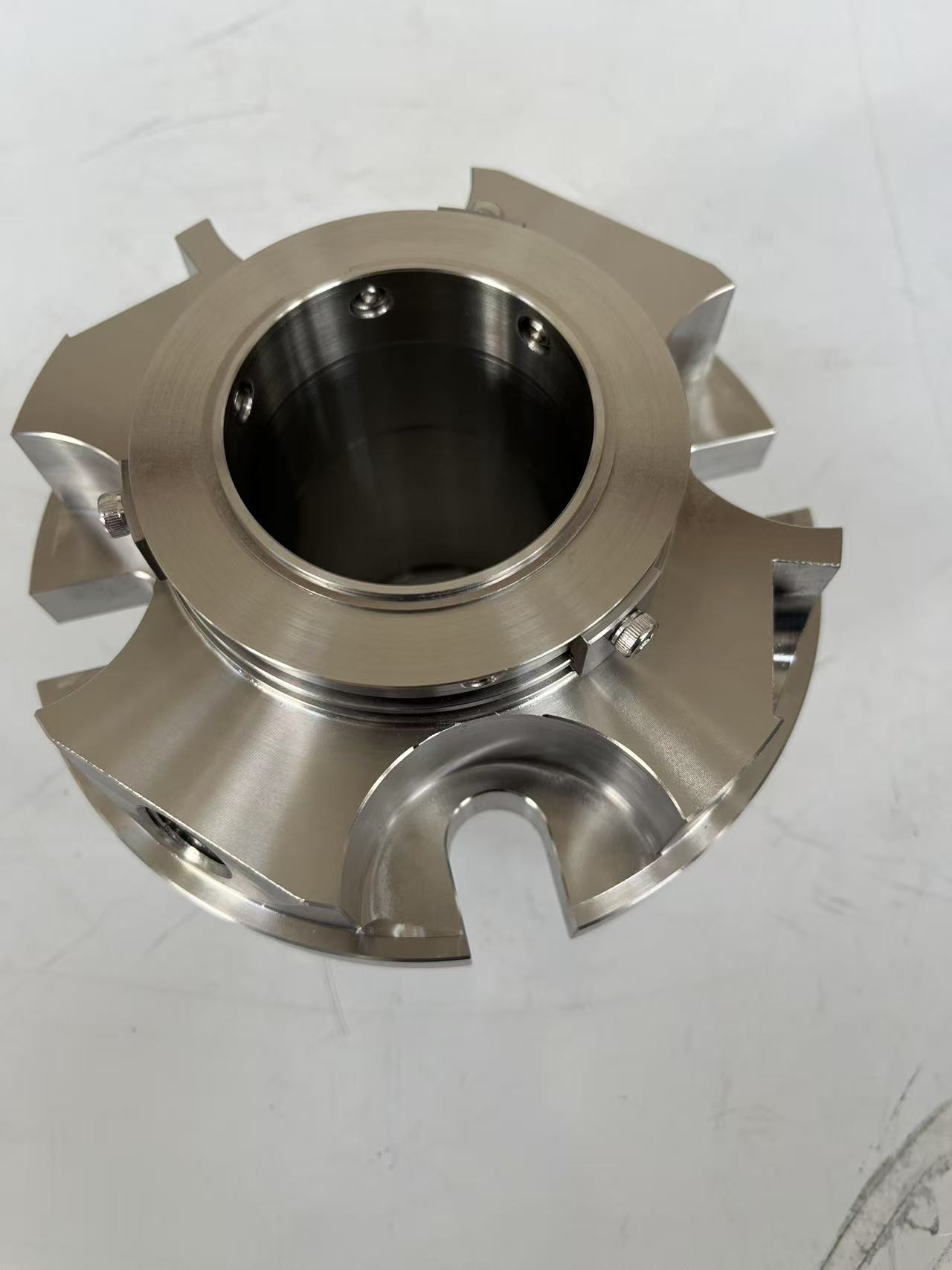

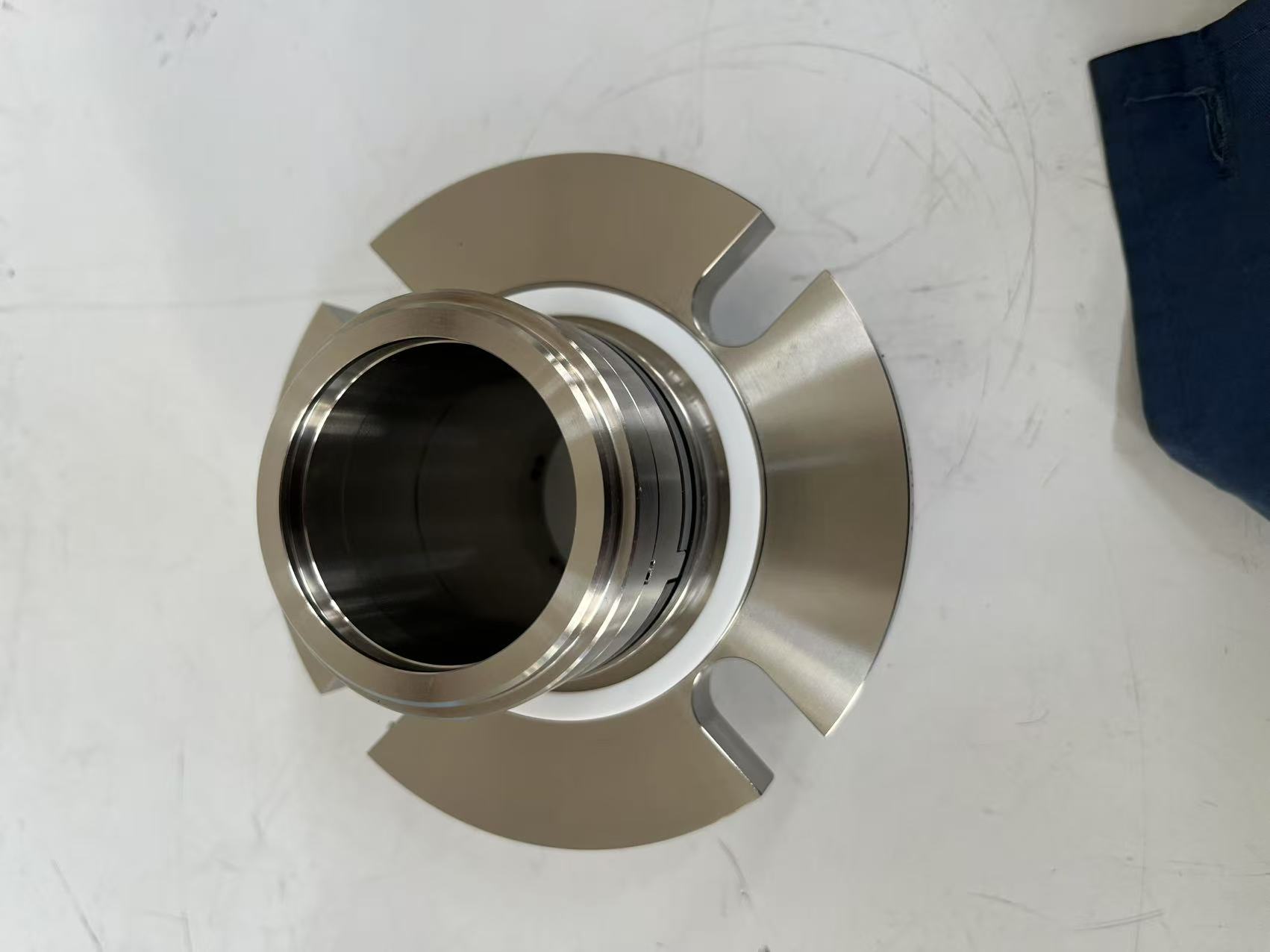

AS 5620V-HP-BH-55-363G-00
5600 Series wave spring, double ended cartridge for Sulzer centrifugal pumps.
Materials
Rotary Face / Stationary Face / Elastomer / Spring / Metal Parts
Carbon/SiC/Viton/HC276/SS316 - Carbon/SiC/Viton
1 Variant
| Model | Materials | GA |
|---|---|---|
| 5620V-HP-BH-55 | Carbon/SiC/Viton/HC276/SS316 - Carbon/SiC/Viton | GA-265756 |
Operating Conditions & Materials
Pressure
3.0 MPa or less
Temperature
-40 ~ 200 ºC
Linear Speed
25 m/s or less
Mediums
High-pressure applications, chemicals, process fluids. Double-end high-pressure seal.
Customization Available
Changes of materials for getting other operating parameters are possible. Contact us with your requirements.
