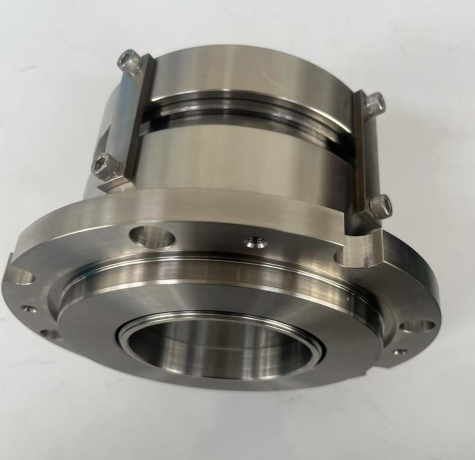

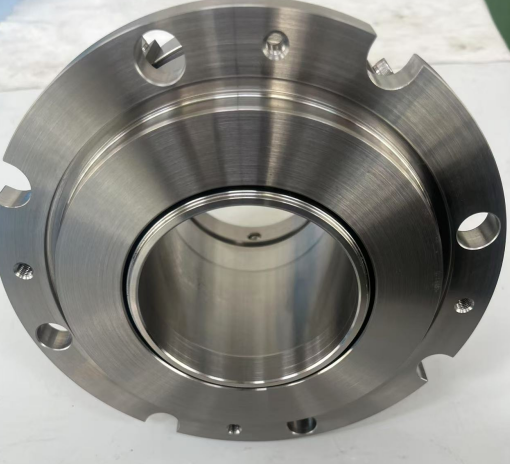

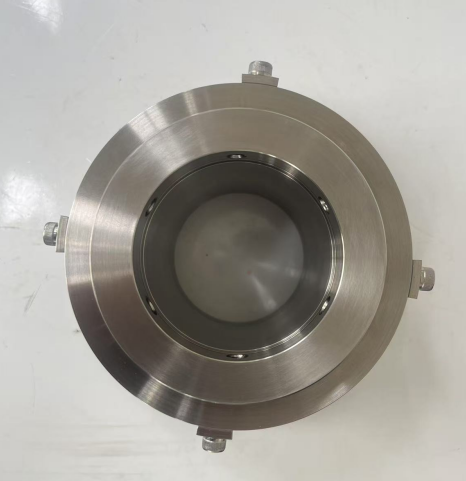

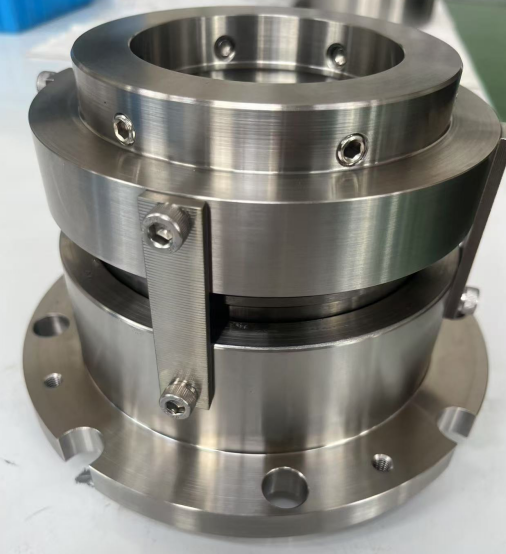

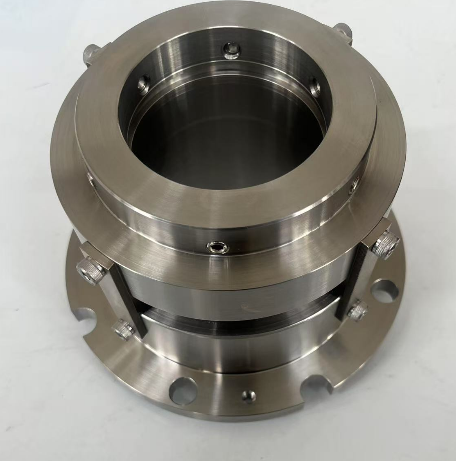

AS 586-80-GA-210544
High-performance mechanical seal designed for demanding industrial applications.
Materials
Rotary Face / Stationary Face / Elastomer / Spring / Metal Parts
TC/TC/Viton/HC276/SS316
1 Variant
| Model | Materials | GA |
|---|---|---|
| Type 586-80 | TC/TC/Viton/HC276/SS316 | GA-210544 |
Operating Conditions & Materials
Pressure
2.0 MPa or less
Temperature
-40 ~ 200 ºC
Linear Speed
25 m/s or less
Mediums
Paper pulp, high-consistency stock. For KADANT UVK300.
Customization Available
Changes of materials for getting other operating parameters are possible. Contact us with your requirements.
