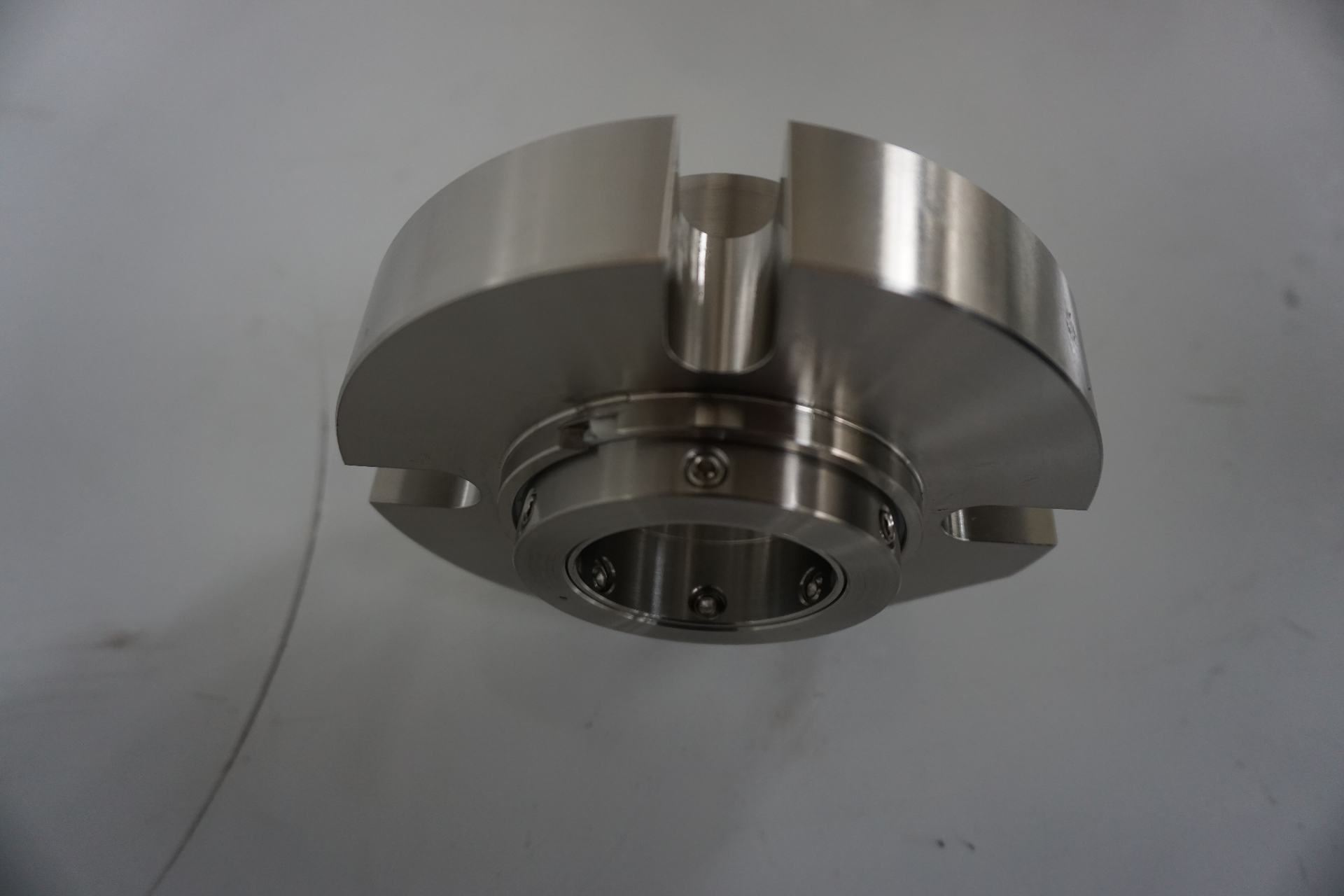

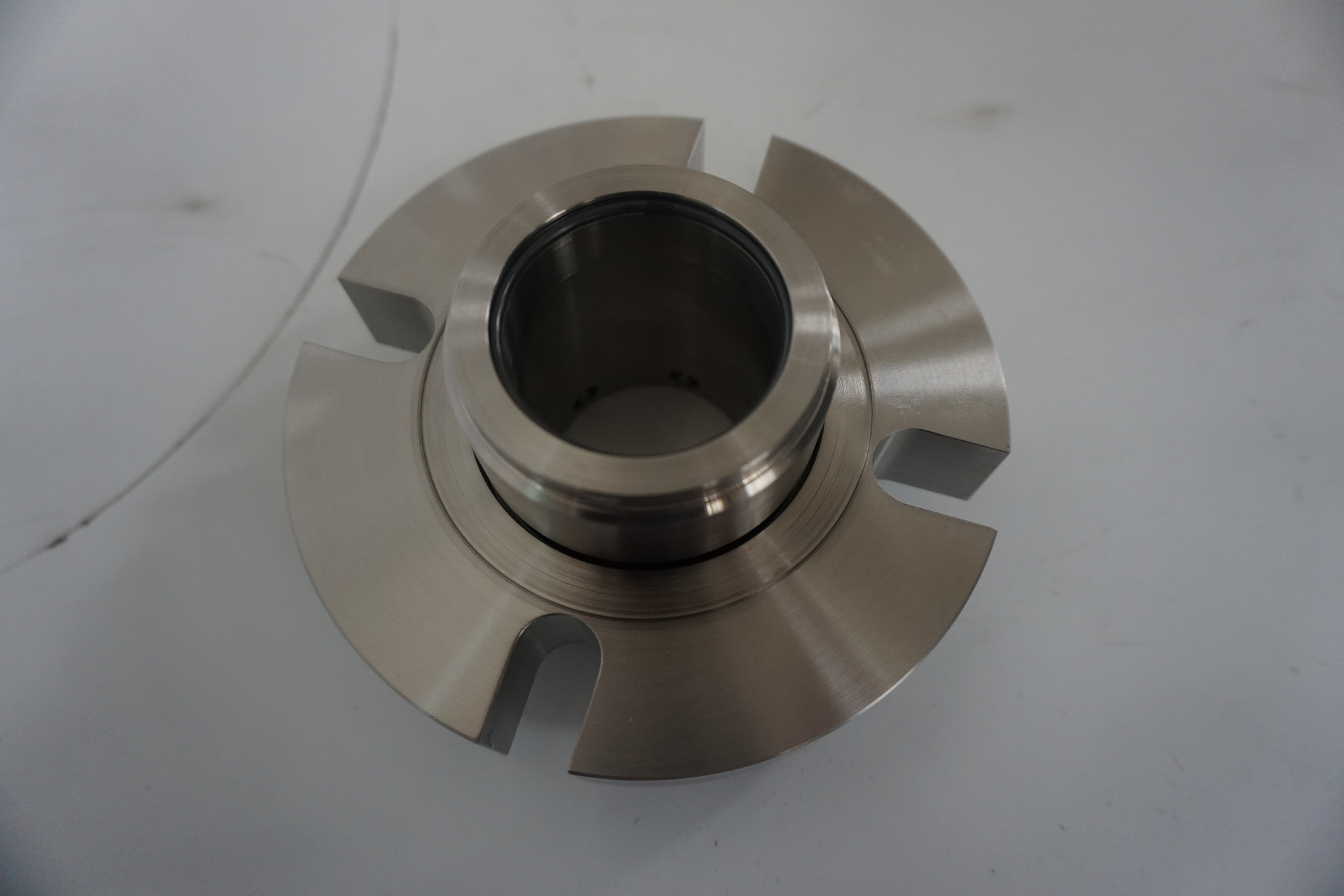

AS 5KSCB2S-43
Single balanced cartridge seal, dynamic design. Positioning lug ensures optimum pre-loading. Designed for universal use in chemical industry standardised installation spaces.
Materials
Rotary Face / Stationary Face / Elastomer / Spring / Metal Parts
Carbon/SiC/FEP/HC276/SS316
1 Variant
| Model | Materials | GA |
|---|---|---|
| 5KSCB2S-43 | Carbon/SiC/FEP/HC276/SS316 | — |
Operating Conditions & Materials
Pressure
2.0 MPa or less
Temperature
-40 ~ 200 ºC
Linear Speed
25 m/s or less
Mediums
Paper pulp, water, chemical processing fluids.
Customization Available
Changes of materials for getting other operating parameters are possible. Contact us with your requirements.
