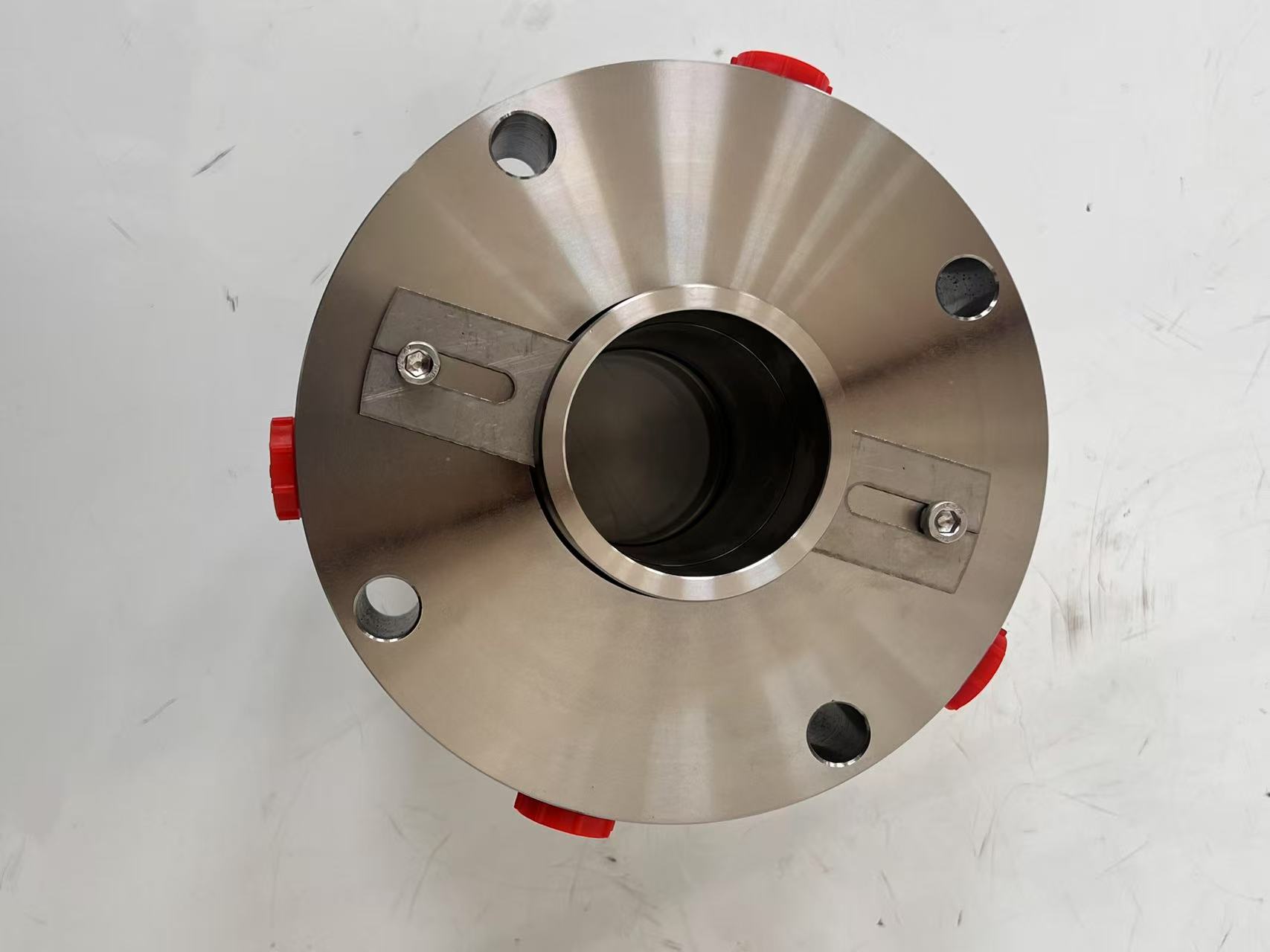

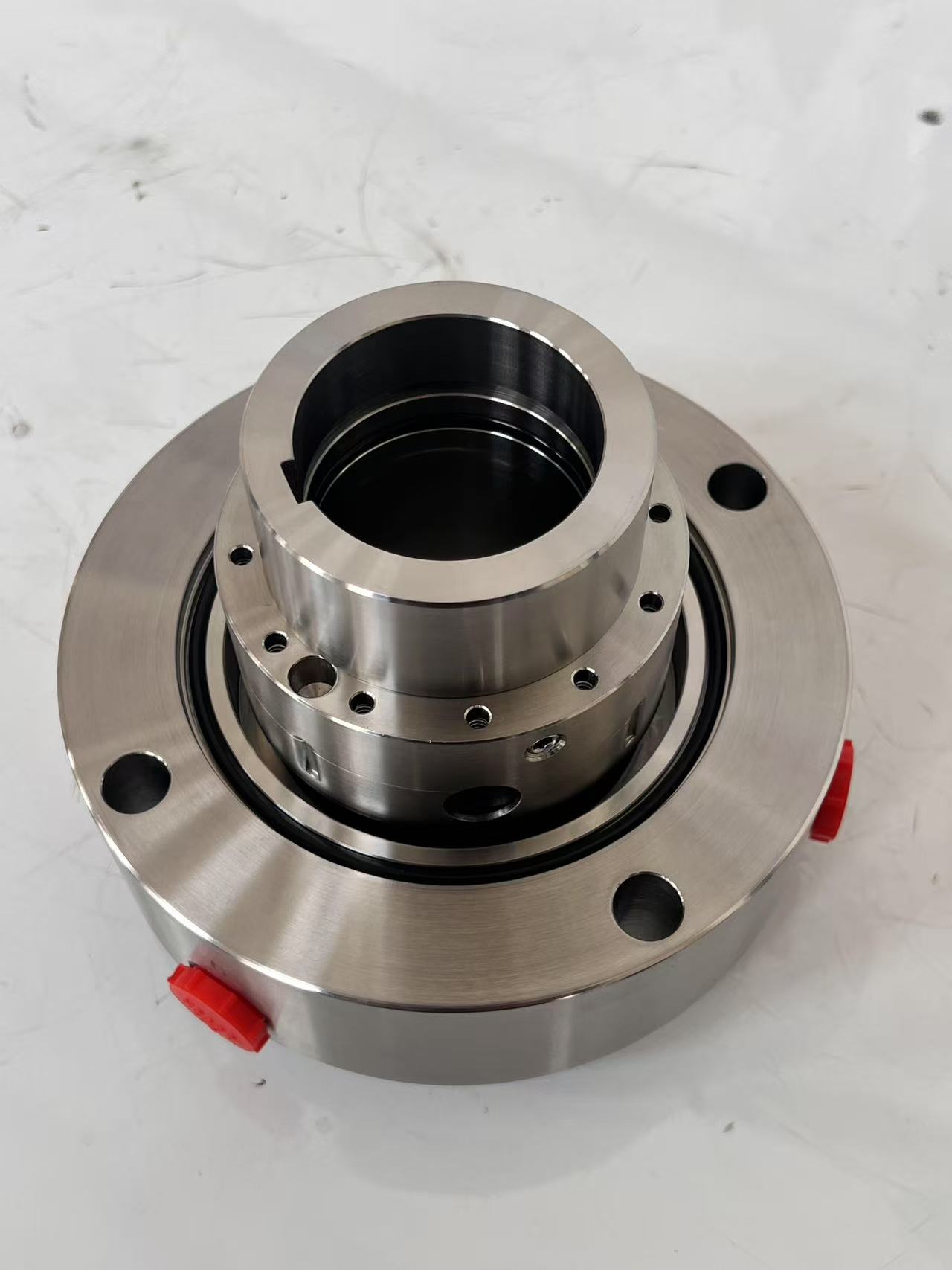

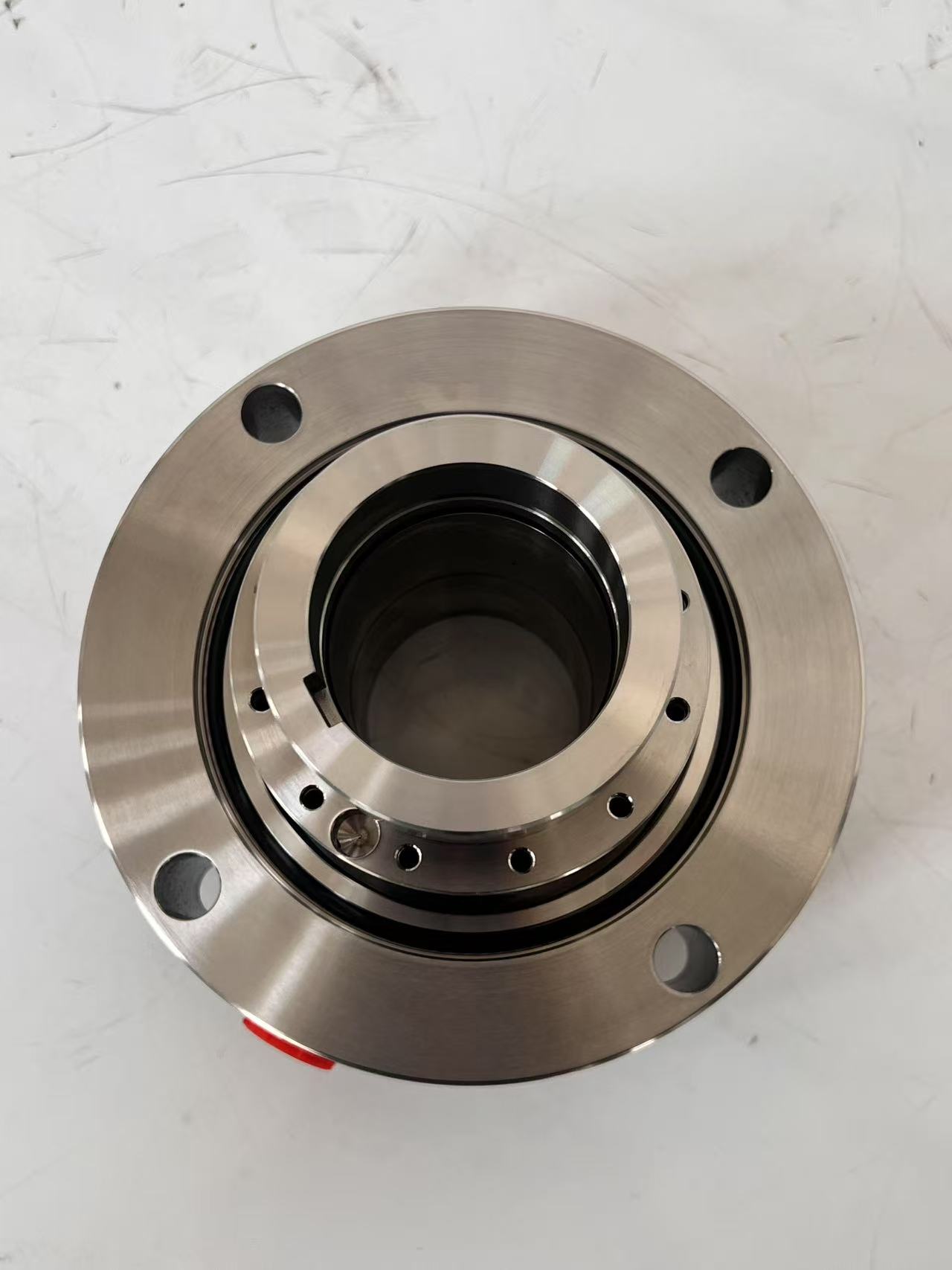

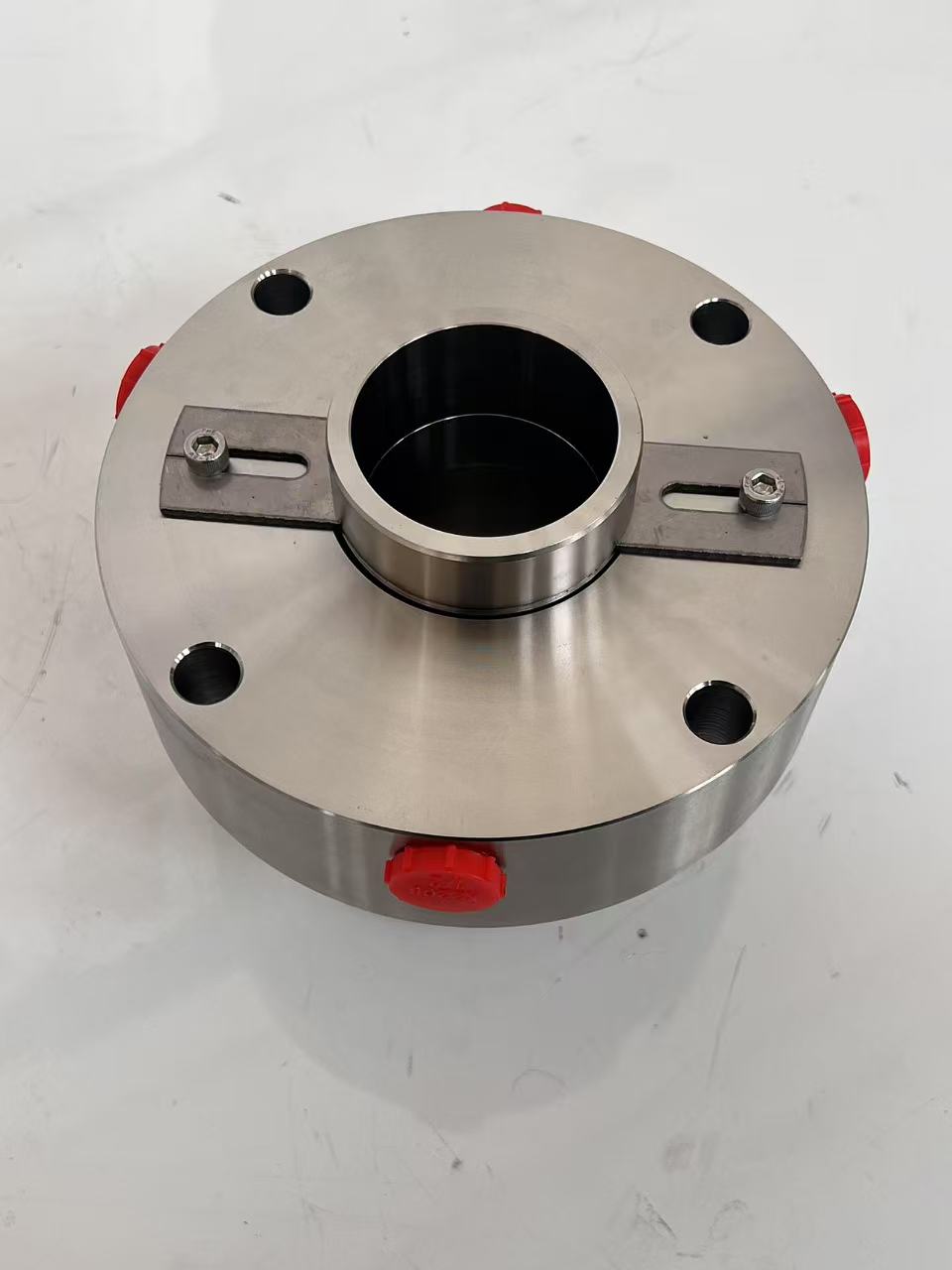

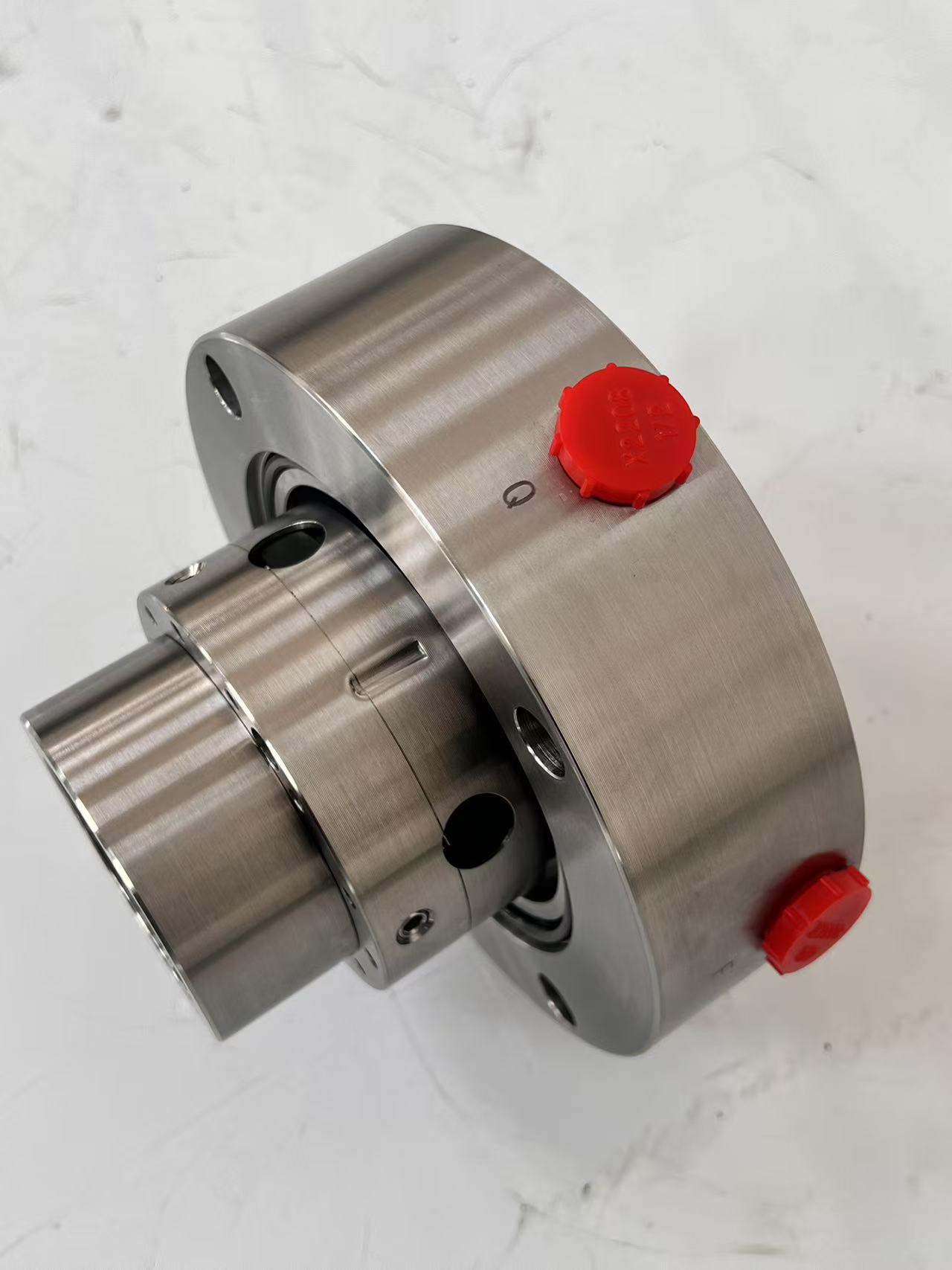

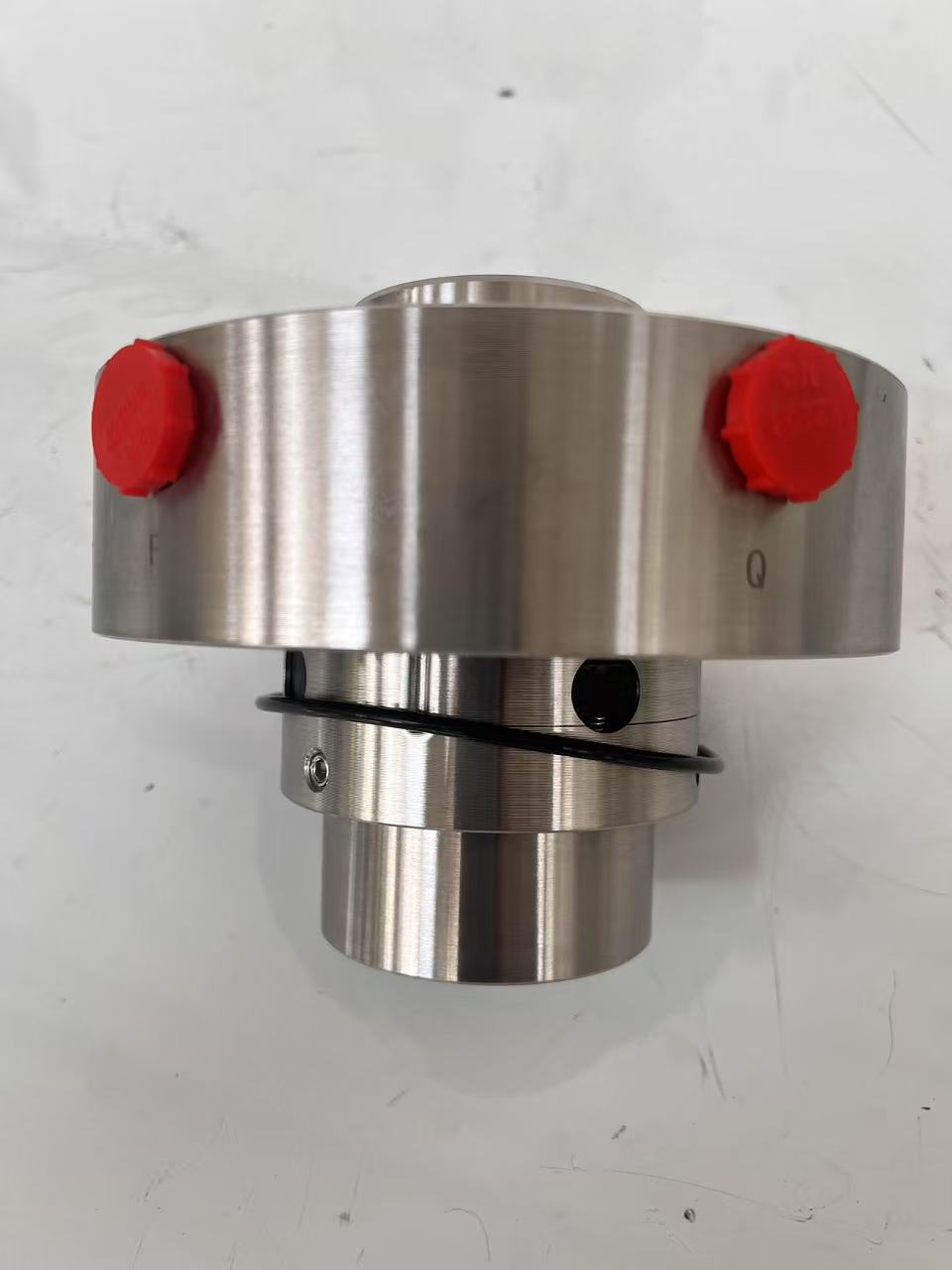

AS 8B1BF-58-M10049-00
Single balanced cartridge seal with flush and quench lines. Designed for high temperature boiler water conditions.
Materials
Rotary Face / Stationary Face / Elastomer / Spring / Metal Parts
Antimony Filled Carbon/SiC/Aflas/SS304/SS304
1 Variant
| Model | Materials | GA |
|---|---|---|
| 8B1BF-58 | Antimony Filled Carbon/SiC/Aflas/SS304/SS304 | — |
Operating Conditions & Materials
Pressure
2.5 MPa or less
Temperature
-20 ~ 220 ºC
Linear Speed
30 m/s or less
Mediums
Boiler water, high temperature clean water applications.
Customization Available
Changes of materials for getting other operating parameters are possible. Contact us with your requirements.
